Power Window Schematics

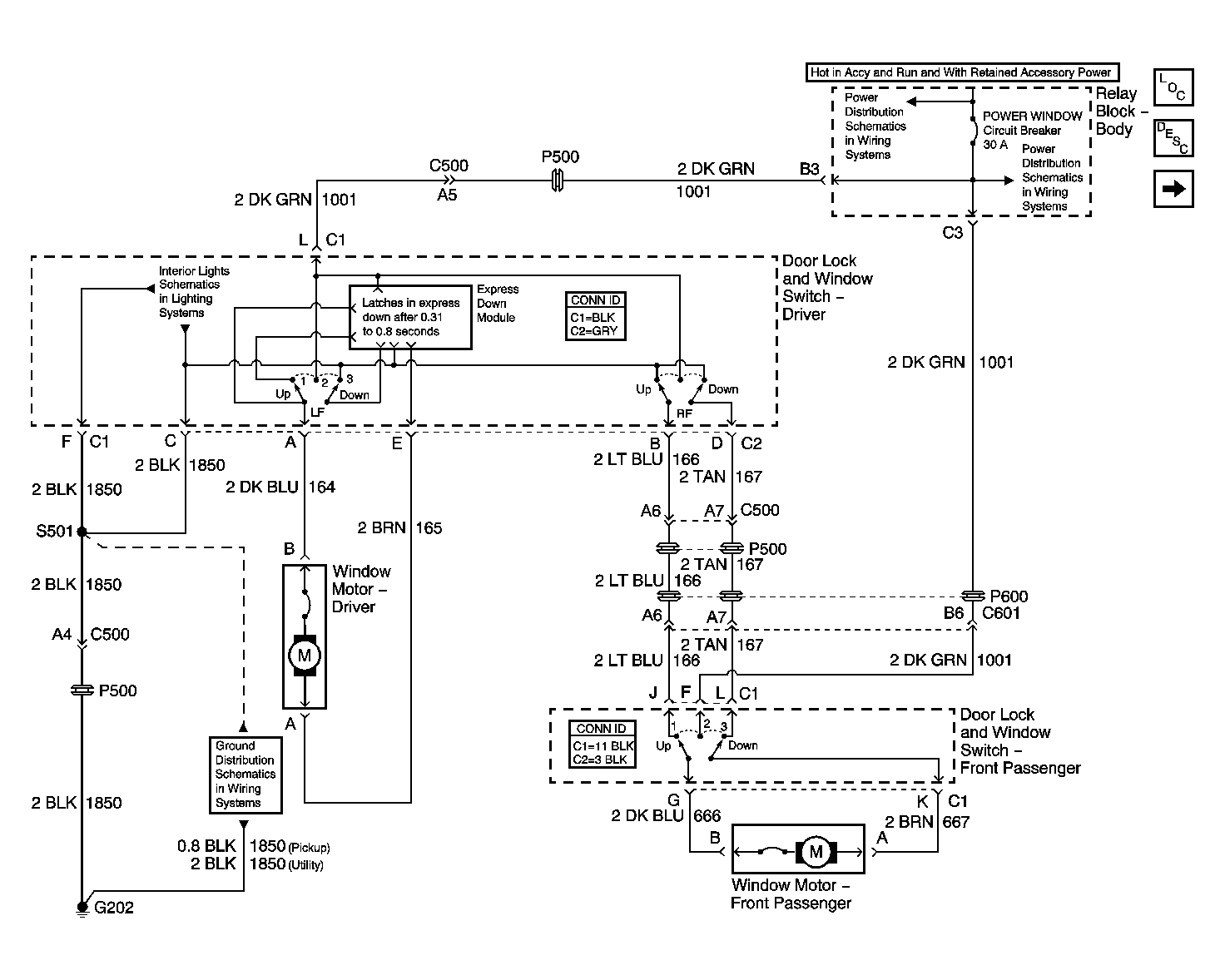

Fig 1: Front Side Window Motors Schematic - 2-Door
GM755915Courtesy of GENERAL MOTORS CORP.

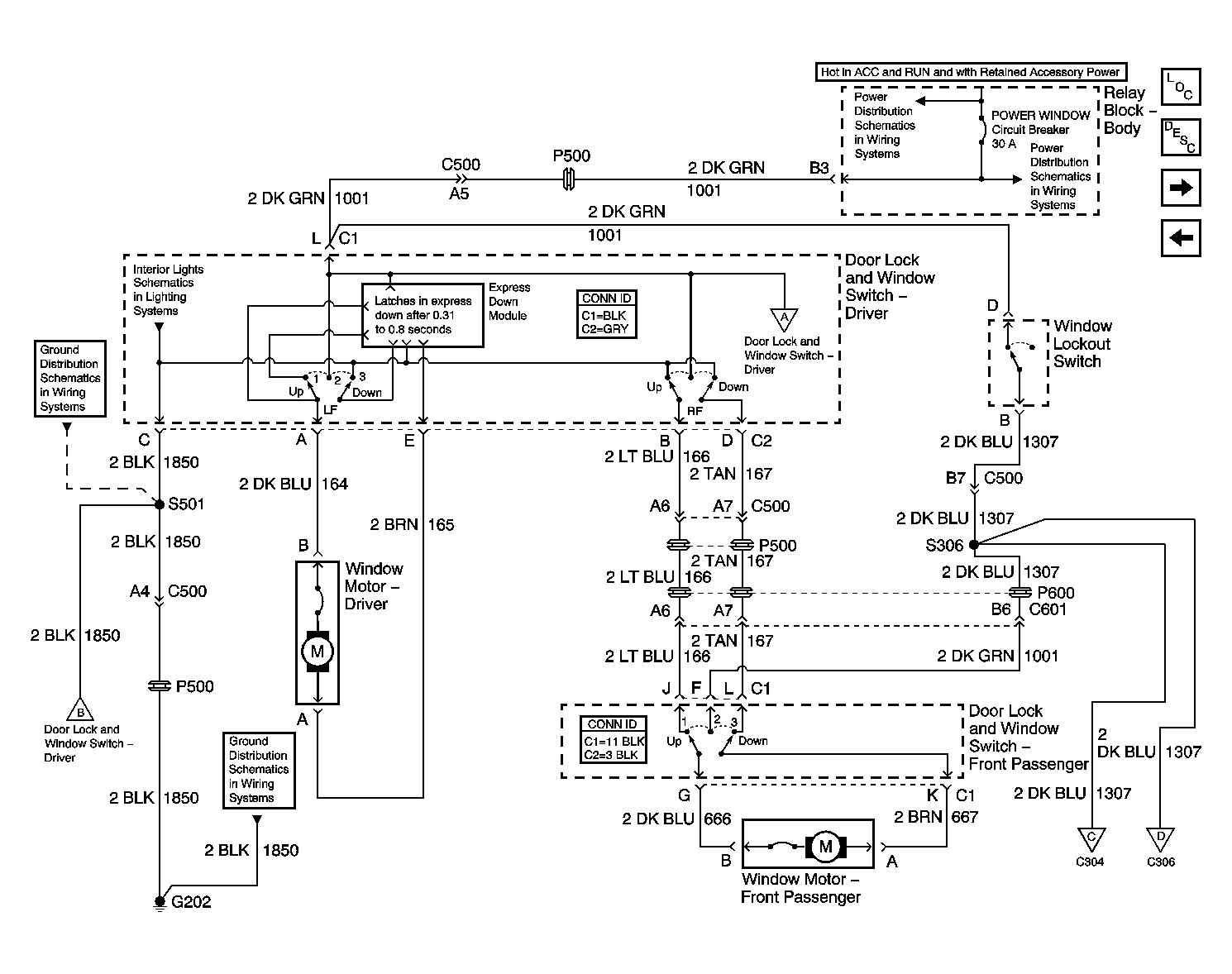

Fig 2: Front Side Window Motors Schematic - 4-Door
GM755916Courtesy of GENERAL MOTORS CORP.

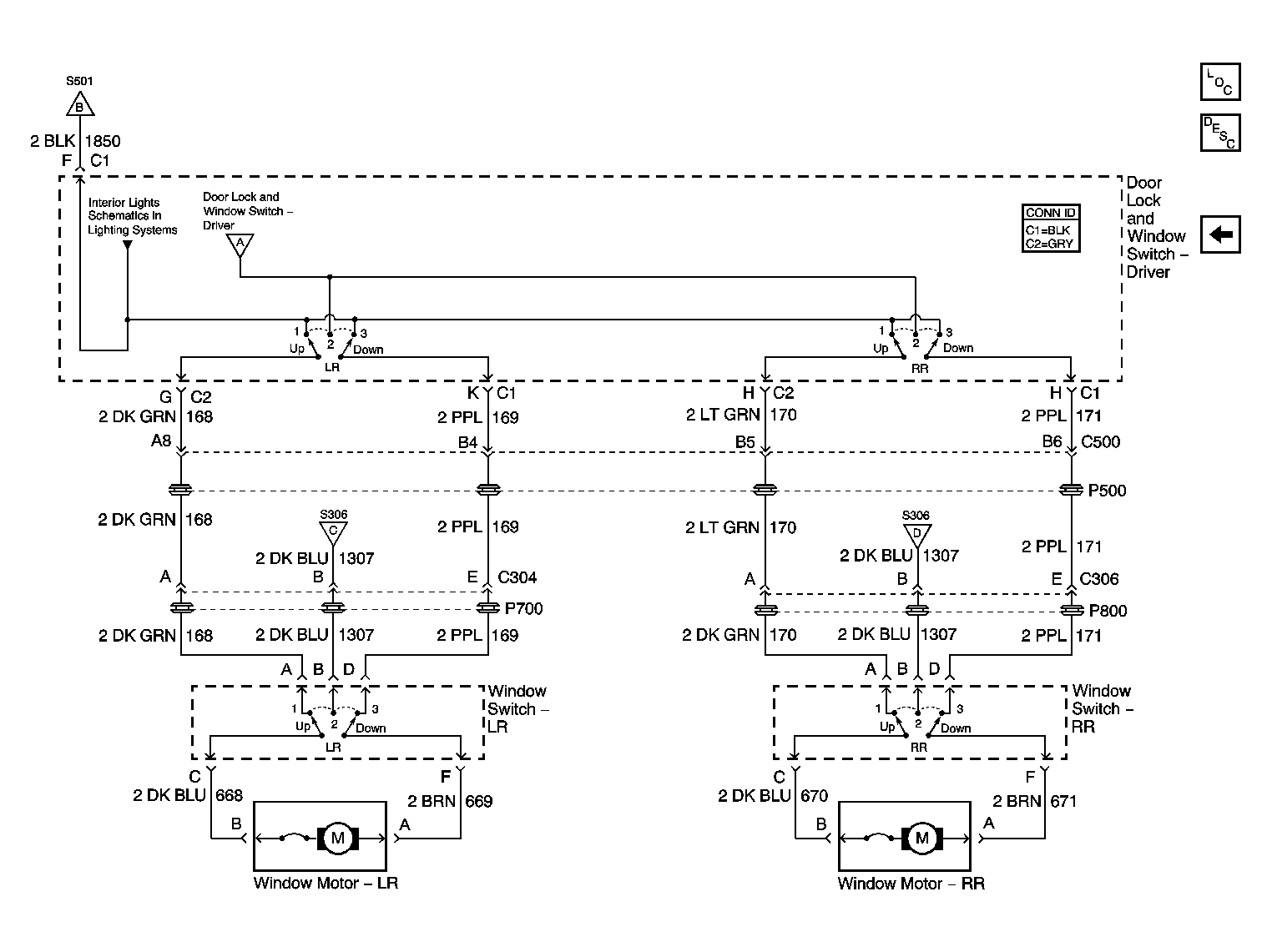

Fig 3: Rear Side Window Motors Schematic
GM755917Courtesy of GENERAL MOTORS CORP.
