Power and Grounding Component Views

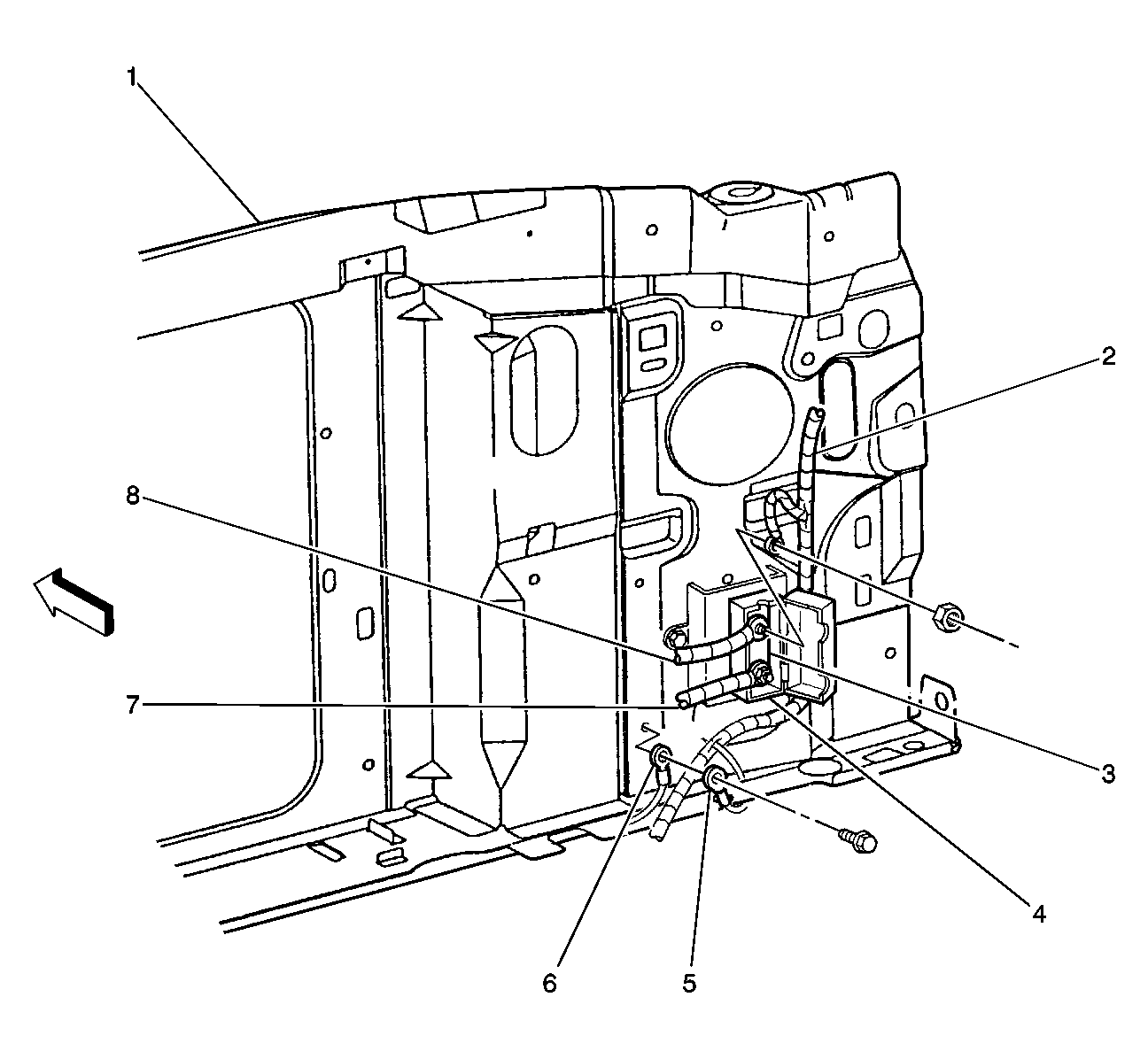

Fig 1: Battery Fuse and Secondary Air Injection (AIR) Jumper Harness
GM612447Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radiator Support, RH
2 Secondary Air Injector (AIR) Jumper Harness
3 Battery Fuse
4 Fuse Holder
5 G100
6 G112
7 S153
8 Battery Positive Cable

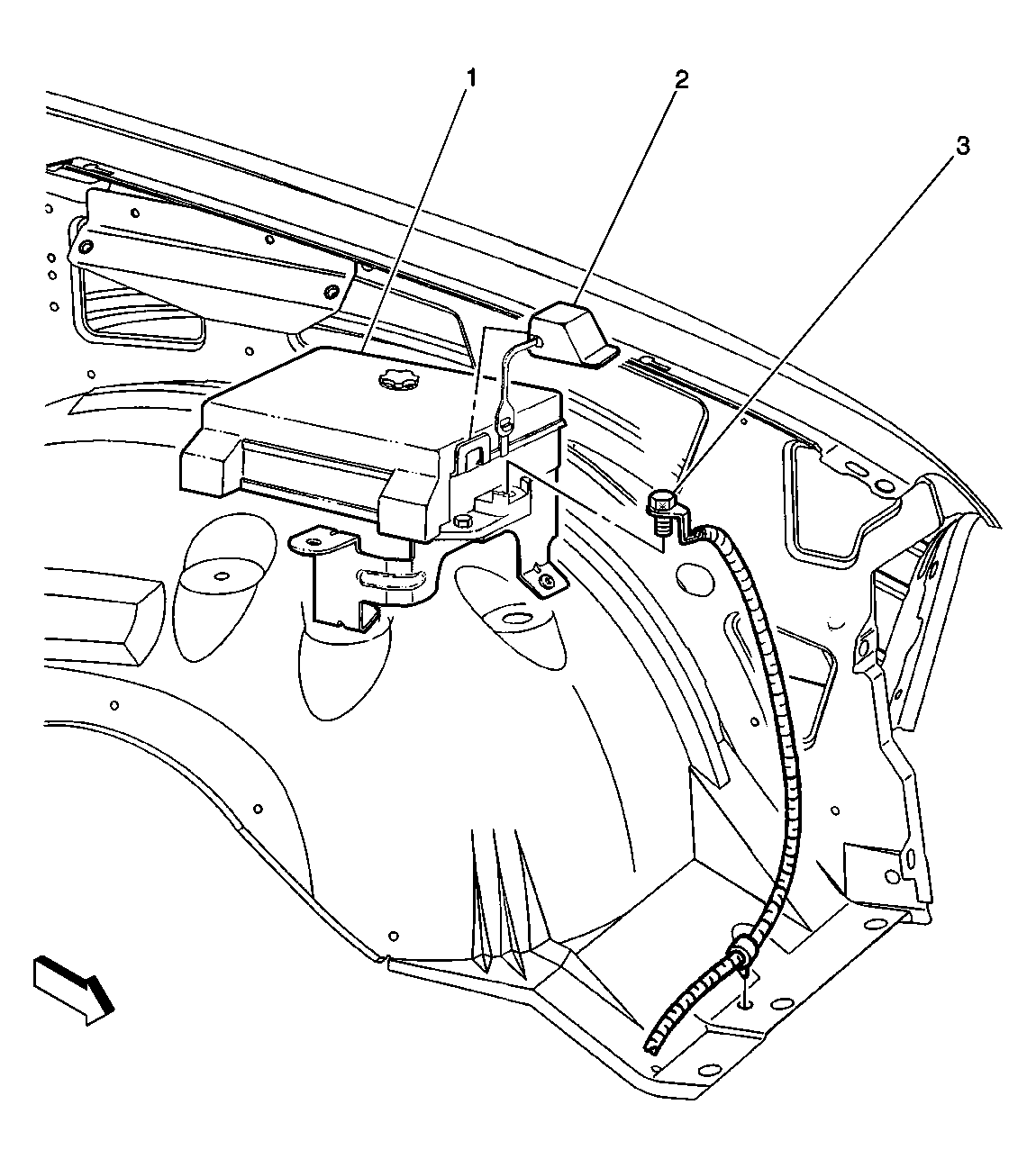

Fig 2: Battery Fuse Cable to Fuse Block - Underhood
GM354779Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Fuse Stud Cover
3 Battery Fuse Cable
