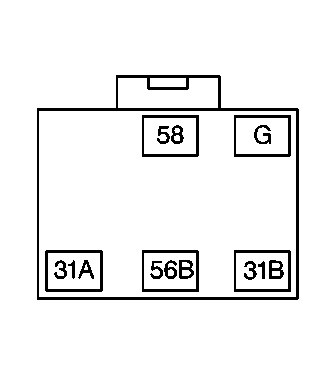

Headlamp Leveling Switch Connector End View (Export)

Headlamp Leveling Switch (Export)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162804 5-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
31A	BLK	1050	Ground
31B	-	-	Not Used
56B	PNK	639	Ignition 1 Voltage
58	GRY	1220	Instrument Panel Lamp Fuse Supply Voltage - 2
G	DK GRN	189	Headlamp Leveling Motor Supply Voltage
