Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems - Introduction
>>
Schematic and Routing Diagrams
>>
Power Distribution Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Distribution Schematics

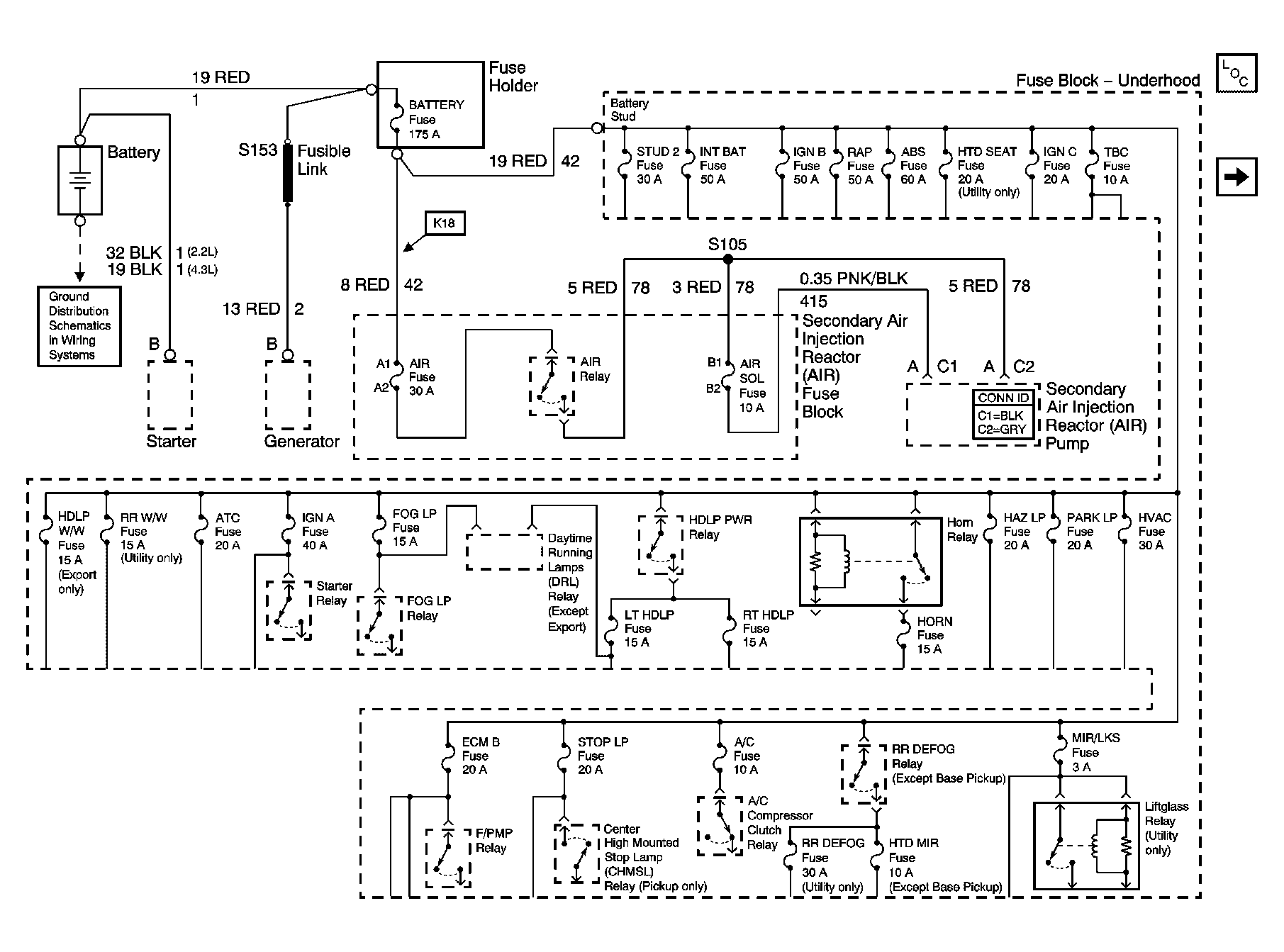

Fig 1: B+ Bus Bar
Courtesy of GENERAL MOTORS CORP.
Fig 2: Ign RUN and START Bus Bar
Courtesy of GENERAL MOTORS CORP.
Fig 3: Ign ACC, RUN and RAP Bus Bar
Courtesy of GENERAL MOTORS CORP.

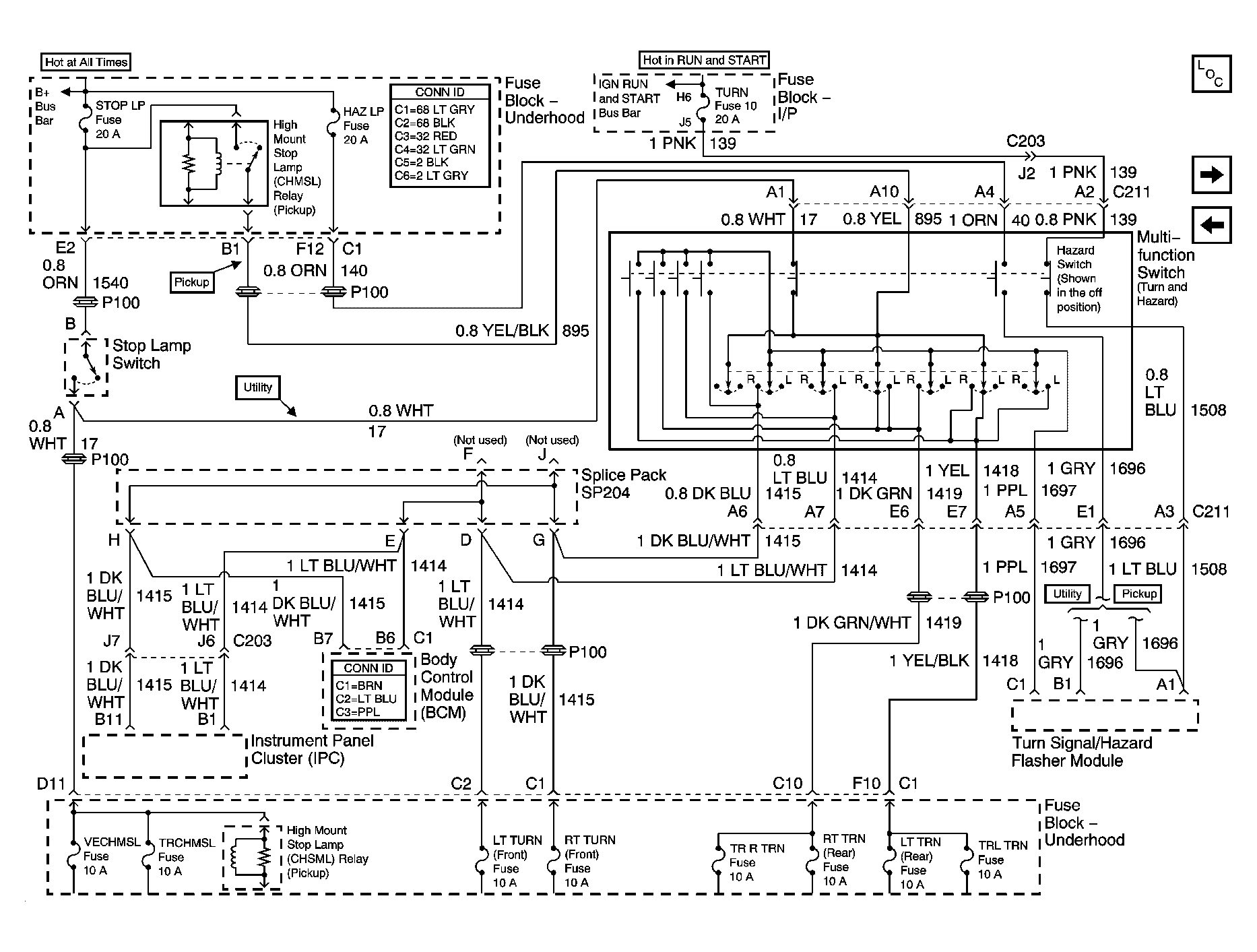

Fig 4: Stop, Turn and Hazard Bus Bar
Courtesy of GENERAL MOTORS CORP.

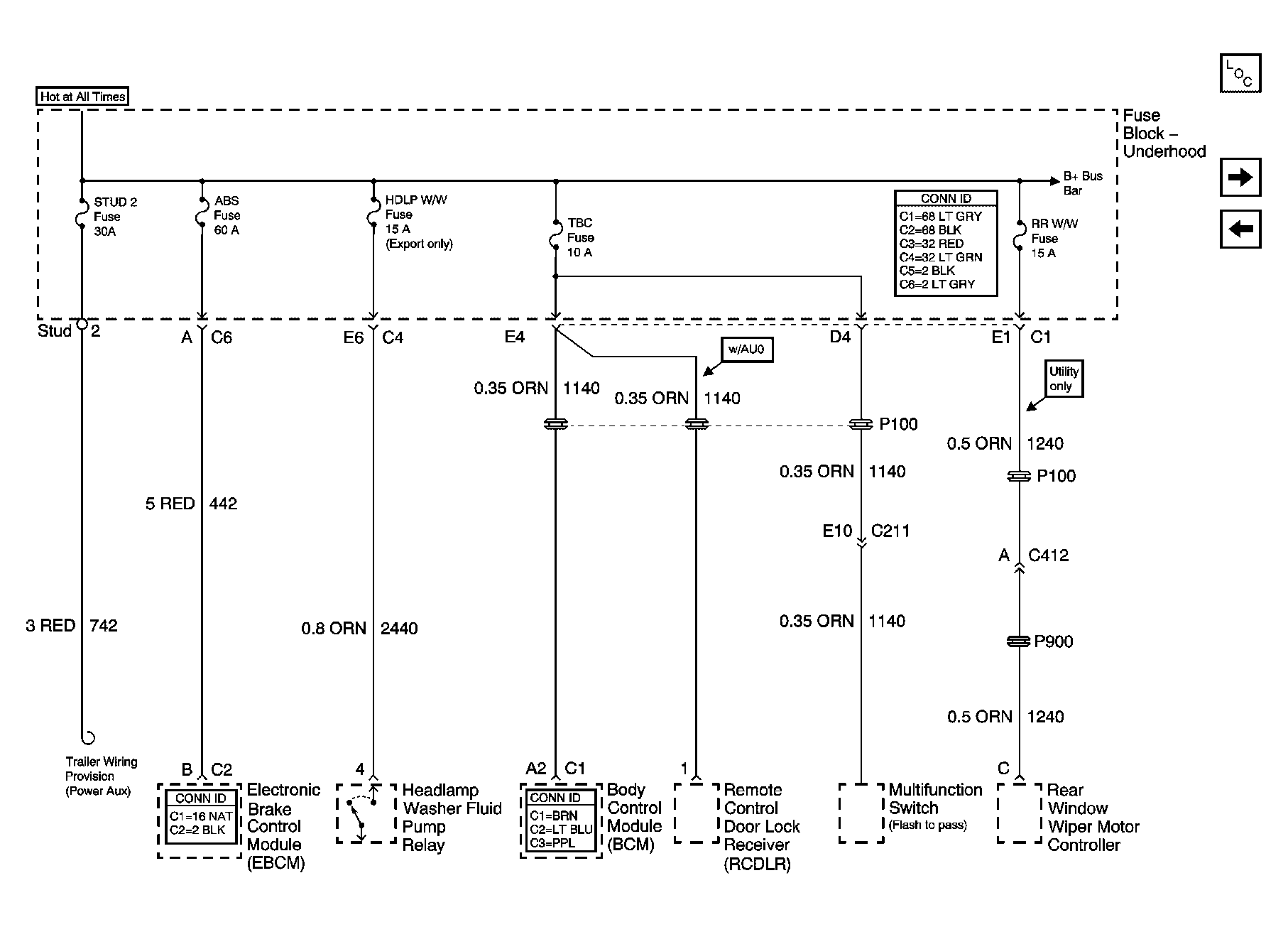

Fig 5: STUD 2, ABS, HDLP W/W, TBC and RR W/W Fuses
Courtesy of GENERAL MOTORS CORP.

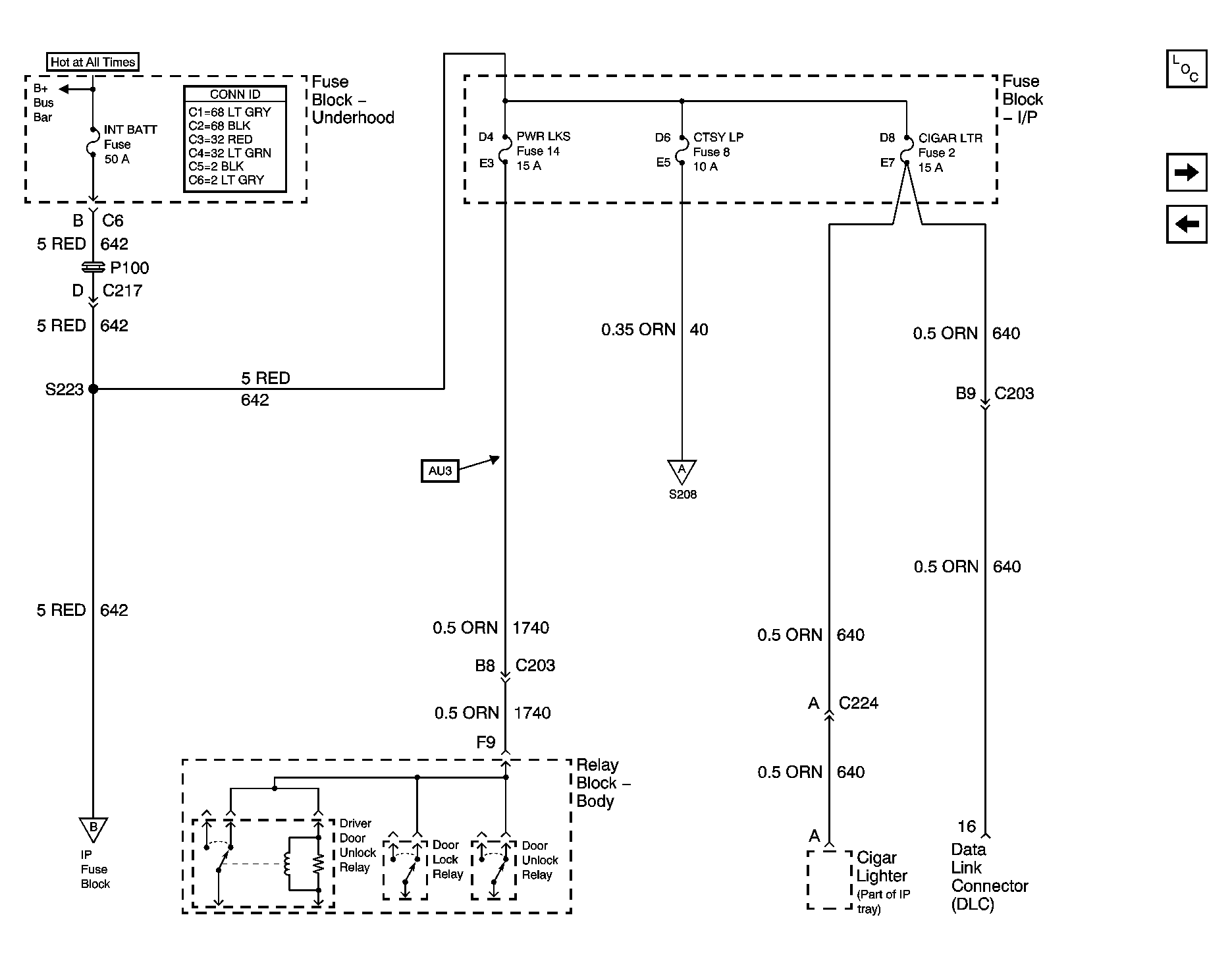

Fig 6: INT BATT, PWR LKS, CTSY LP and CIGAR LTR Fuses
Courtesy of GENERAL MOTORS CORP.

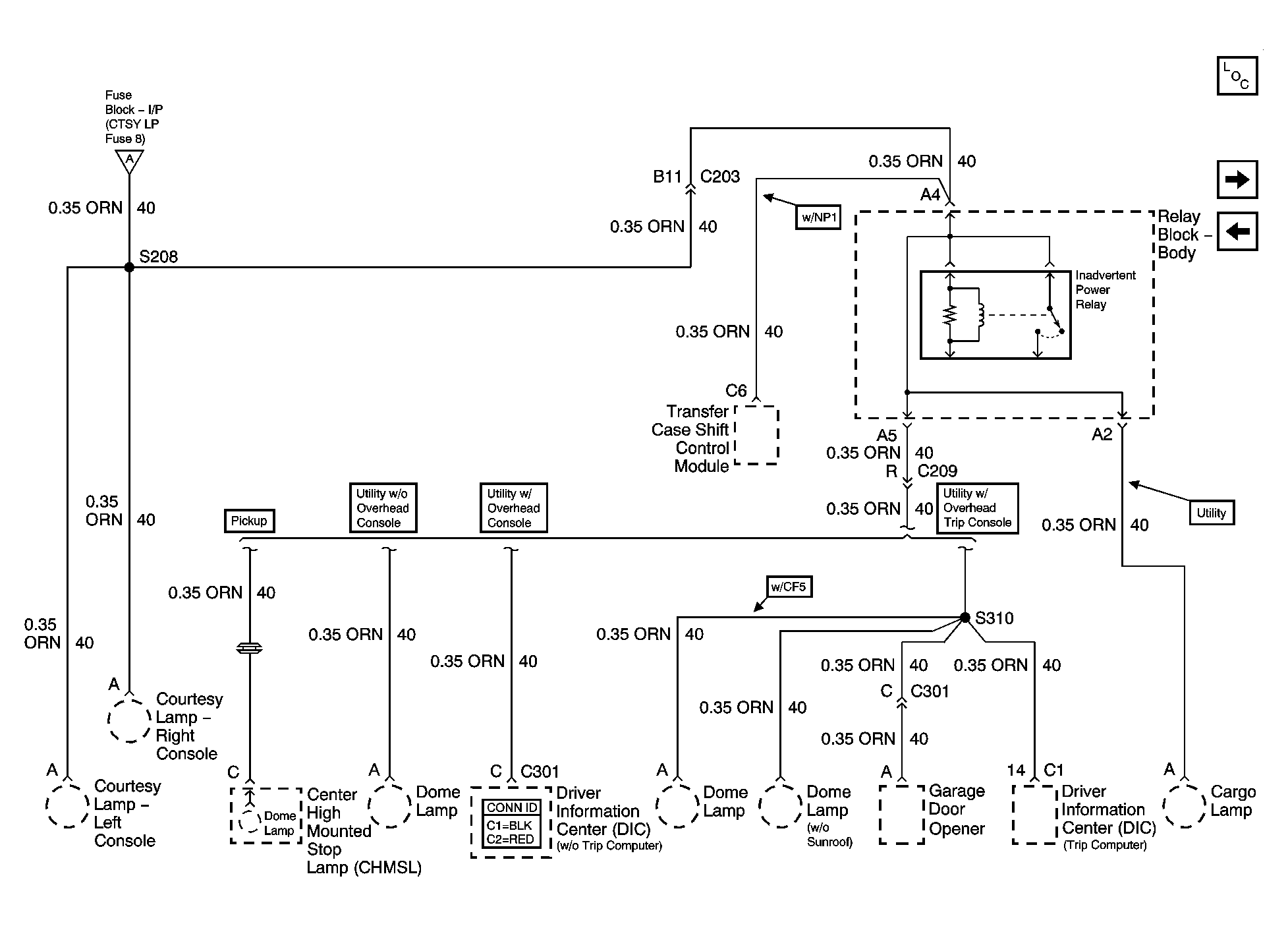

Fig 7: Inadvertent Power Relay
Courtesy of GENERAL MOTORS CORP.
Fig 8: AUX PWR, RDO BATT and HDLP SW Fuses
Courtesy of GENERAL MOTORS CORP.

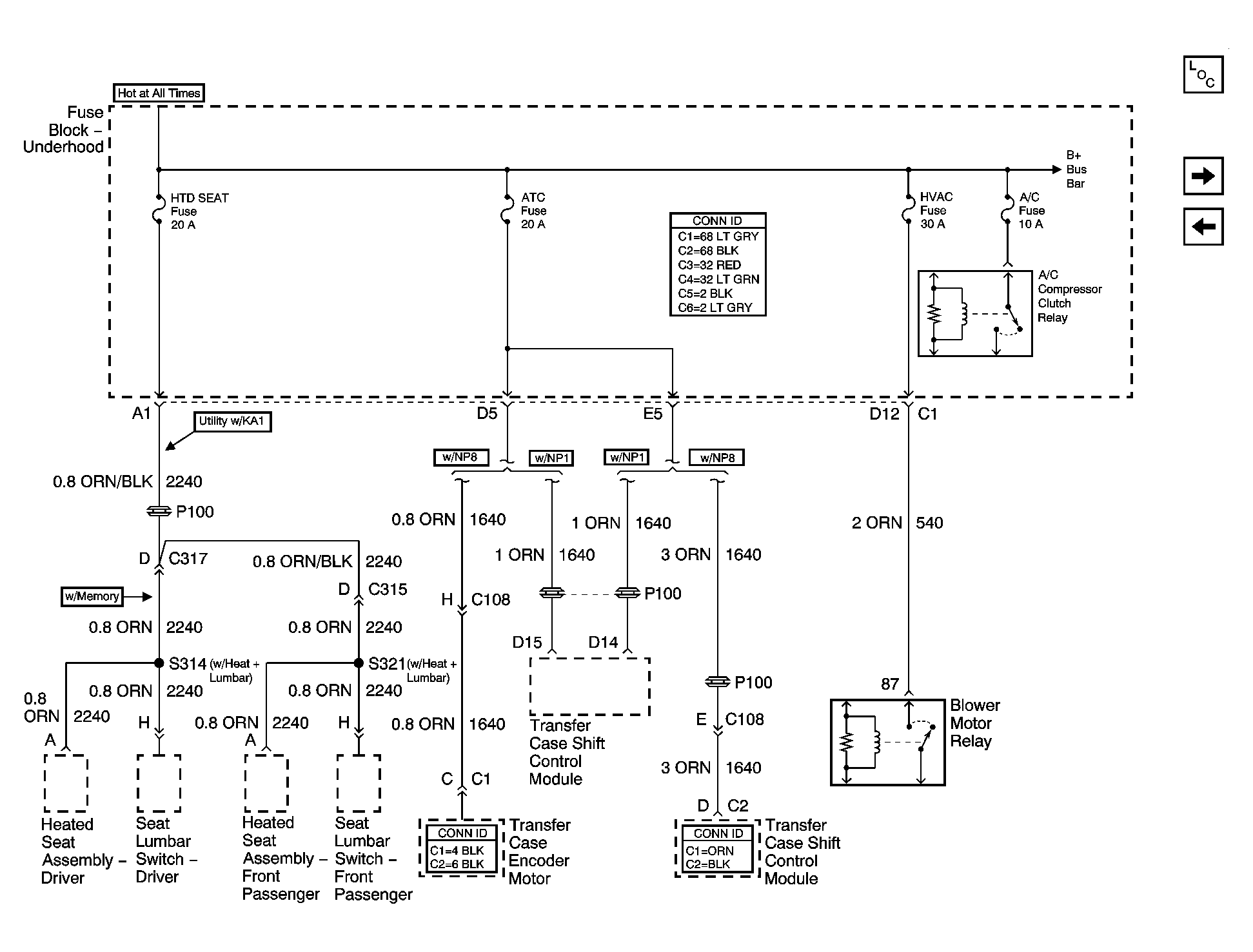

Fig 9: HTD SEAT, ATC, HVAC, and A/C Fuses
Courtesy of GENERAL MOTORS CORP.

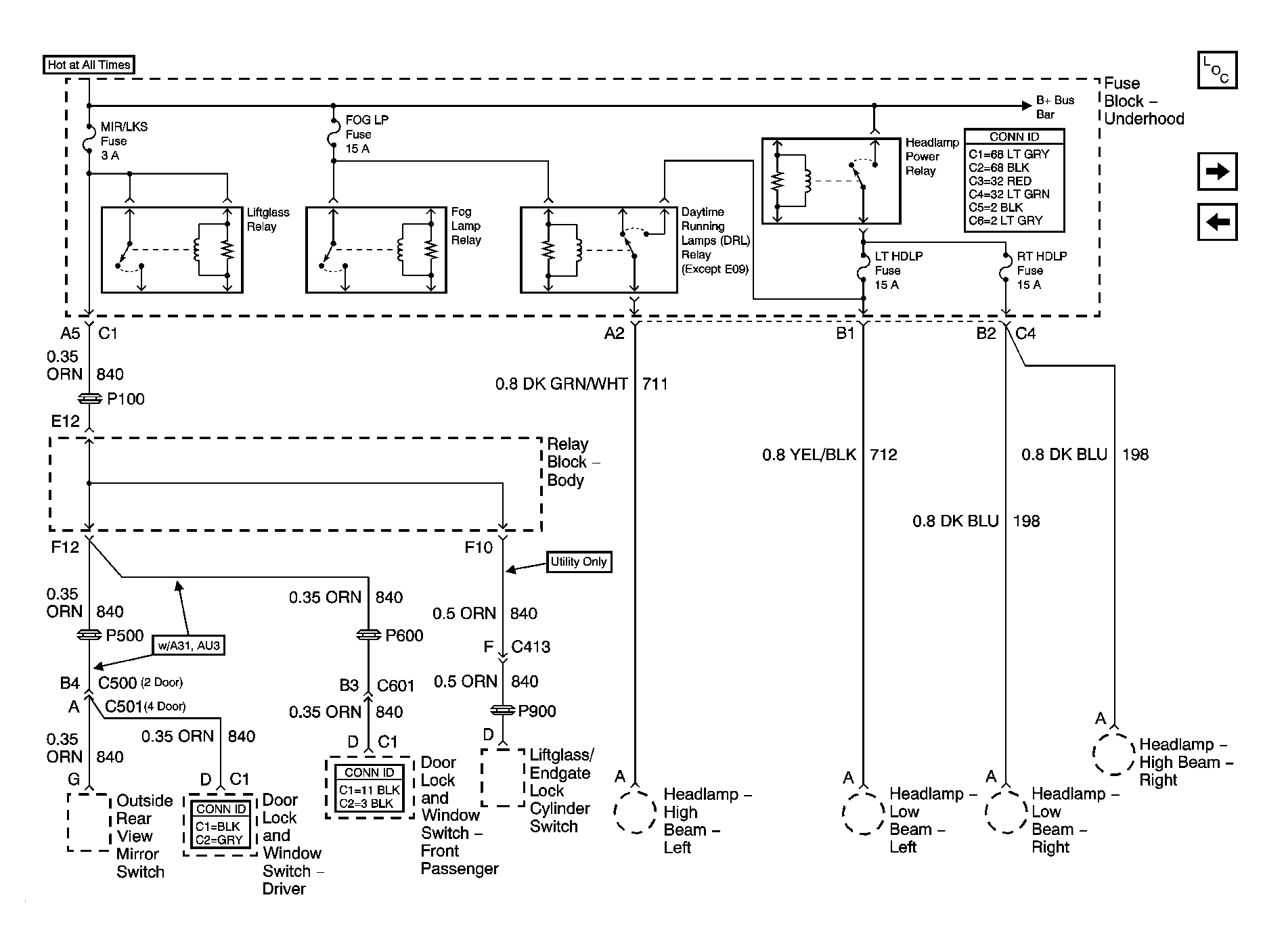

Fig 10: MIR/LKS, FOG LP Fuses and DRL, Headlamp Power Relays
Courtesy of GENERAL MOTORS CORP.

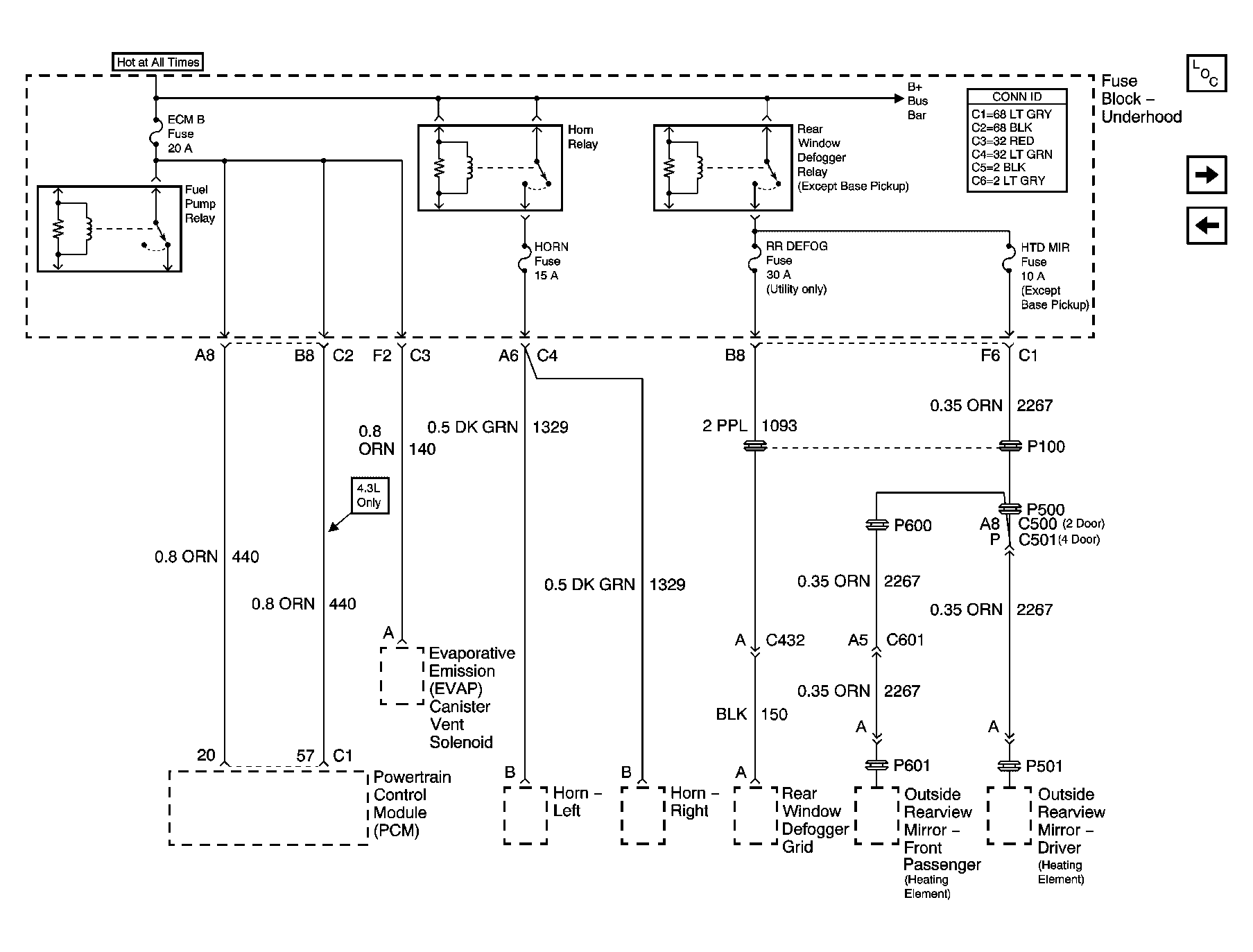

Fig 11: ECM B, HORN, RR DEFOG, HTD MIR Fuses and Fuel Pump, Horn, Rear Window Defogger Relays
Courtesy of GENERAL MOTORS CORP.

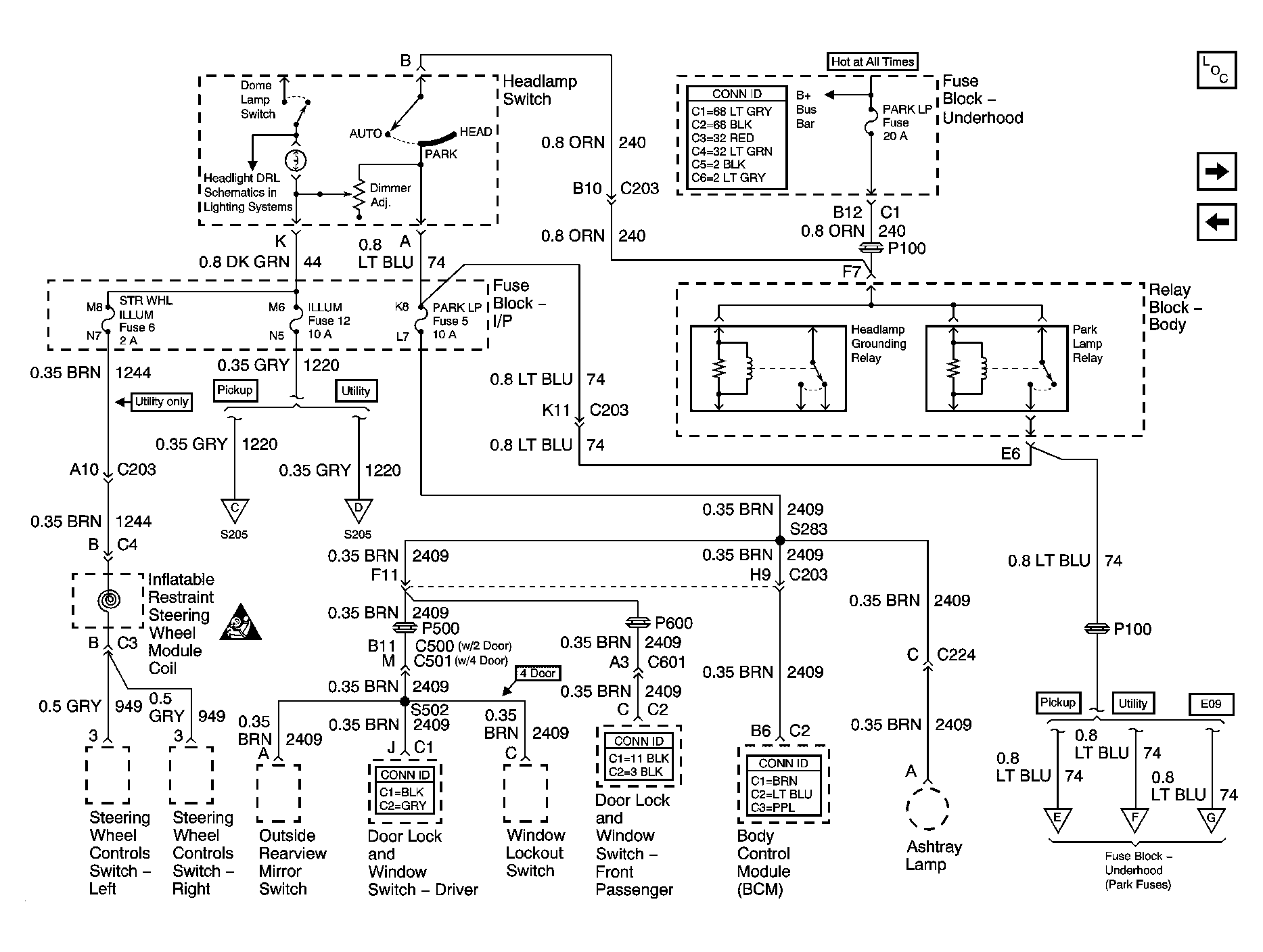

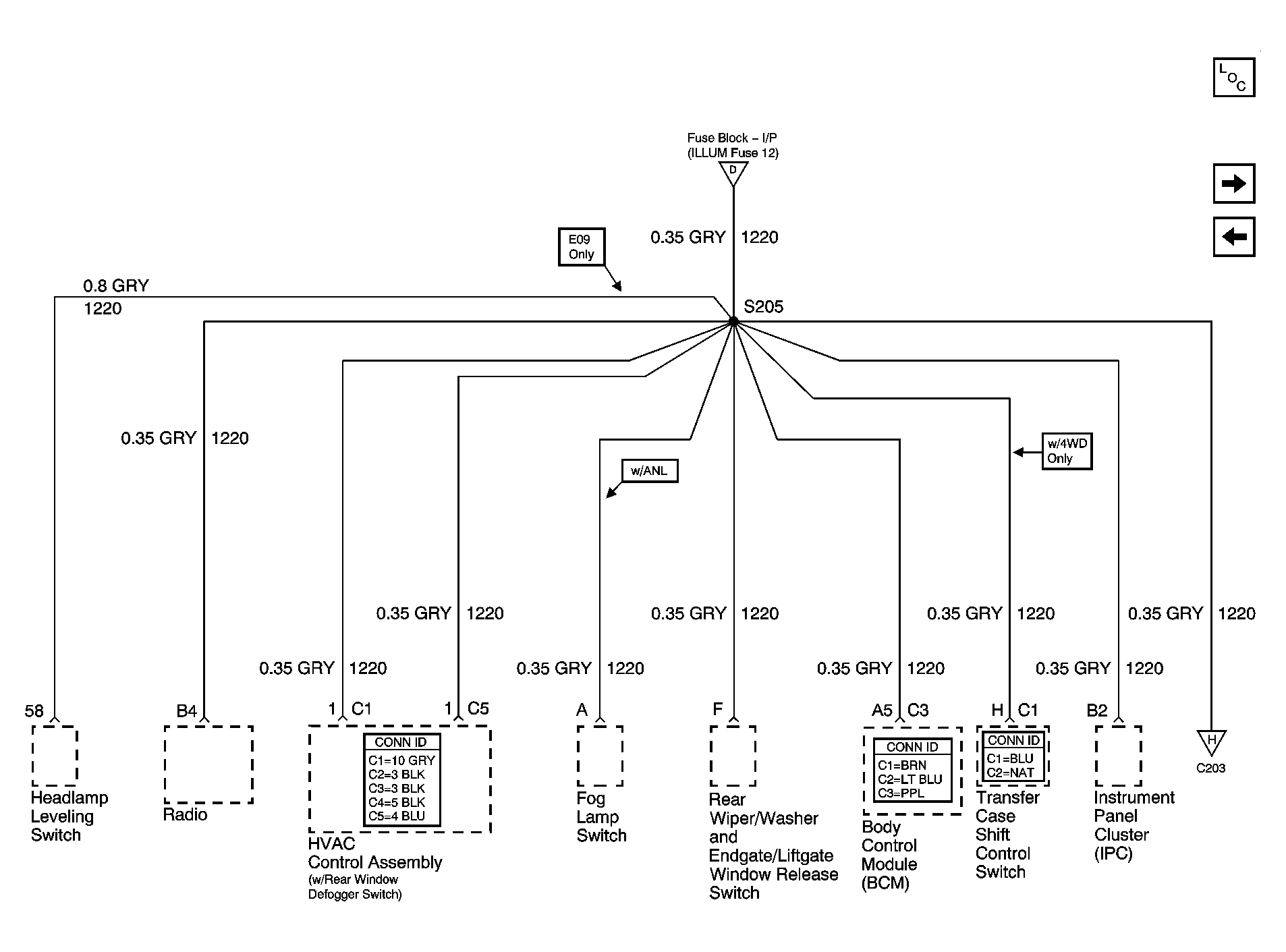

Fig 12: ILLUM and PARK LP Fuses
Courtesy of GENERAL MOTORS CORP.
Fig 13: ILLUM Power - Pickup Except Crew Cab
Courtesy of GENERAL MOTORS CORP.

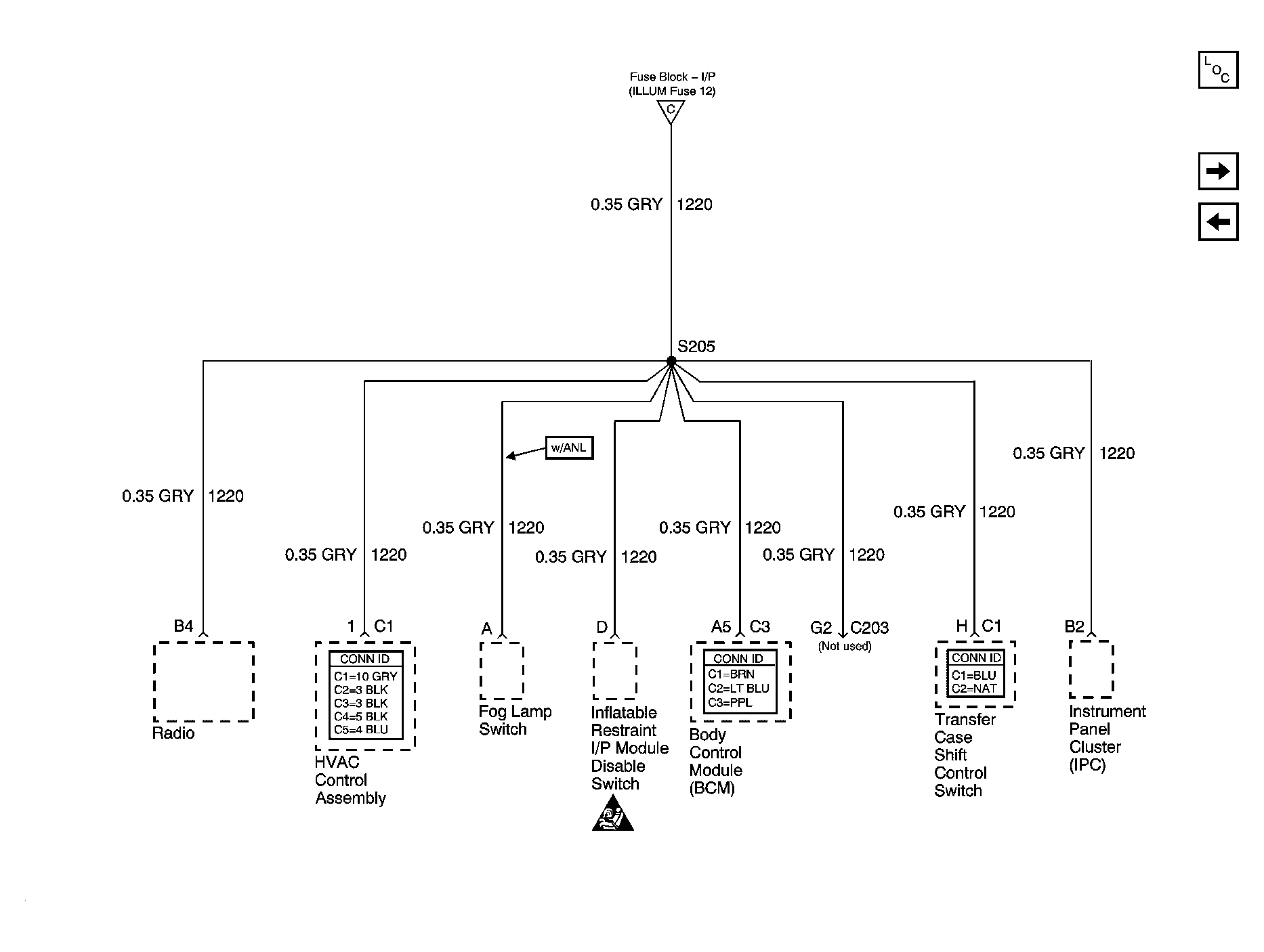

Fig 14: ILLUM Power - Utility
Courtesy of GENERAL MOTORS CORP.
Fig 15: Illum Power - 2- Door Utility, 4- Door Utility and Crew Cab
Courtesy of GENERAL MOTORS CORP.

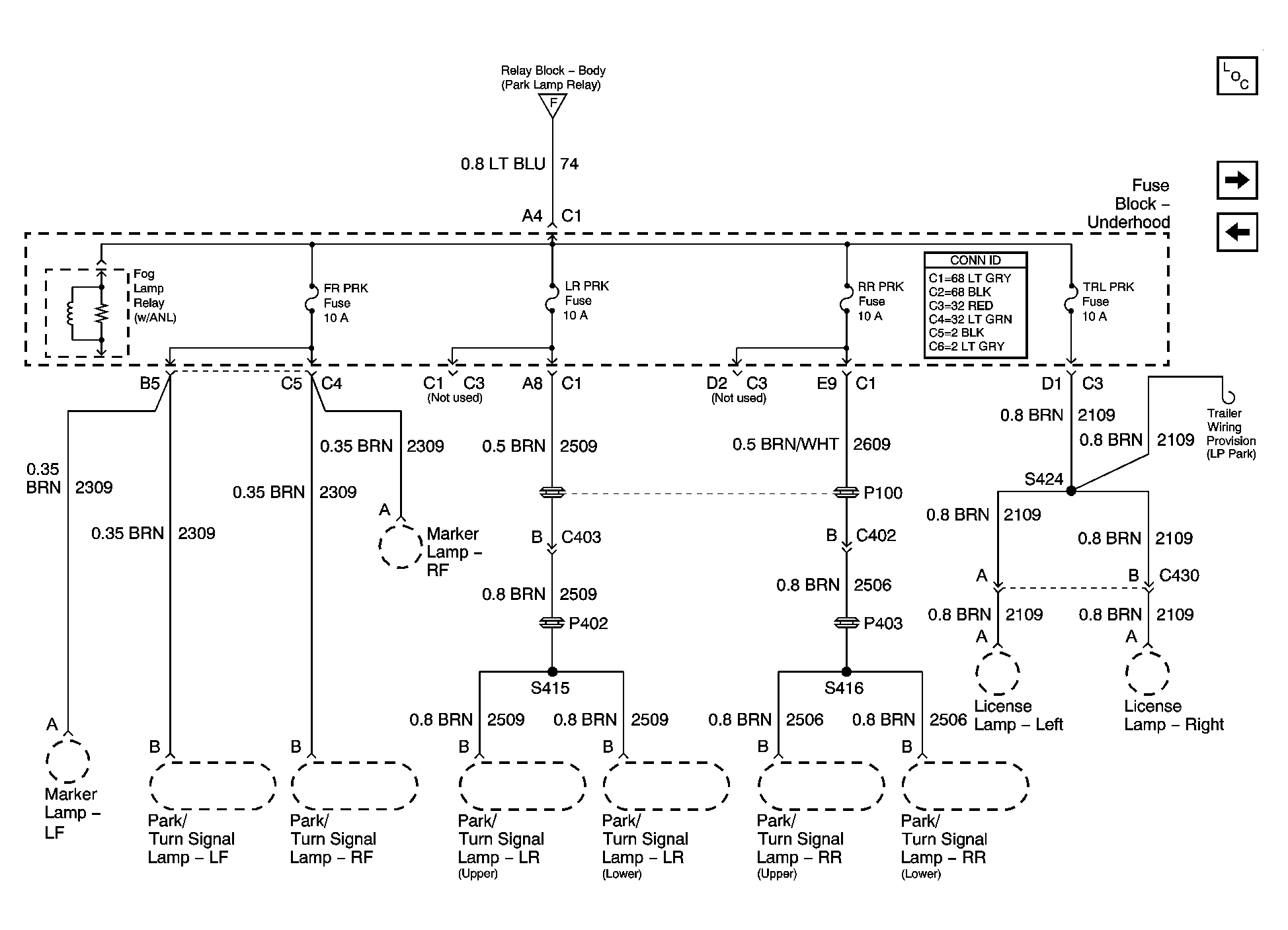

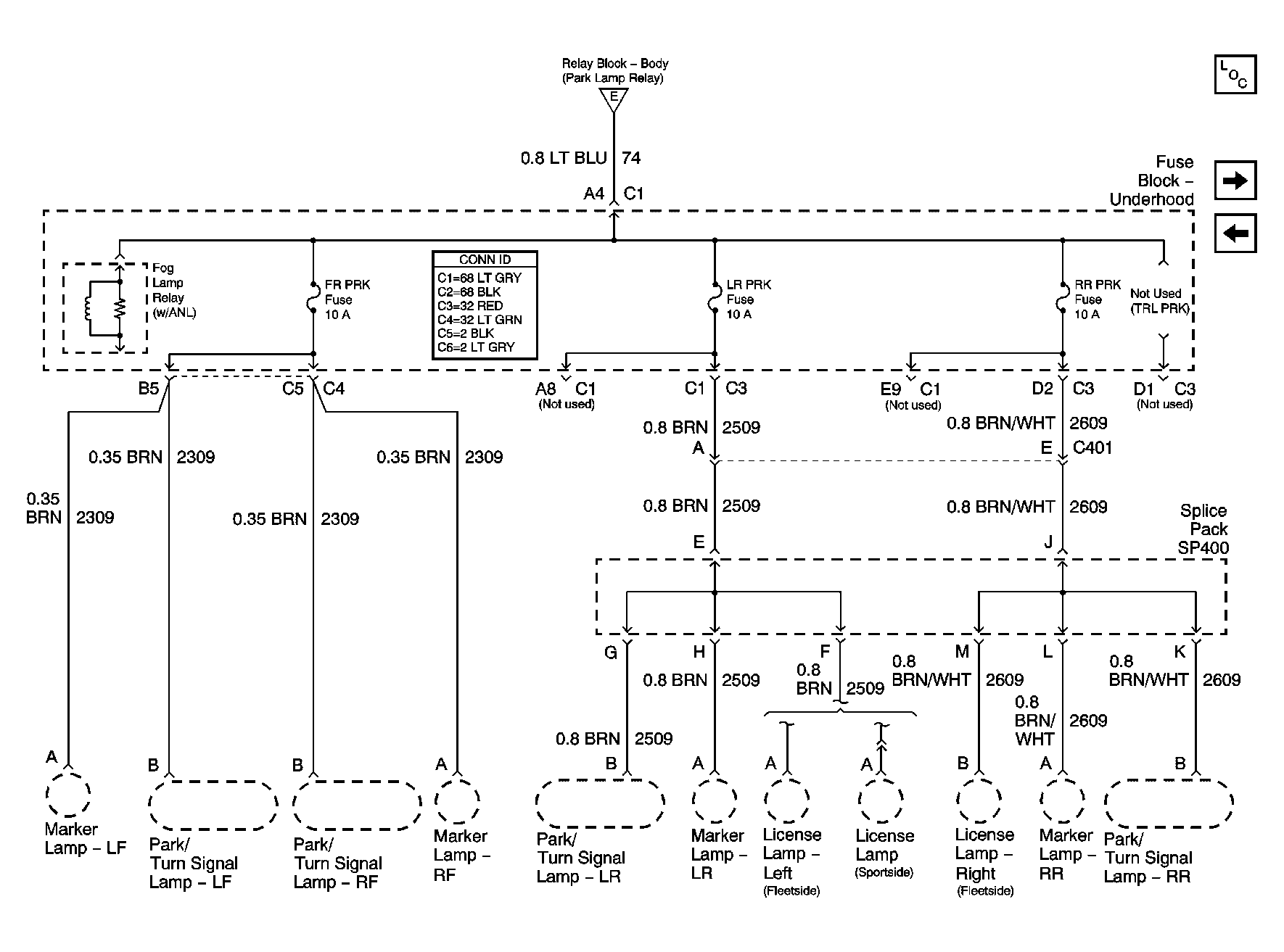

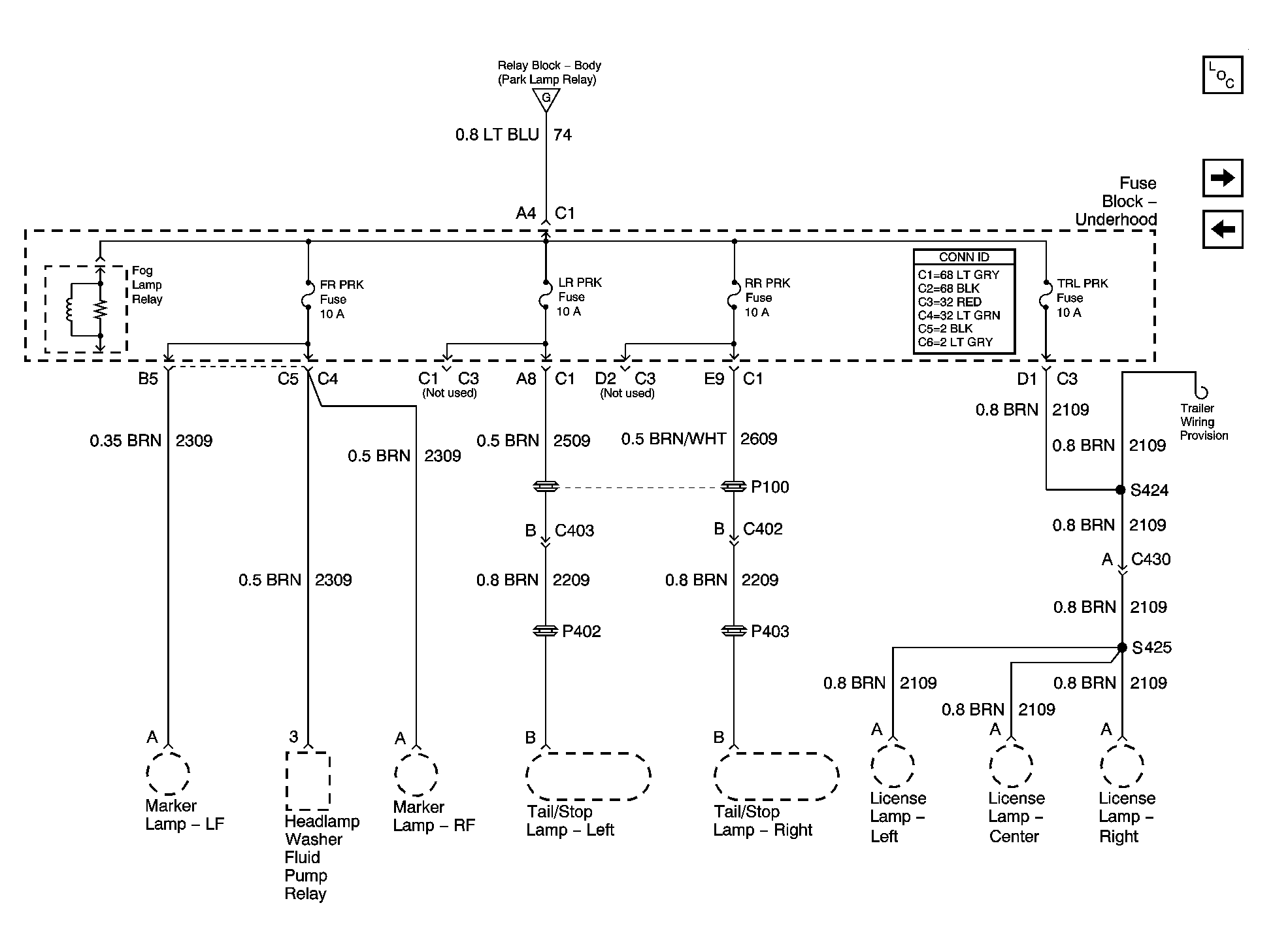

Fig 16: FR PRK, LR PRK, RR PRK Fuses and Fog Lamp Relay - Pickup
Courtesy of GENERAL MOTORS CORP.
Fig 17: FR PRK, LR PRK, RR PRK, TRL PRK Fuses and Fog Lamp Relay - Utility
Courtesy of GENERAL MOTORS CORP.
Fig 18: FR PRK, LR PRK, RR PRK, TRL PRK and Fog Lamp Relay - Export
Courtesy of GENERAL MOTORS CORP.

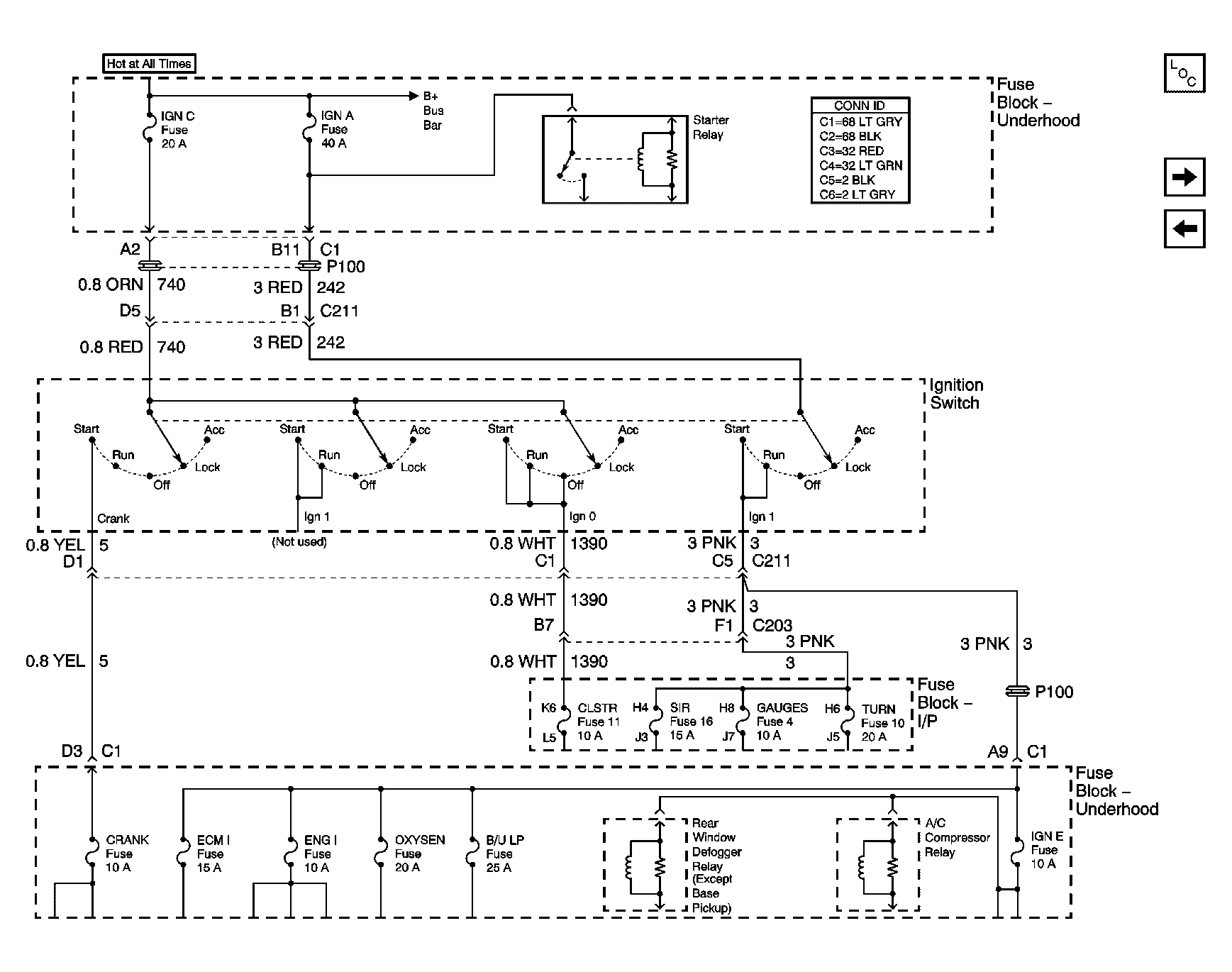

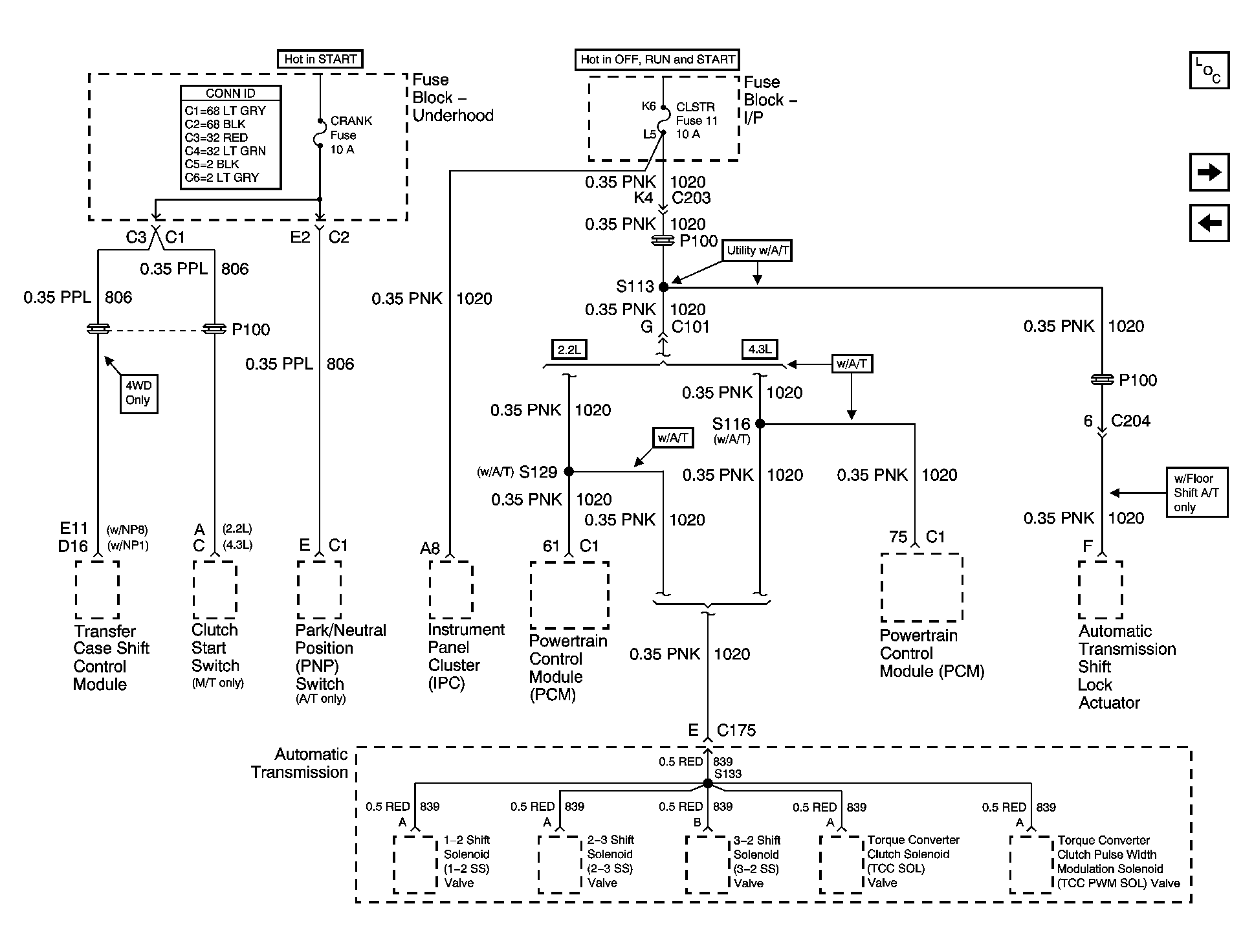

Fig 19: CRANK and CLSTR Fuses
Courtesy of GENERAL MOTORS CORP.
Fig 20: TURN, SIR and Gauges Fuses
Courtesy of GENERAL MOTORS CORP.

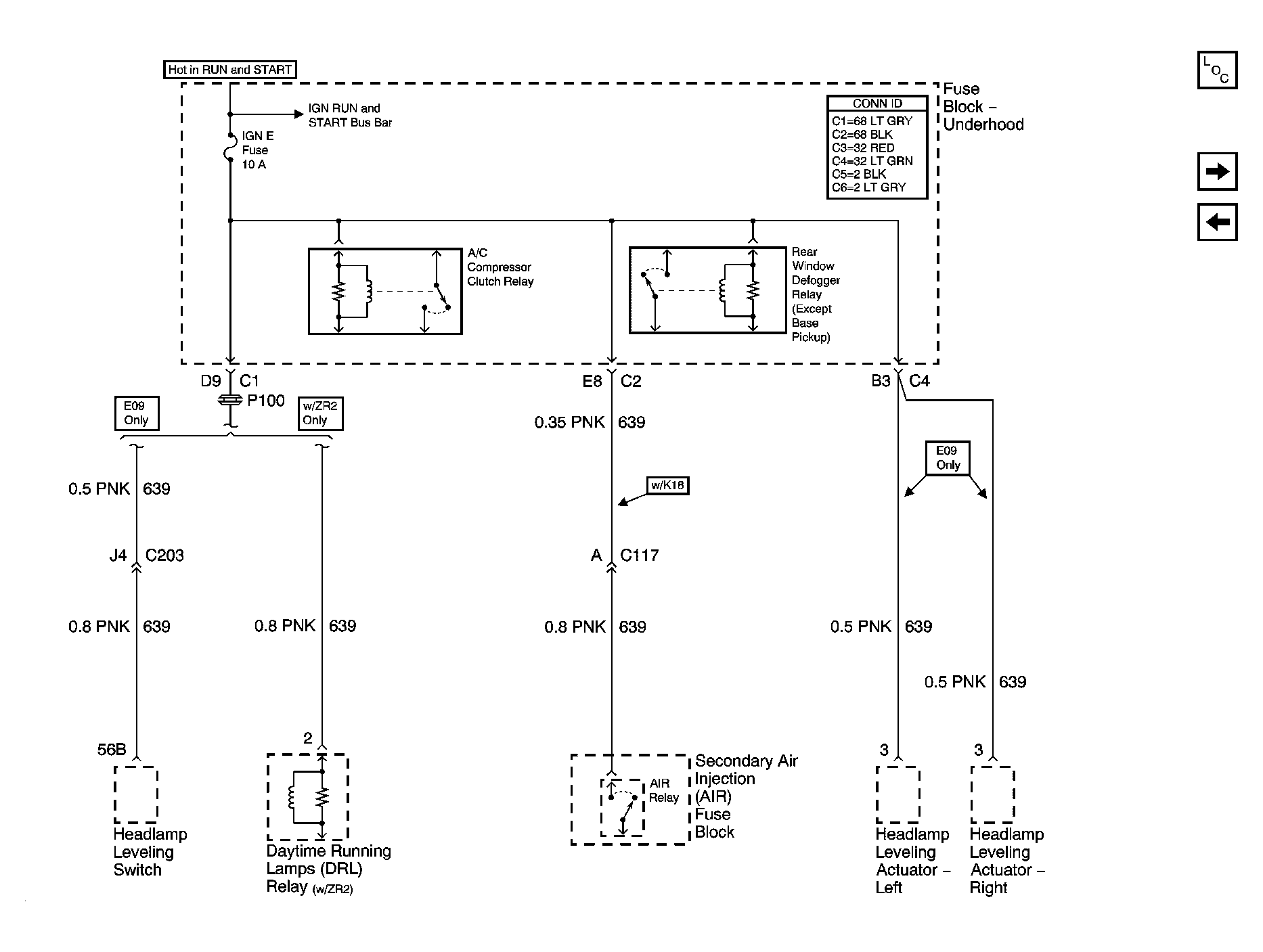

Fig 21: IGN E Fuse and A/C Compressor Clutch, Rear Window Defogger Relays
Courtesy of GENERAL MOTORS CORP.

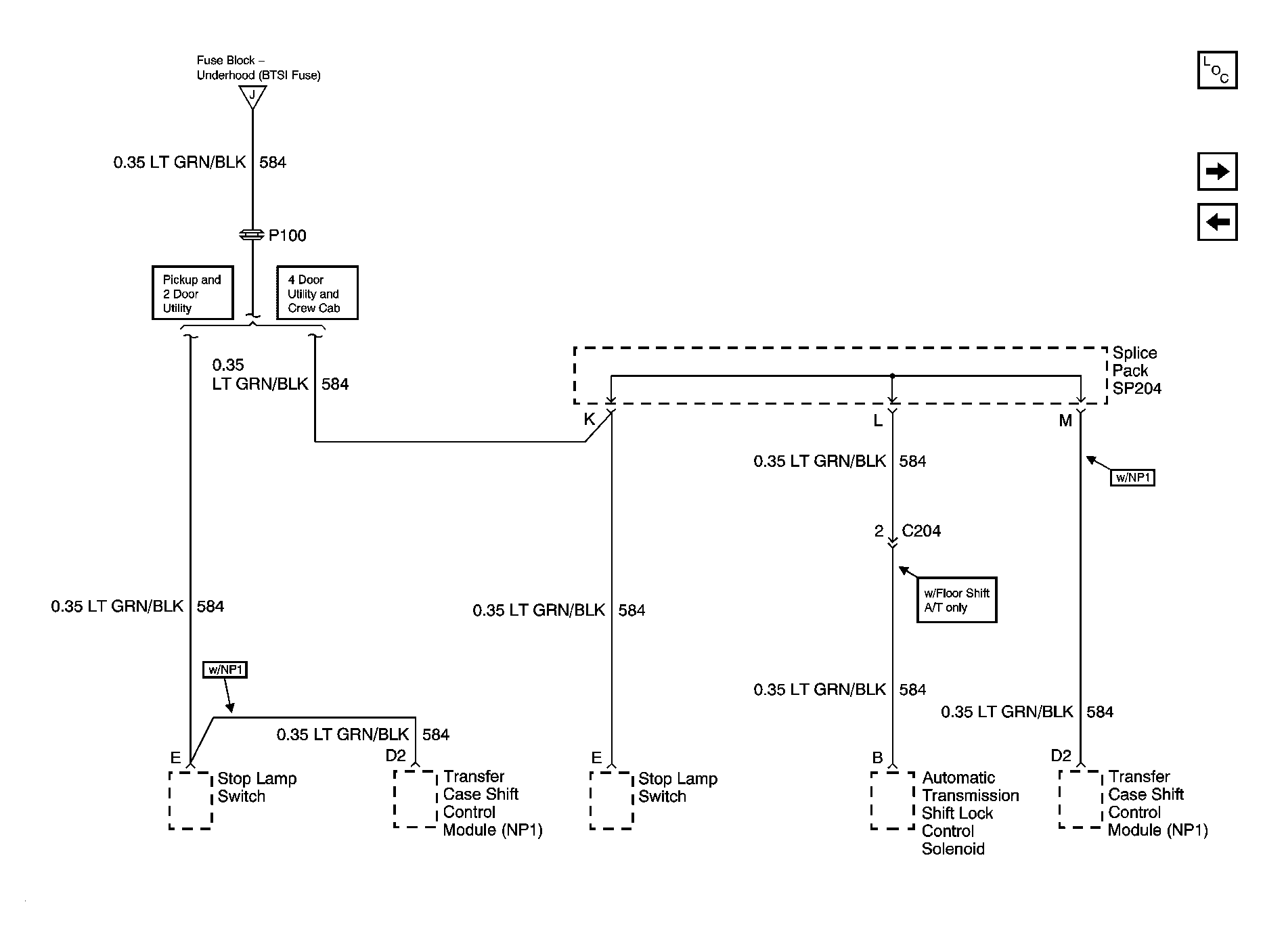

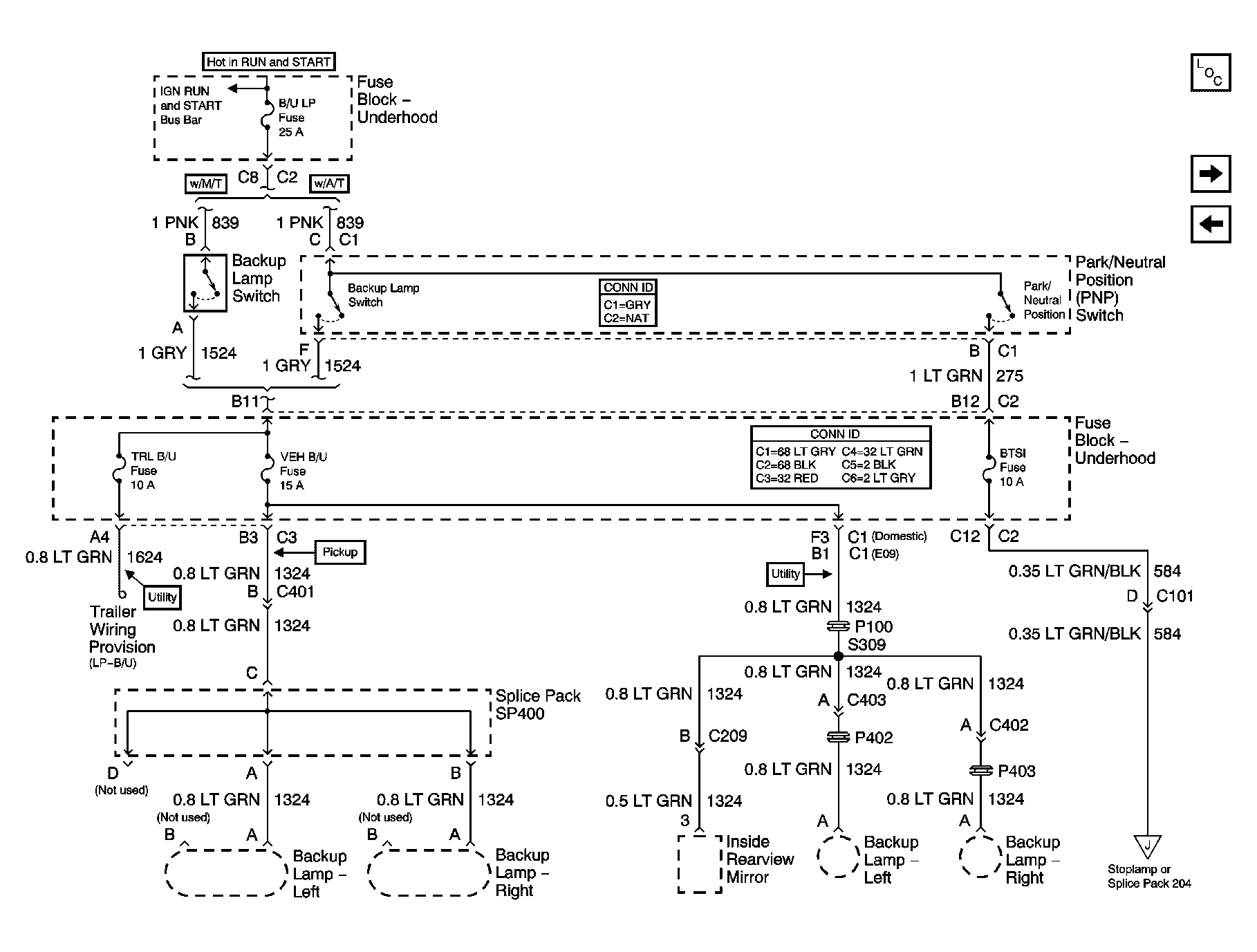

Fig 22: B/U LP, TRL B/U, VEH B/U and BTSI Fuses - Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 23: BTSI Fuse Power - Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

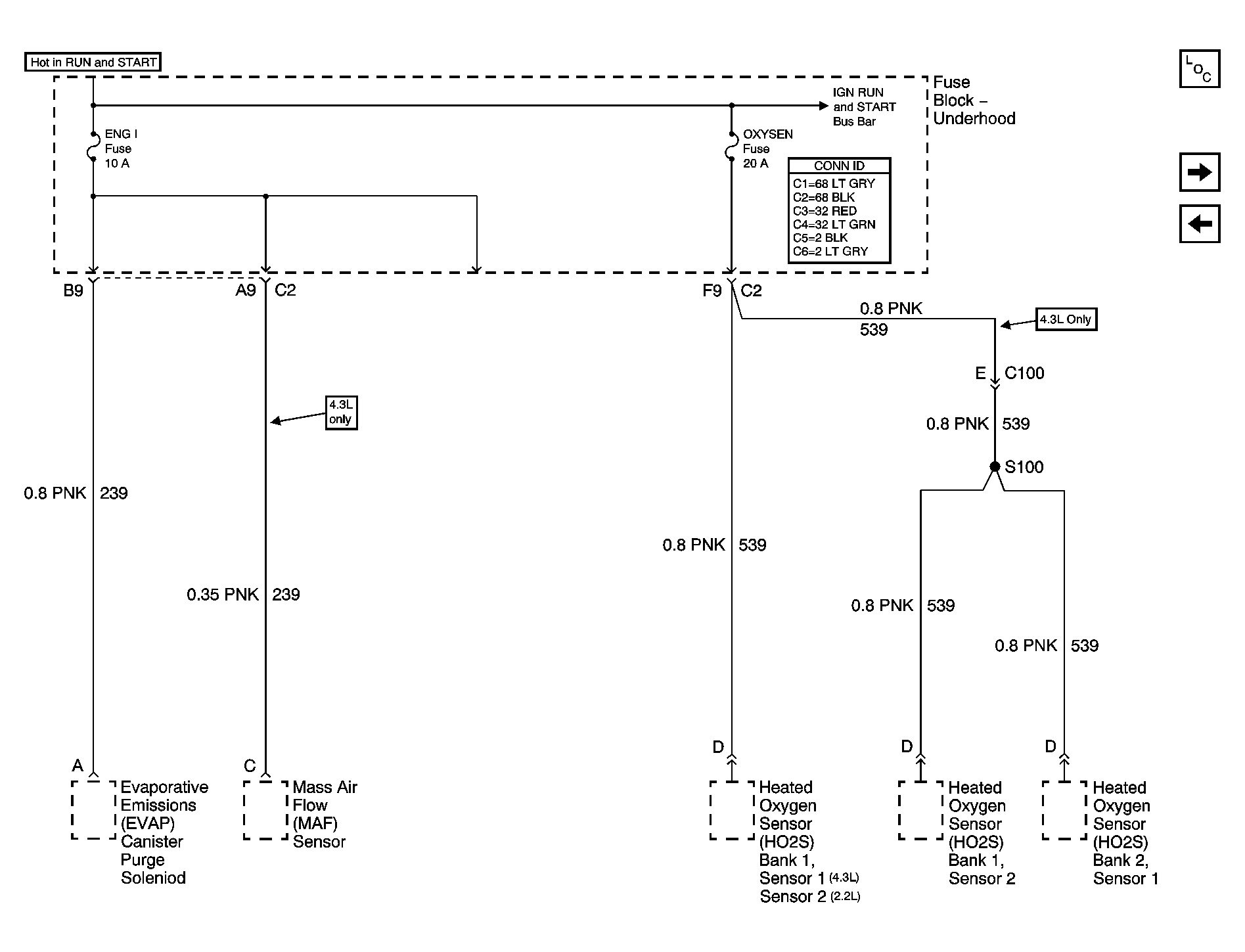

Fig 24: ENG I and OXYSEN Fuses
Courtesy of GENERAL MOTORS CORP.

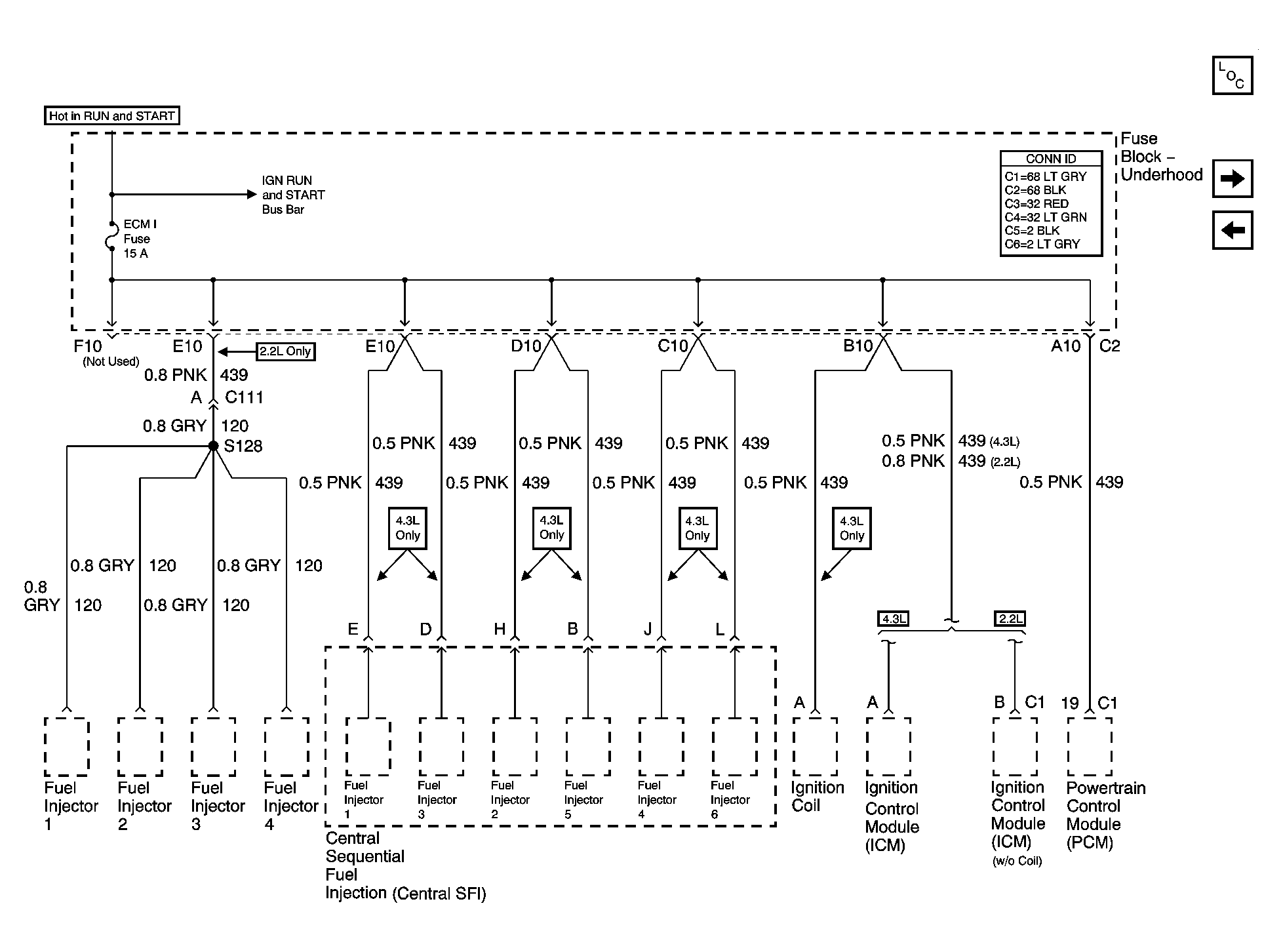

Fig 25: ECM I Fuse
Courtesy of GENERAL MOTORS CORP.
Fig 26: RDO IGN Fuse
Courtesy of GENERAL MOTORS CORP.

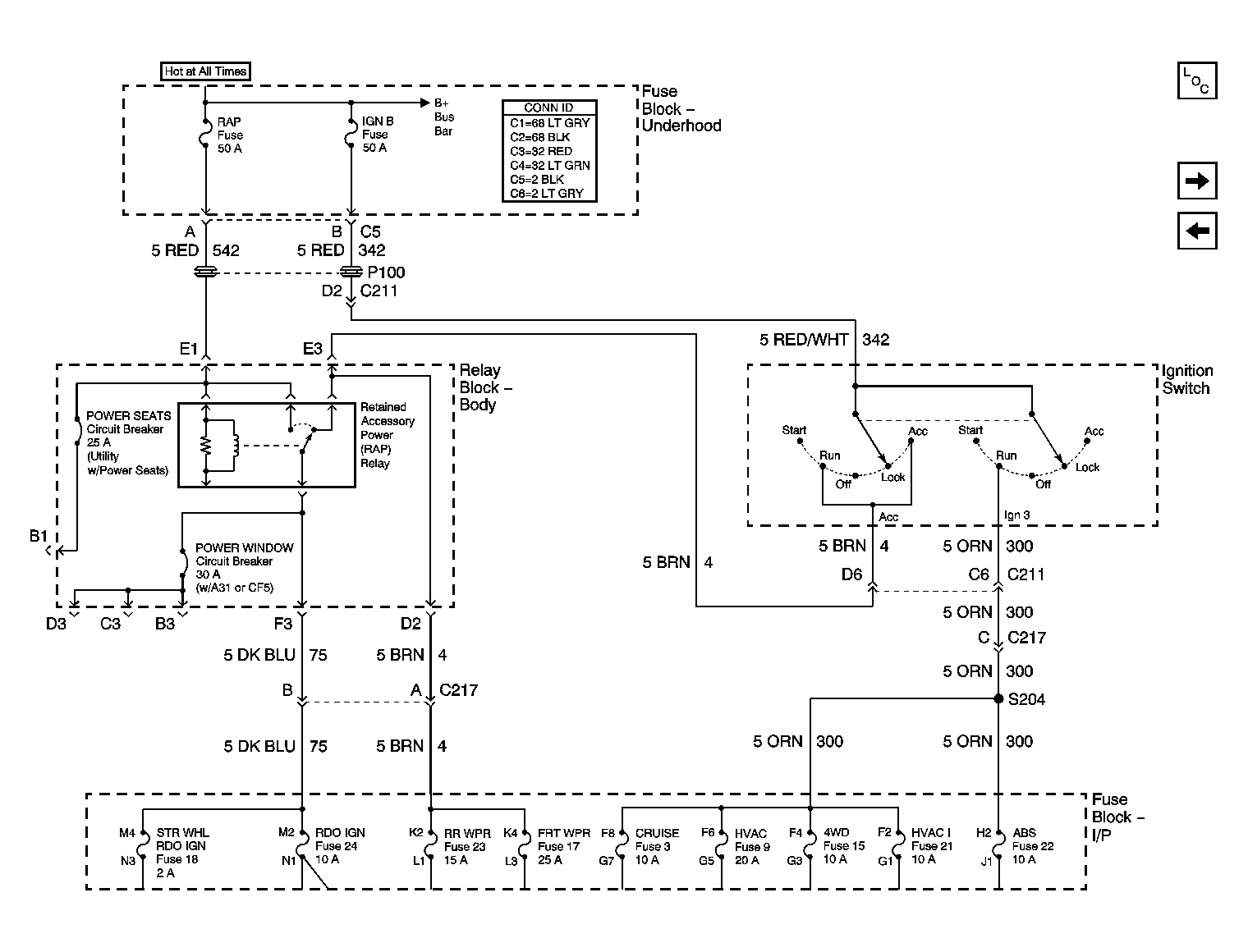

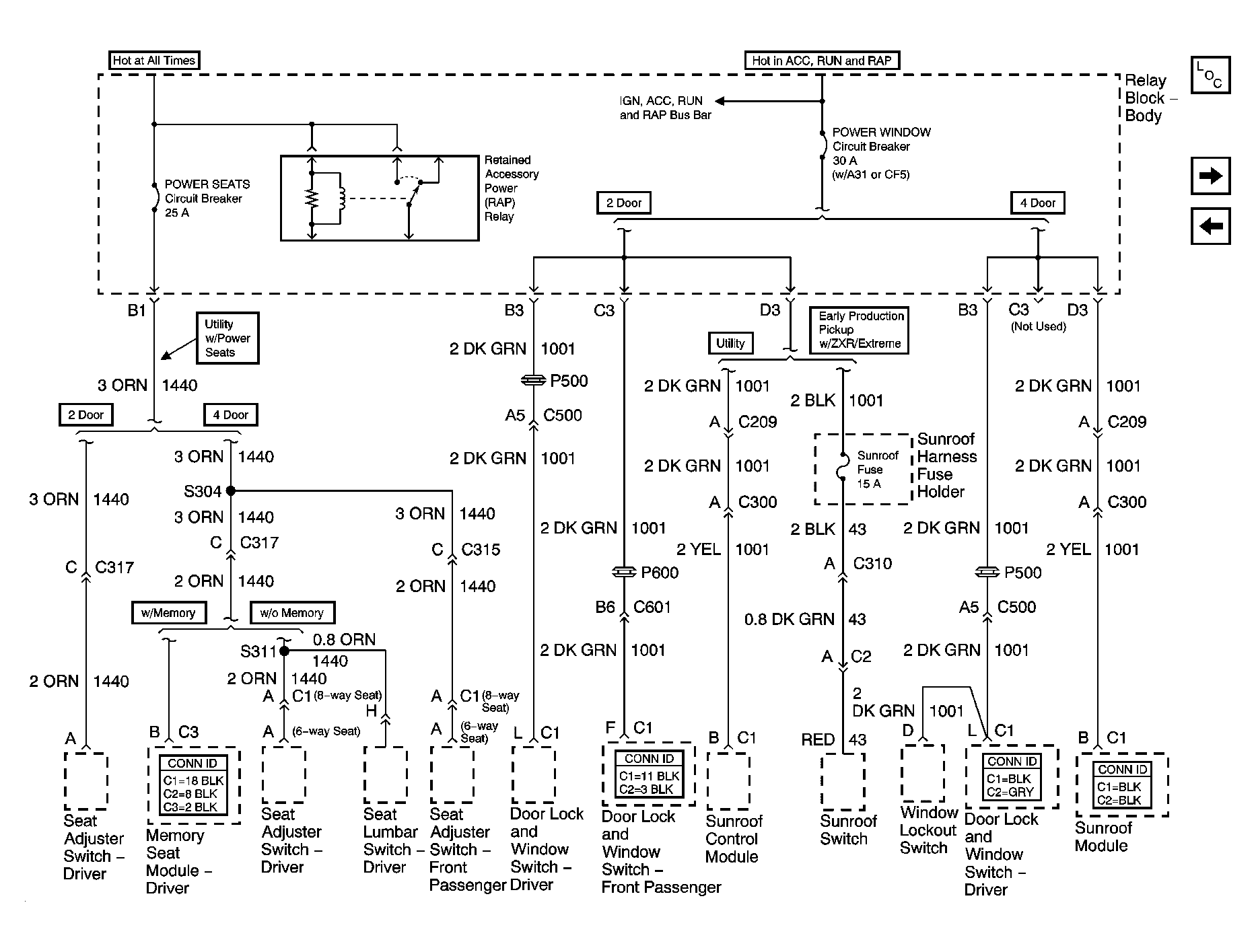

Fig 27: POWER SEATS, POWER WINDOW Circuit Breakers and RAP Relay
Courtesy of GENERAL MOTORS CORP.

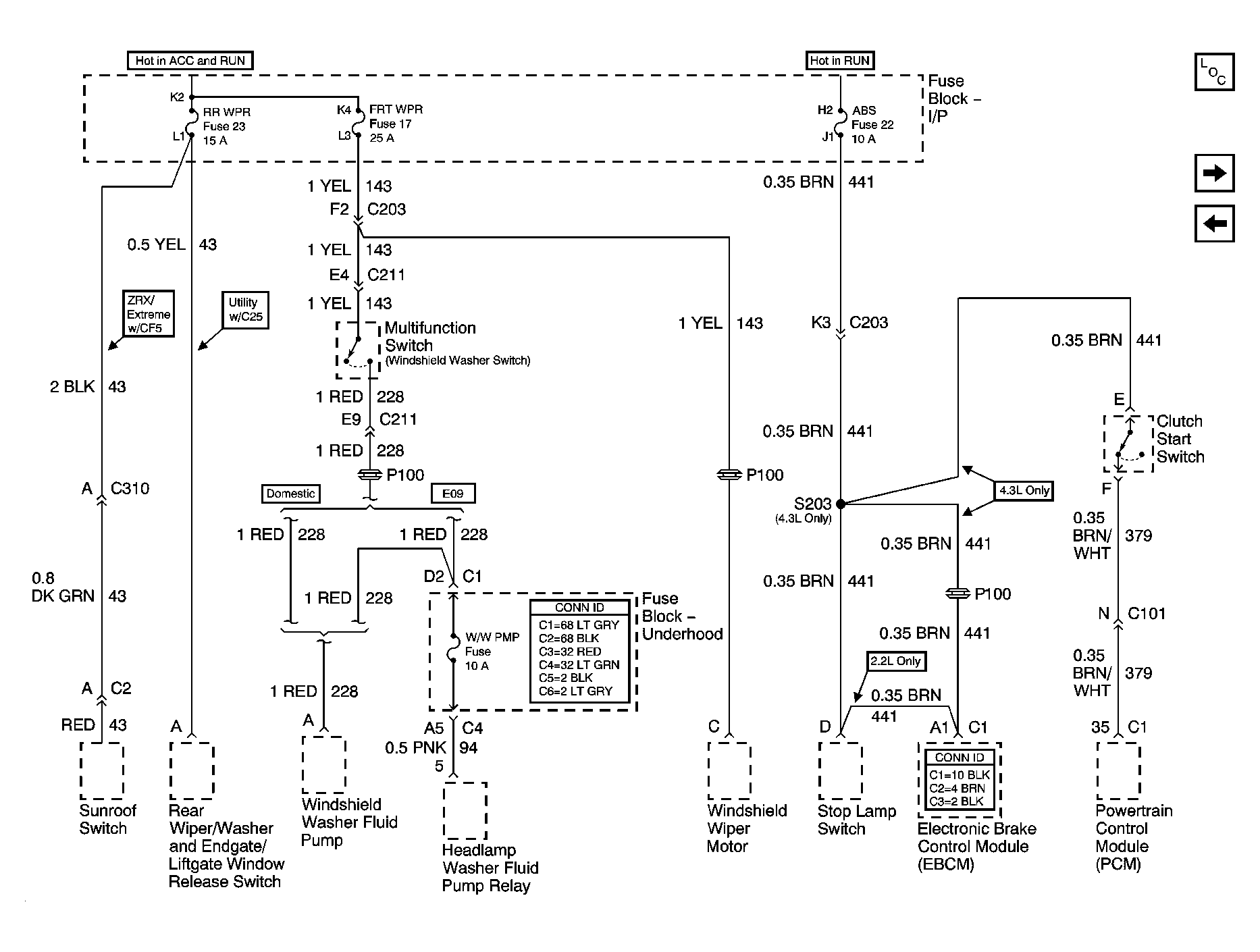

Fig 28: RR WPR, FRT WPR and ABS Fuses
Courtesy of GENERAL MOTORS CORP.
Fig 29: HVAC I Fuse
Courtesy of GENERAL MOTORS CORP.
Fig 30: 4WD Fuse - 4.3L
Courtesy of GENERAL MOTORS CORP.

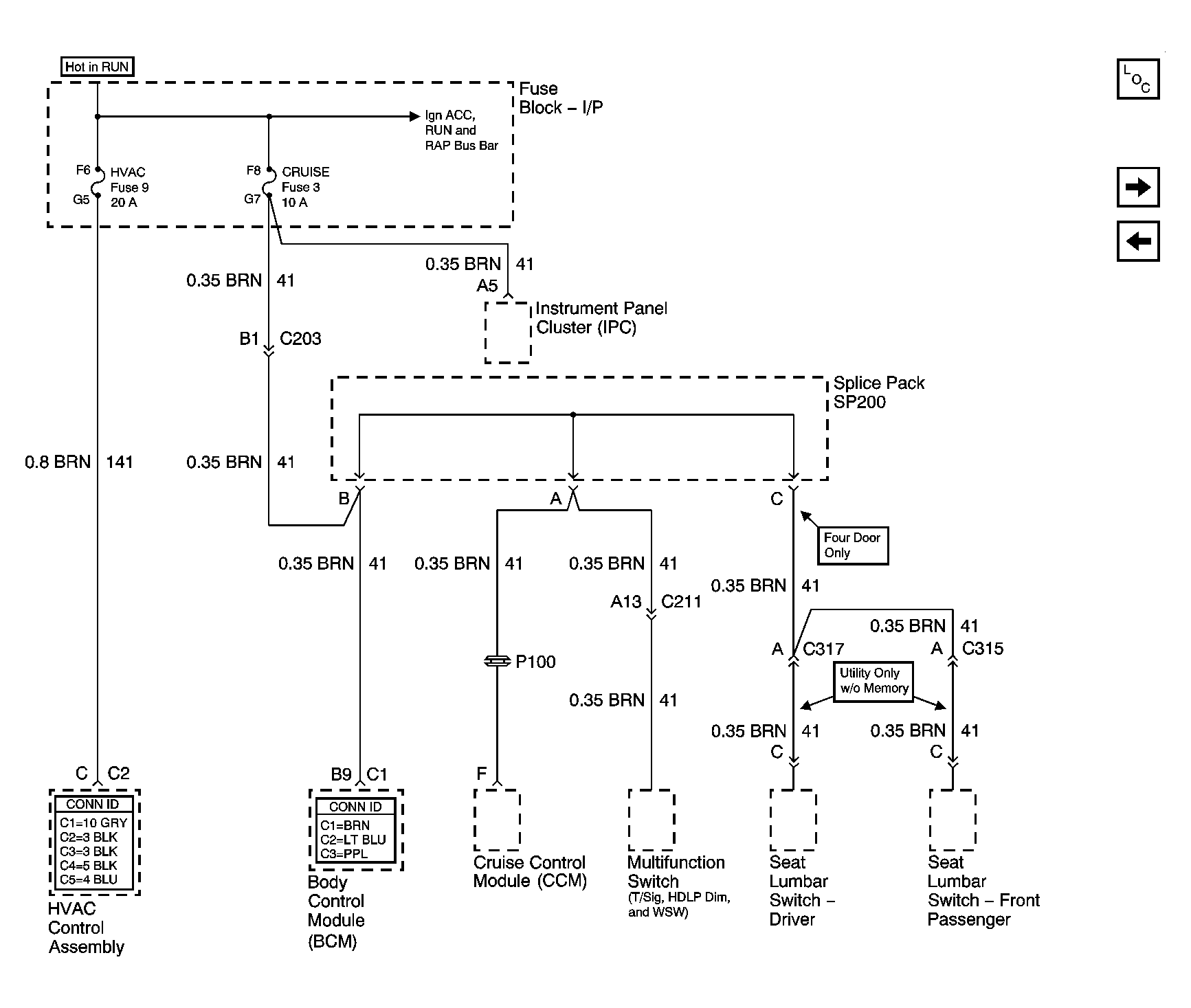

Fig 31: HVAC and CRUISE Fuses
Courtesy of GENERAL MOTORS CORP.

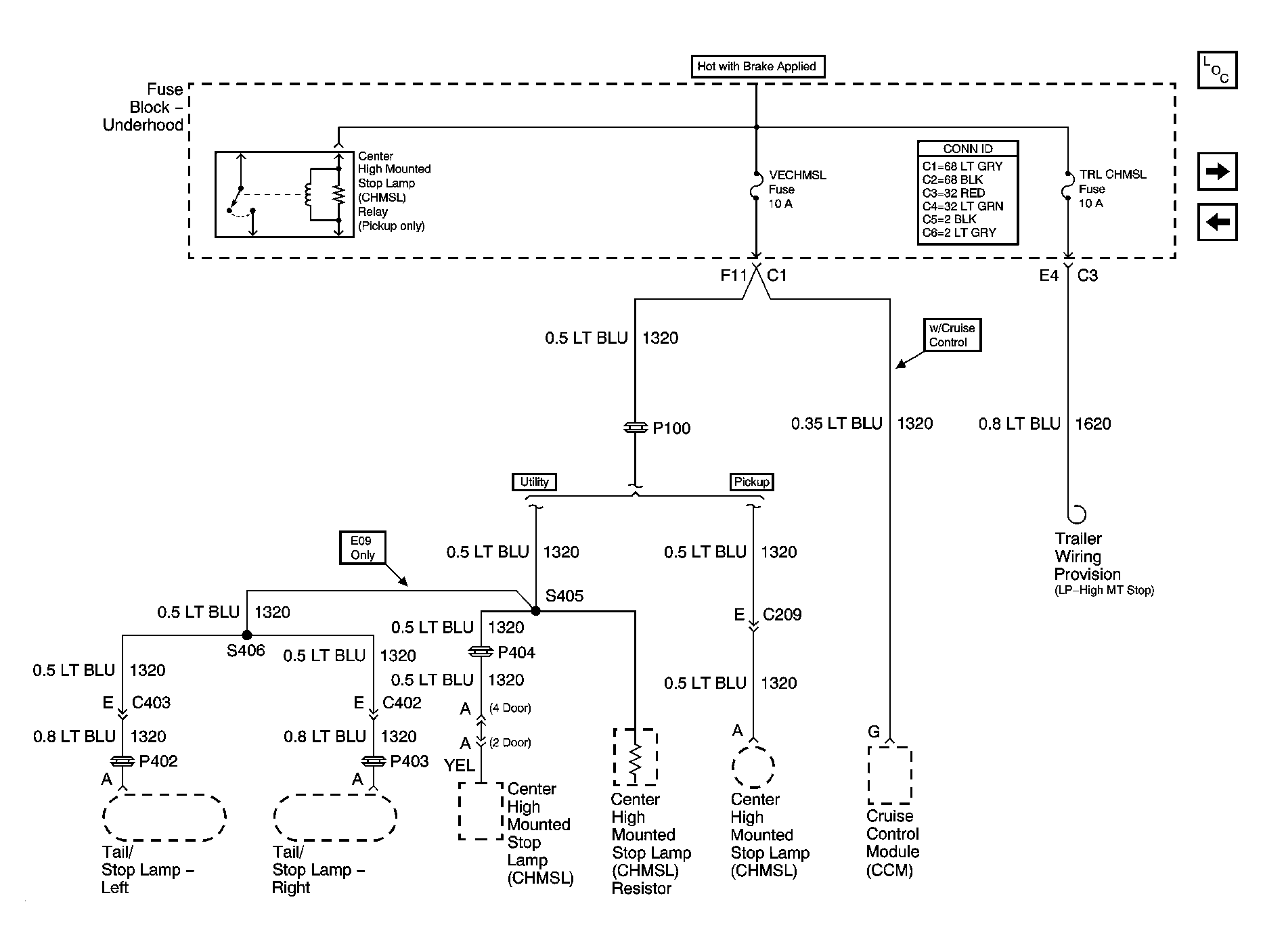

Fig 32: VECHMSL, TRCHMSL Fuses and CHMSL Relay
Courtesy of GENERAL MOTORS CORP.

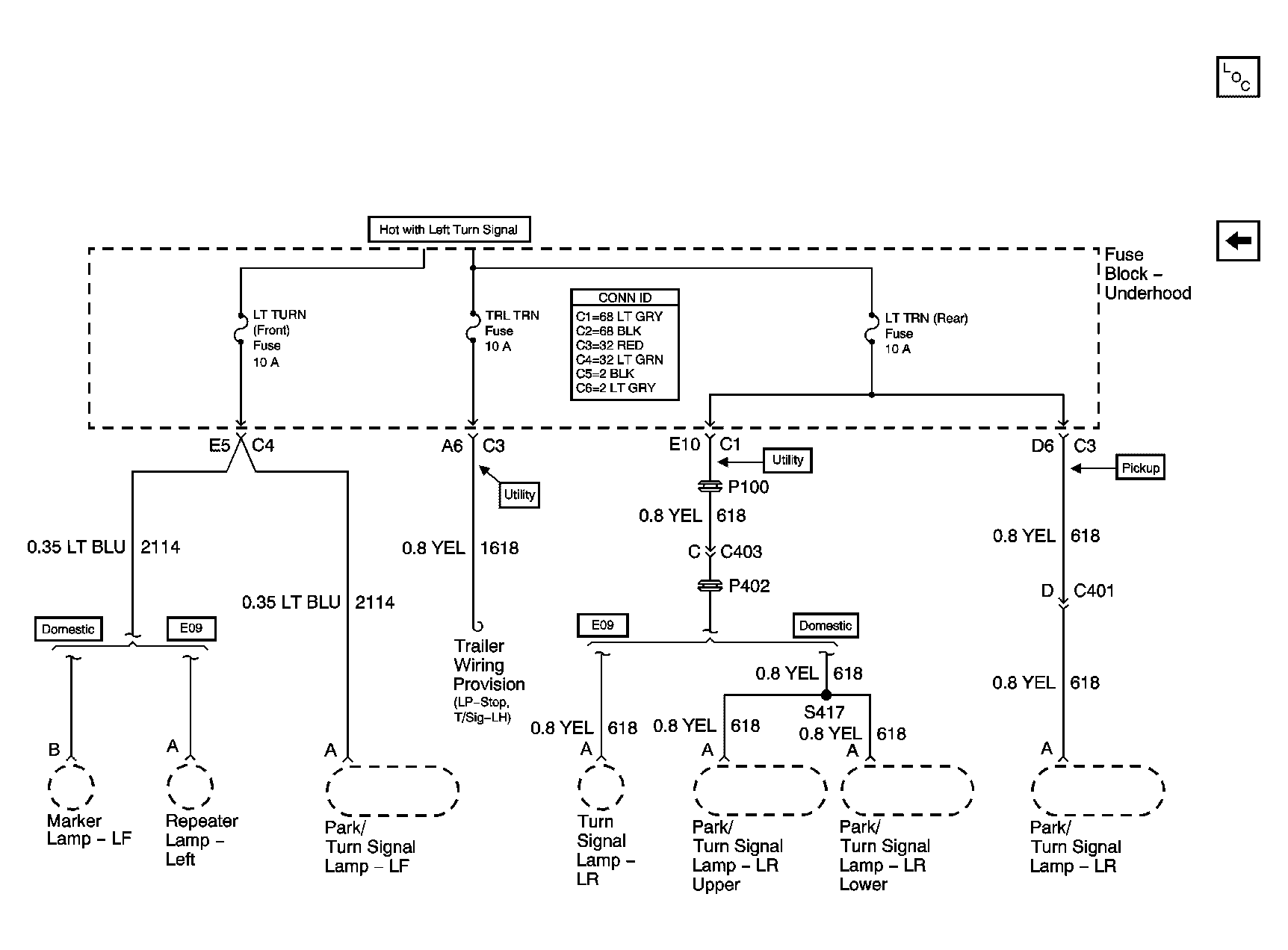

Fig 33: LT TURN, LT TRN and TRL TRN Fuses
Courtesy of GENERAL MOTORS CORP.
