Cruise Control Component Views
WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Windshield Wiper Motor And Module |
| 2 |
C108 |
| 3 |
Windshield Wiper Motor And Module Connector |
| 4 |
Cruise Control Module (CCM) Connector |

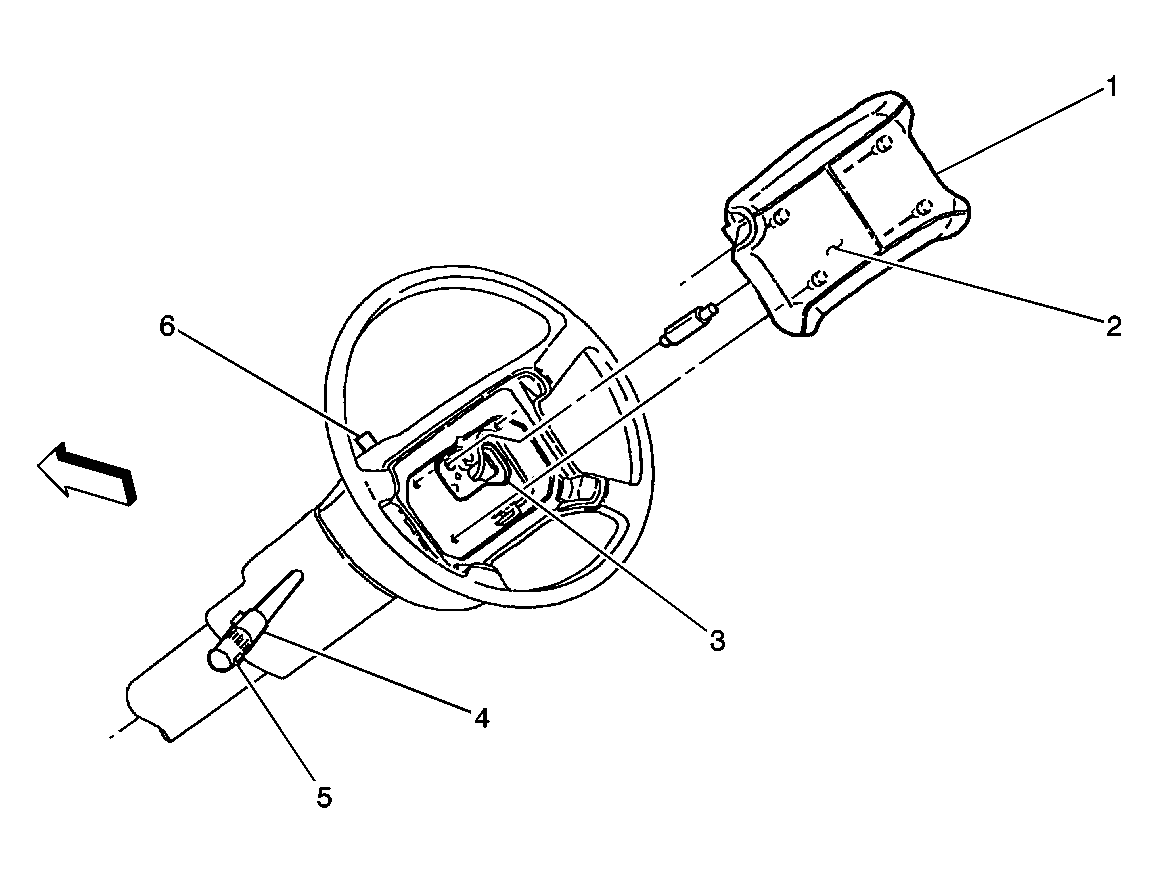

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn Switch |
| 2 |
Inflatable Restraint Steering Wheel Module |
| 3 |
Inflatable Restraint Steering Wheel Module Coil |
| 4 |
Windshield Wiper/Washer Switch |
| 5 |
Cruise Control ON/OFF Switch |
| 6 |
Turn Signal Switch |
