Electronic Brake Control Module

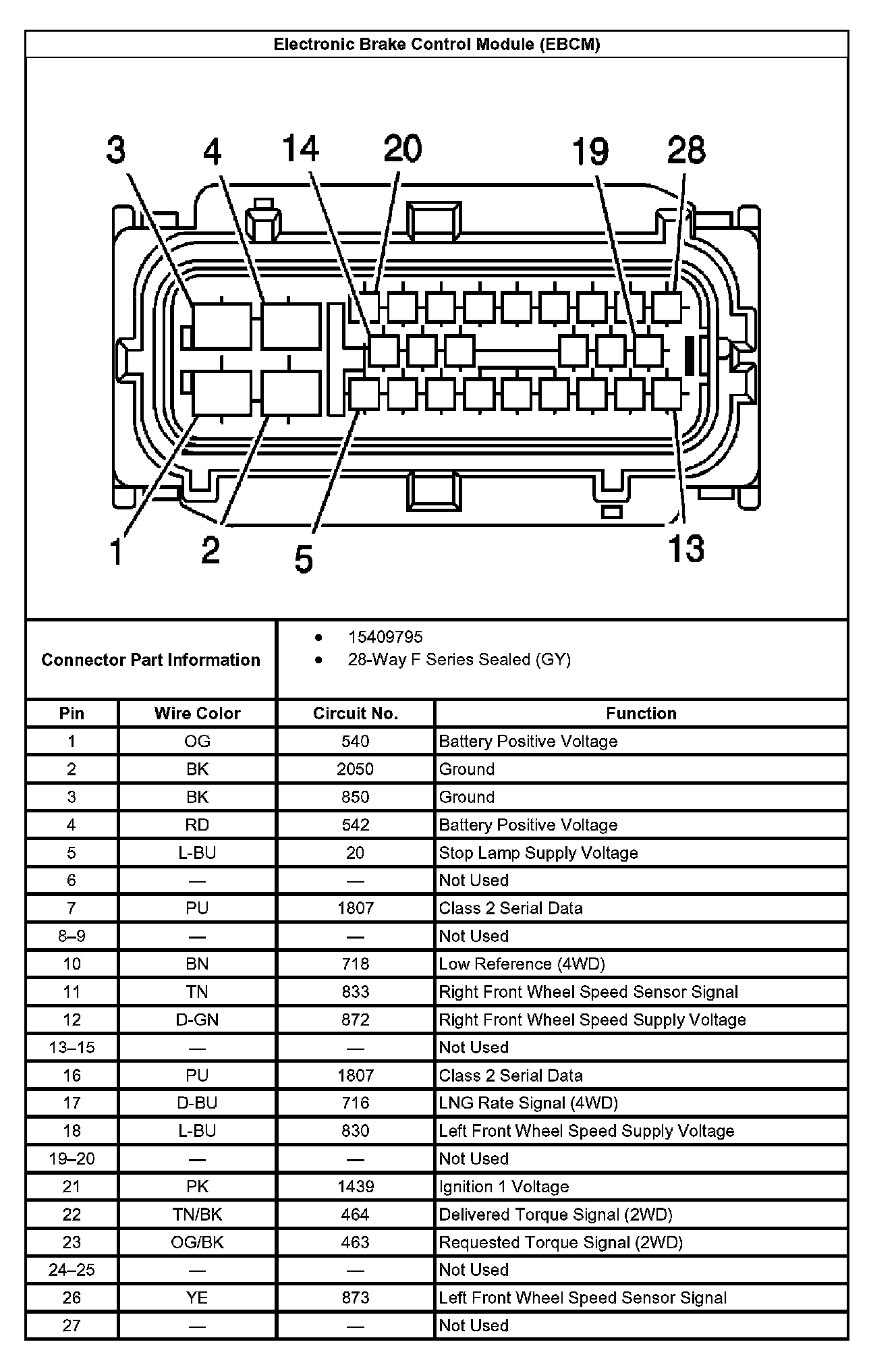

Electronic Brake Control Module (EBCM) 1 0f 2:
Electronic Brake Control Module (EBCM) 2 Of 2:
