Connector Views


Automatic Transmission Inline 20-Way Connector End View

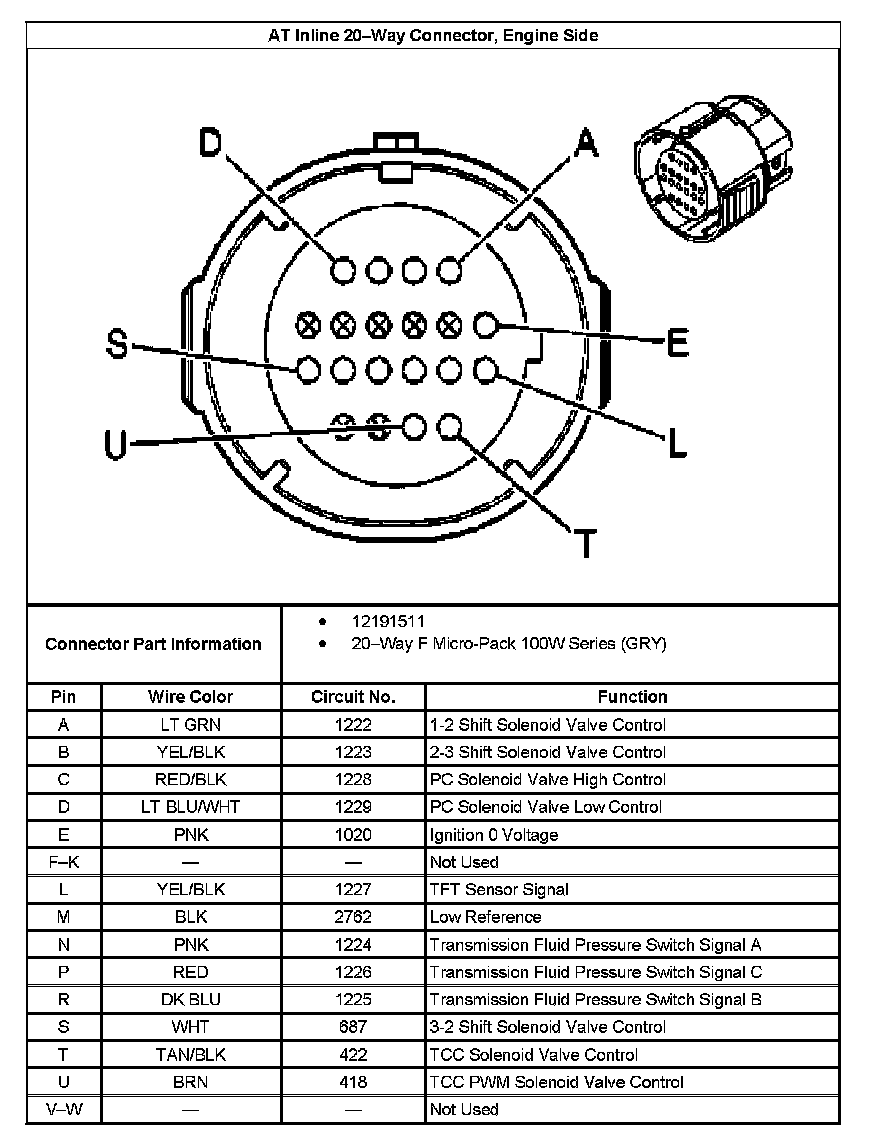

AT Inline 20-Way Connector End View, Engine Side:





AT Inline 20-Way Connector, Engine Side

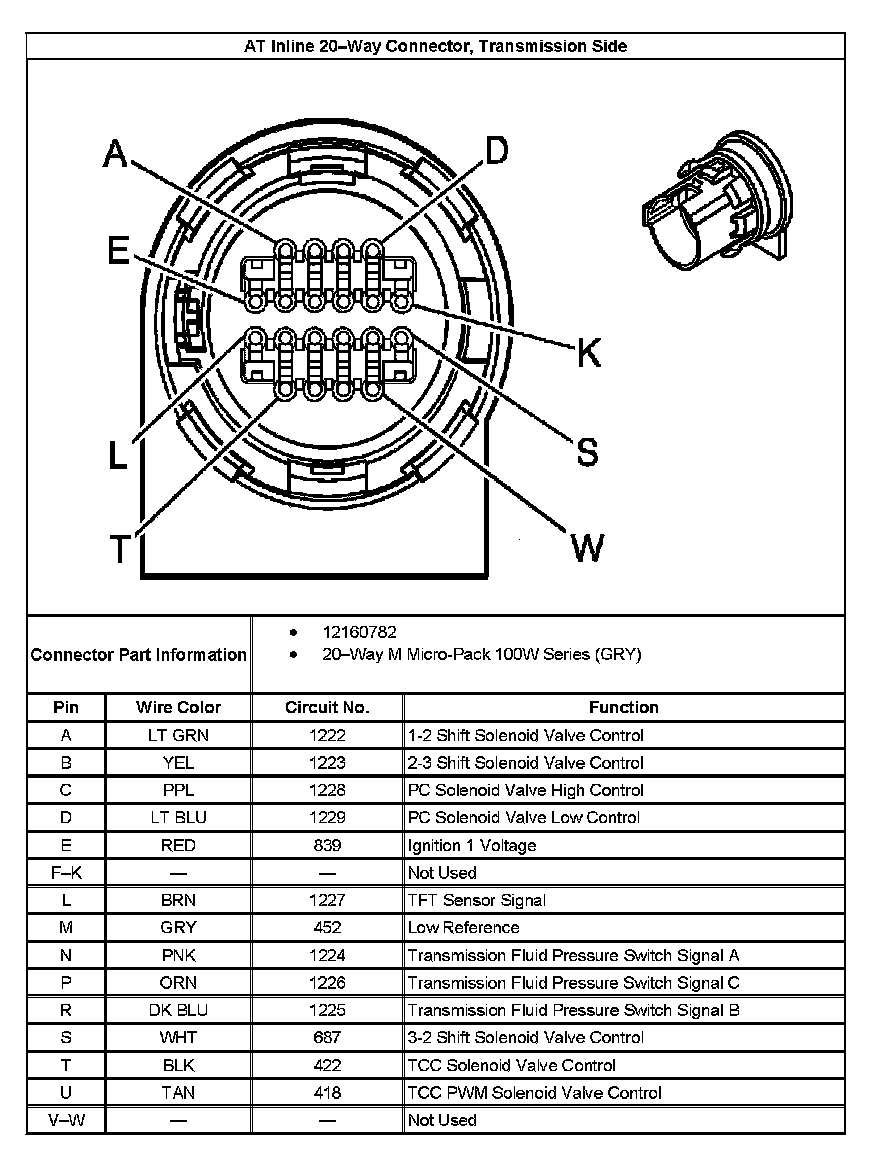

AT Inline 20-Way Connector End View, Transmission Side:





AT Inline 20-Way Connector, Transmission Side
