Memory Seat Module Connector End Views

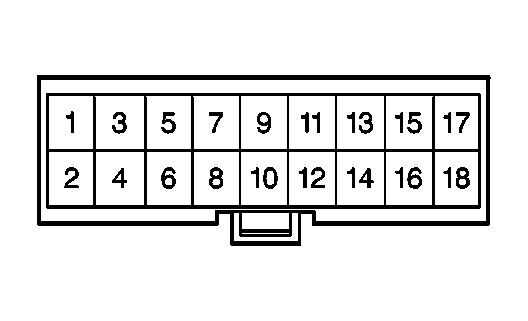

Memory Seat Module - Driver C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		43025-1800 18-Way Molex
Pin	Wire Color	Circuit No.	Function
1	DK GRN/WHT	1270	Power Seat Recline Rearward Switch Signal
2	GRY/BLK	1269	Power Seat Recline Forward Switch Signal
3	LT GRN	1523	Power Seat Horizontal Rearward Switch Signal
4	TAN	1522	Power Seat Horizontal Forward Switch Signal
5	LT BLU	1521	Power Seat Rear Vertical Down Switch Signal
6	YEL	1519	Power Seat Rear Vertical Up Switch Signal
7	DK BLU	1520	Power Seat Front Vertical Down Switch Signal
8	DK GRN	1518	Power Seat Front Vertical Up Switch Signal
9	PPL	616	Memory 2 Switch Signal
10	WHT	615	Memory 1 Switch Signal
11	ORN	614	Memory Seat Set Switch Signal
12	DK GRN	569	Horizontal Seat Motor Position Sensor Signal
13	BRN/WHT	1048	SCM Class 2 Serial Data
14	ORN/BLK	557	Front Vertical Seat Motor Position Sensor Signal
15	RED	569	5 Volt Reference
16	BLK	569	Sensor Ground
17	TAN	568	Rear Vertical Seat Motor Position Sensor Signal
18	WHT/BLK	570	Driver Seat Recline Motor Position Sensor Signal

Memory Seat Module - Driver C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064998 8-Way M Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK BLU	287	Driver Seat Front Vertical Motor Down Control
B	DK GRN	286	Driver Seat Front Vertical Motor Up Control
C	YEL	282	Driver Seat Front Vertical Motor Up Control
D	LT BLU	283	Driver Seat Front Vertical Motor Down Control
E	LT BLU	277	Driver Seat Recline Motor Rearward Control
F	LT GRN	276	Driver Seat Recline Motor Forward Control
G	LT GRN	284	Driver Seat Horizontal Motor Rearward Control
H	TAN	285	Driver Seat Horizontal Motor Forward Control

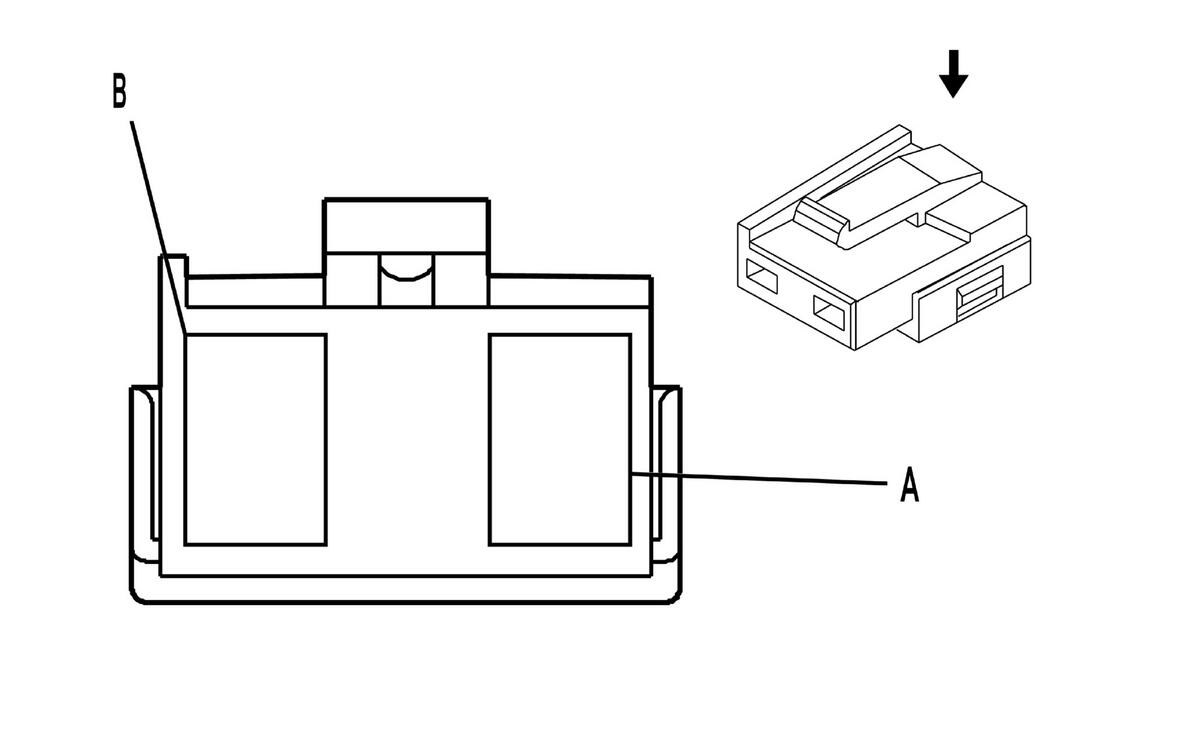

Memory Seat Module - Driver C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12034343 2-Way F 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1350	Ground
B	ORN	1440	Battery Positive Voltage
