Inflatable Restraint Front End Discriminating Sensor Connector End Views

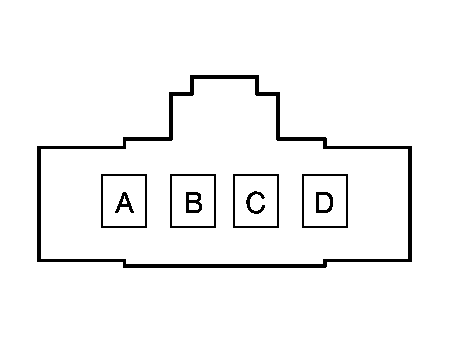

Inflatable Restraint Front End Discriminating Sensor - Left

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12191660 4-Way F 280 Series Sealed (YEL)
Pin	Wire Color	Circuit No.	Function
A	YEL	2160	Front End Discriminating Sensor Signal
B	YEL	2160	Front End Discriminating Sensor Signal
C	BLK/WHT	2151	Ground
D	BLK/WHT	2151	Ground

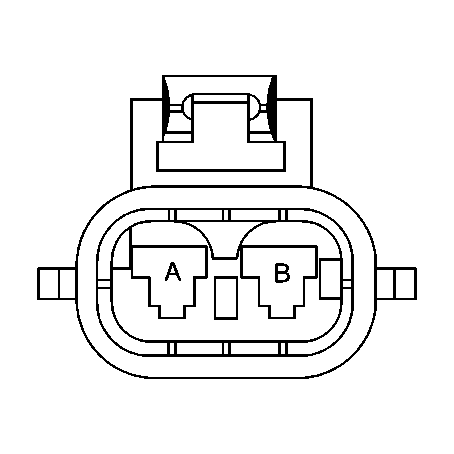

Inflatable Restraint Front End Discriminating Sensor - Right

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176650 2-Way F 280 Series Sealed (YEL)
Pin	Wire Color	Circuit No.	Function
A	YEL	2160	Front End Discriminating Sensor Signal (w/o K18)
	YEL	1834	Front End Discriminating Sensor Signal (w/K18)
B	BLK/WHT	2151	Ground (w/o K18)
	BLK/WHT	1851	Ground (w/K18)
