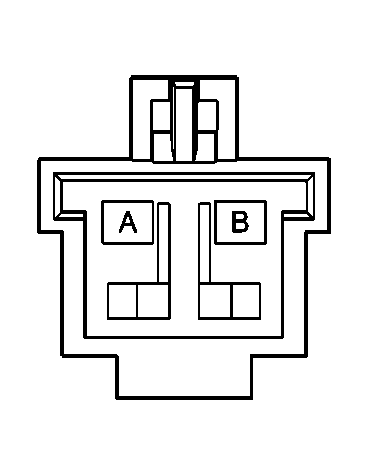

Inflatable Restraint I/P Module Connector End View
Inflatable Restraint I/P Module
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15358765
- 2-Way M Metri-Pack 280 Series, Pull-to-Seat (YEL)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
WHT/BLK |
1403 |
I/P Module - High Control |
| B |
DK GRN/WHT |
1404 |
I/P Module - Low Control |
