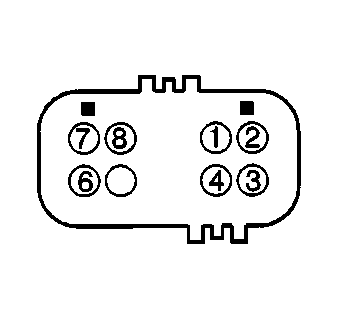

Transfer Case Encoder Motor Connector End View

Transfer Case Encoder Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12124051 8-Way F (BLK)
Pin	Wire Color	Circuit No.	Function
1	YEL/BLK	1558	Channel B Encoder Signal
2	DK BLU/ WHT	1557	Channel A Encoder Signal
3	BLK/WHT	1554	Encoder Signal Ground
4	BRN/WHT	1555	Channel P Encoder Signal
5	-	-	Not Used
6	RED	1553	Motor Control B
7	BLK	1552	Motor Control A
8	RED/WHT	1556	Channel C Encoder Signal
