Transfer Case Encoder Motor Connector End Views

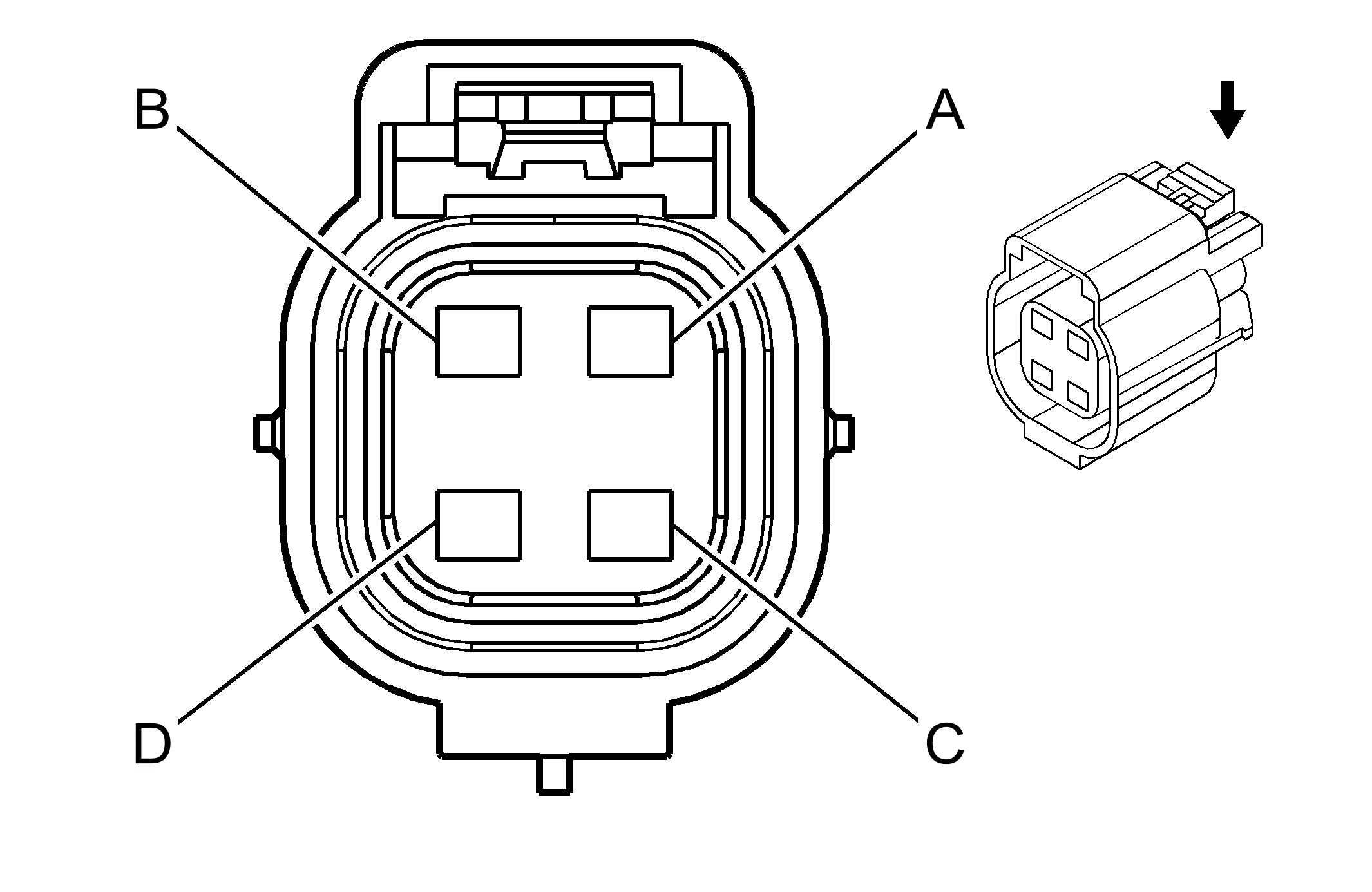

Transfer Case Encoder Motor C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12191399 4-Way F Metri-Pack 280 Series, Flexlock, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1552	Motor Control A
B	RED	1553	Motor Control B
C	ORN	1640	Battery Positive Voltage
D	TAN	1569	Lock Solenoid Control

Transfer Case Encoder Motor C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052848 6-Way F Metri-Pack 150 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	1554	Encoder Signal Ground
B	DK BLU/ WHT	1557	Channel A Encoder Signal
C	RED/WHT	1556	Channel C Encoder Signal
D	YEL/BLK	1558	Channel B Encoder Signal
E	LT GRN/BLK	431	8 Volt Reference
F	BRN/WHT	1555	Channel P Encoder Signal
