Computer/Integrating Systems Component Views

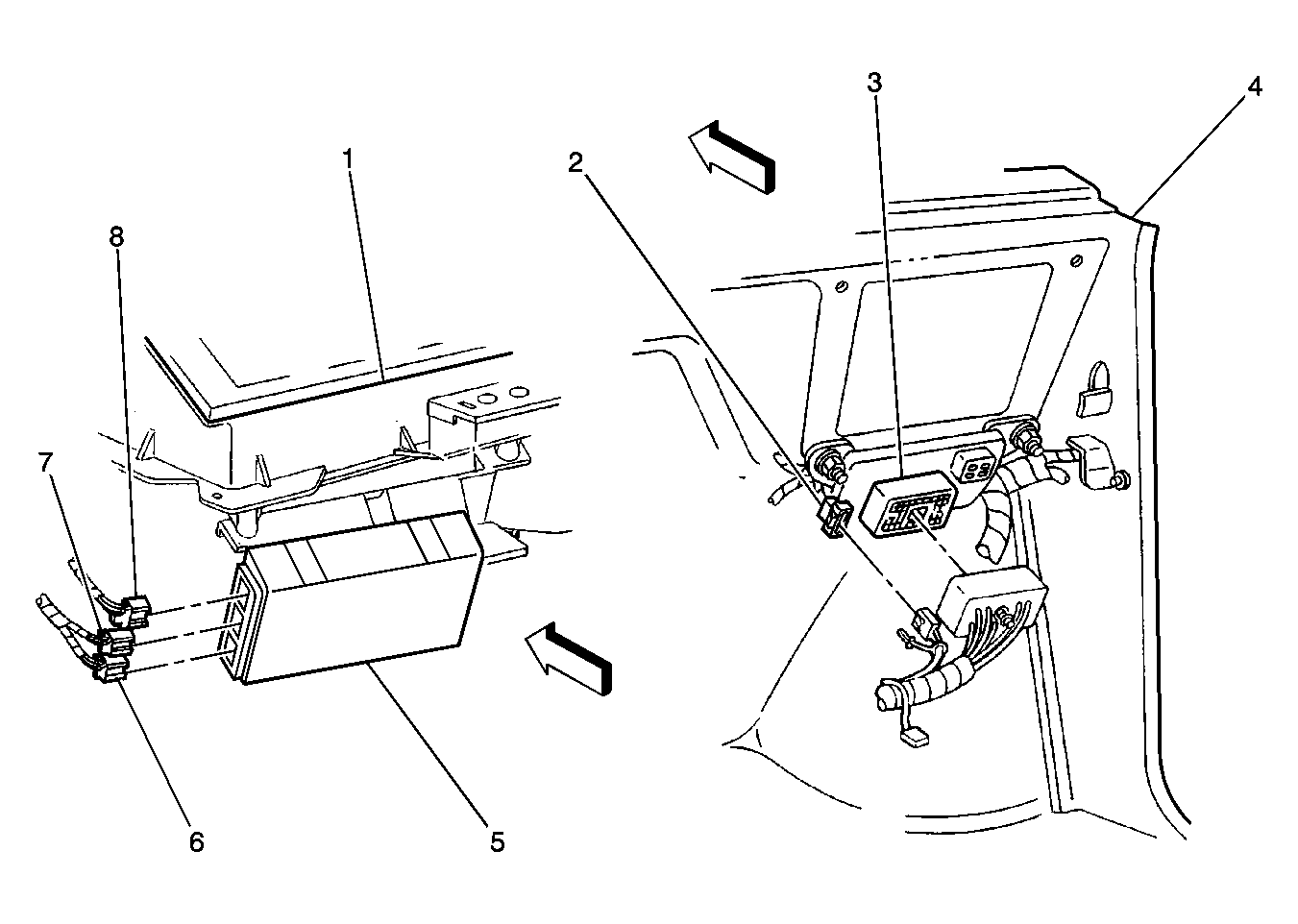

Fig 1: Instrument Panel Details, RH

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Controls
2	C200
3	C203
4	Instrument Panel (IP)
5	Body Control Module (BCM)
6	Body Control Module (BCM), Connector C1
7	Body Control Module (BCM), Connector C2
8	Body Control Module (BCM), Connector C3

Fig 2: Body Wiring Harness, DLC and RCDLR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Data Link Connector (DLC) (Except Base Pickup)
3	Instrument Panel (I/P) Sound Insulator, Left
4	Data Link Connector (DLC) (Base Pickup)
