Installation Procedure

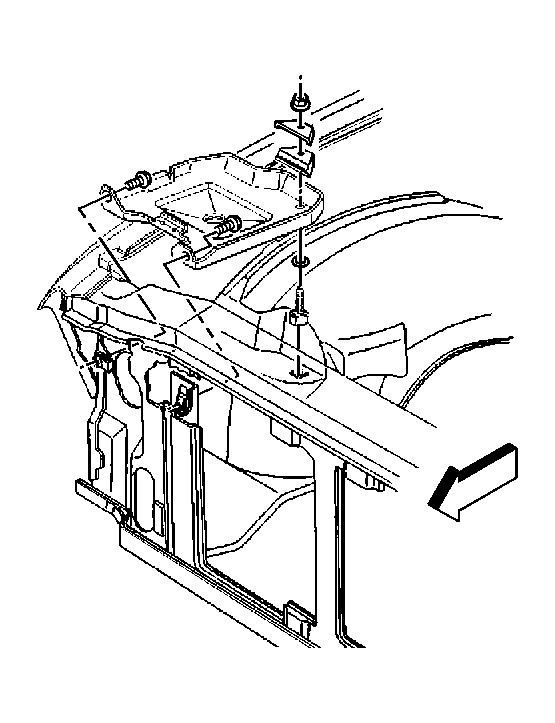

    Fig 1: View Of Battery Tray
    GM180451Courtesy of GENERAL MOTORS CORP.
  1. Install the battery tray.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery tray retaining bolts.

    Tighten:  Tighten the battery tray retaining bolts to 25 N.m (18 lb ft).

  3. Install the battery. Refer to Battery Replacement .
