Power Steering Pump Disassembled View (CB Series)

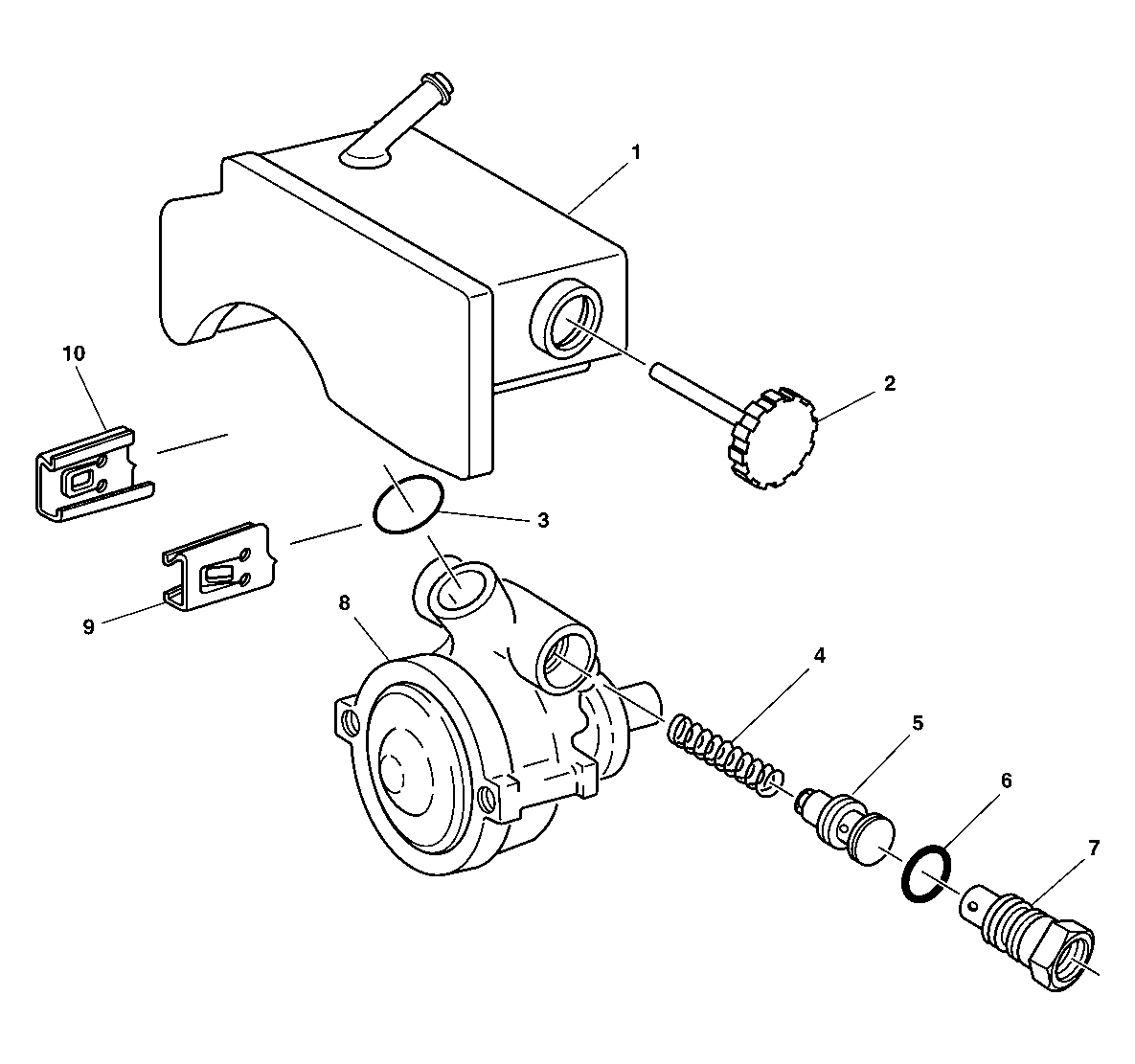

Fig 1: S/T Truck CB Series Power Steering Pump Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hydraulic Pump Reservoir
2	Reservoir Capstick Assembly
3	O-Ring Seal
4	Flow Control Spring
5	Control Valve Assembly
6	O-Ring Seal
7	Connector and Fitting Assembly
8	Hydraulic Pump Housing Assembly
9	Reservoir Retaining Clip (RH)
10	Reservoir Retaining Clip (LH)
