Installation Procedure

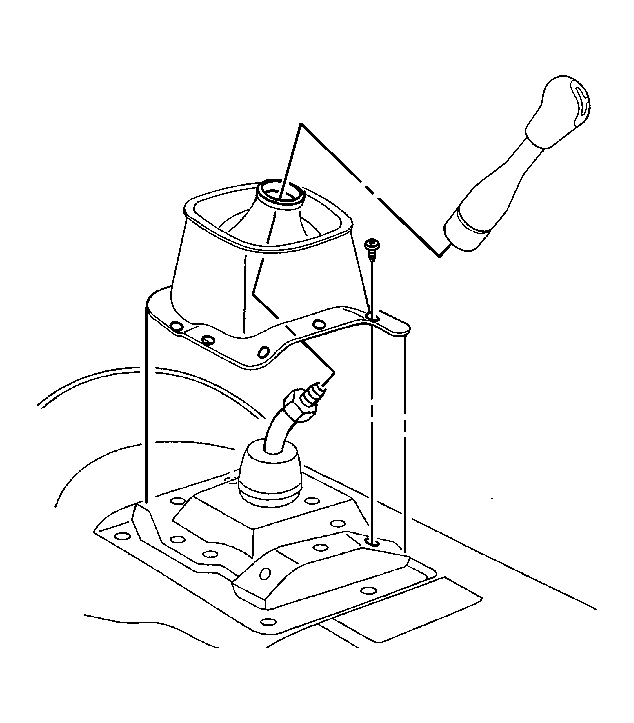

Fig 1: View Of Shift Tower

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the boot over the shift tower and secure to the panel with the screws.
Tighten: Tighten the screws to 2 N.m (18 lb in).
Install the shift lever to the shift tower.
If required, center the shift lever with the adjusting nut.

Tighten: Tighten the adjusting nut to 48 N.m (35 lb ft).
