Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

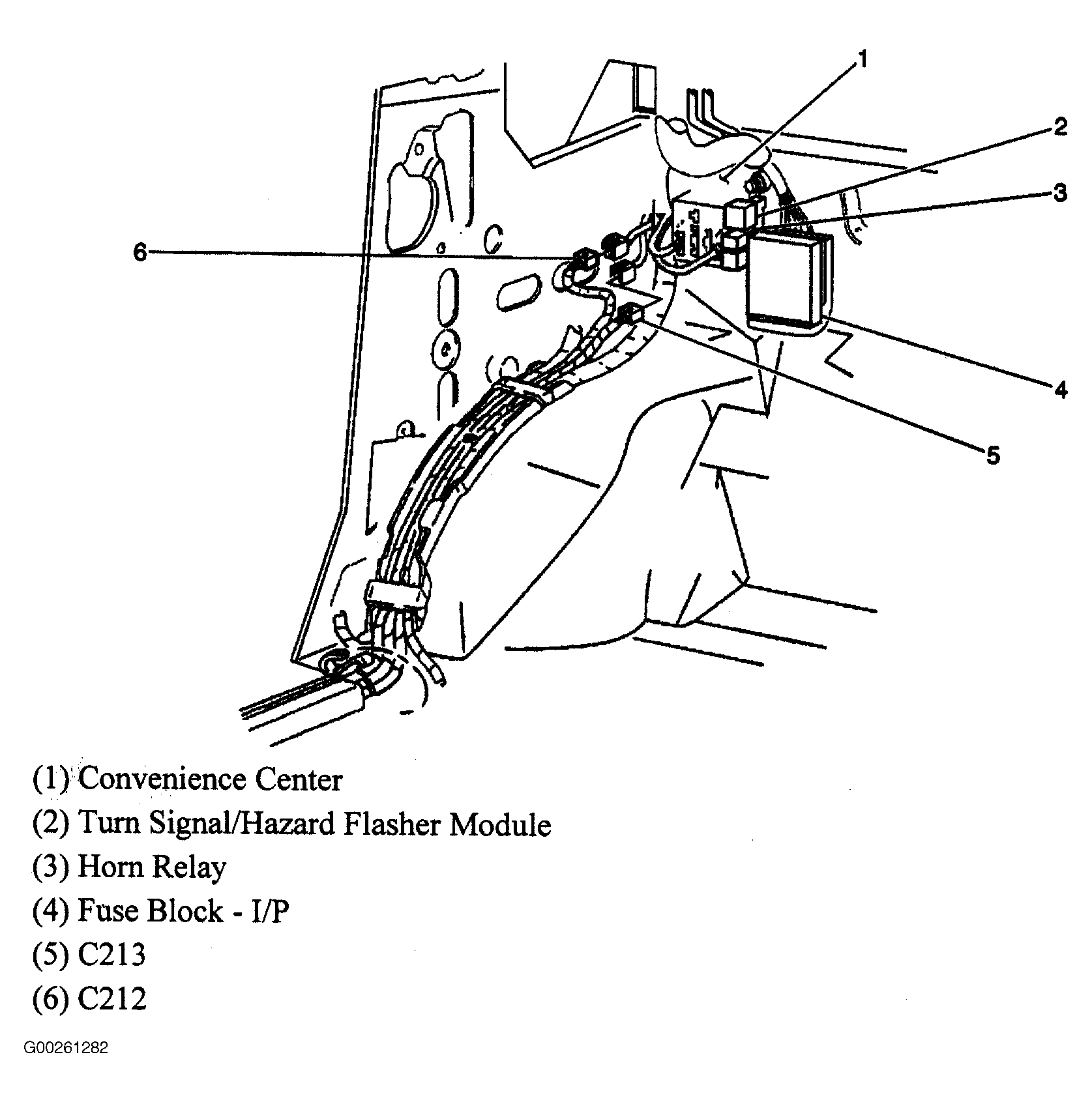

Convenience Center Left of I/P fuse block, by left kick panel. See Figure .
I/P Fuse Block Behind left side of dash. See Figure .

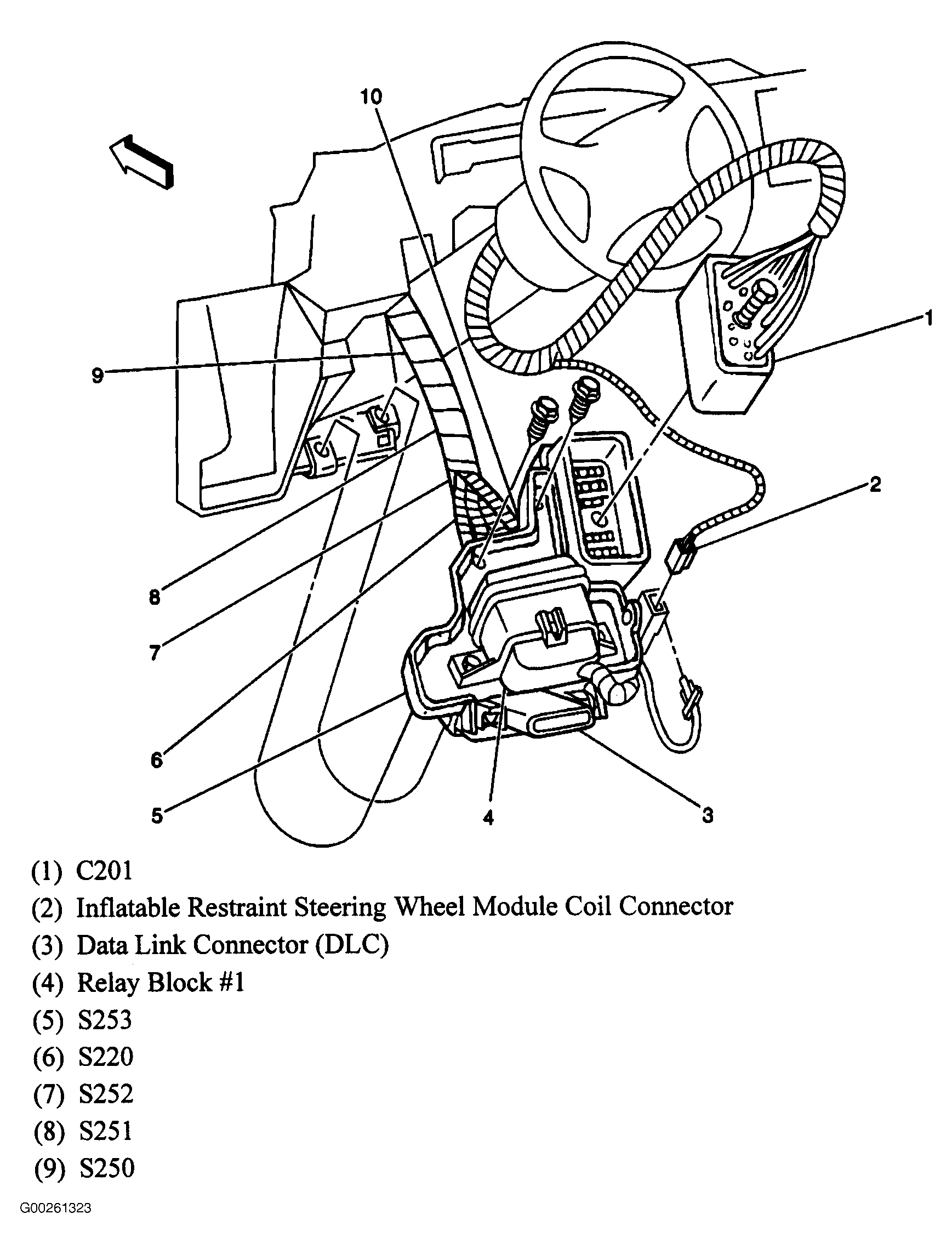

Relay Block No. 1 Behind left side of dash, on DLC bracket. See Figure .

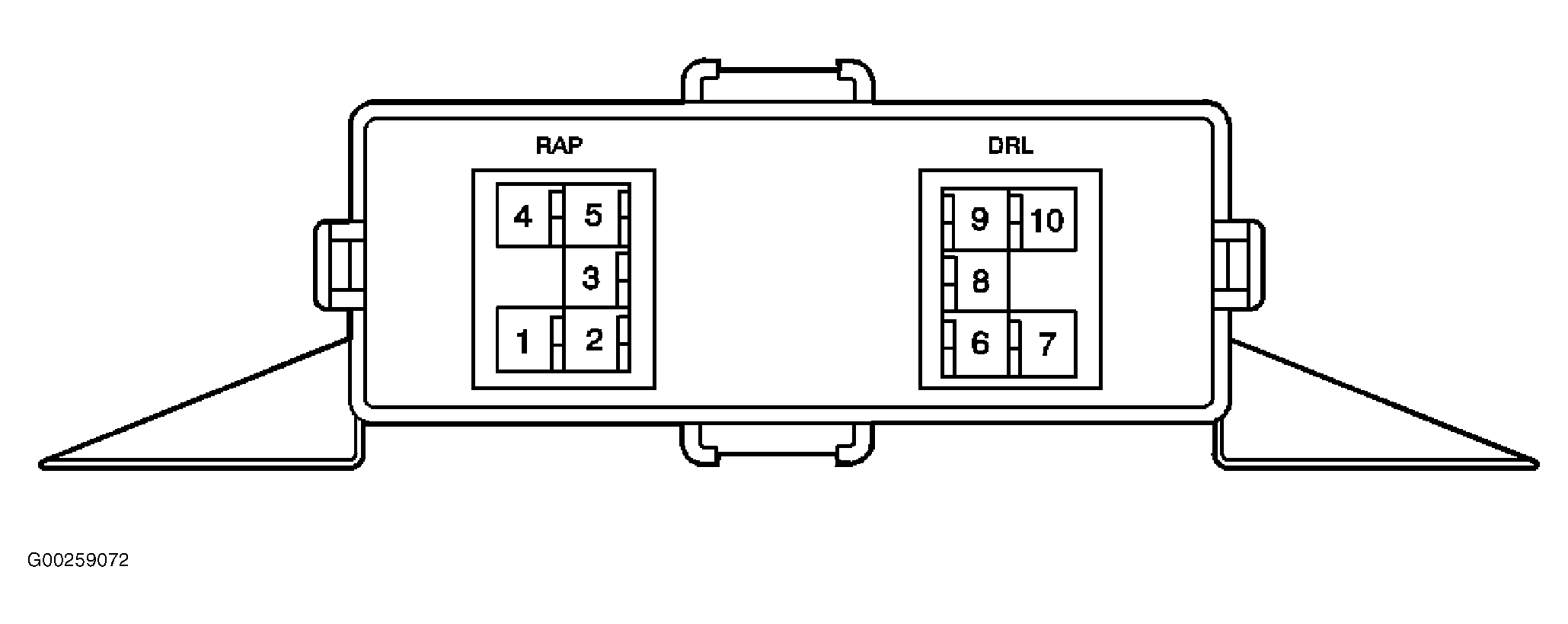

Relay Block No. 2 Behind left side of dash, on DLC bracket. See Figure .

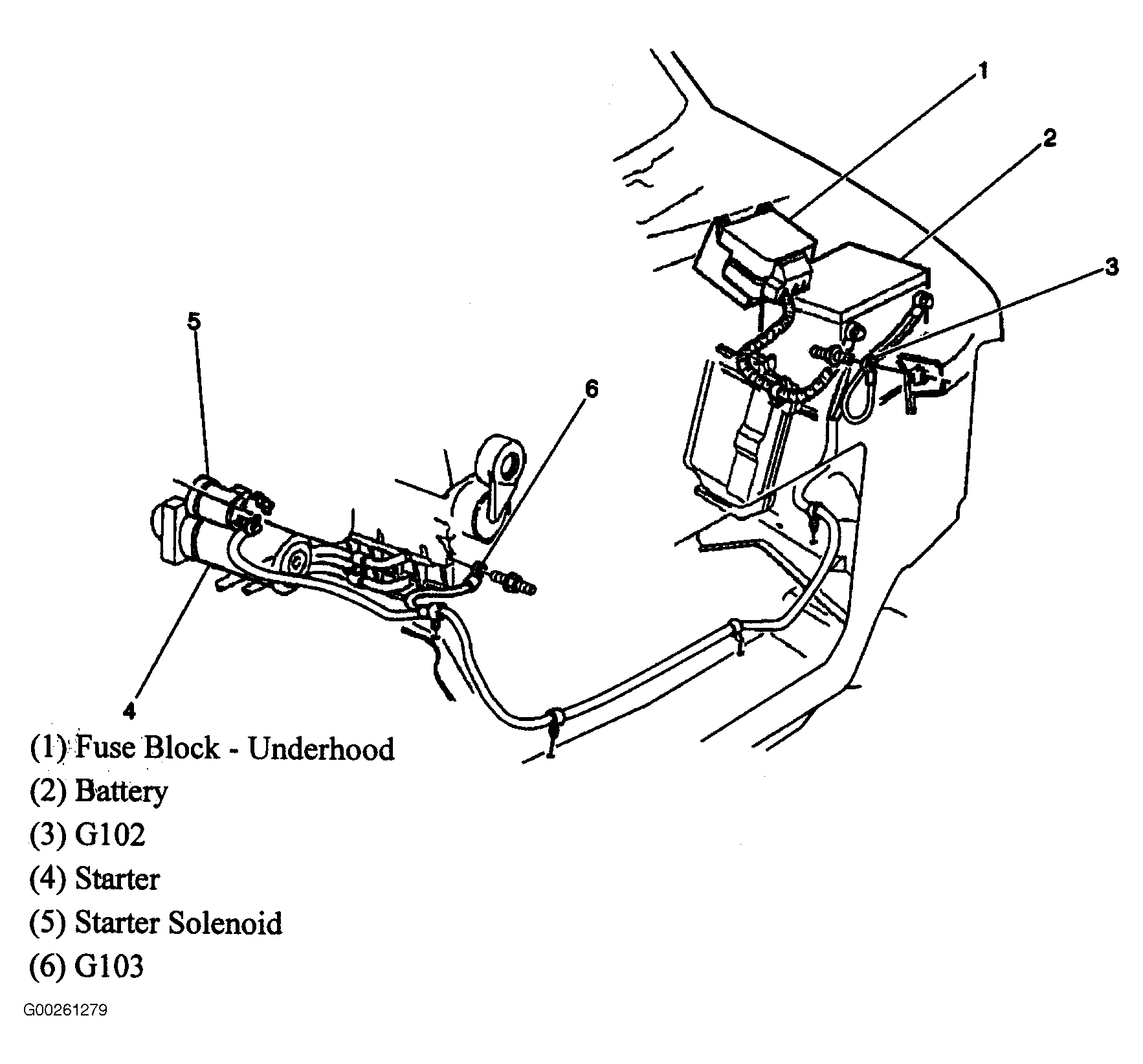

Underhood Fuse Block Left side of engine compartment. See Figure .
