Door Control Module Schematics

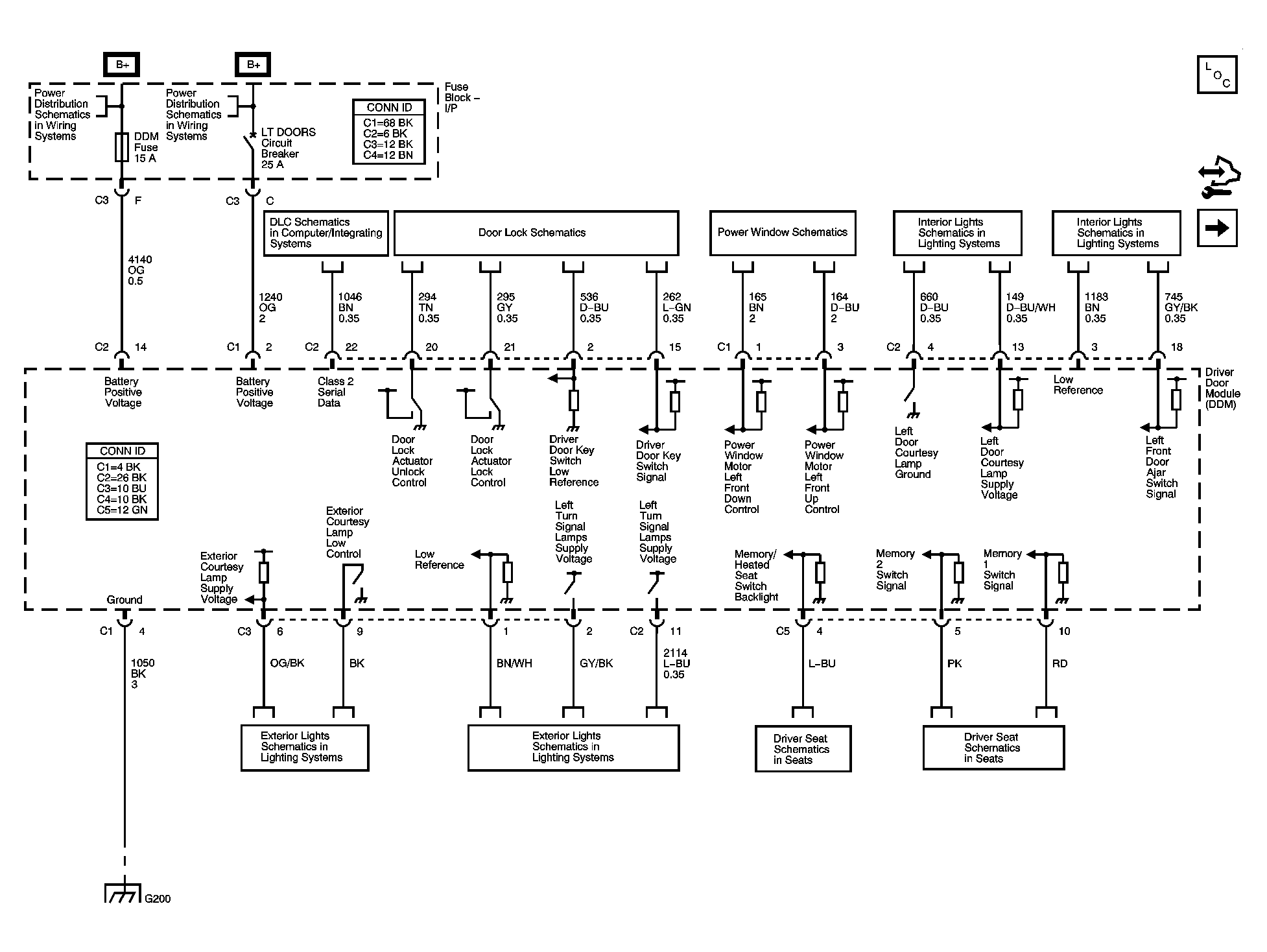

Fig 1: Driver Door Module (DDM) Power, Ground, Serial Data and References Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

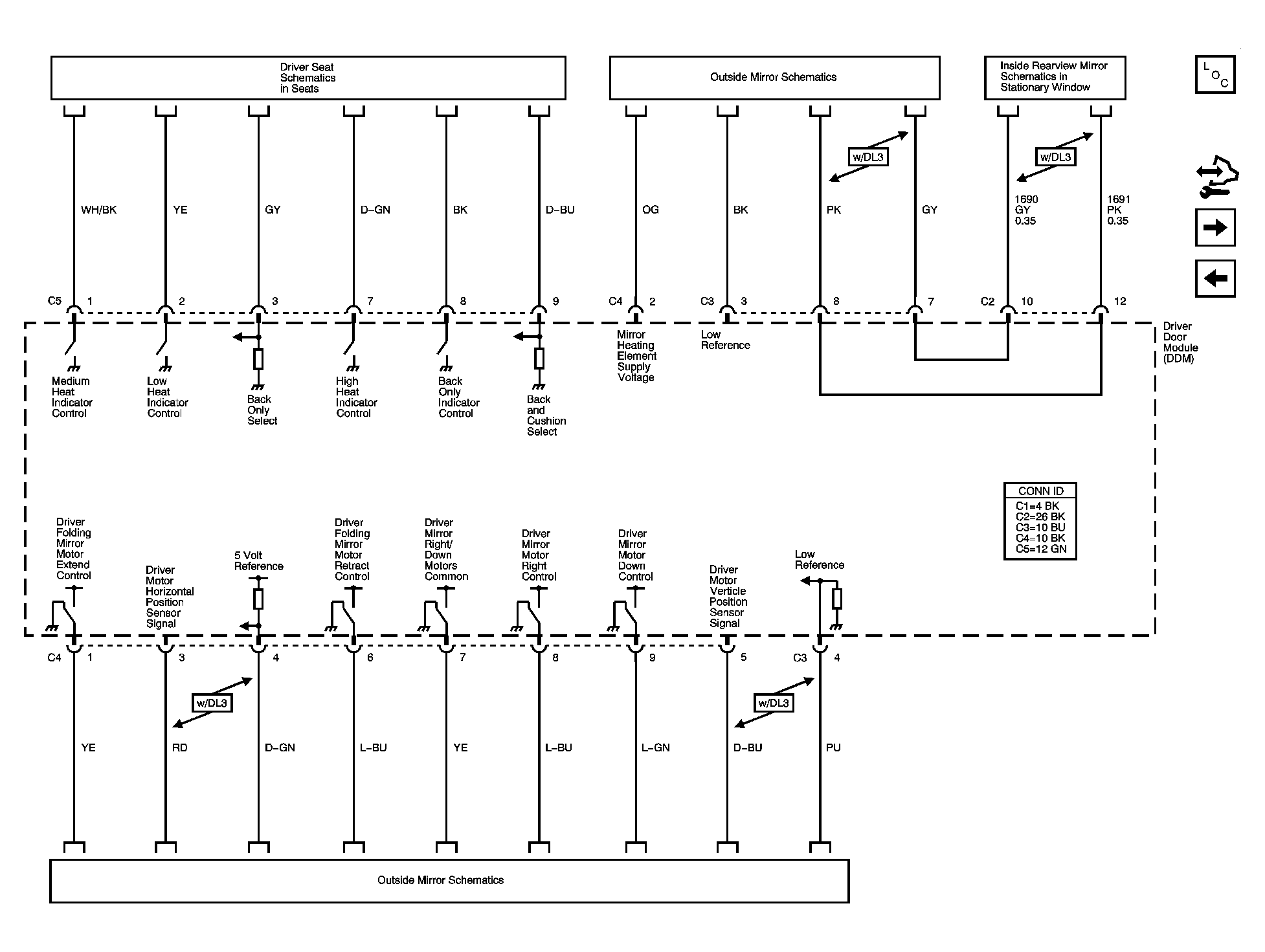

Fig 2: Driver Door Module (DDM) References Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

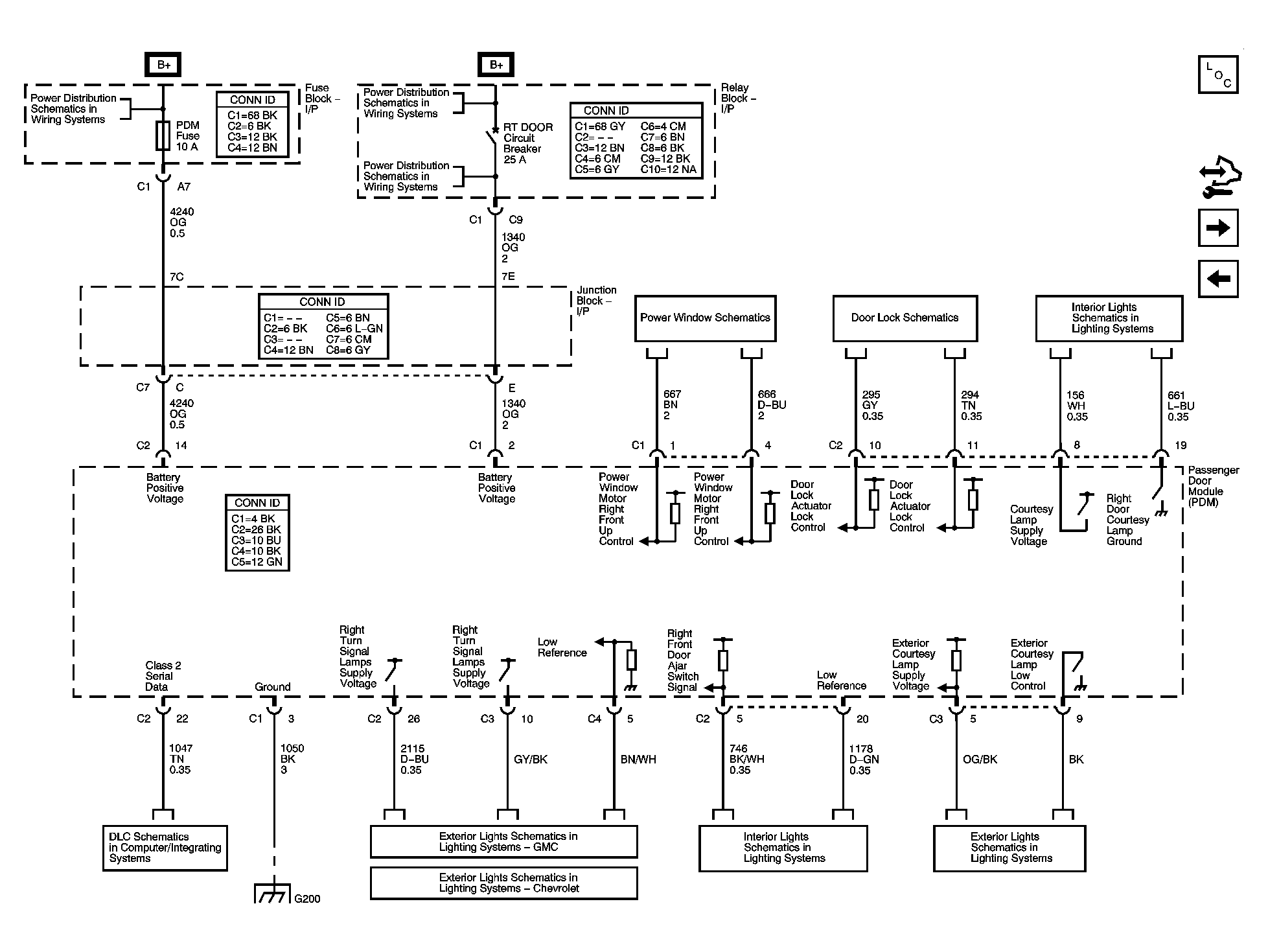

Fig 3: Passenger Door Module (PDM) Power, Ground, Serial Data and References Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

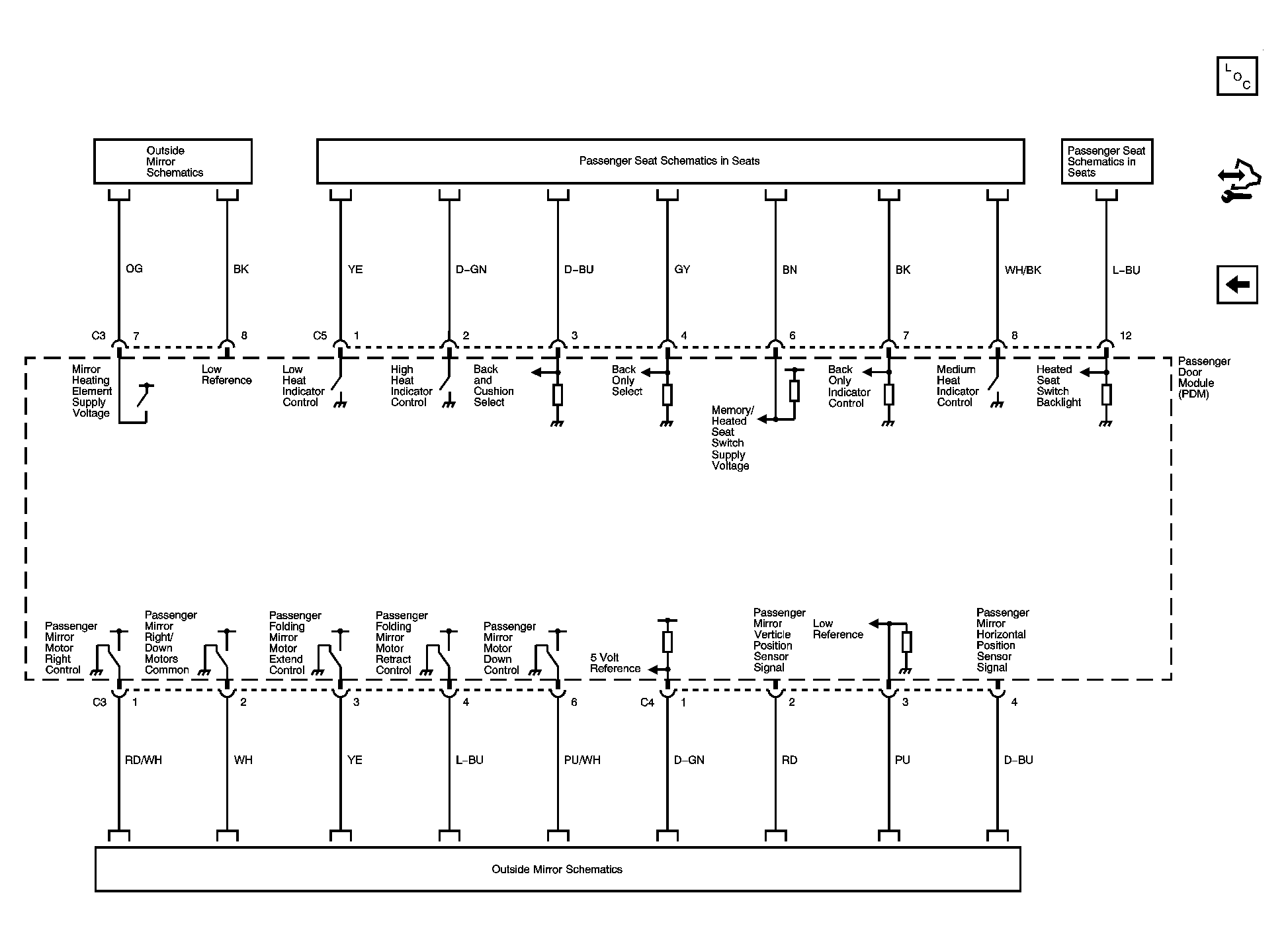

Fig 4: Passenger Door Module (PDM) References Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
