Alarm Module: Locations

Immobilizer Component Views

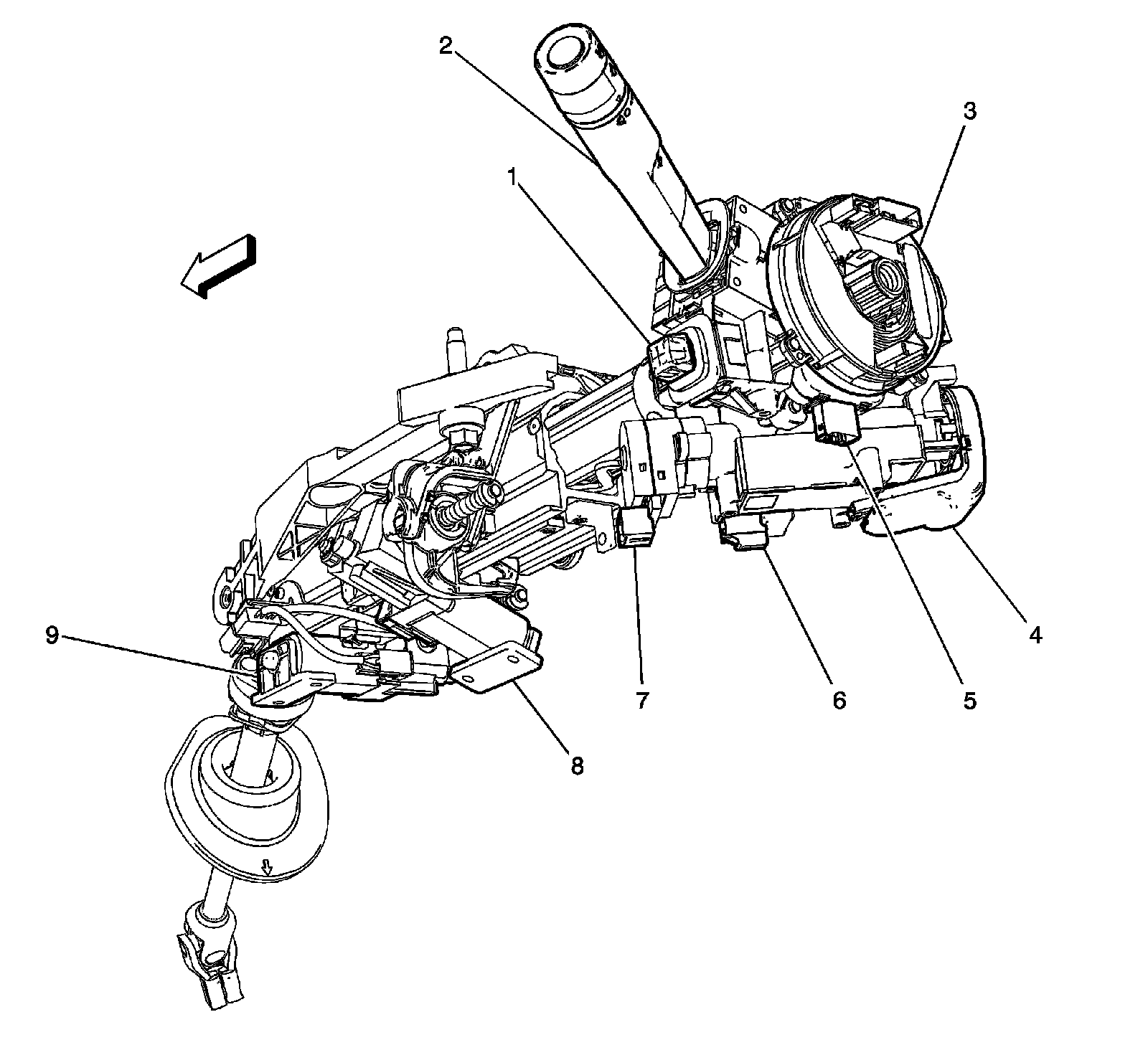

Steering Column Components




1 - Tilt/Telescope Switch (N38)
2 - Turn Signal/Multifunction Switch
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Theft Deterrent Control Module
5 - Steering Wheel Speed Position Sensor
6 - Ignition Lock Cylinder Control Actuator
7 - Ignition Switch
8 - Tilt Motor
9 - Telescope Actuator
