Central Control Module



Entertainment/Communication Connector End Views

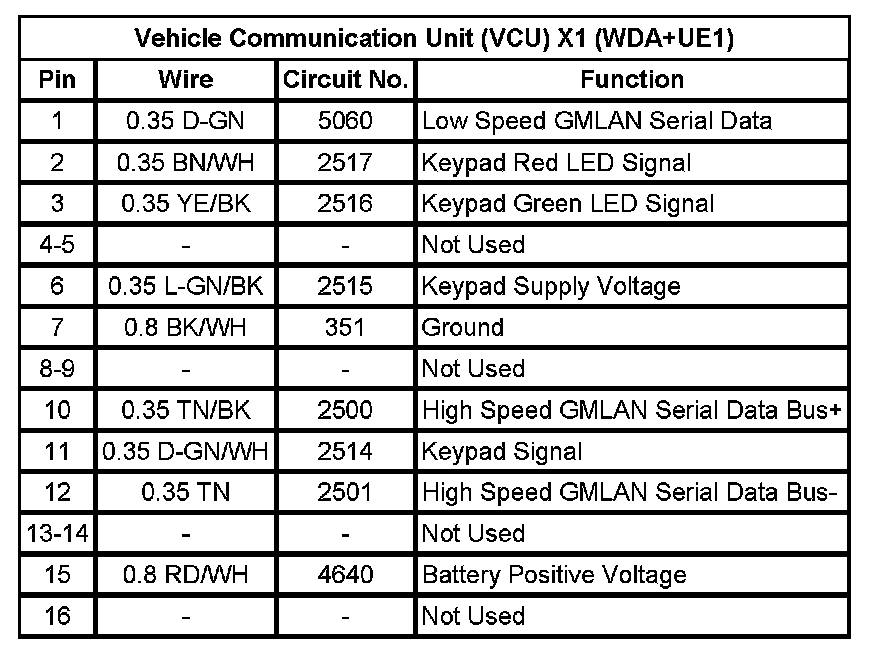

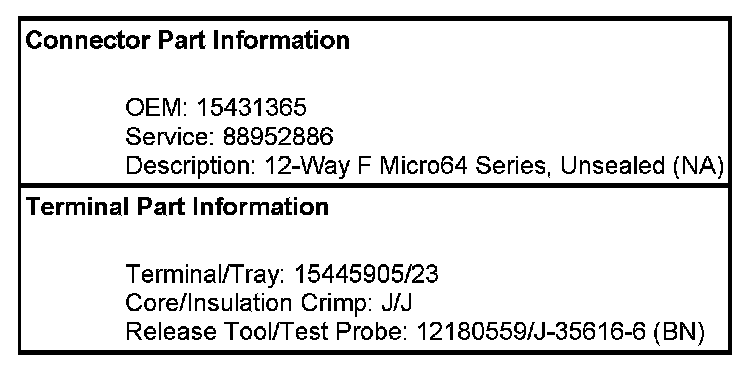

Vehicle Communication Unit (VCU) X1 (WDA+UE1)














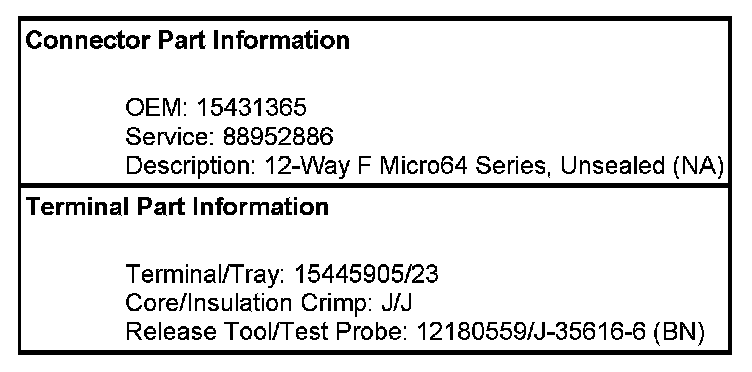

Vehicle Communication Unit (VCU) X1 (Z88+UE1)

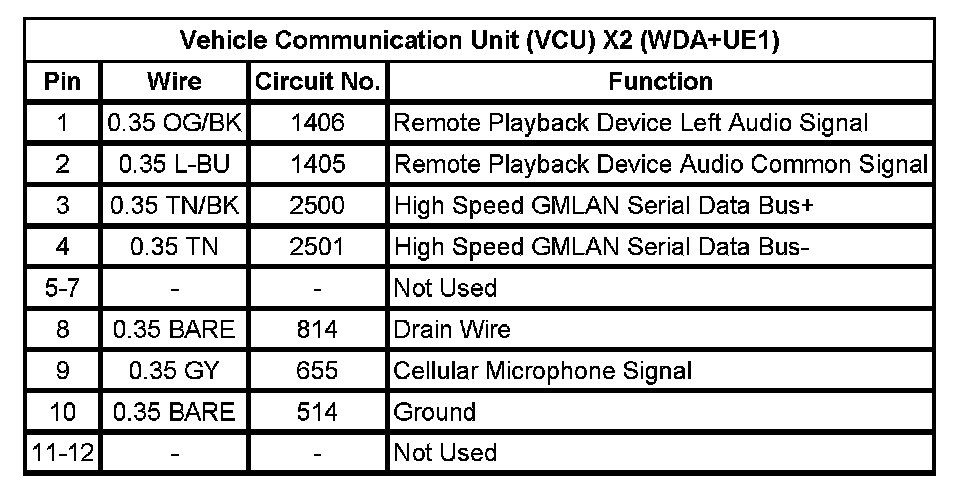

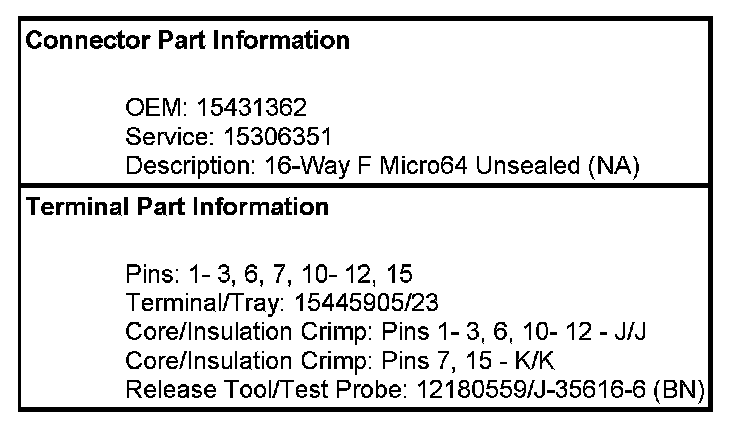

Vehicle Communication Unit (VCU) X2 (WDA+UE1)

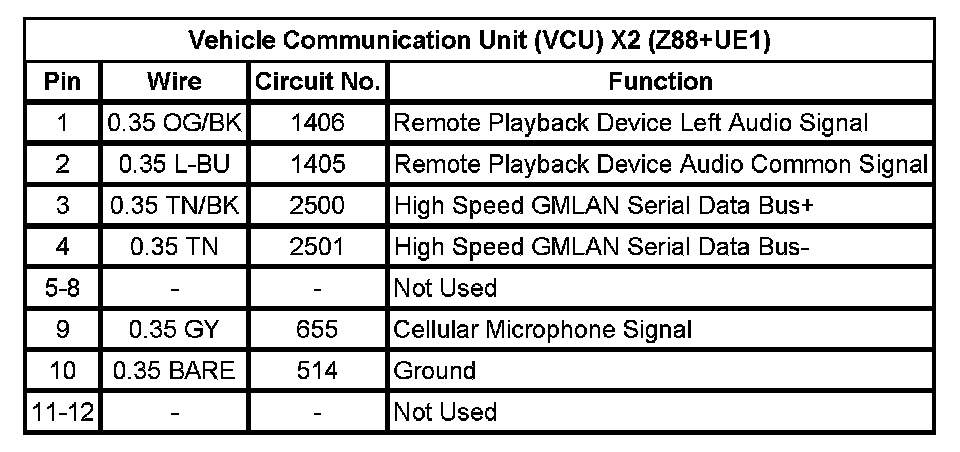

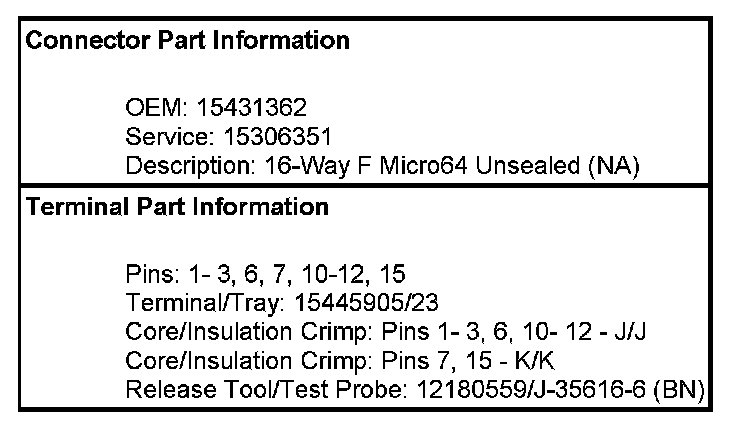

Vehicle Communication Unit (VCU) X2 (Z88+UE1)














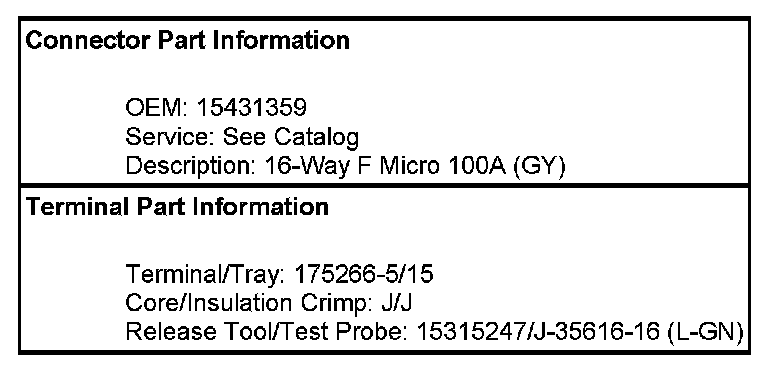

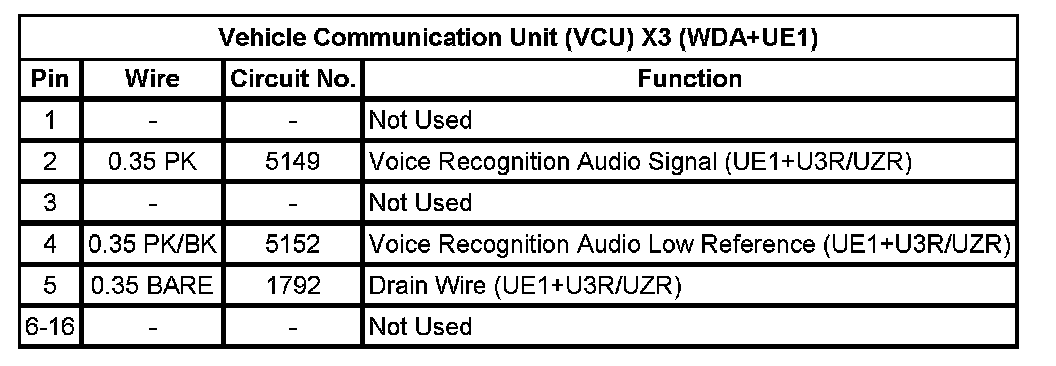

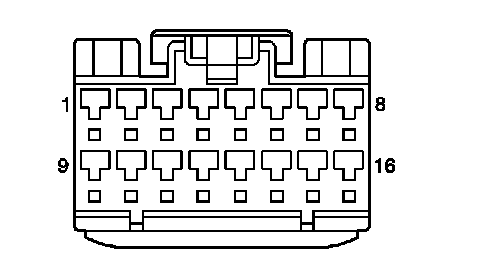

Vehicle Communication Unit (VCU) X3 (WDA+UE1)














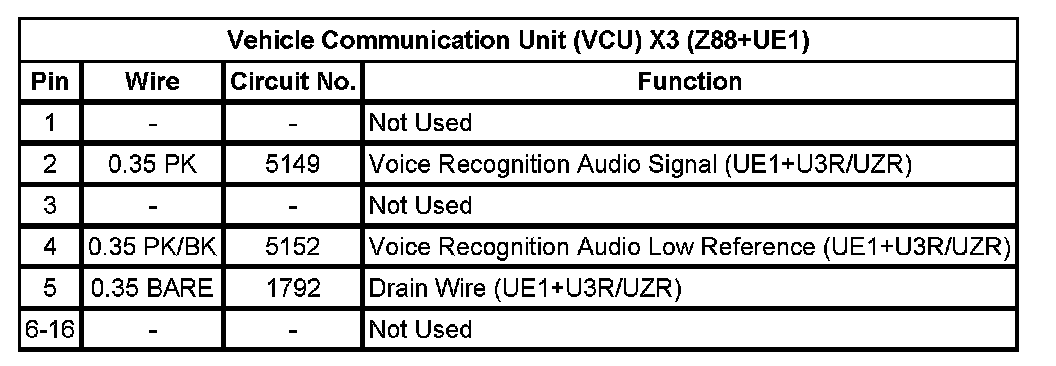

Vehicle Communication Unit (VCU) X3 (Z88+UE1)
