Backup Lamp

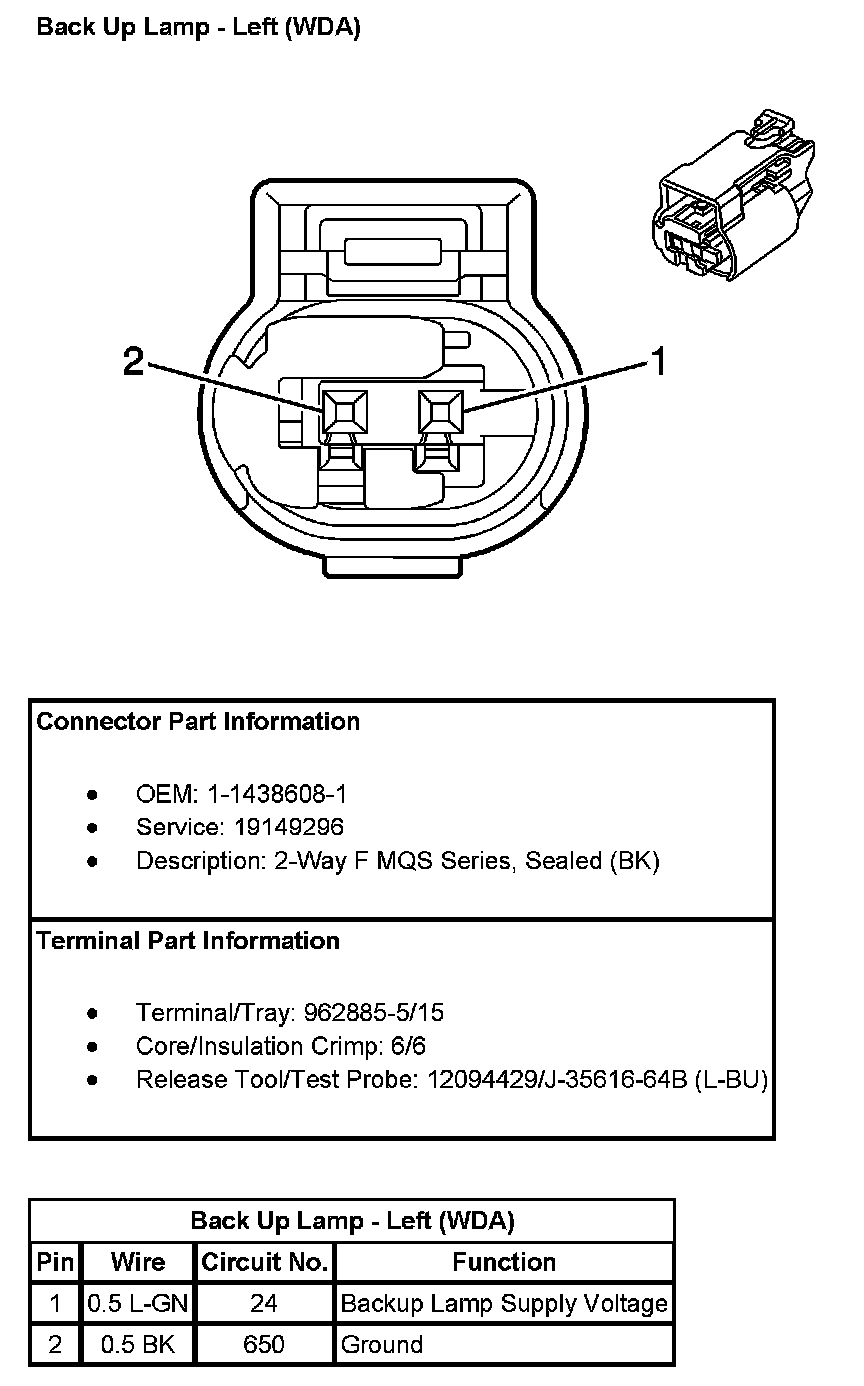

Back Up Lamp - Left (With RPO Code WDA):



Back Up Lamp - Left (With RPO Code Z88):

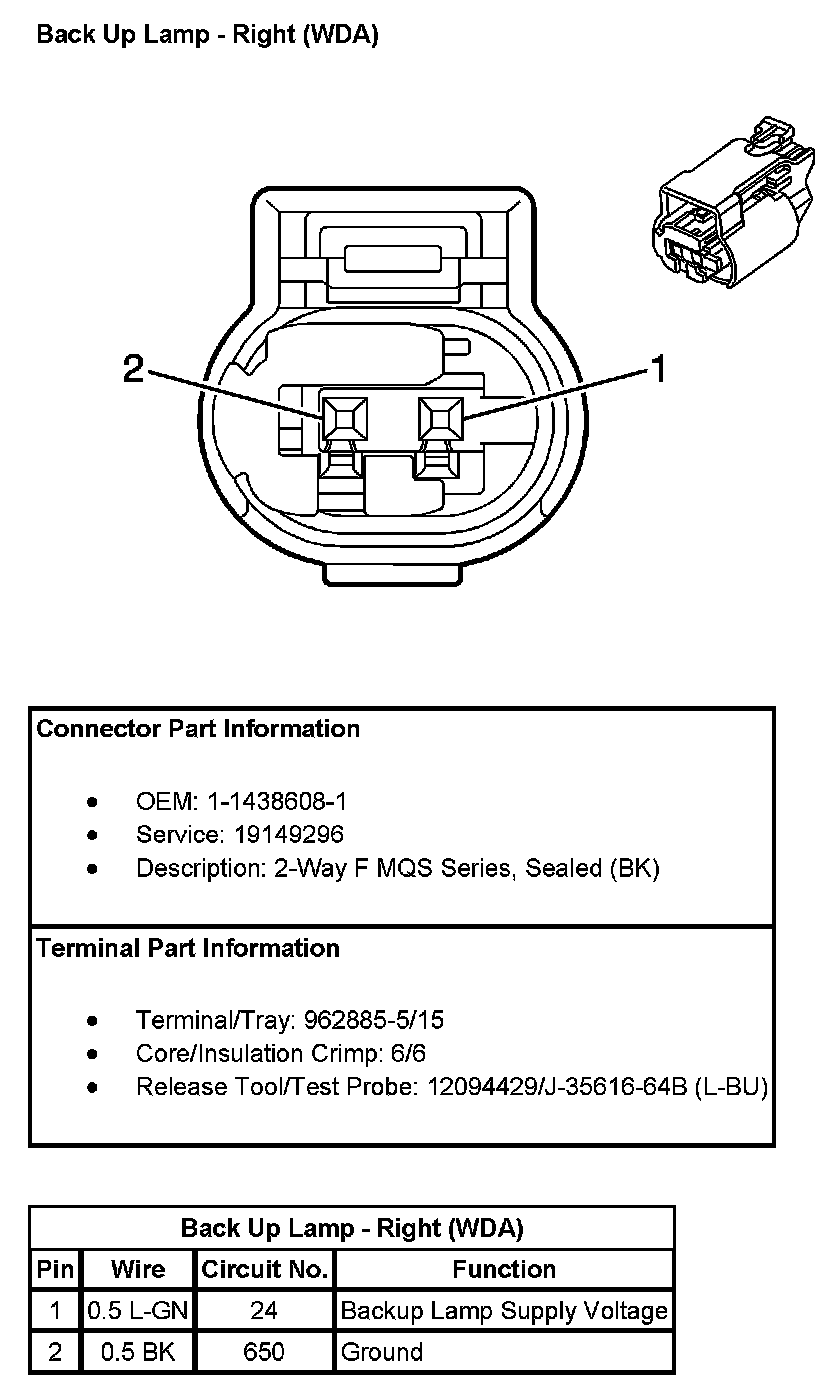

Back Up Lamp - Right (With RPO Code WDA):



Back Up Lamp - Right (With RPO Code Z88):
