Fog/Driving Lamp

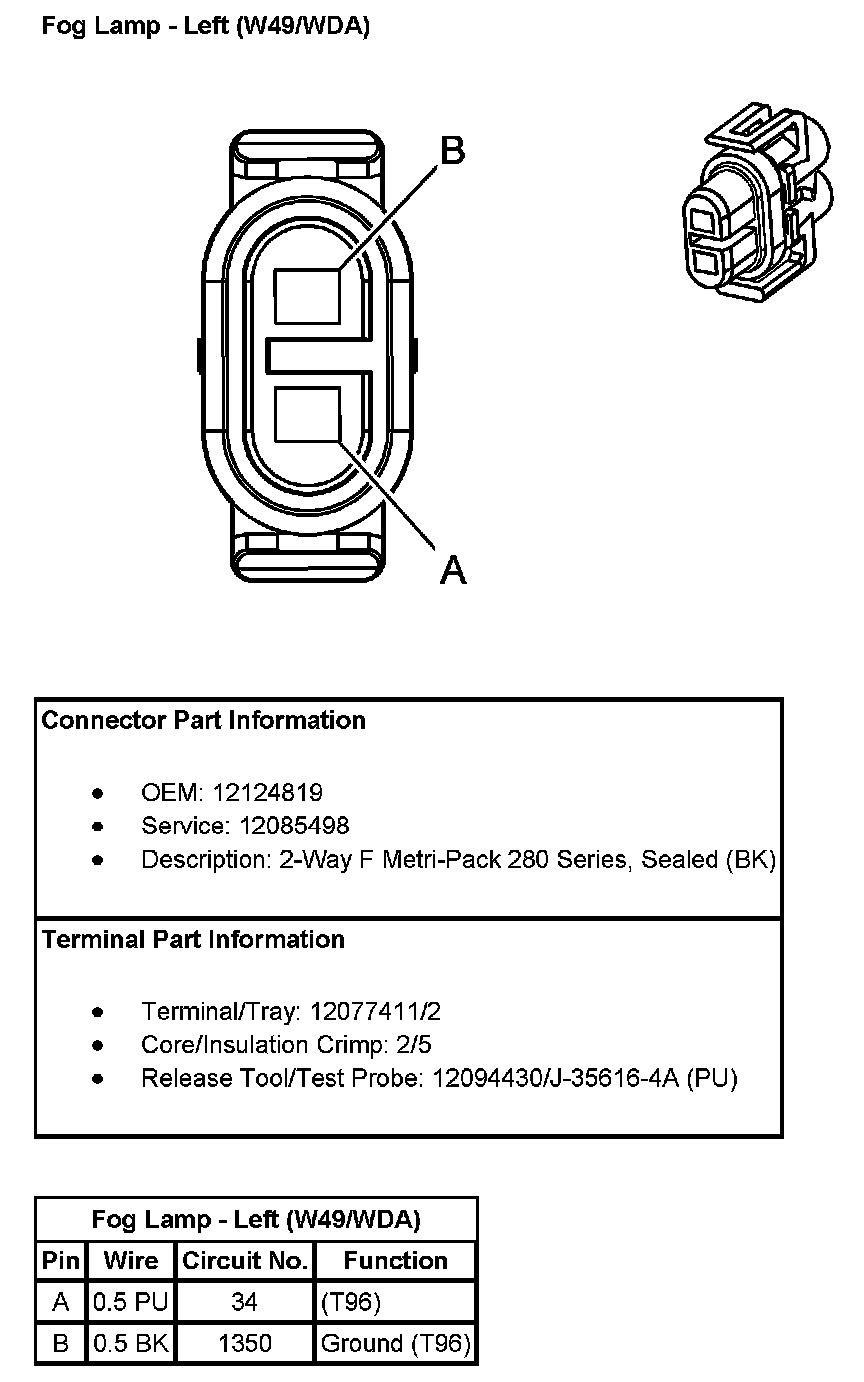

Fog Lamp - Left (With RPO Code W49/WDA):



Fog Lamp - Left (With RPO Code Z88):

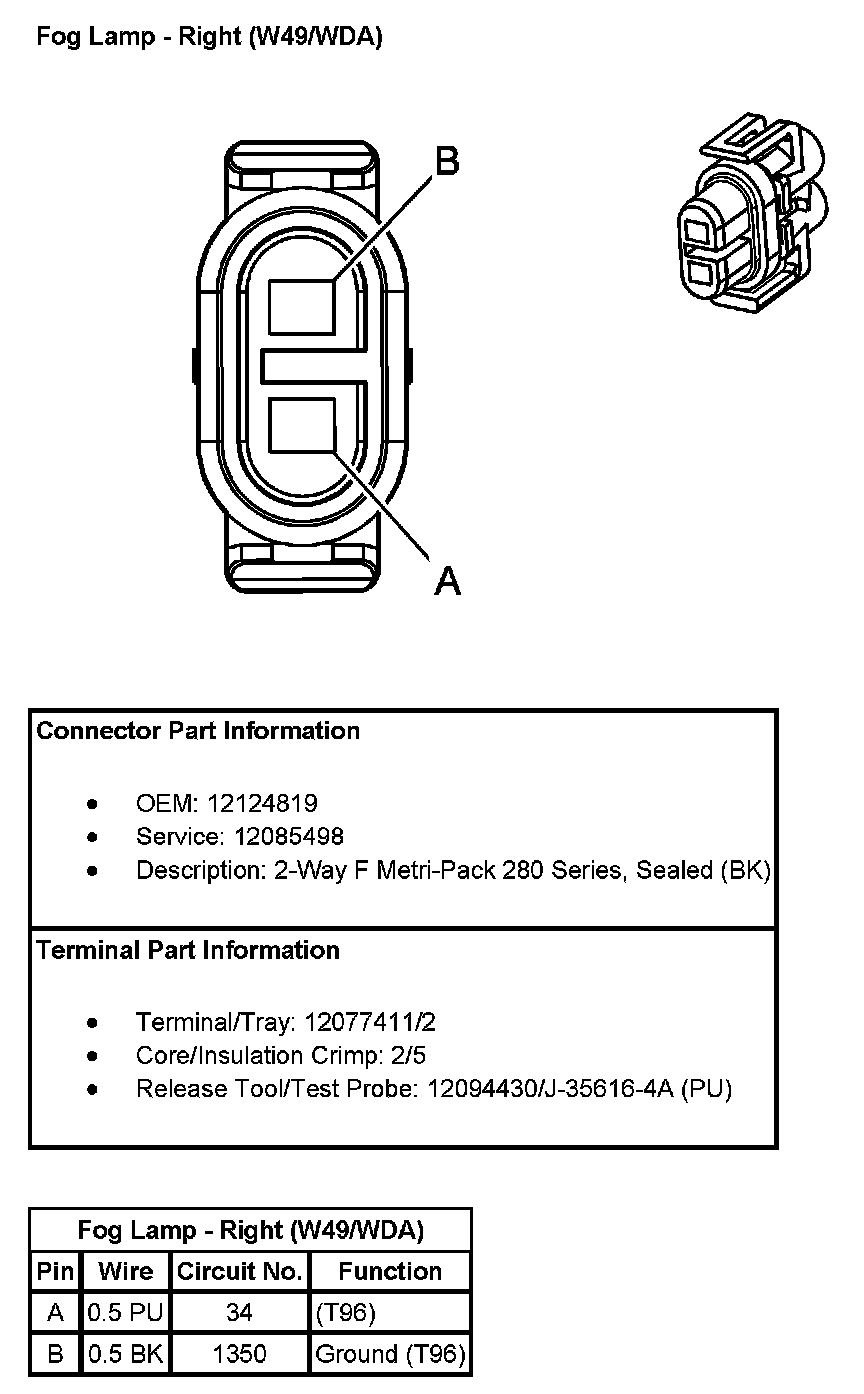

Fog Lamp - Right (With RPO Code W49/WDA):



Fog Lamp - Right (With RPO Code Z88):
