Power Door Lock Switch

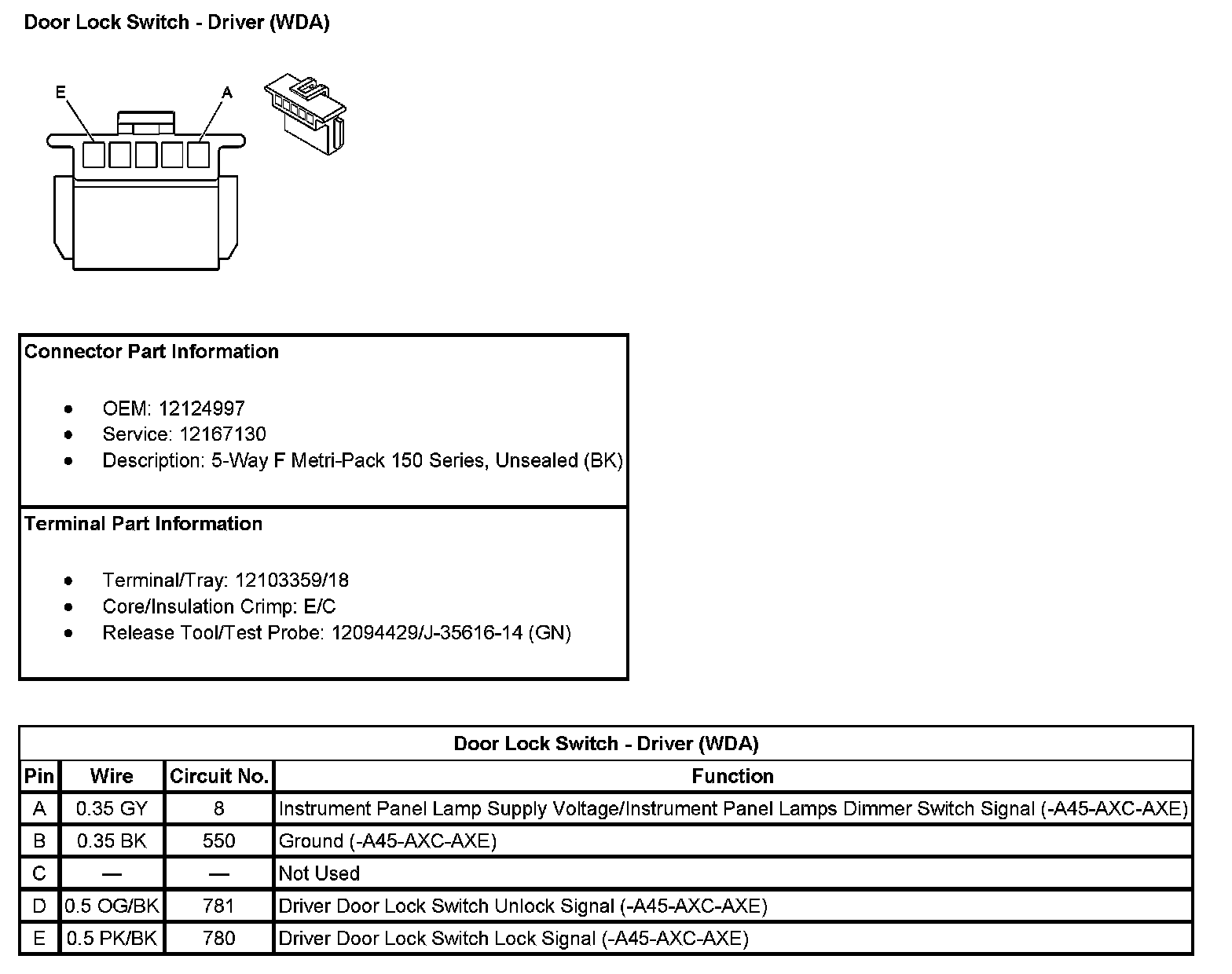

Door Lock Switch - Driver (With RPO Code WDA) Pin A To E:

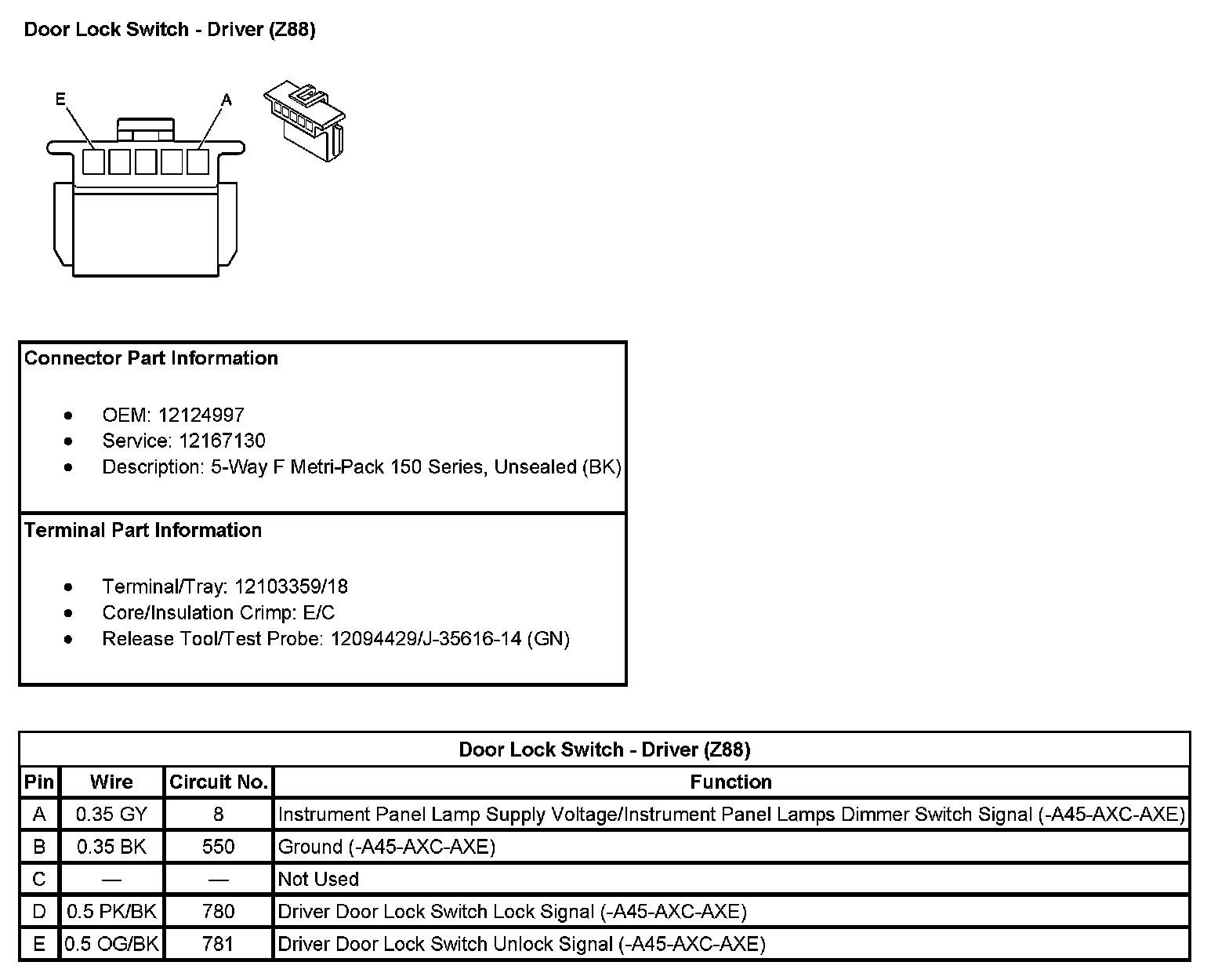

Door Lock Switch - Driver (With RPO Code Z88) Pin A To E:

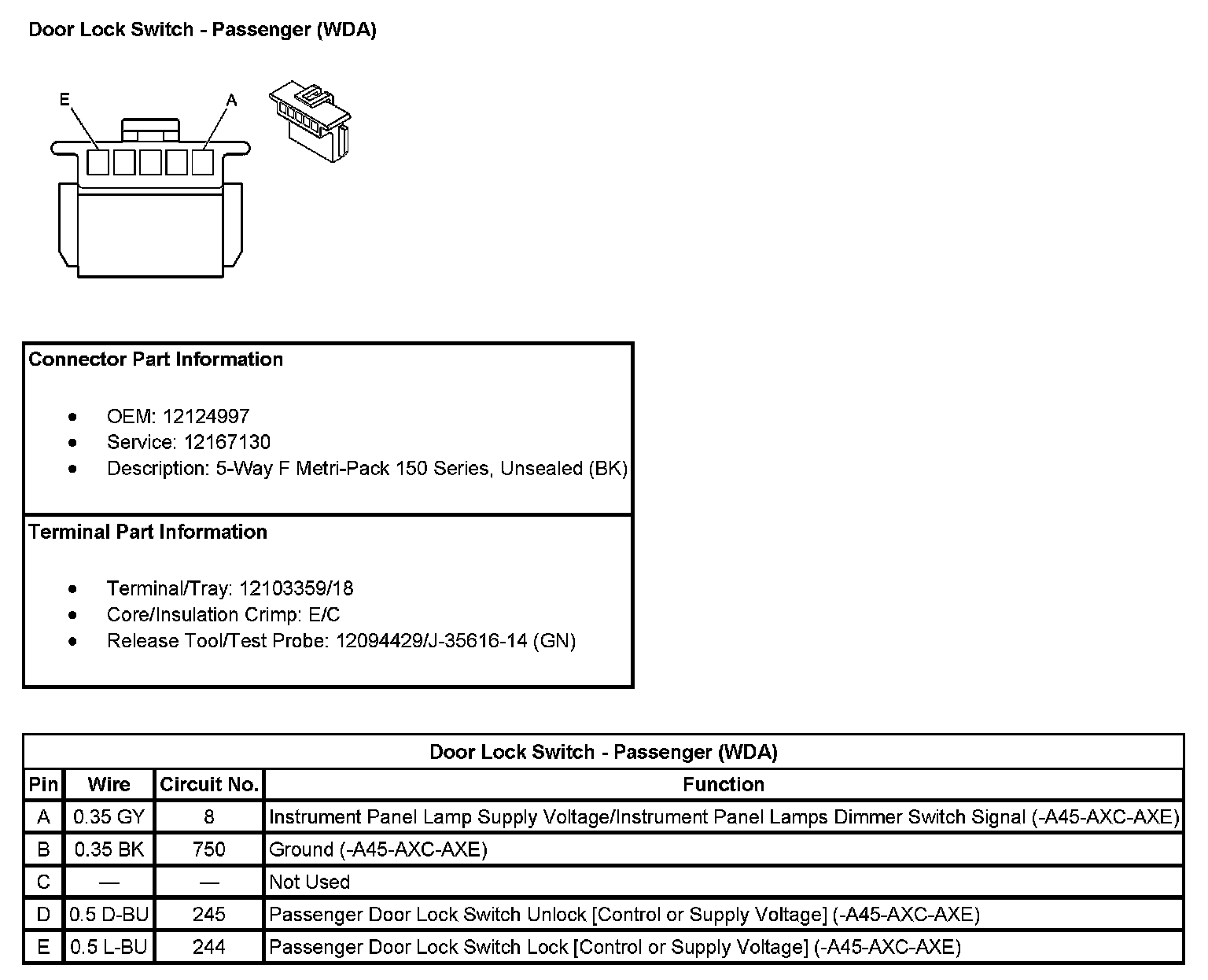

Door Lock Switch - Passenger (With RPO Code WDA) Pin A To E:

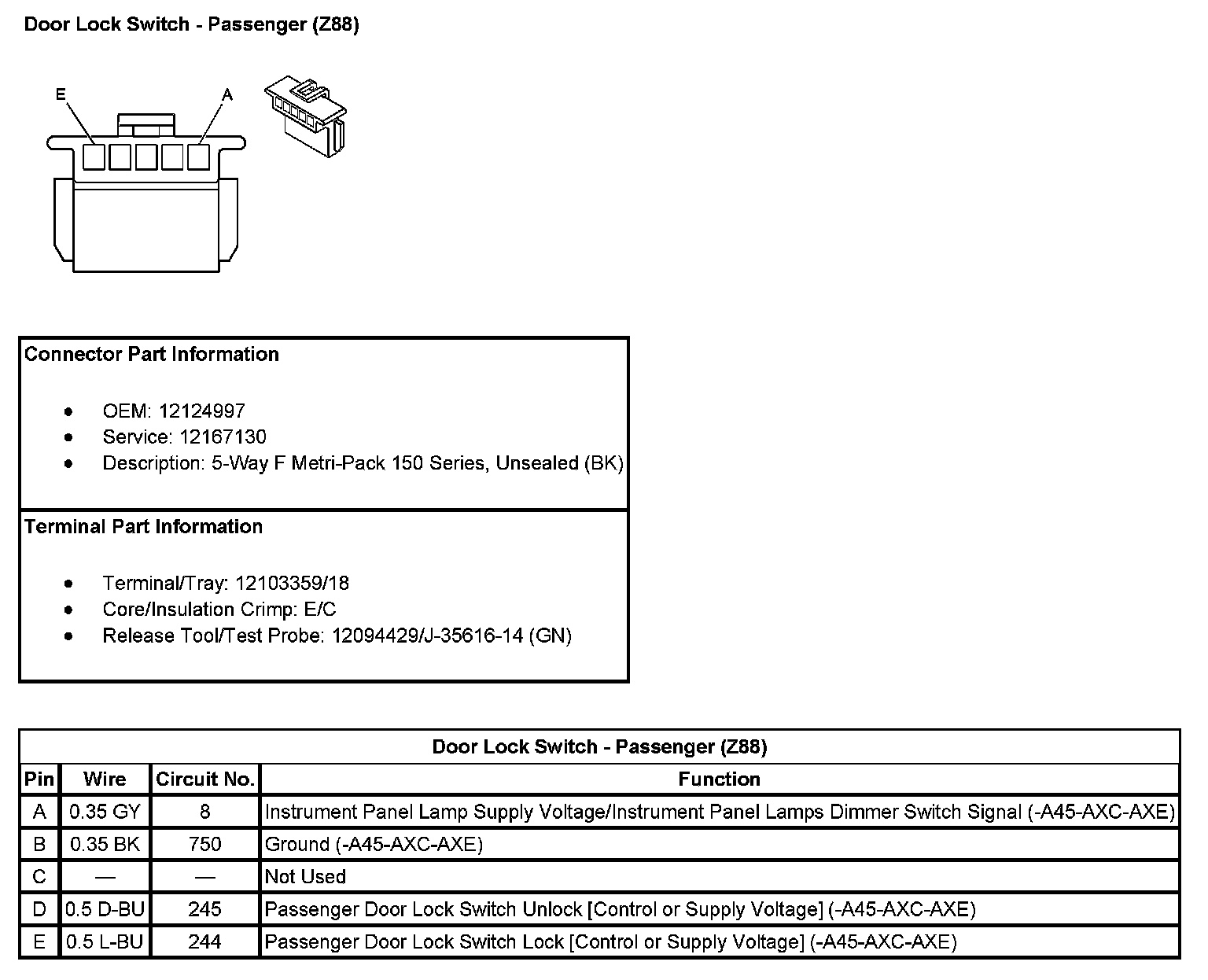

Door Lock Switch - Passenger (With RPO Code Z88) Pin A To E:
