Seat Temperature Element

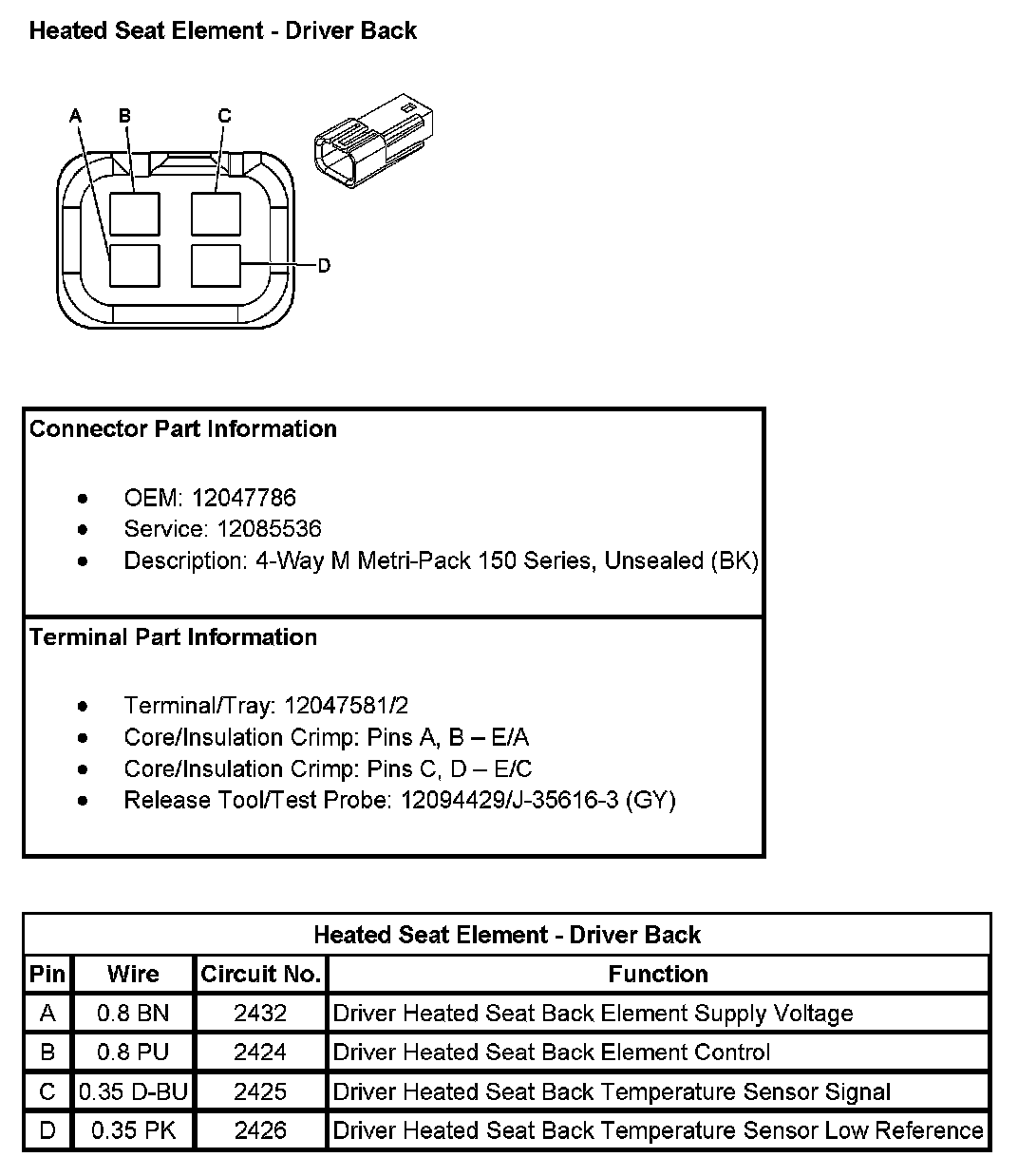

Heated Seat Element - Driver Back (Pin A To D):

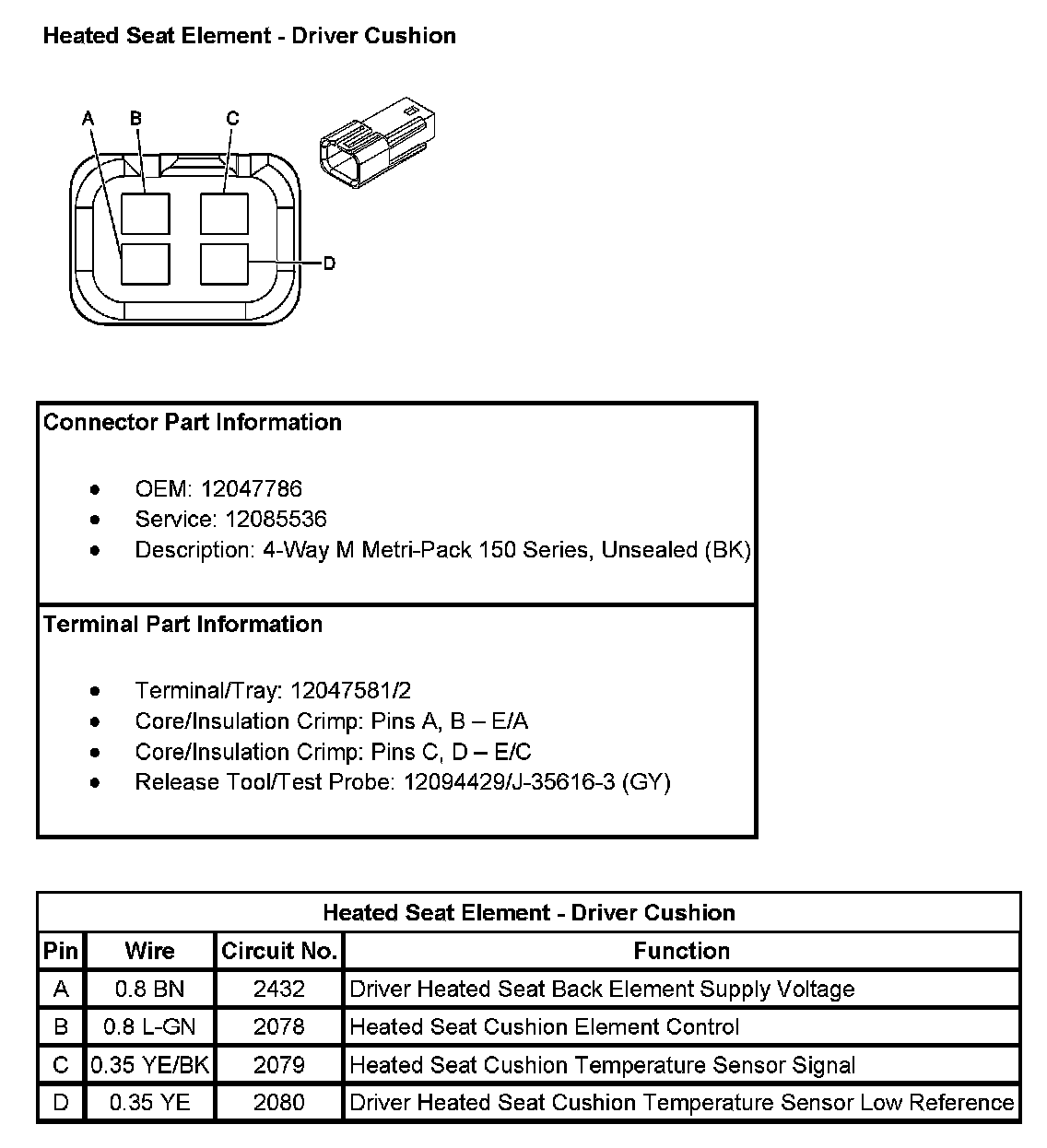

Heated Seat Element - Driver Cushion (Pin A To D):

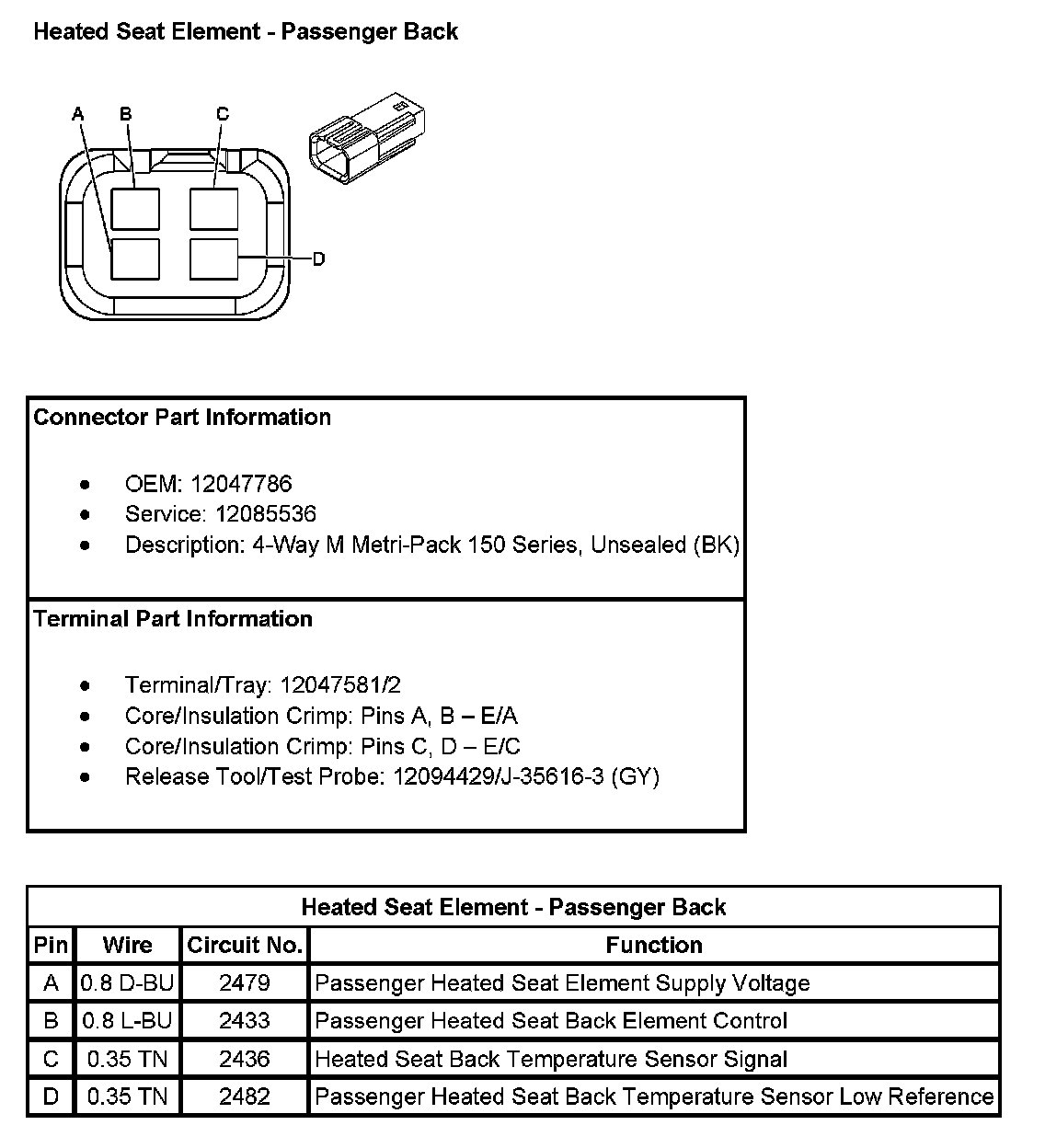

Heated Seat Element - Passenger Back (Pin A To D):

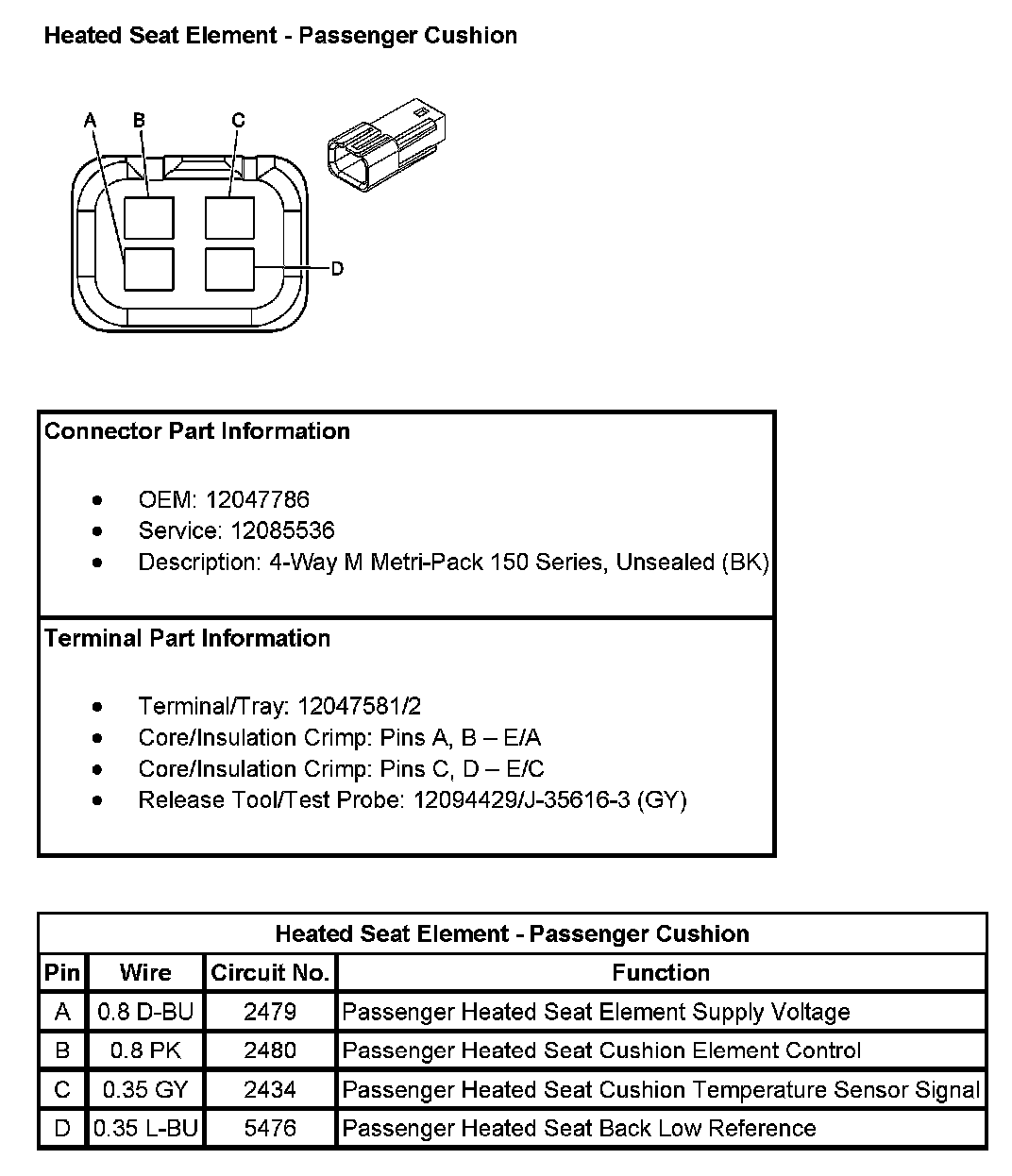

Heated Seat Element - Passenger Cushion (Pin A To D):
