Seat Temperature Switch

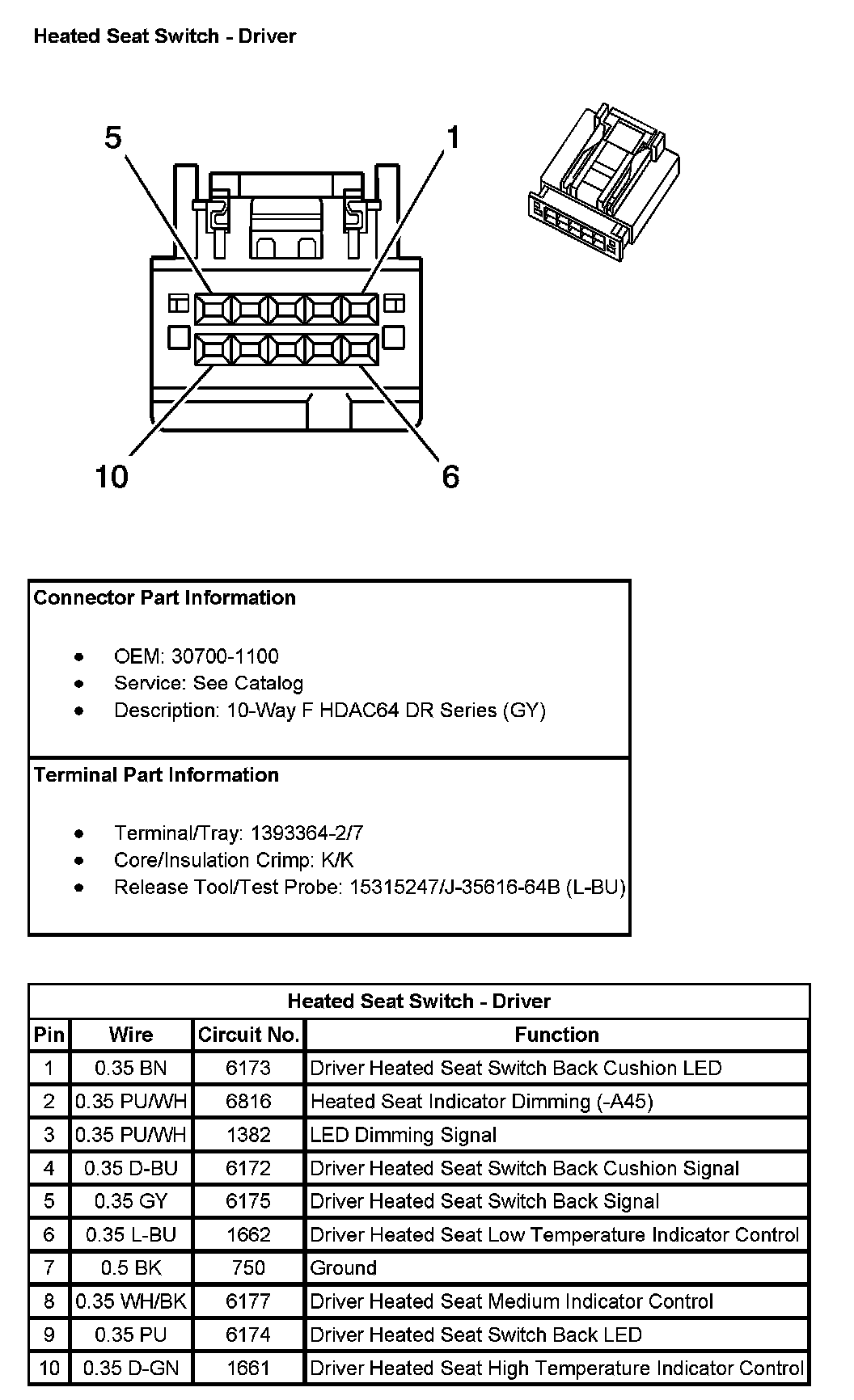

Heated Seat Switch - Driver (Pin 1 To 10):

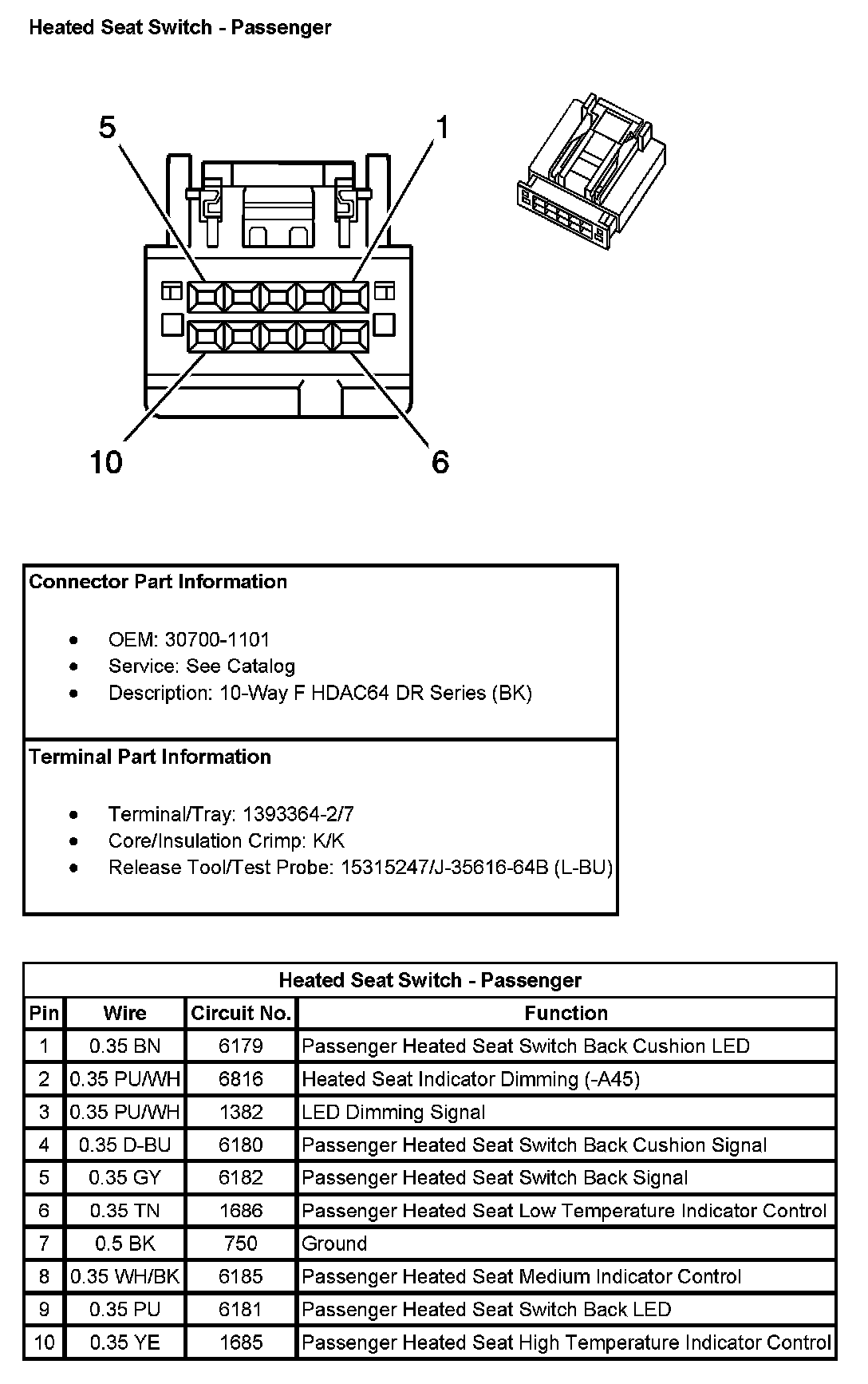

Heated Seat Switch - Passenger (Pin 1 To 10):
