Steering Mounted Controls Assembly

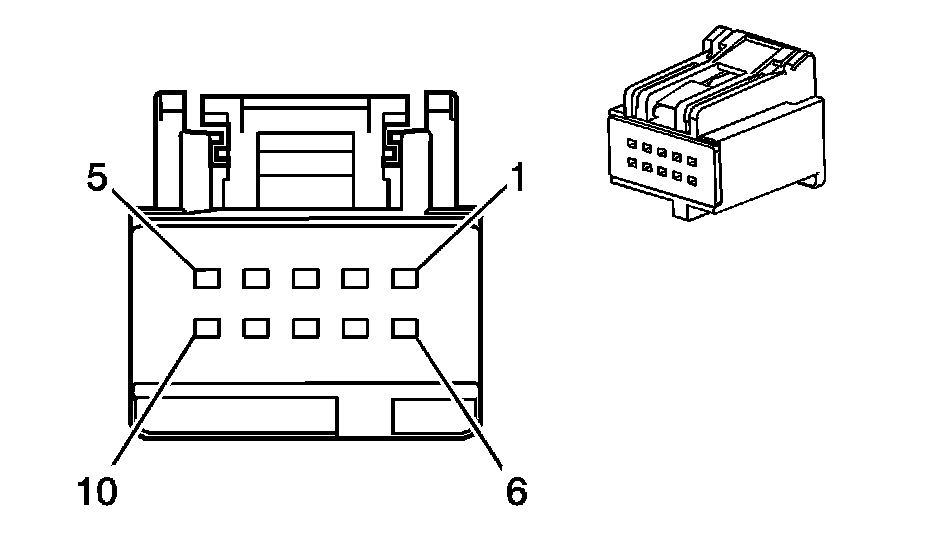

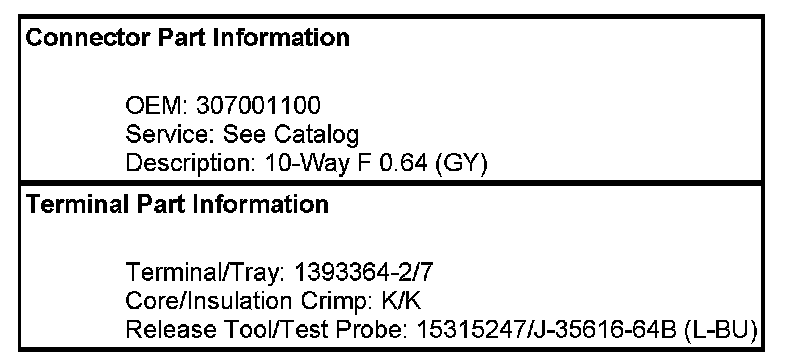

Secondary/Configurable Control Connector End Views

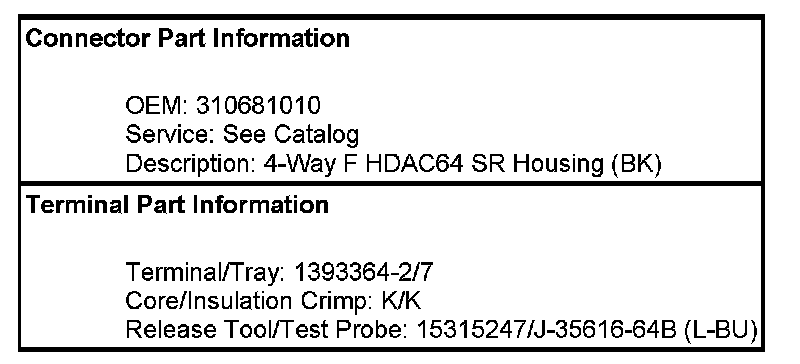

Steering Wheel Control Switch Assembly - Left

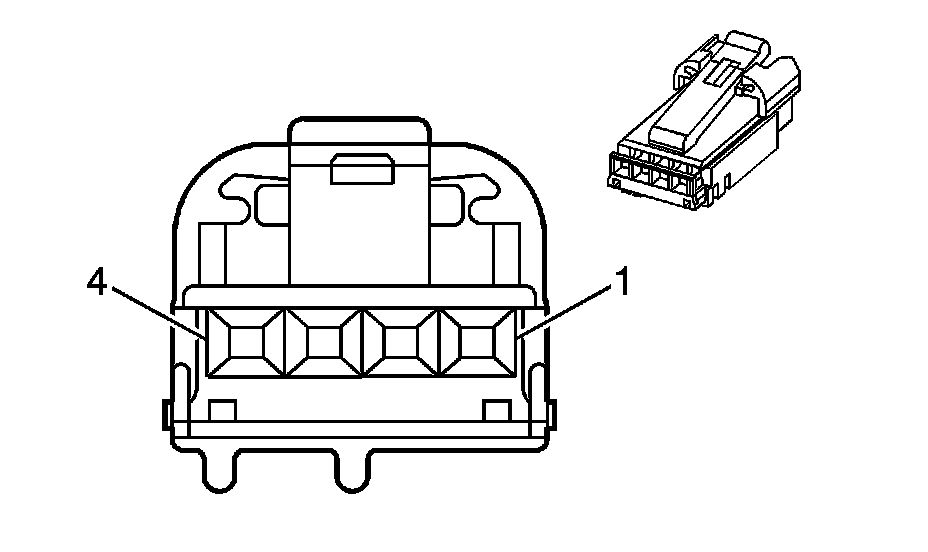

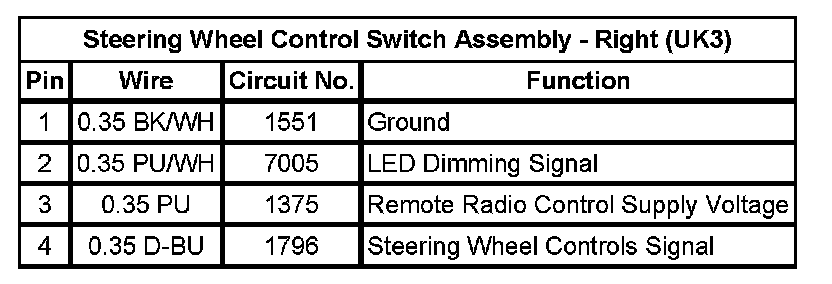

Steering Wheel Control Switch Assembly - Right (UK3)
