Trunk / Liftgate Latch

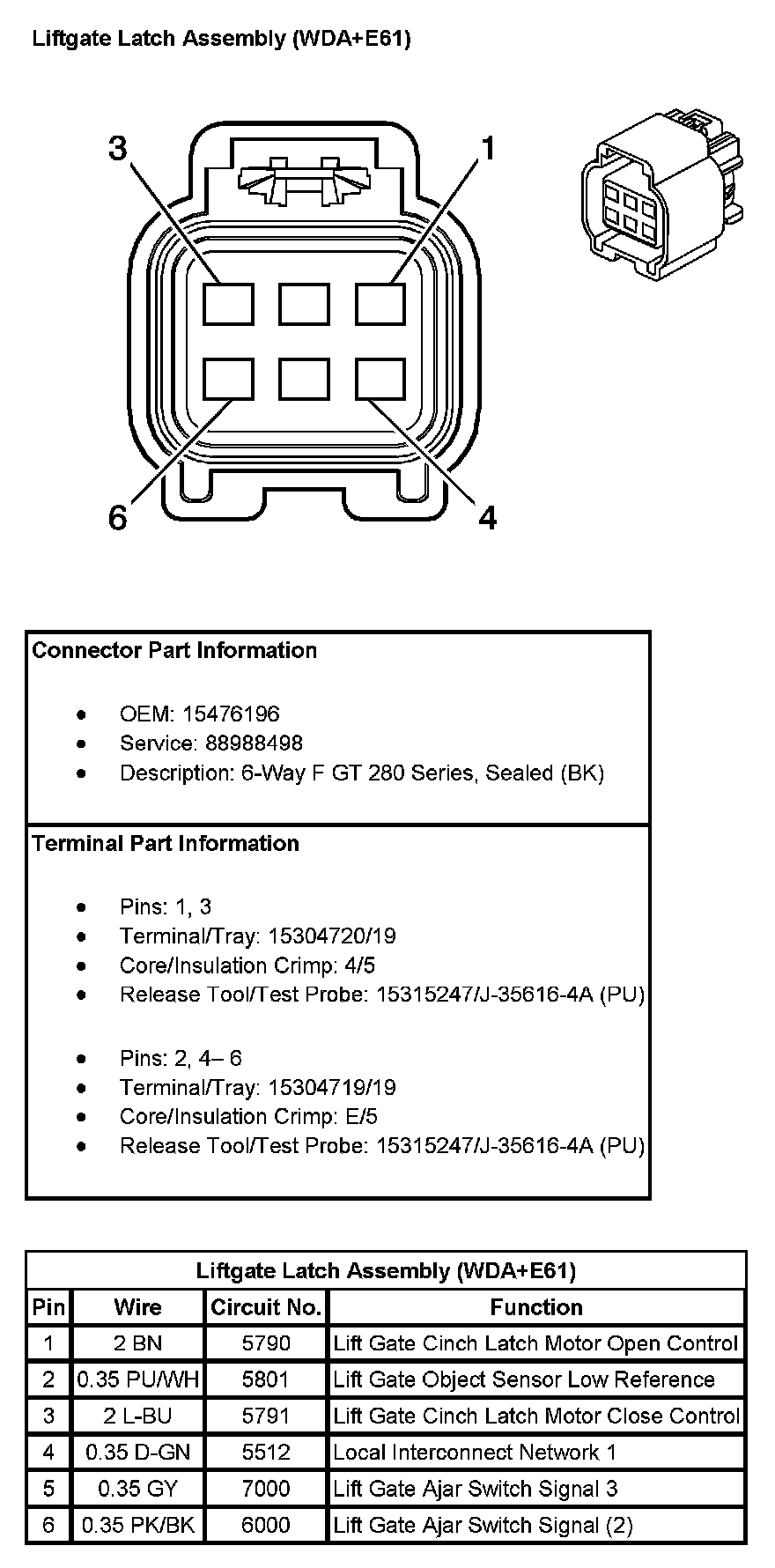

Liftgate Latch Assembly (With RPO Code WDA+E61) Pin 1 To 6:

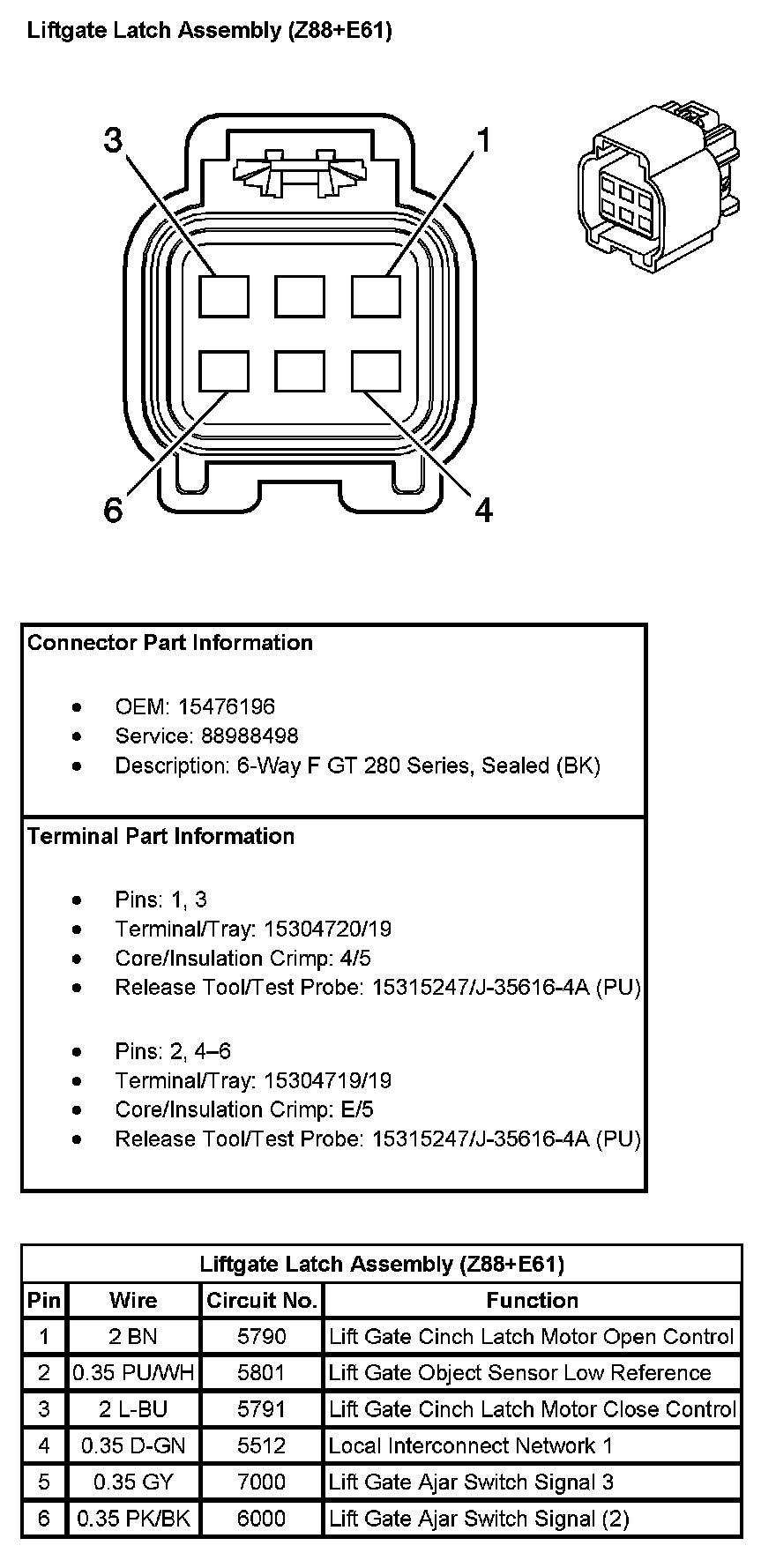

Liftgate Latch Assembly (With RPO Code Z88+E61) Pin 1 To 6:

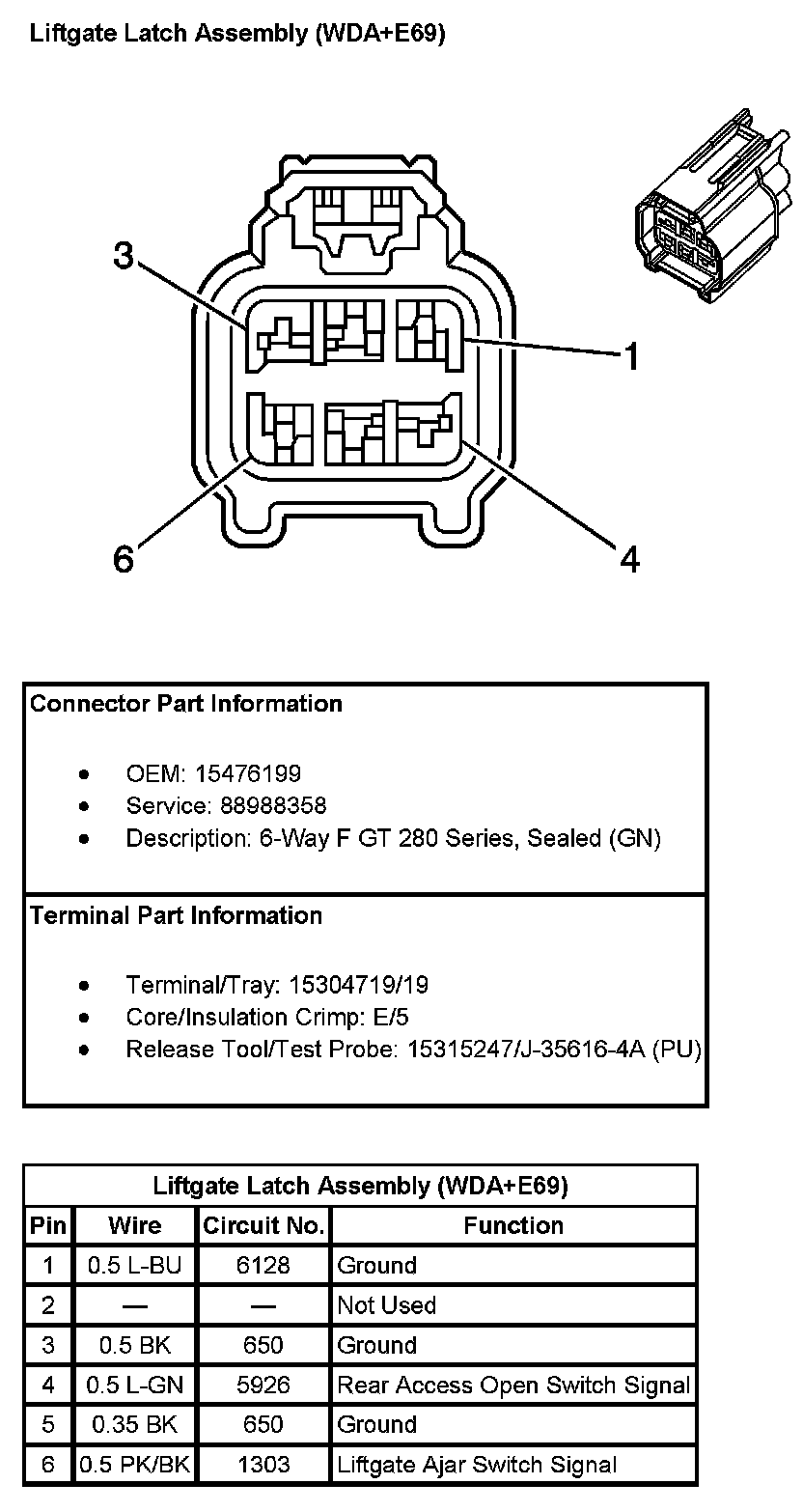

Liftgate Latch Assembly (With RPO Code WDA+E69) Pin 1 To 6:

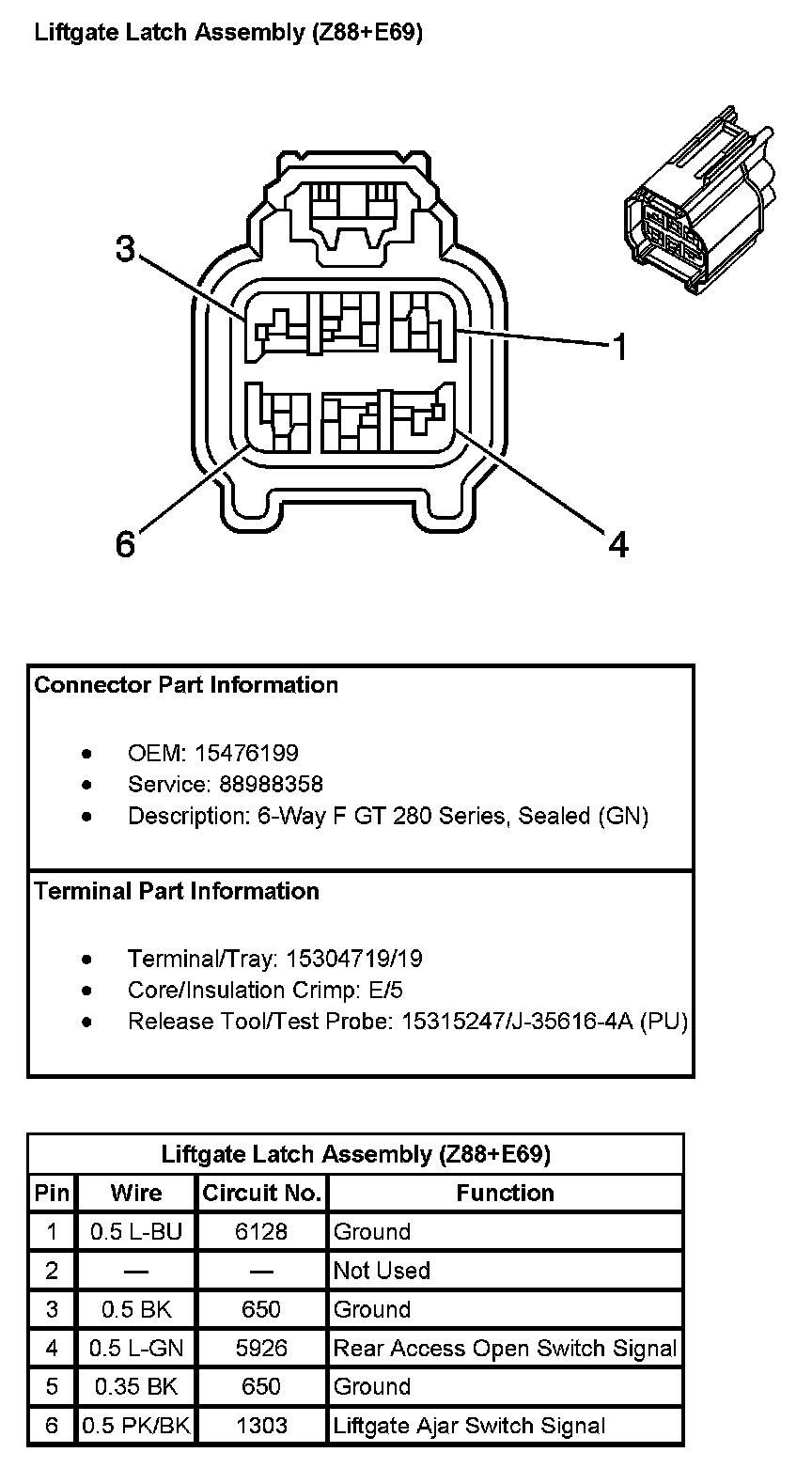

Liftgate Latch Assembly (With RPO Code Z88+E69) Pin 1 To 6:
