Electronic Brake Control Module: Locations

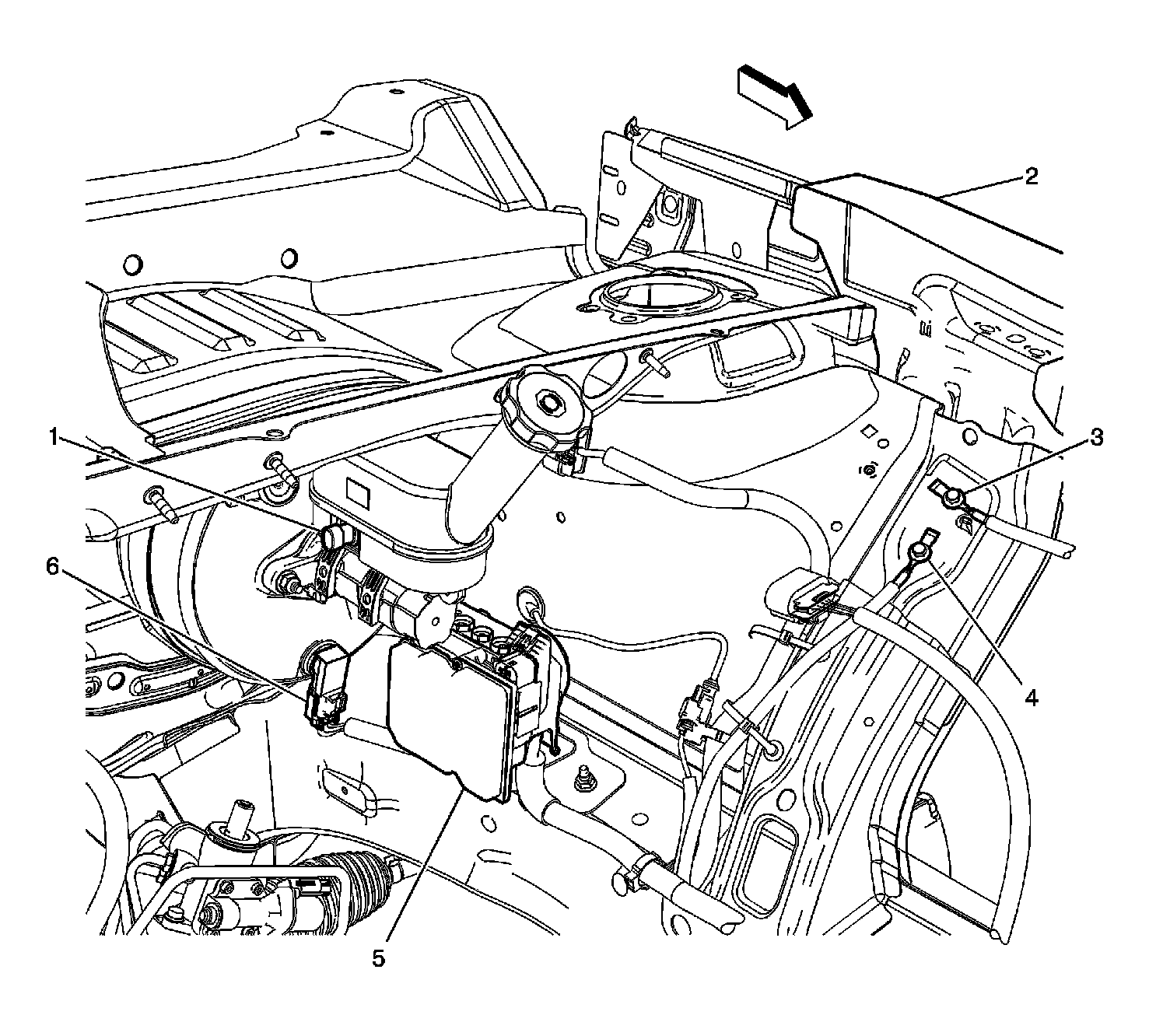

Hydraulic Brake Component Views

Near the Brake Booster




1 - Brake fluid Level Switch
2 - LF Fender
3 - G103
4 - G115
5 - Electronic Brake Control Module (EBCM)
6 - Brake Booster Vacuum Sensor
