Entertainment/Communication Component Views

Fig 1: Identifying Navigation Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Navigation Antenna (U3R or UZR)

Fig 2: Identifying I/P Speaker And Tweeters

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Tweeter
2	Speaker - LF Tweeter
3	Speaker - Center I/P (UQA/UQG/UQS)

Fig 3: Identifying I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
5	I/P Trim
6	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
7	HVAC Control Module
8	Heated Seat Switch - Passenger (KA1)
9	Auxiliary Power Outlet - I/P
10	I/P Switch Assembly
11	Heated Seat Switch - Driver (KA1)
12	Hazard Switch and Driver Information Center (DIC) Switch (W49/Z88)
13	Head Up Display (HUD) Switch (WDA with UV6)
14	Driver Information Center (DIC) Switch (WDA with UH9)/Head Up Display (HUD) Switch (W49 or Z88 with UV6)

Fig 4: Identifying Subwoofer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Speaker - Subwoofer (UQA/UQG/UQS)

Fig 5: Identifying Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cargo Lamp
2	Courtesy/Reading Lamp - Rear
3	Infrared Module (U42 with C3U)
4	Courtesy/Reading Lamp - Center (U42 with C3U)
5	Digital Video Disc (DVD) Display (U42 with C3U)
6	Cellular Microphone (UE1)
7	Courtesy/Reading Lamp - Front
8	Console Flood Lamp
9	Garage Door Opener (UG1)
10	Vanity Mirror Lamp - Right (DH6)
11	Inside Rearview Mirror
12	Vanity Mirror Lamp - Left (DH6)
13	Digital Video Disc (DVD) Display (U42 without C3U)
14	Courtesy/Reading Lamp - Center (without C3U)
15	Infrared Module (U42 without C3U)
16	Rear Parking Assist (RPA) Display (UD7)
17	Remote Control Door Lock Receiver (RCDLR)

Fig 6: View Below Drivers Side I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (UQA/UQG/UQS)
2	Body Control Module (BCM)
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor
5	G301
6	Park Brake Switch

Fig 7: Identifying Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Audio/HVAC Control (UK6)/HVAC Control Assembly - Auxiliary (without UK6)
2	Heated Seat Switch - Driver (KA1)
3	Heated Seat Switch - Passenger (KA1)
4	Auxiliary Power Outlet - I/P
5	Auxiliary Power Outlet - Console Rear
6	Audio/Video Adapter (U42)

Fig 8: Locating Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Memory Seat Switch (AG3)
3	Driver Door Module (DDM) (AXC/AXE)
4	Speaker - LF Door
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Left Front
6	Door Latch Assembly - Driver
7	Window Motor - Driver
8	Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)

Fig 9: Locating Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Turn Signal Lamp (Part of Outside Rearview Mirror) - DS3
3	Window Motor - Passenger
4	Door Latch Assembly - Passenger
5	Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front
6	Speaker - RF Door
7	Window Switch - Passenger and Door Lock Switch Passenger (without AXC/AXE)/Passenger Door Module (PDM) (AXC/AXE)

Fig 10: Locating LR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Window Motor - LR
6	Inflatable Restraint Side Impact Sensing Module (SISM) - LR

Fig 11: Locating RR Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - RR
2	Window Switch - RR
3	Speaker - RR Door
4	Inflatable Restraint Side Impact Sensing Module (SISM) - RR
5	Window Motor - RR

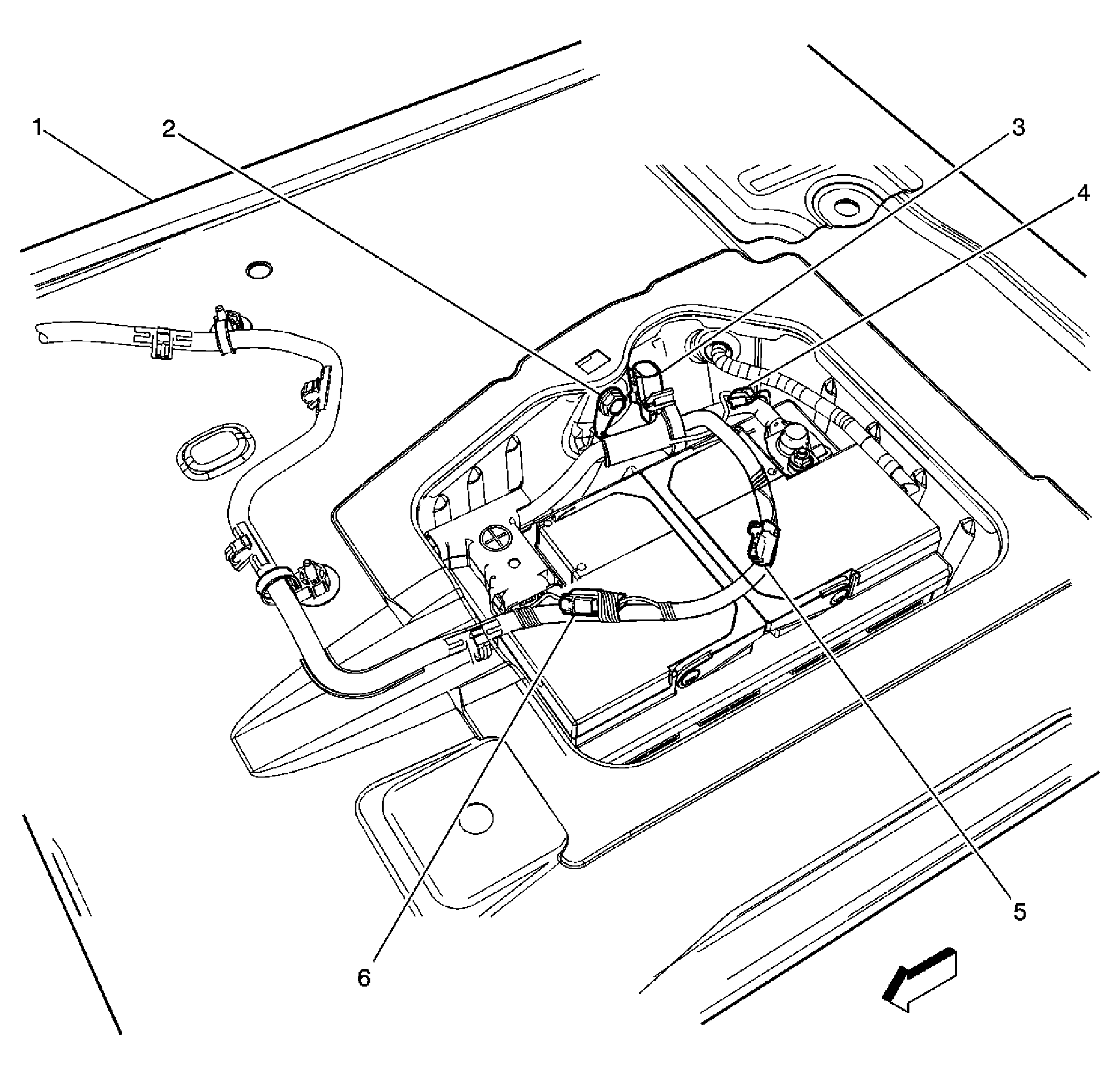

Fig 12: View Near The Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G305
3	Battery Current Sensor
4	X324
5	Onstar Inline Fuse
6	X325

Fig 13: Identifying Left Rear Passenger Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communications Unit (VCU) (UE1)
2	Rear Parking Assist (RPA) Module (UD7)
3	Digital Radio Receiver (U2K)
4	Liftgate Module (LGM) (E61)
5	Speaker - Left Rear (UQA/UQG/AQS)
6	Accessory AC/DC Power Control Module (KV1)
7	Rearview Camera Module (UVC)
8	G401
9	Liftgate Motor Assembly (E61)

Fig 14: Identifying Left Rear Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Rear
2	LR Trim Panel
3	Speaker - LR

Fig 15: Identifying Right Rear Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR (UQA/UQG/UQ8)
2	Rear Floor Panel
3	Trim Panel - RR

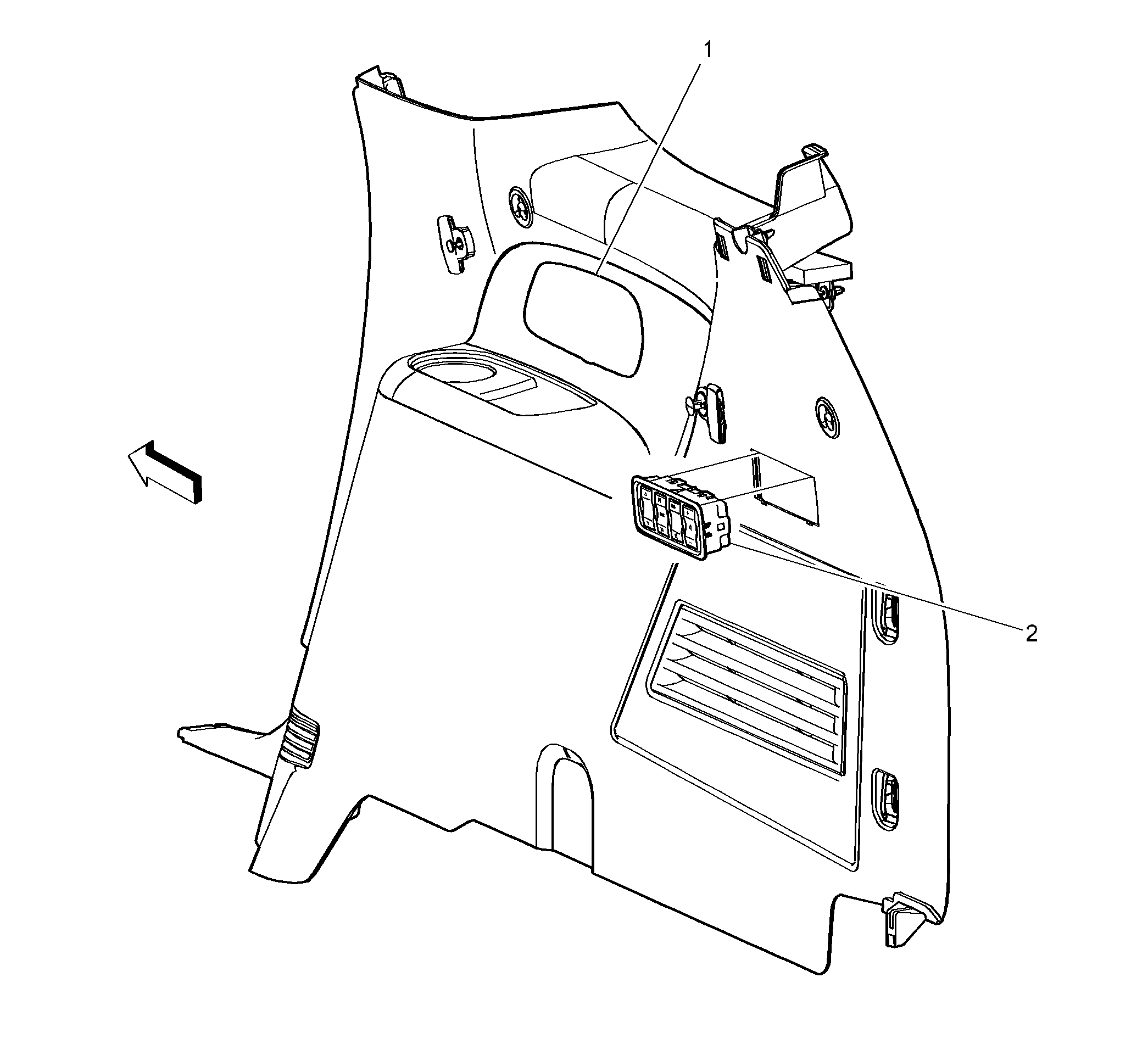

Fig 16: Locating Rear Seat Audio Control

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Trim Panel
2	Speaker - Right Rear (UQA/UQG/UQS)
3	Rear Seat Audio (RSA) Control (RCA)

Fig 17: Rear Exterior Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Radio Antenna
3	Rear Window Defogger Grid
4	Back Up Lamp - Right
5	Tail Lamp Assembly - Right
6	Park Lamp - Right Rear
7	Object Sensor - Right Rear Corner (UD7)
8	Object Sensor - Right Rear Middle (UD7)
9	License Lamp - Left/License Lamp - Right
10	Object Sensor - Left Rear Middle (UD7)
11	Object Sensor - Left Rear Corner (UD7)
12	Park Lamp - Left Rear
13	Tail Lamp Assembly - Left
14	Back Up Lamp - Left

Fig 18: Identifying Rear Of The Vehicle (W49/WDA)

Callout	Component Name
1	Backup Lamp - Left
2	License Lamp - Left
3	Radio Antenna
4	Center High Mounted Stop Lamp (CHMSL)
5	License Lamp - Right
6	Backup Lamp - Right
7	Marker Lamp - Right Rear
8	Tail/Stop and Turn Signal Lamp - Right
9	Object Sensor - Right Rear Corner (UD7)
10	Object Sensor - Right Rear Middle (UD7)
11	Object Sensor - Left Rear Middle (UD7)
12	Object Sensor - Left Rear Corner (UD7)
13	Tail/Stop and Turn Signal Lamp - Left
14	Marker Lamp - Left Rear
