Antilock Brake System Component Views

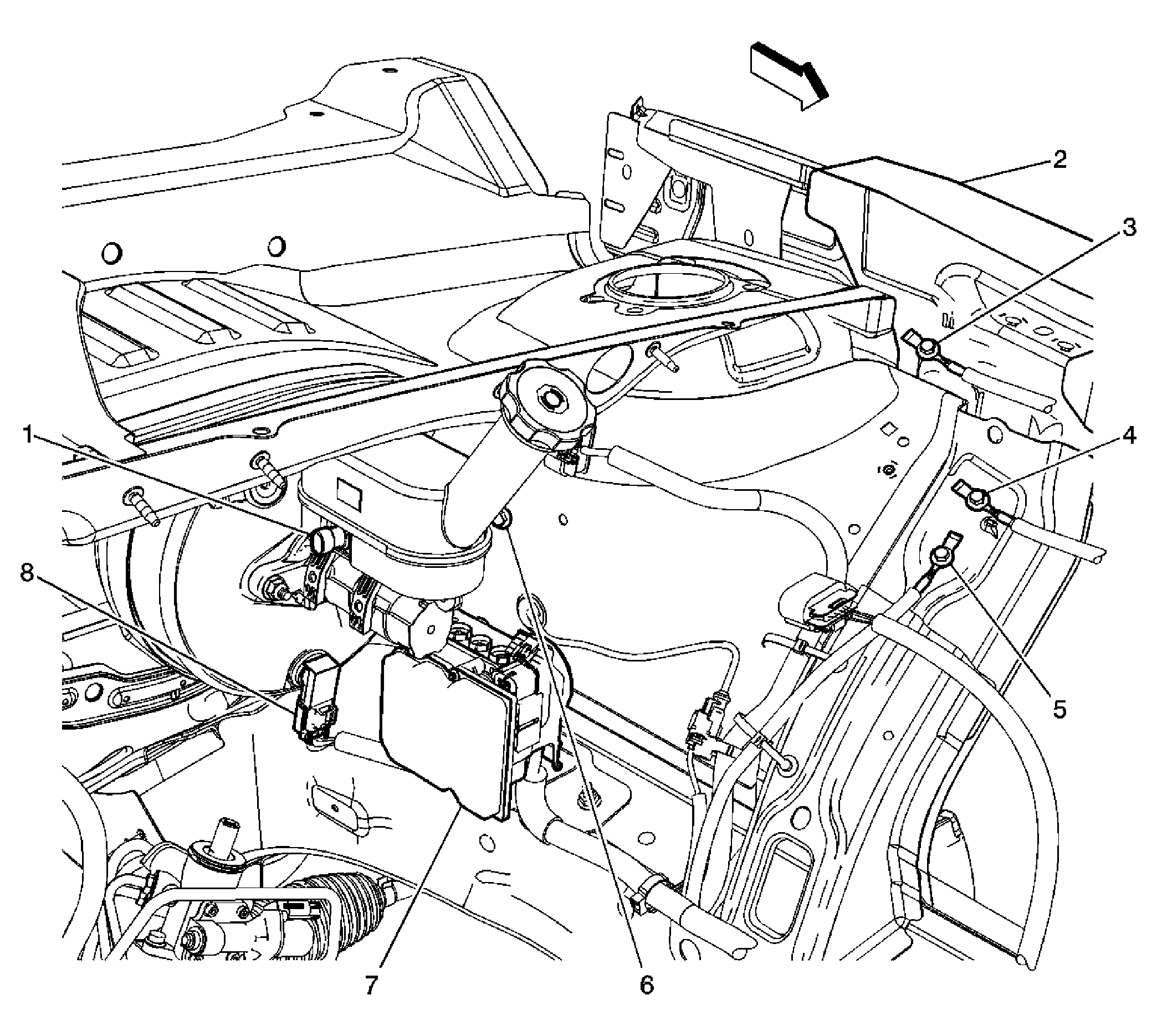

| Callout | Component Name |
|---|---|
| 1 | Brake fluid Level Switch |
| 2 | LF Fender |
| 3 | G103 |
| 4 | G101 |
| 5 | G115 |
| 6 | G105 |
| 7 | Electronic Brake Control Module (EBCM) |
| 8 | Brake Booster Vacuum Sensor |

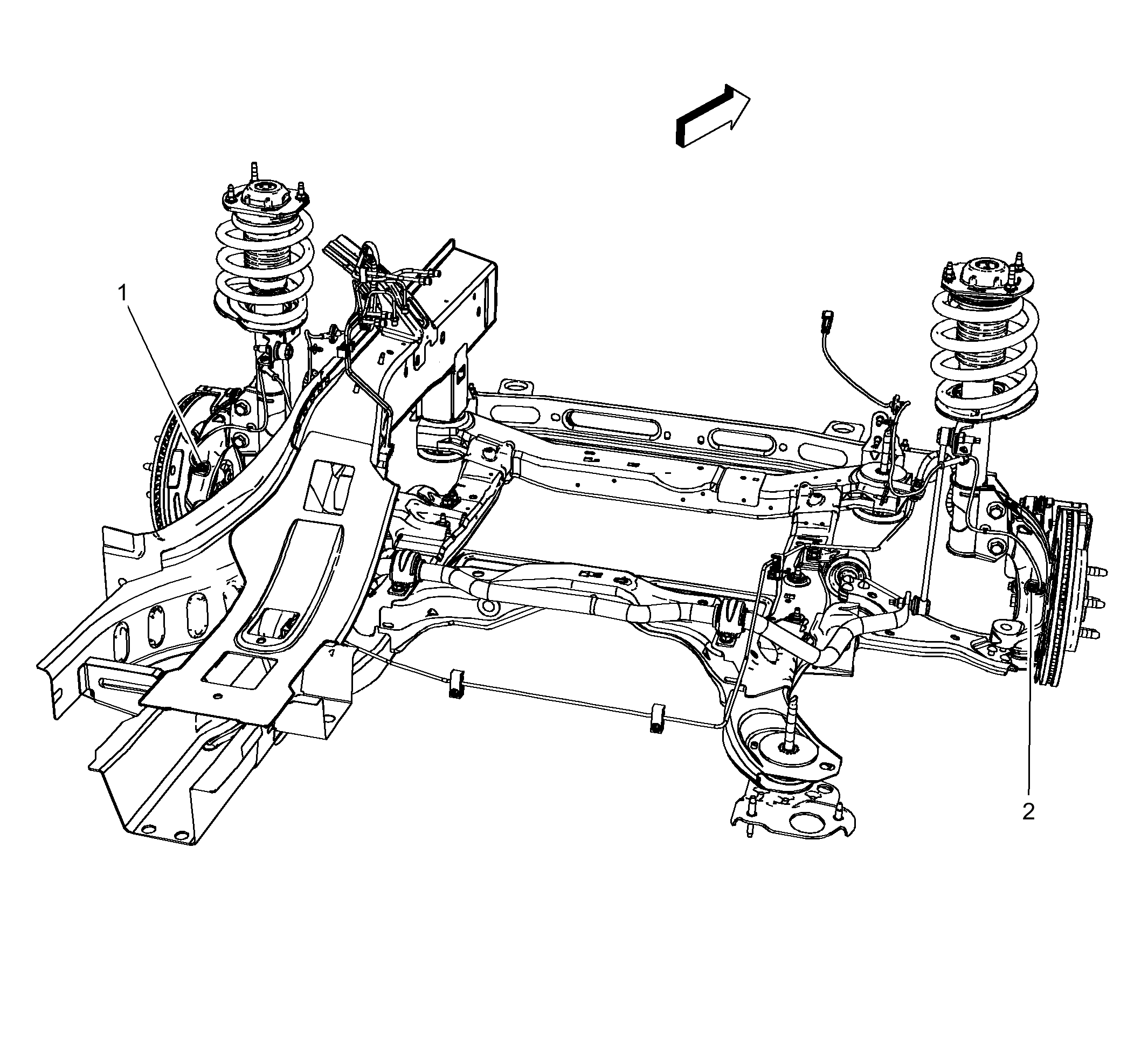

| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - LF |
| 2 | LF Frame Rail |
| 3 | Wheel Speed Sensor (WSS) - RF |
| Callout | Component Name |
|---|---|
| 1 | Headlamp Switch |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Radio |
| 4 | Sunload Sensor (CJ2) / Ambient Light Sensor (C67) |
| 5 | I/P Trim |
| 6 | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator |
| 7 | HVAC Control Module |
| 8 | Heated Seat Switch - Passenger (KA1) |
| 9 | Auxiliary Power Outlet - I/P |
| 10 | I/P Switch Assembly |
| 11 | Heated Seat Switch - Driver (KA1) |
| 12 | Hazard Switch and Driver Information Center (DIC) Switch (W49/Z88) |
| 13 | Head Up Display (HUD) Switch (WDA with UV6)) |
| 14 | Driver Information Center (DIC) Switch (WDA with UH9)/Head Up Display (HUD) Switch (W49 or Z88 with UV6) |
| Callout | Component Name |
|---|---|
| 1 | Tilt/Telescope Switch (N38) |
| 2 | Turn Signal/Multifunction Switch |
| 3 | Inflatable Restraint Steering Wheel Module Coil |
| 4 | Theft Deterrent Control Module |
| 5 | Steering Wheel Speed Position Sensor |
| 6 | Ignition Lock Cylinder Control Actuator |
| 7 | Ignition Switch |
| 8 | Tilt Motor (N38) |
| 9 | Telescope Actuator (N38) |

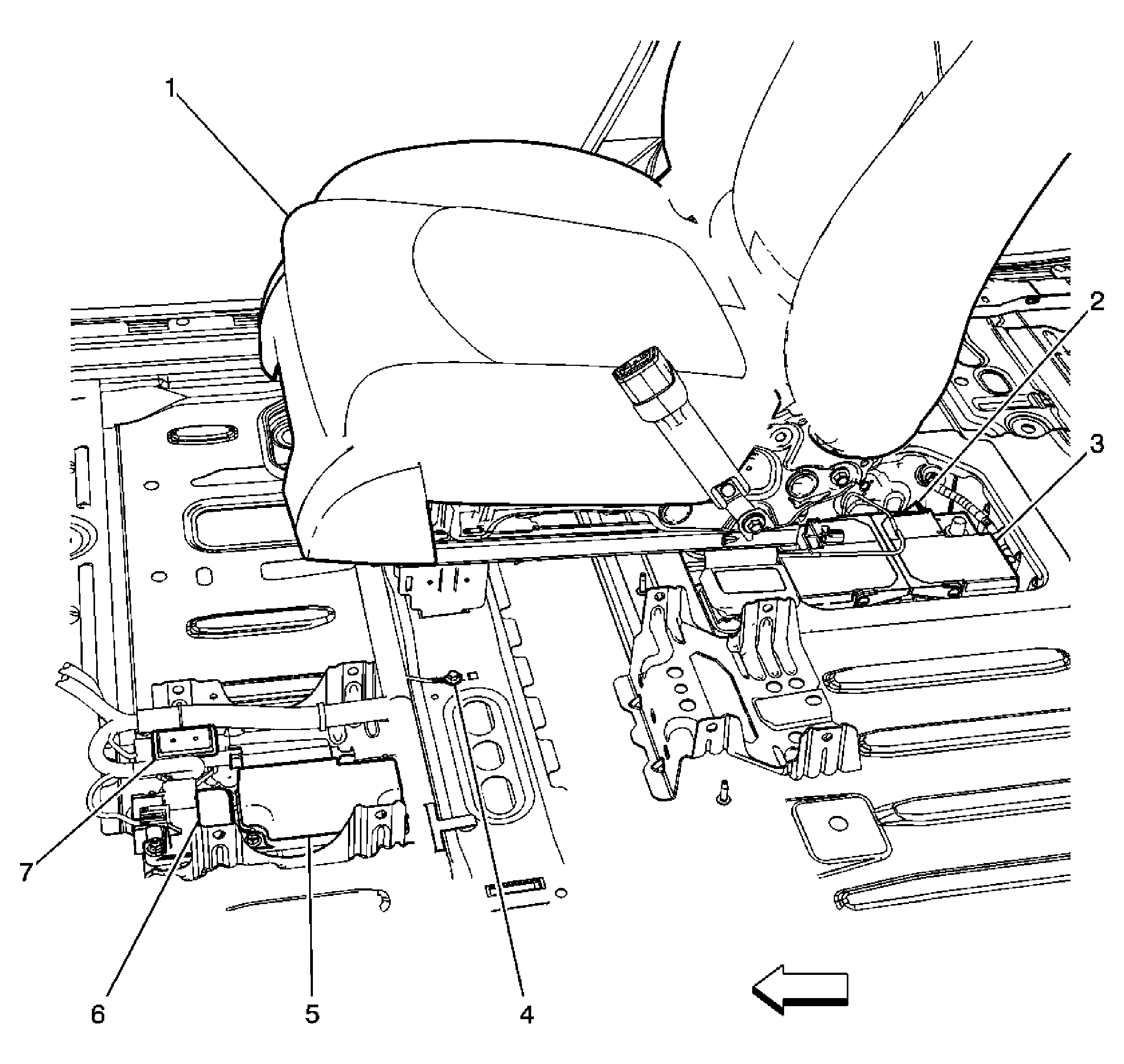

| Callout | Component Name |
|---|---|
| 1 | Passenger Seat |
| 2 | Battery Current Sensor |
| 3 | Battery |
| 4 | G304 |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 6 | Inflatable Restraint Vehicle Rollover Sensor |
| 7 | YAW Rate and Lateral Acceleration Sensor |

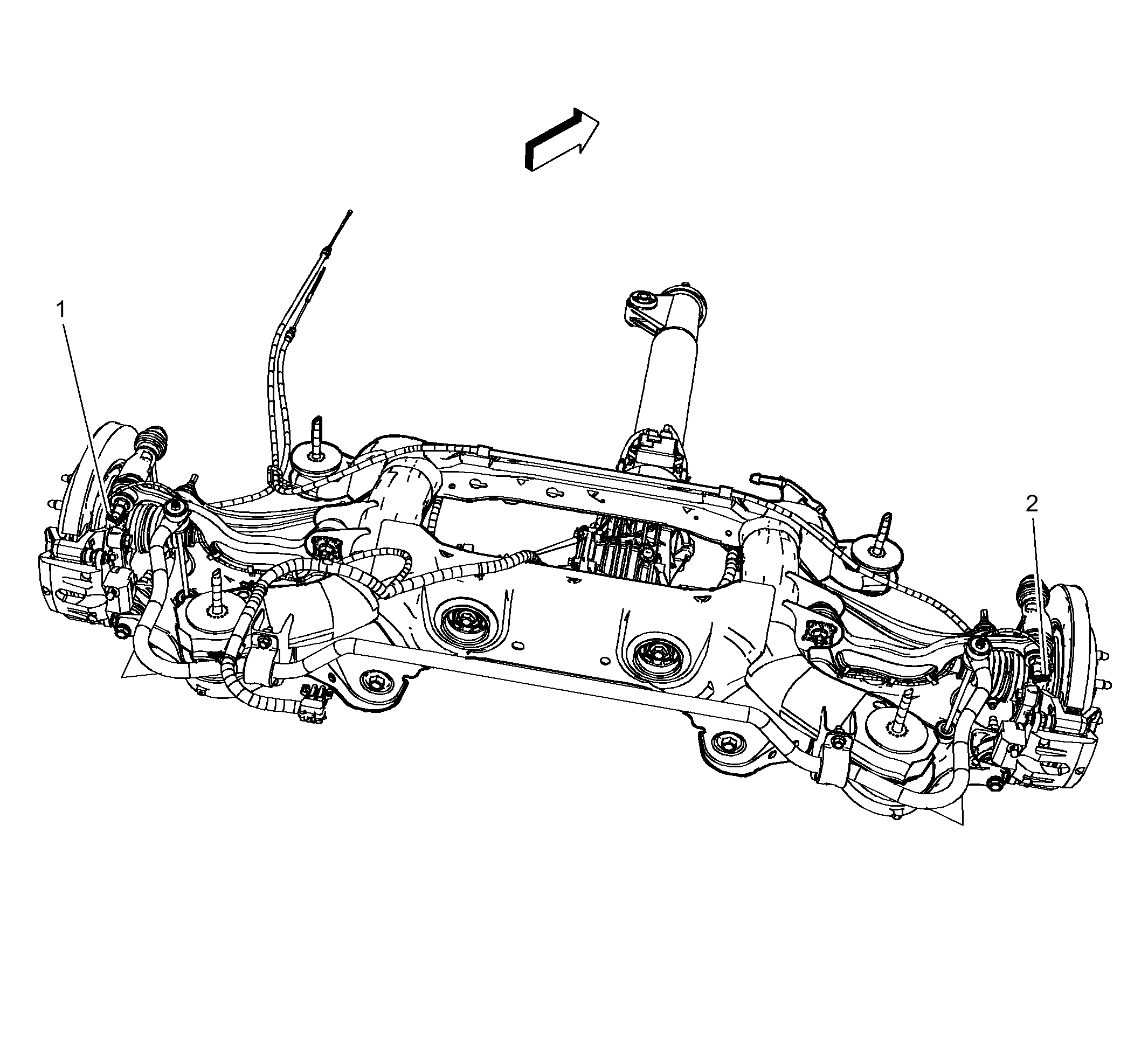

| Callout | Component Name |
|---|---|
| 1 | Wheel Speed Sensor (WSS) - LR |
| 2 | Wheel Speed Sensor (WSS) - RR |
| 3 | Rear Suspension Frame |
