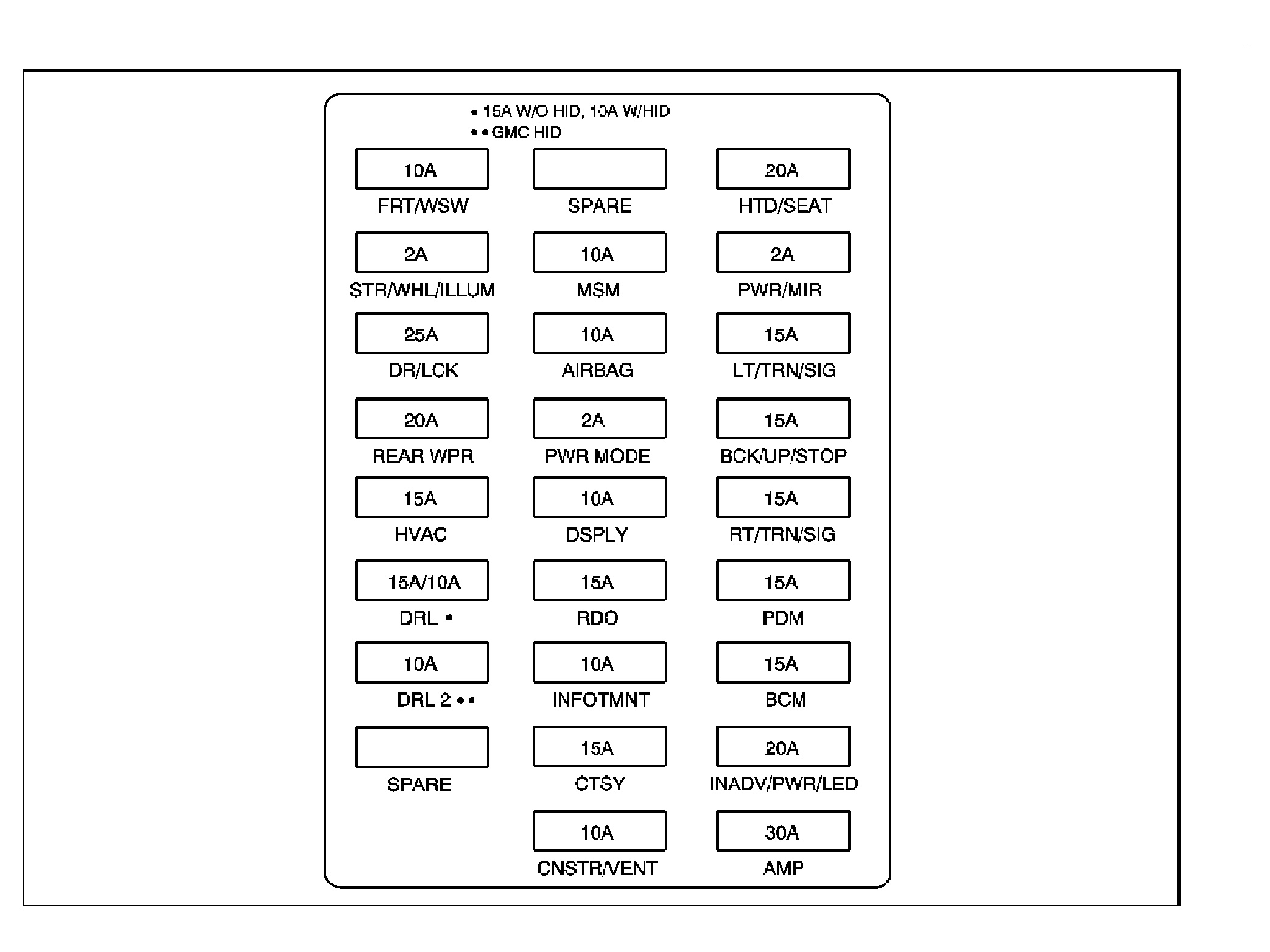

Fuse Block - I/P Bottom Label
Fuse Block - I/P Bottom Label Usage
| Fuse | Rating | Description |
|---|---|---|
| AIRBAG | 10A | Inflatable Restraint Front Passenger Presence System (PPS) Sensor, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor |
| AMP | 30A | Audio Amplifier (UQA/UQG/AQS) |
| BCK/UP/STOP | 15A | Body Control Module (BCM), Tilt/Telescope Switch (N38) |
| BCM | 15A | Body Control Module (BCM) |
| CNSTR/VENT | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| CTSY | 15A | Body Control Module (BCM) |
| DISPLAY | 10A | Analog Clock (W49), Data Link Connector (DLC), Instrument Panel Cluster (IPC), Liftgate Module (LGM) (E61), Remote Control Door Lock Receiver (RCDLR) |
| DRL | 15A/10A | DRL Relay (T61) |
| DRL 2 | 10A | DRL 2 Relay (TVD+Z88) |
| DR/LCK | 25A | LCK Relay, LT/UNLCK Relay, UNLCK Relay |
| FRT/WSW | 10A | Windshield Washer Fluid Pump |
| HTD/SEAT | 20A | Heated Seat Control Module - Driver (KA1-A45) |
| HVAC | 15A | Body Control Module (BCM), Head Up Display (HUD) (UV6), HVAC Control Module |
| INADV/PWR/LED | 20A | Body Control Module (BCM) |
| INFOTAINMENT | 10A | Digital Radio Receiver (U2K), Digital Video Disc (DVD) Player (U42), Rear Video/Audio/HVAC Module (UK6) |
| LT/TRN/SIG | 15A | Body Control Module (BCM) |
| MSM | 10A | Garage Door Opener (UG1), Memory Seat Module (AG3), Rear Parking Assist (RPA) Module (UD7) |
| PDM | 15A | L/GATE Relay (E69), Passenger Door Module (PDM) (AXC/AXE) |
| PWR/MIRRORS | 2A | Outside Rearview Mirror Switch (DG6/DS3) |
| PWR MOD | 2A | Ignition Switch, Theft Deterrent Control Module |
| RADIO | 15A | Radio |
| REAR WIPER | 20A | Rear Window Wiper Motor, REAR/WSW Relay |
| RT/TRN/SIG | 15A | Body Control Module (BCM) |
| STR/WHL/ILLUM | 2A | Steering Wheel Control Switch Assembly - Left, Steering Wheel Control Switch Assembly - Right (UK3) |
