Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the traction control switch.

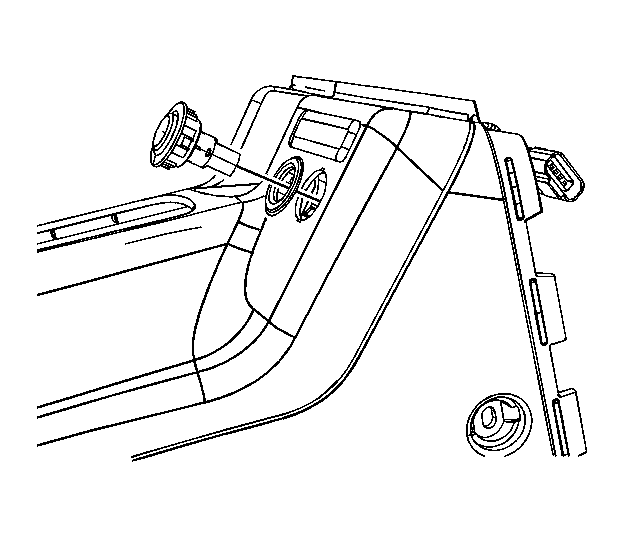

    2. Fig 1: View Of Traction Control Switch
    GM1522328Courtesy of GENERAL MOTORS CORP.
  2. Install the traction control switch to the center console. Ensure that the retaining ring tabs are fully engaged.
  3. Install the right console accessory trim plate. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
