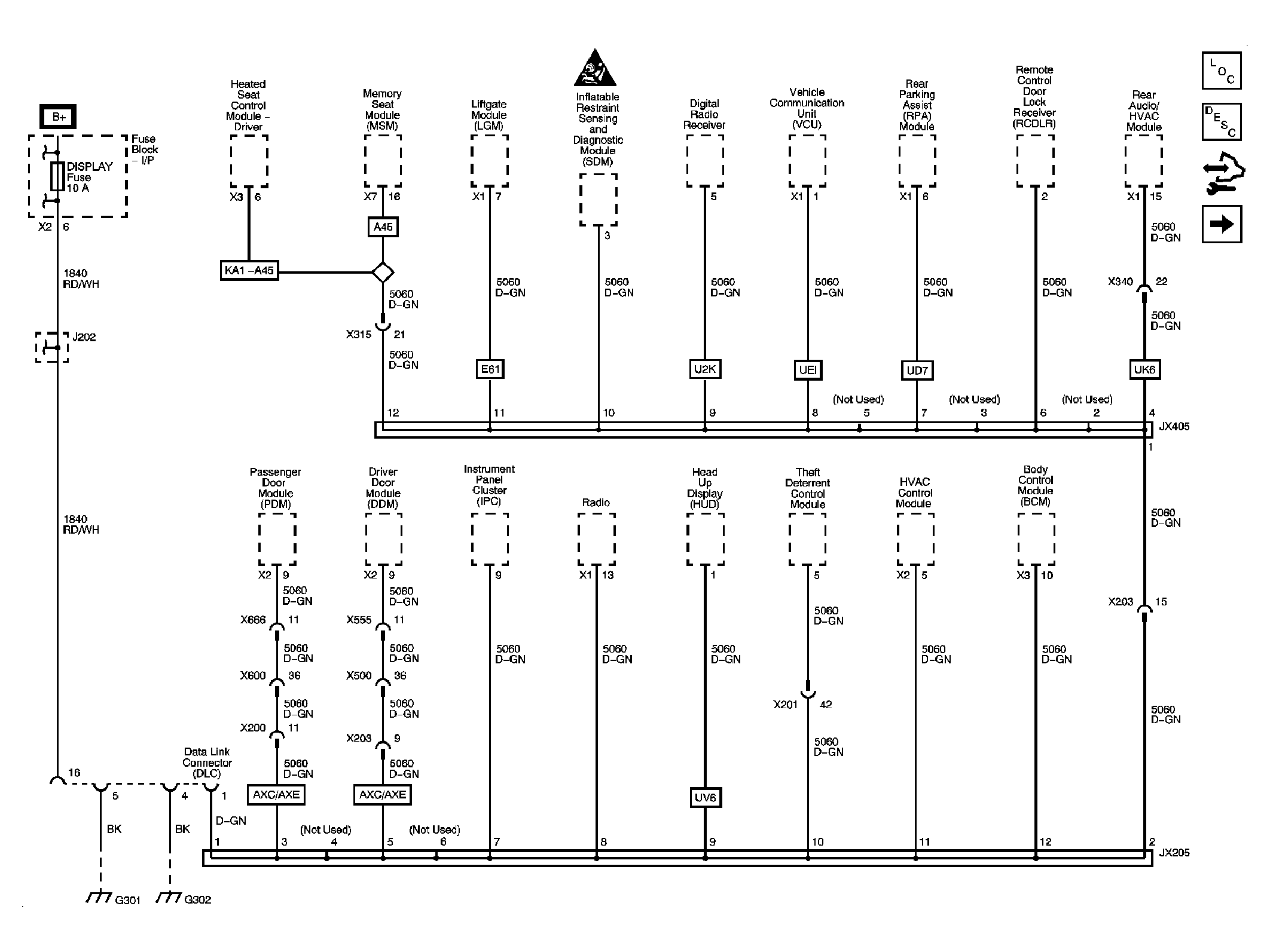

Fig 1: Low Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

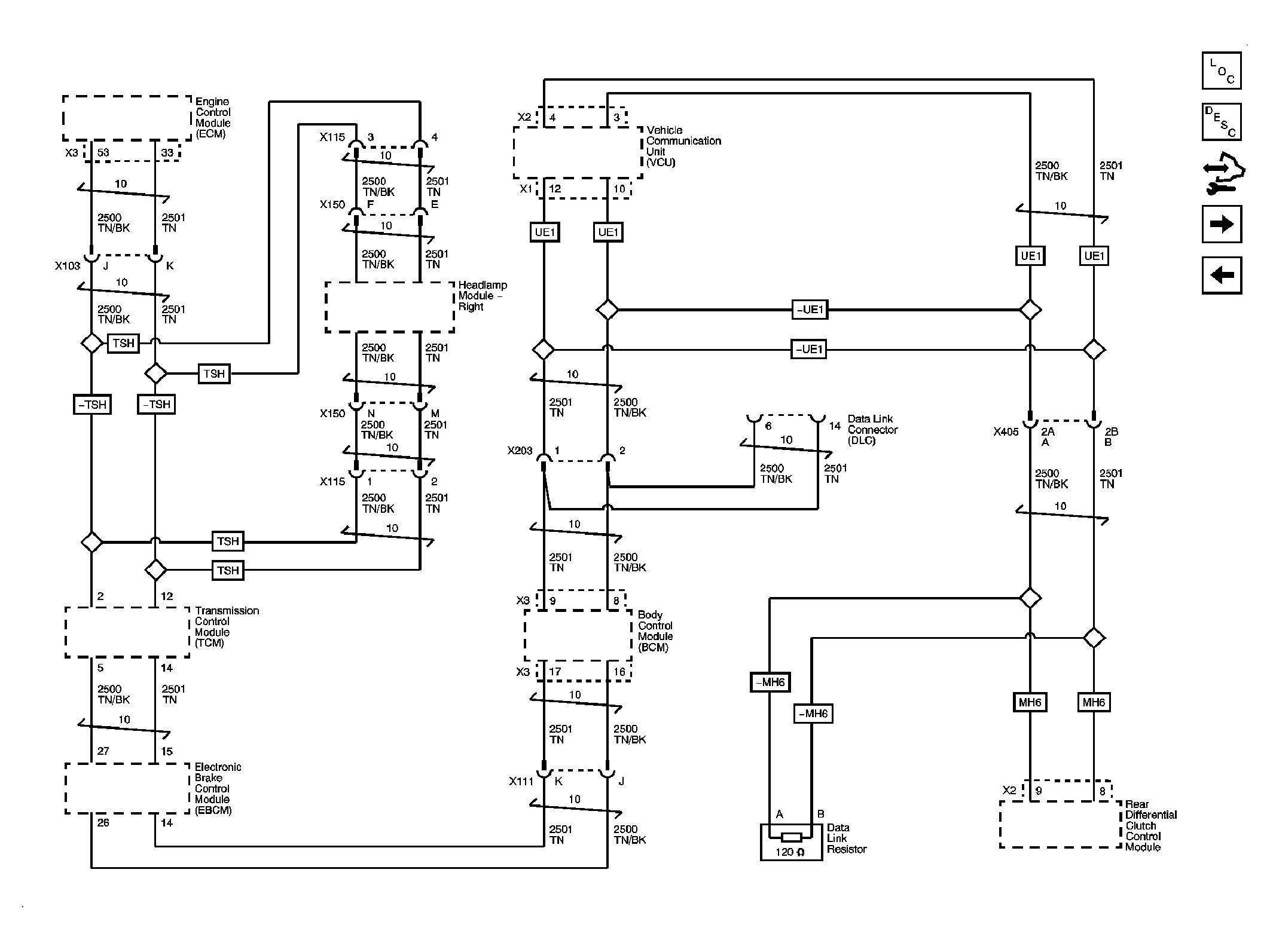

Fig 2: High Speed GMLAN
Courtesy of GENERAL MOTORS CORP.

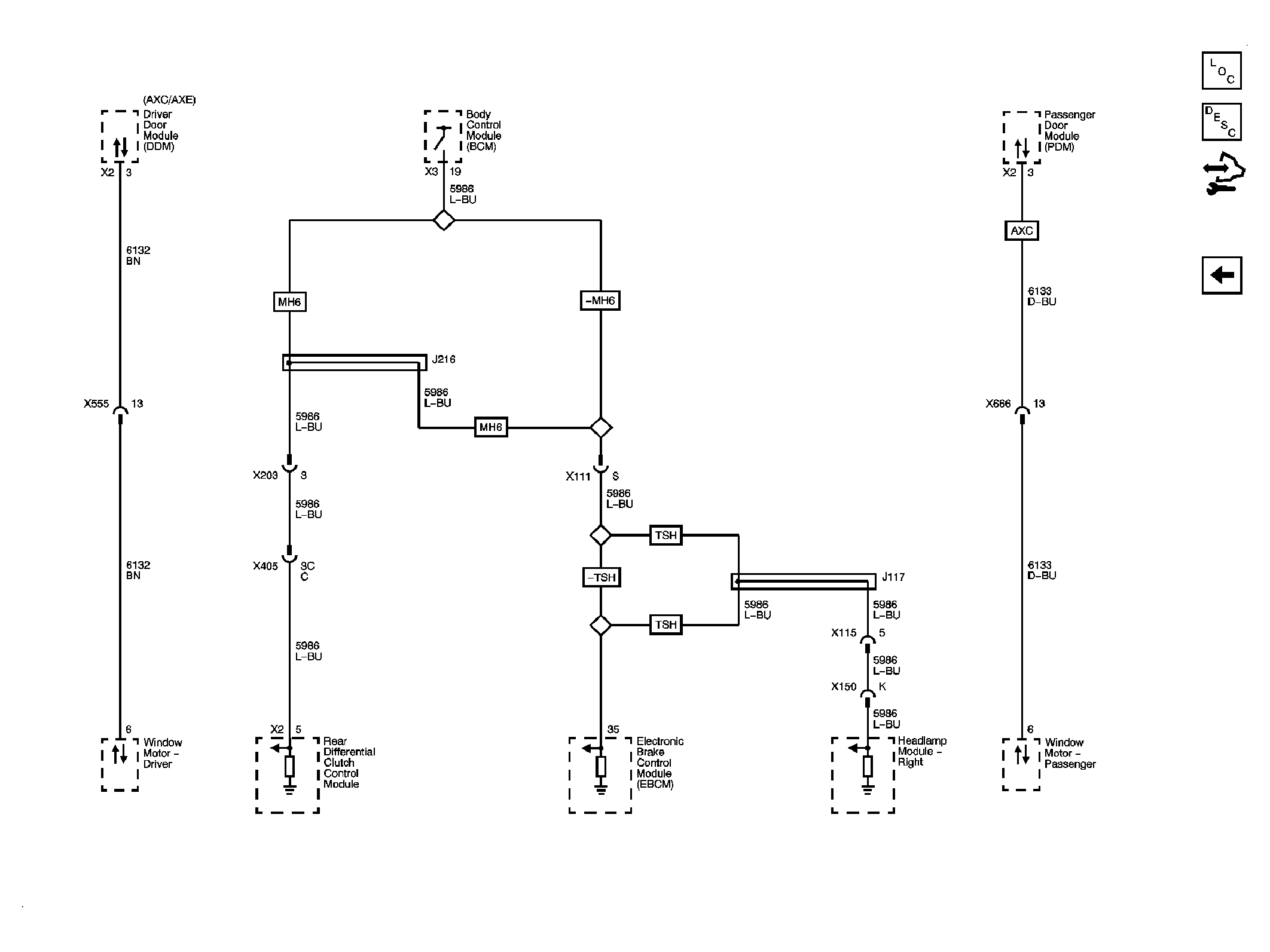

Fig 3: Communication Enable and Local Interconnect Network (LIN)
