Lighting Systems Component Views
WARNING: This page is about a different car, the 2005 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - RF |
| 2 | Park/Turn Signal/DRL Lamp - RF |
| 3 | Headlamp - Low Beam - Right |
| 4 | Headlamp - High Beam - Right |
| 5 | Digital Radio Antenna (U2K) |
| 6 | Cellular and Navigational Antenna (UE1) |
| 7 | Headlamp - High Beam - Left |
| 8 | Headlamp - Low Beam - Left |
| 9 | Park/Turn Signal/DRL Lamp - LF |
| 10 | Marker Lamp - LF |
| 11 | Fog Lamp - LF |
| 12 | Fog Lamp - RF |
| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamp - LF |
| 2 | Cellular Microphone (UE1) |
| 3 | Sunroof Switch (CF5/C3Y) |
| 4 | Courtesy/Reading Lamp - RF |
| 5 | Dome/Reading Lamp (w/o C3Y) |
| 6 | Sunroof (CF5/C3Y) |
| 7 | Vanity Mirror Lamp - Right |
| 8 | Inside Rearview Mirror |
| 9 | OnStar Keypad (UE1) |
| 10 | Vanity Mirror Lamp - Left |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Steering Wheel Controls - Left |
| 3 | Instrument Panel Cluster (IPC) |
| 4 | Steering Wheel Controls - Right |
| 5 | Windshield Wiper/Washer Switch |
| 6 | Ignition Switch |
| 7 | Ambient Light Sensor |
| 8 | Hazard Switch |
| 9 | Radio |
| 10 | Inflatable Restraint I/P Module |
| 11 | Rear Window Defogger Switch |
| 12 | Traction Control Switch (NW7/NW9) |
| 13 | Cigar Lighter |
| 14 | A/C Request Switch |
| 15 | HVAC Control Module |
| 16 | Inflatable Restraint Steering Wheel Module |
| 17 | Fog Lamp Switch |
| 18 | I/P Dimmer Switch |
| 19 | Adjustable Pedals Position Switch |
| Callout | Component Name |
|---|---|
| 1 | Brake Pedal Position Sensor |
| 2 | Adjustable Pedals Position Sensor |
| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid |
| 2 | Transmission Range Indicator Lamp |
| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Courtesy Lamp |

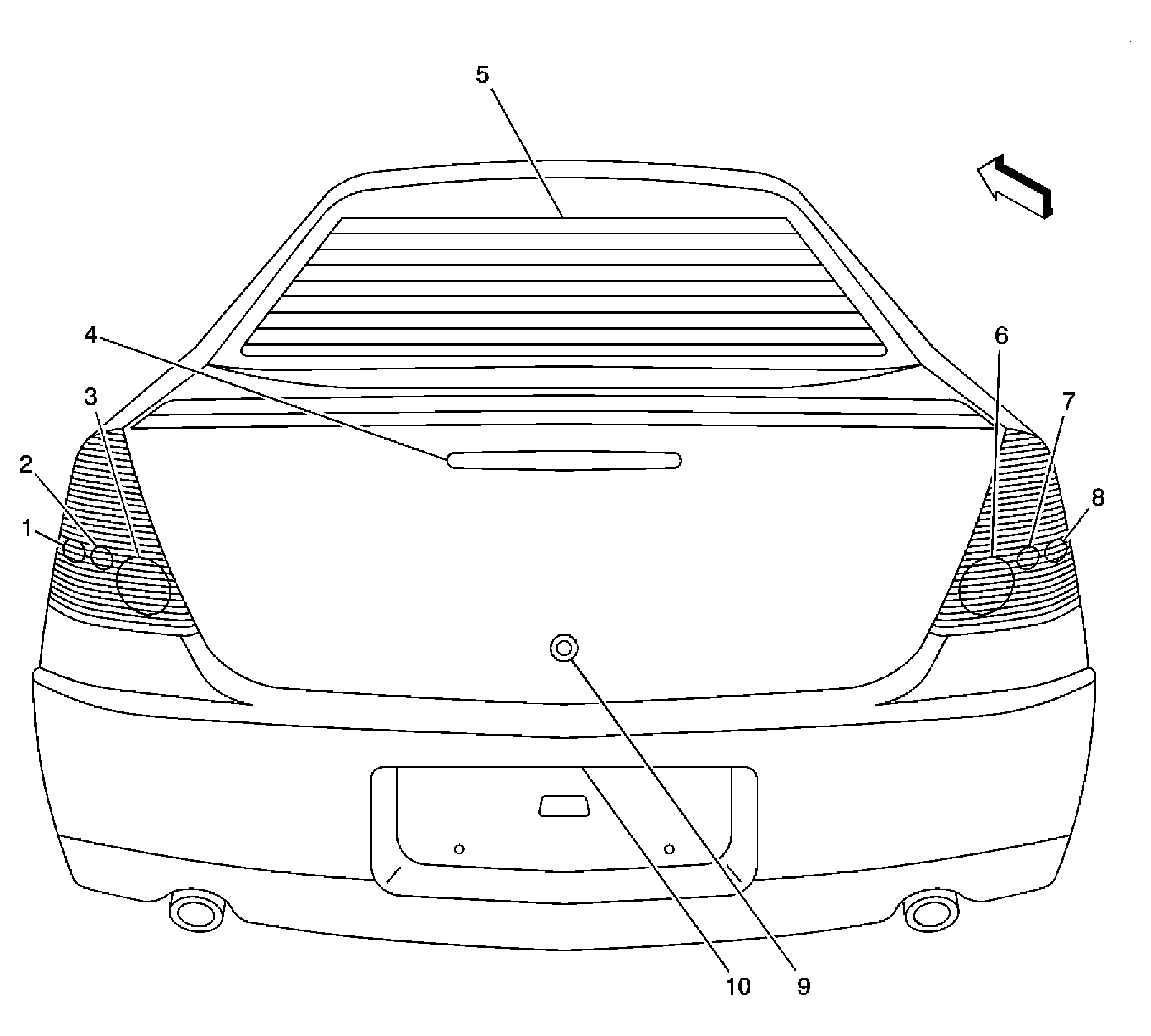

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - Left |
| 2 | Tail/Stop and Turn Signal Lamp - Right |
| 3 | Backup Lamp - Left |
| 4 | Center High Mounted Stop Lamp (CHMSL) |
| 5 | Rear Window Defogger Grid |
| 6 | Backup Lamp - Right |
| 7 | Tail/Stop and Turn Signal Lamp - Right |
| 8 | Marker Lamp - Right |
| 9 | Rear Compartment Lid Release Switch - Exterior |
| 10 | License Lamp |
