Object Detection Component Views
| Callout | Component Name |
|---|---|
| 1 | Cargo Lamp |
| 2 | Courtesy/Reading Lamp - Rear |
| 3 | Infrared Module (U42+C3U) |
| 4 | Courtesy/Reading Lamp - Center (U42+C3U) |
| 5 | Digital Video Disc (DVD) Display (U42+C3U) |
| 6 | Cellular Microphone (UE1) |
| 7 | Courtesy/Reading Lamp - Front |
| 8 | Console Flood Lamp |
| 9 | Garage Door Opener (UG1) |
| 10 | Vanity Mirror Lamp - Right (DH6) |
| 11 | Inside Rearview Mirror |
| 12 | Vanity Mirror Lamp - Left (DH6) |
| 13 | Digital Video Disc (DVD) Display (U42-C3U) |
| 14 | Courtesy/Reading Lamp - Center (-C3U) |
| 15 | Infrared Module (U42-C3U) |
| 16 | Rear Parking Assist (RPA) Display (UD7) |
| 17 | Remote Control Door Lock Receiver (RCDLR) |
| Callout | Component Name |
|---|---|
| 1 | Vehicle Communication Unit (VCU) (UE1) |
| 2 | Rear Parking Assist (RPA) Module (UD7) |
| 3 | Digital Radio Receiver (U2K) |
| 4 | Liftgate Module (LGM) (E61) |
| 5 | Speaker - Left Rear (UQA/UQG/UQS) |
| 6 | Accessory AC/DC Power Control Module (KV1) |
| 7 | Rearview Camera Module (UVC) |
| 8 | G401 |
| 9 | Liftgate Motor Assembly (E61) |

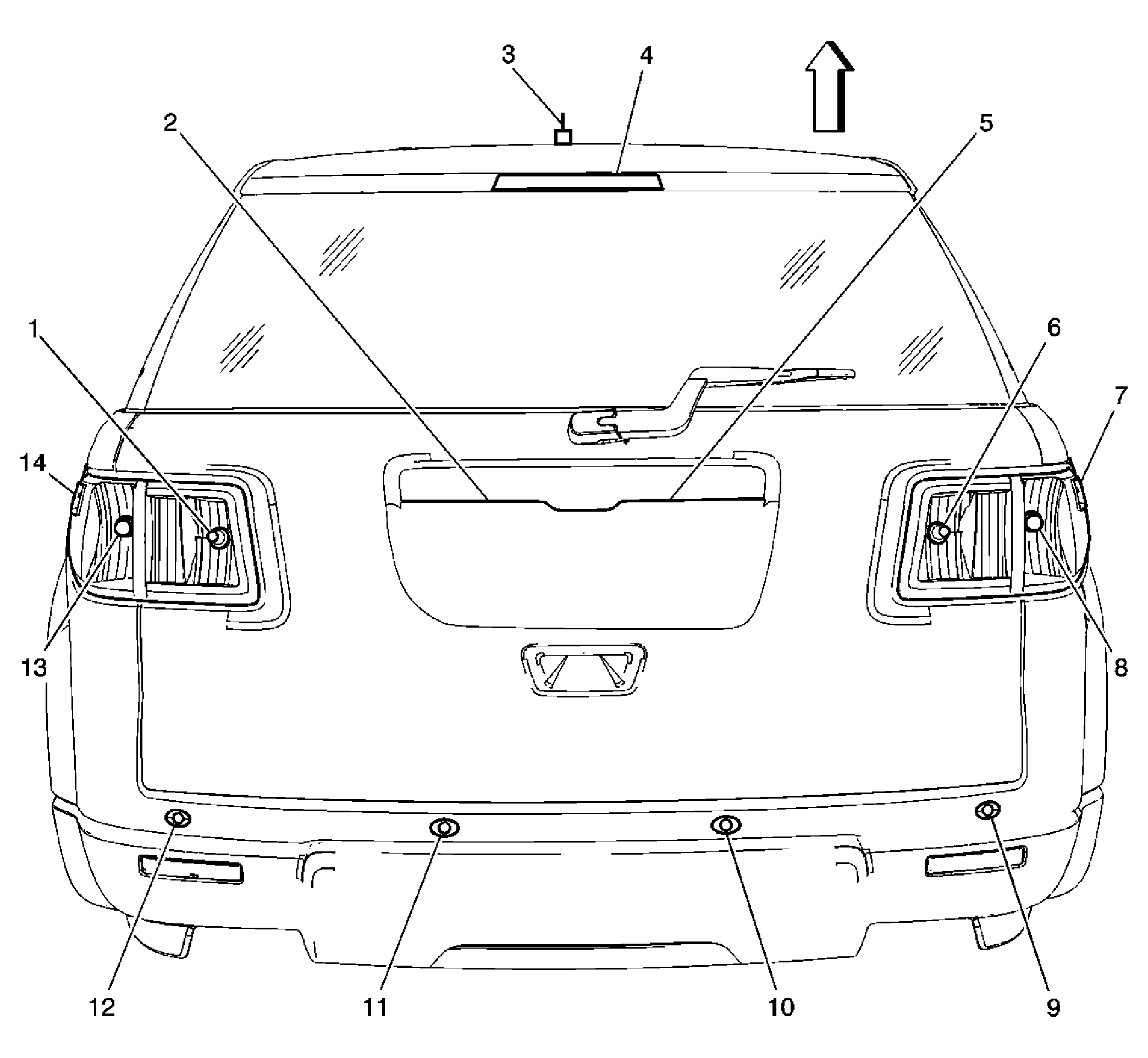

| Callout | Component Name |
|---|---|
| 1 | Backup Lamp - Left |
| 2 | License Lamp - Left |
| 3 | Radio Antenna |
| 4 | Center High Mounted Stop Lamp (CHMSL) |
| 5 | License Lamp - Right |
| 6 | Backup Lamp - Right |
| 7 | Marker Lamp - Right Rear |
| 8 | Tail/Stop and Turn Signal Lamp - Right |
| 9 | Object Sensor - Right Rear Corner (UD7) |
| 10 | Object Sensor - Right Rear Middle (UD7) |
| 11 | Object Sensor - Left Rear Middle (UD7) |
| 12 | Object Sensor - Left Rear Corner (UD7) |
| 13 | Tail/Stop and Turn Signal Lamp - Left |
| 14 | Marker Lamp - Left Rear |

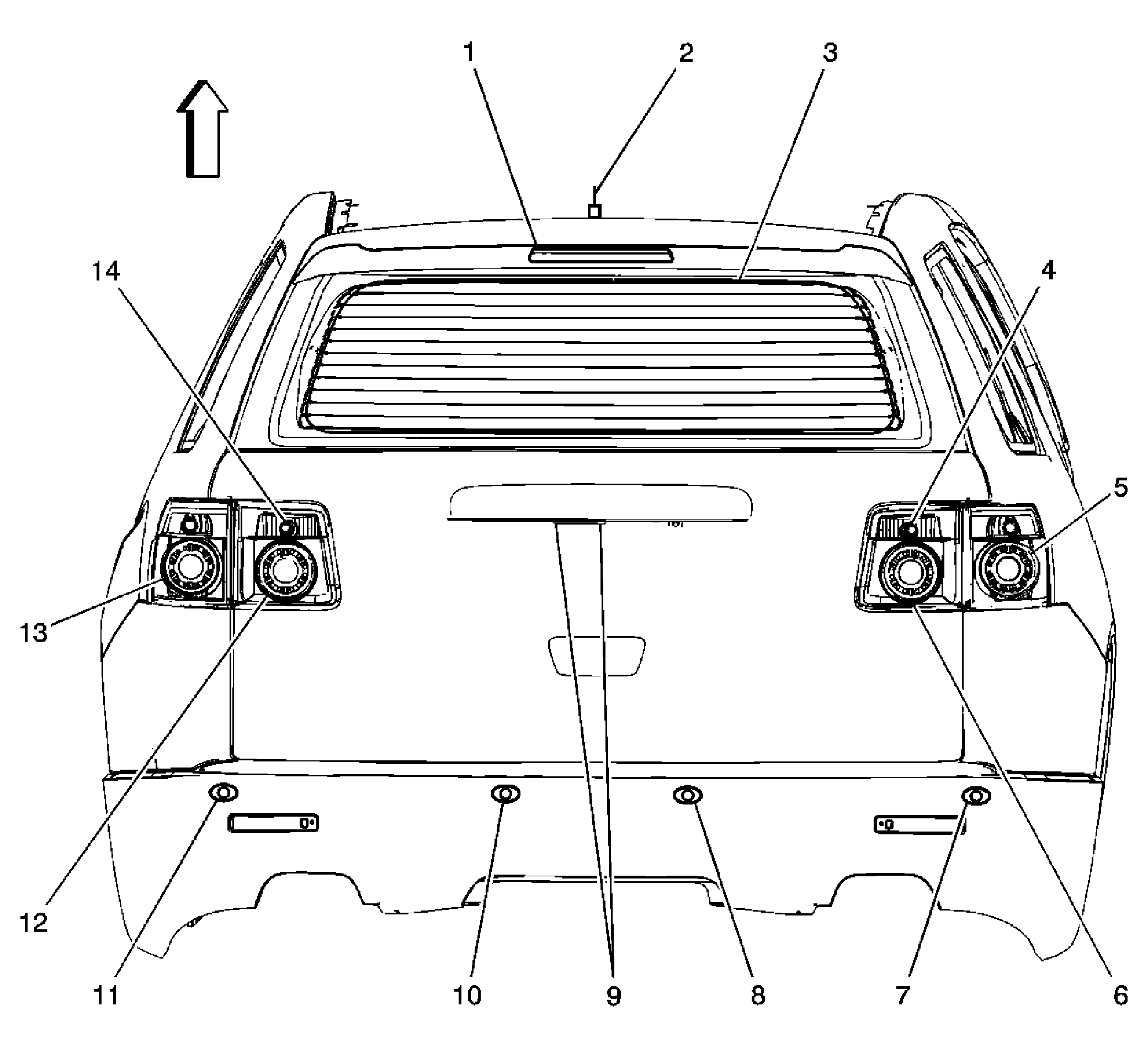

| Callout | Component Name |
|---|---|
| 1 | Center High Mounted Stop Lamp (CHMSL) |
| 2 | Radio Antenna |
| 3 | Rear Window Defogger Grid |
| 4 | Back Up Lamp - Right |
| 5 | Tail Lamp Assembly - Right |
| 6 | Park Lamp - Right Rear |
| 7 | Object Sensor - Right Rear Corner (UD7) |
| 8 | Object Sensor - Right Rear Middle (UD7) |
| 9 | License Lamp - Left/License Lamp - Right |
| 10 | Object Sensor - Left Rear Middle (UD7) |
| 11 | Object Sensor - Left Rear Corner (UD7) |
| 12 | Park Lamp - Left Rear |
| 13 | Tail Lamp Assembly - Left |
| 14 | Back Up Lamp - Left |
