Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Front Axle
Courtesy of GENERAL MOTORS CORP.

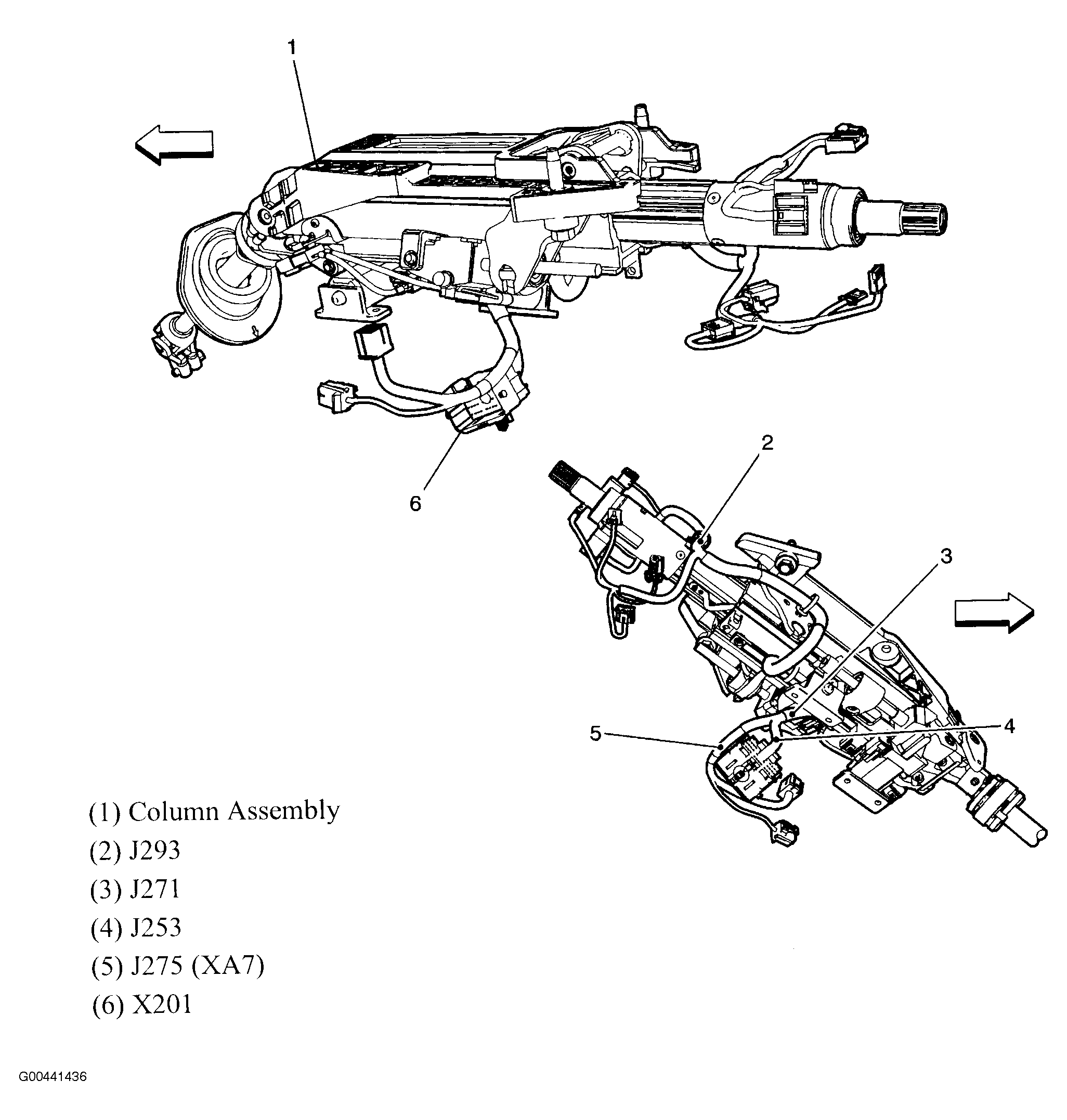

Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 6: Vehicle Right Front Floor
Courtesy of GENERAL MOTORS CORP.
Fig 7: Rear Axle
Courtesy of GENERAL MOTORS CORP.

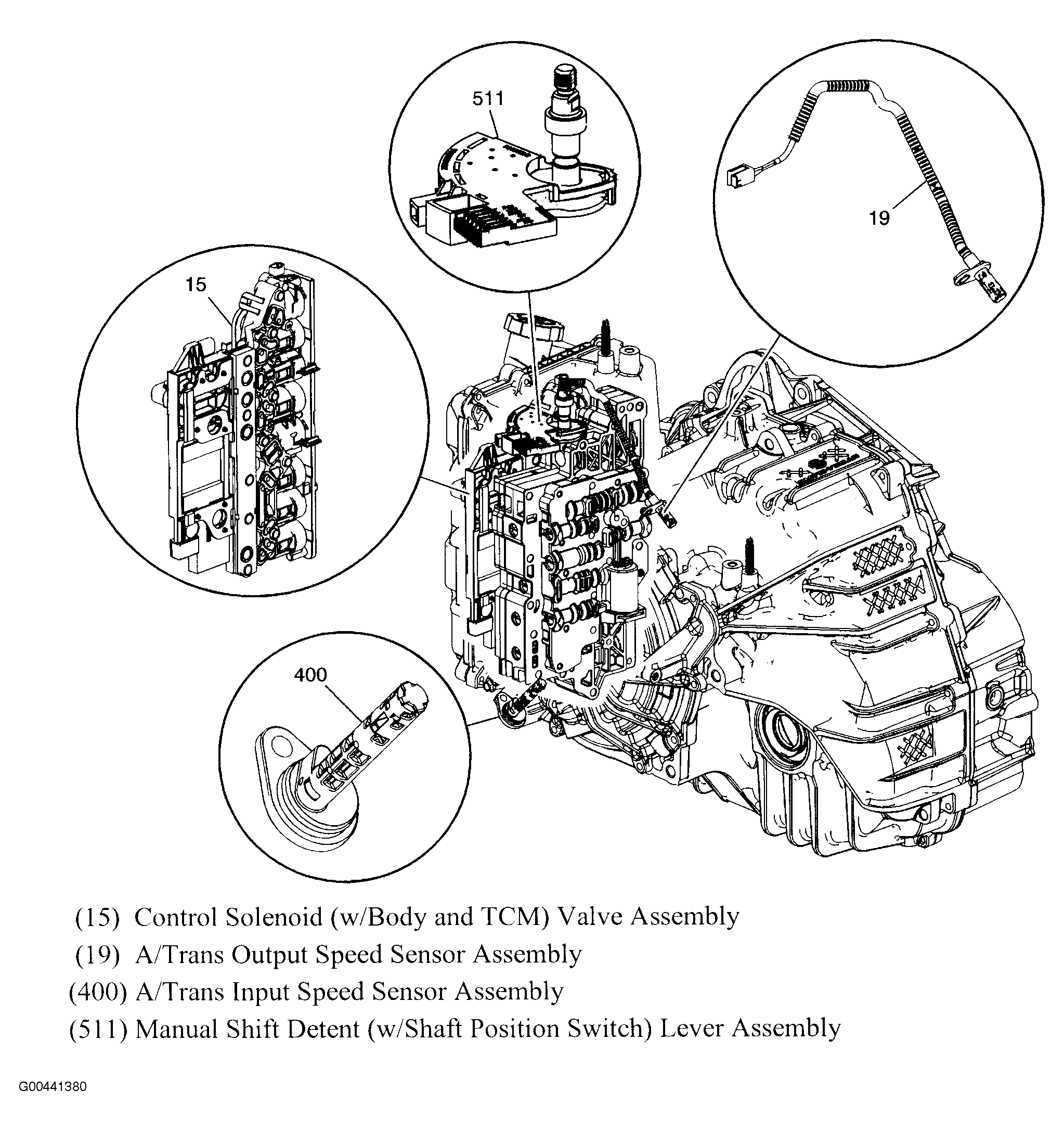

Fig 8: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 9: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 12: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Of Vehicle (Outlook)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 20: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

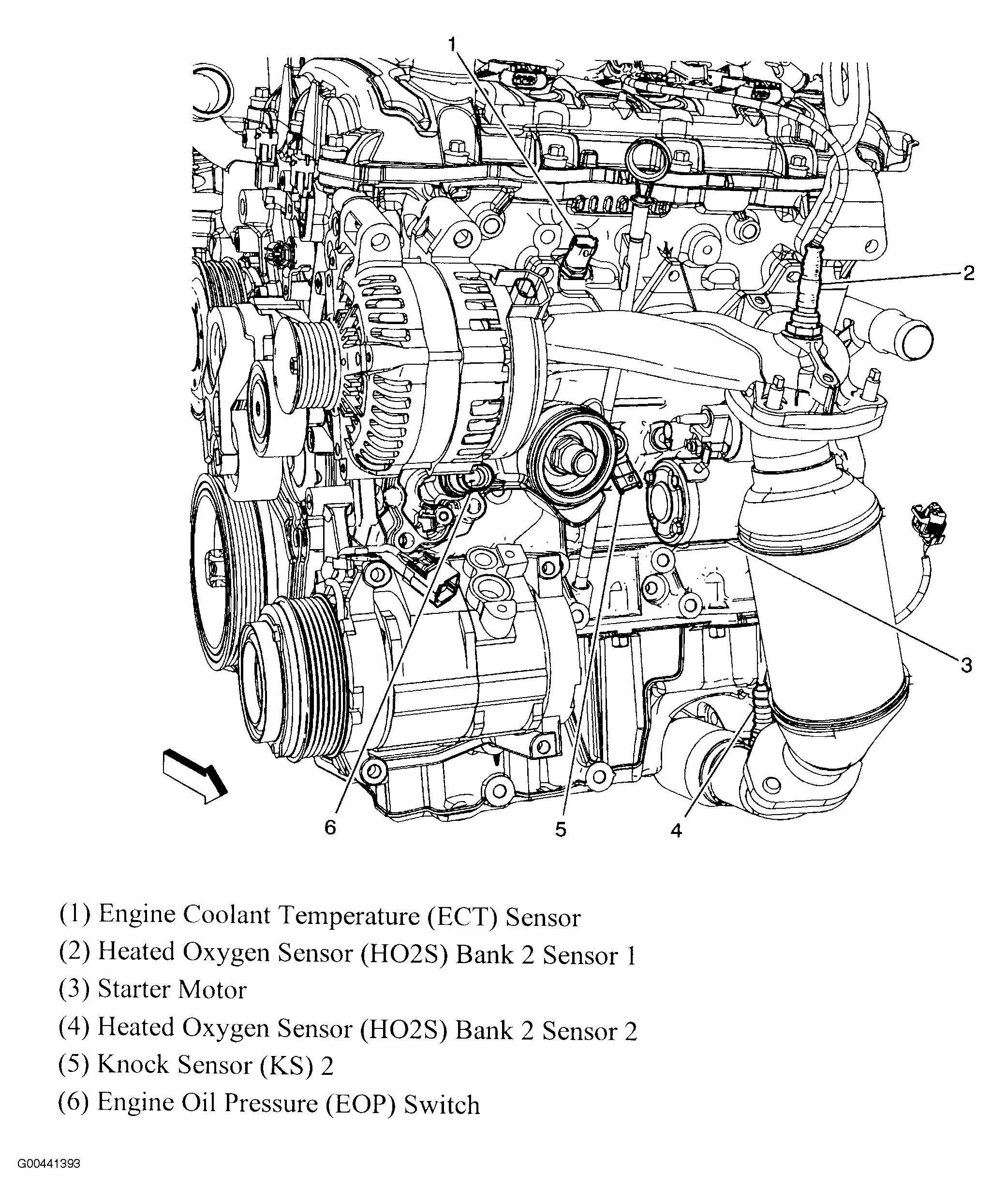

Fig 21: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

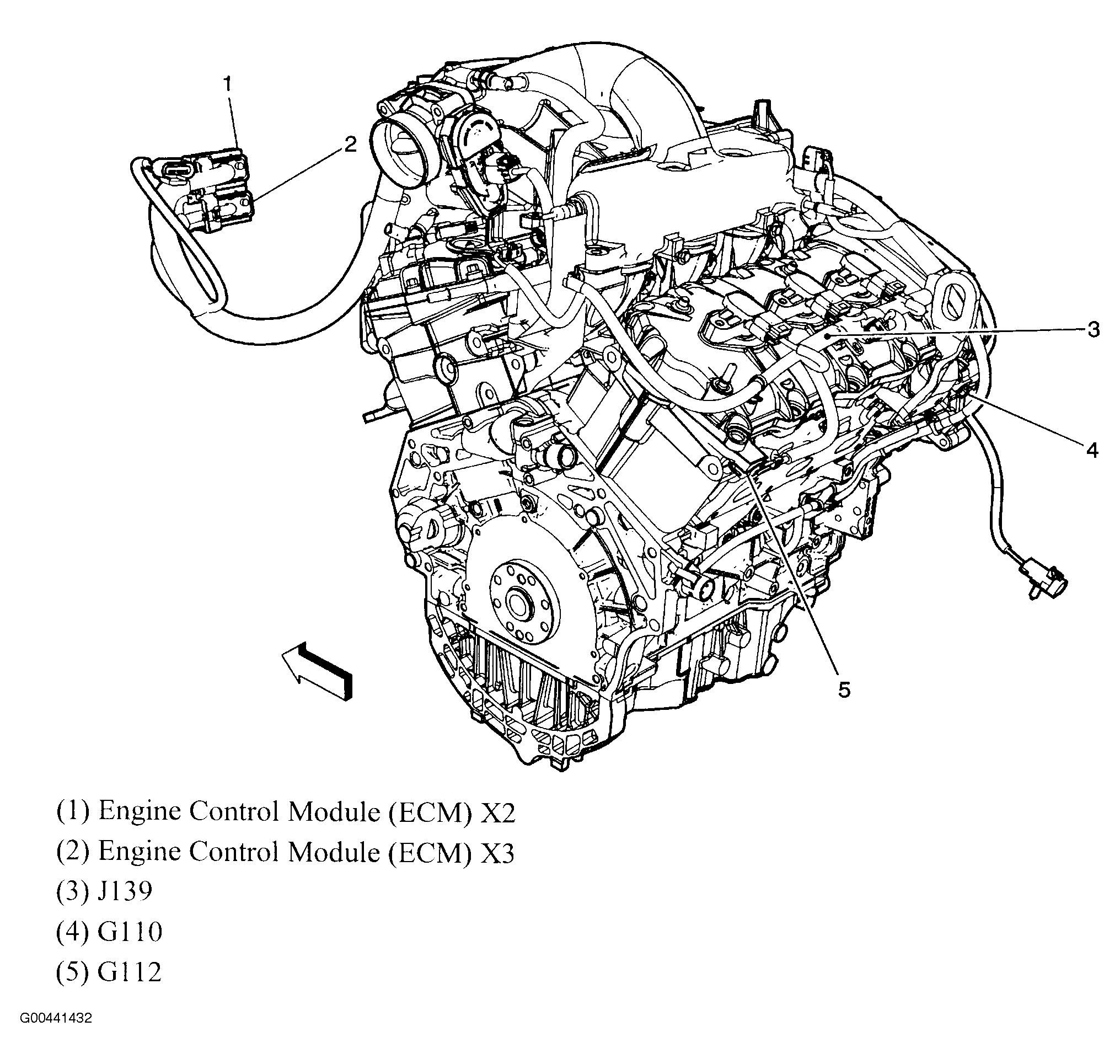

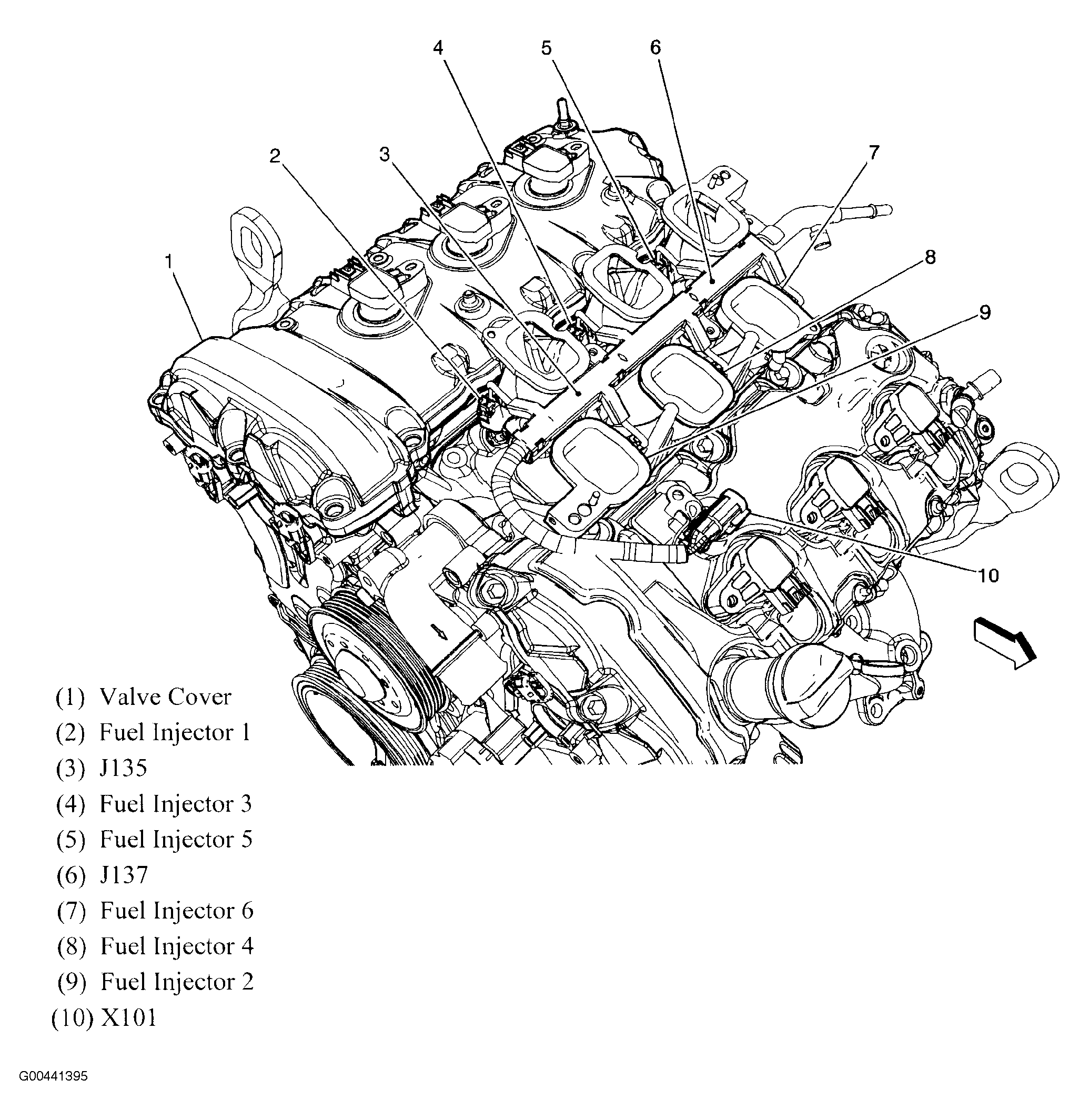

Fig 22: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

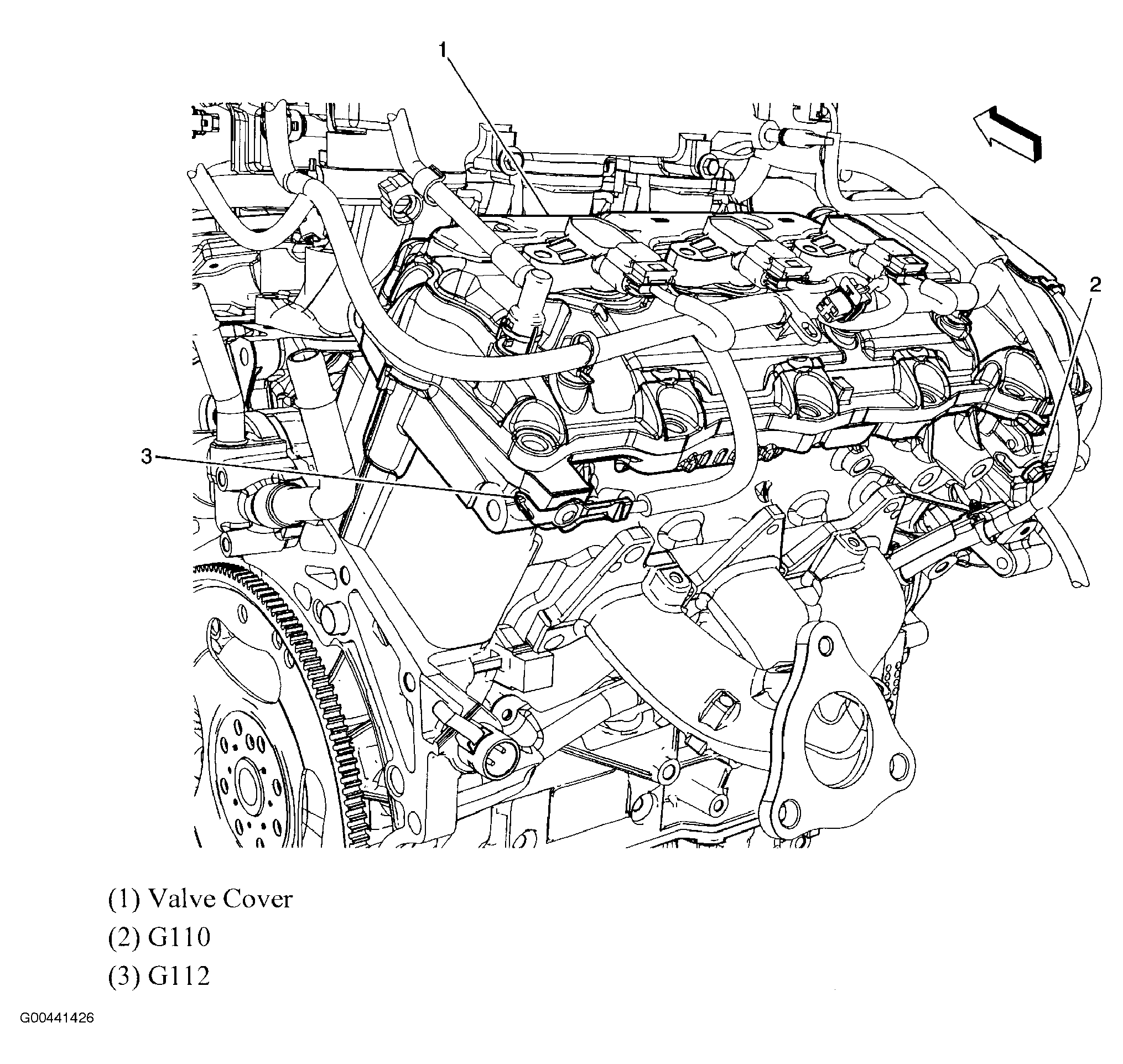

Fig 23: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

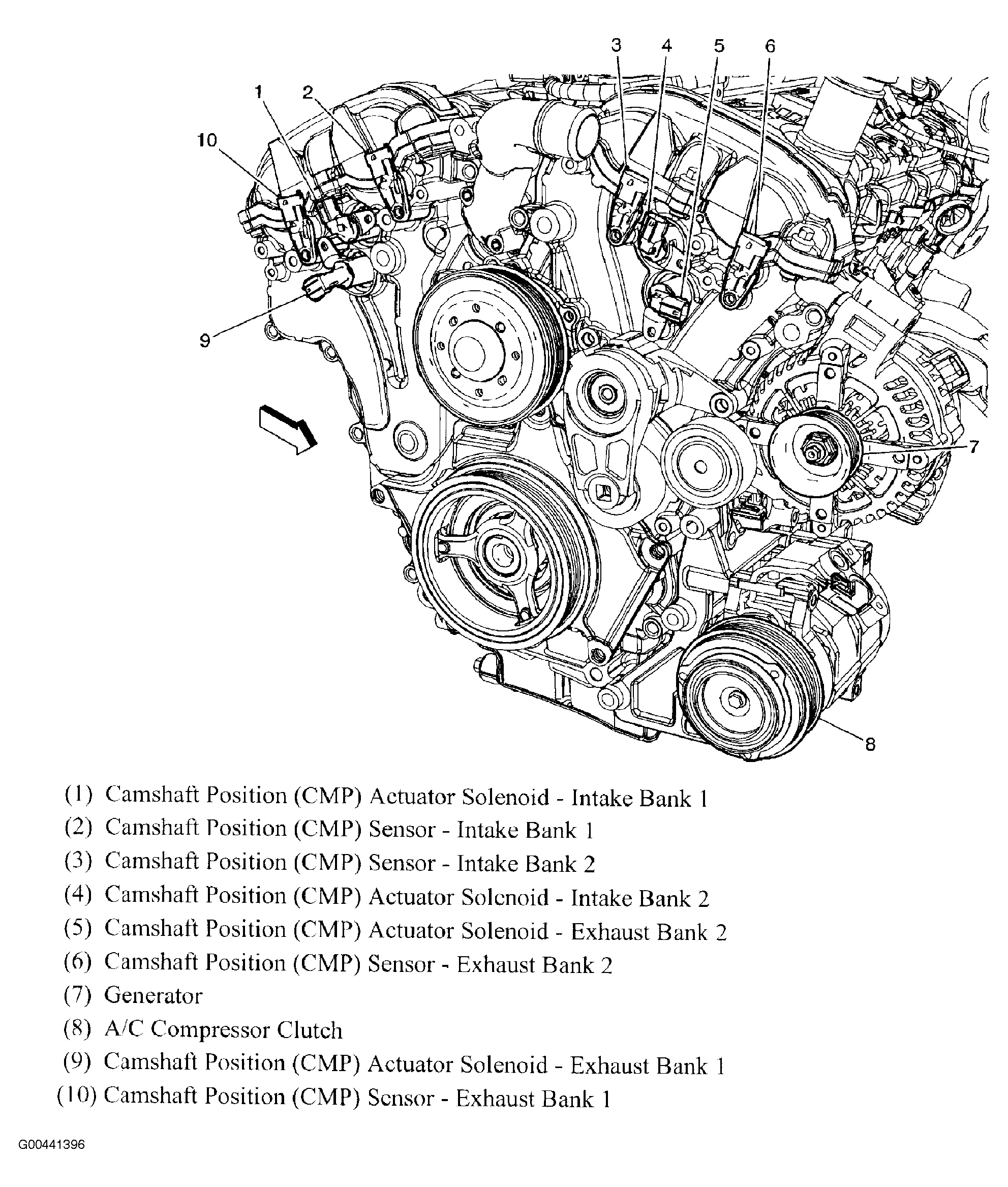

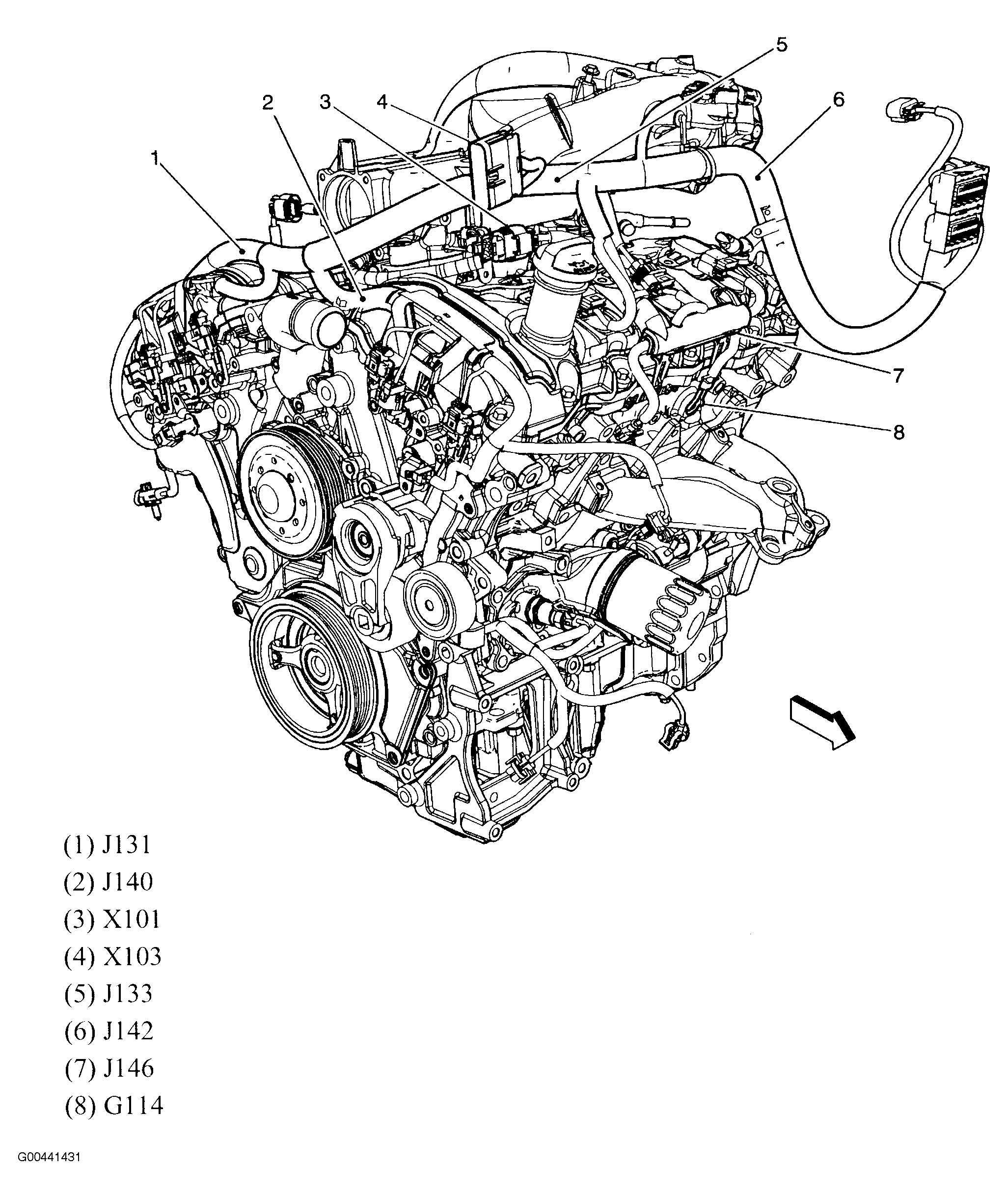

Fig 24: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

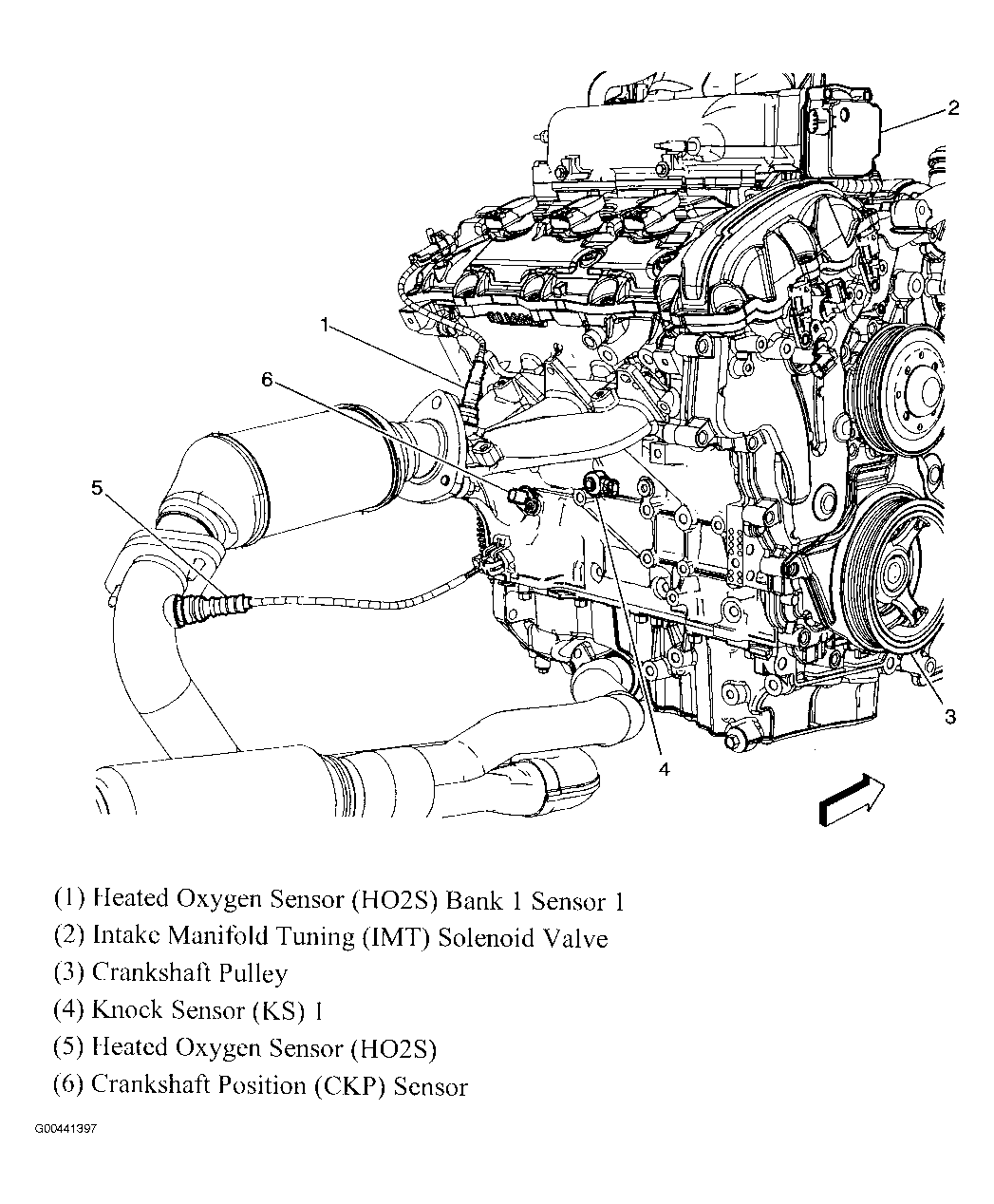

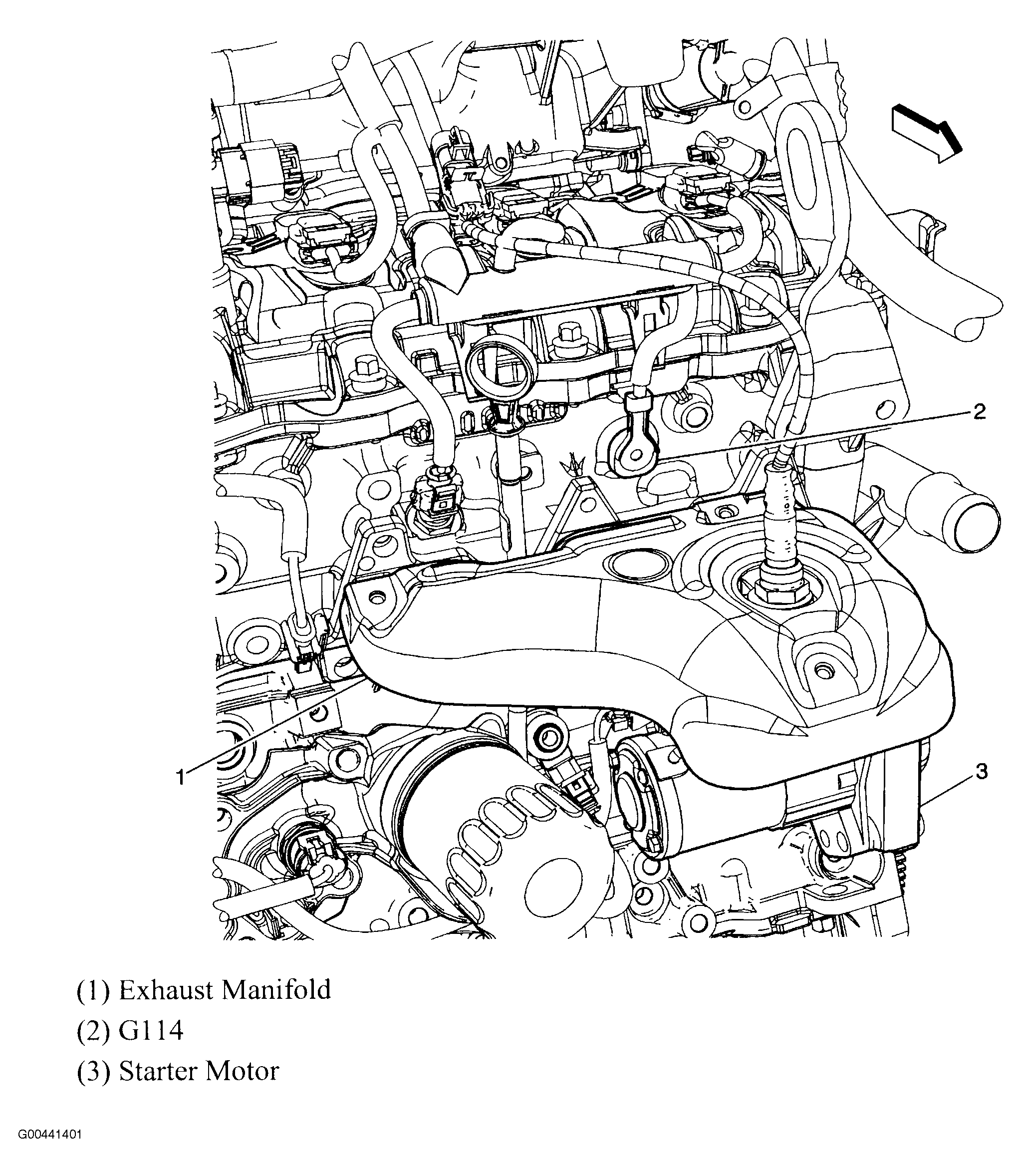

Fig 25: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 28: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Rear Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 30: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 31: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.

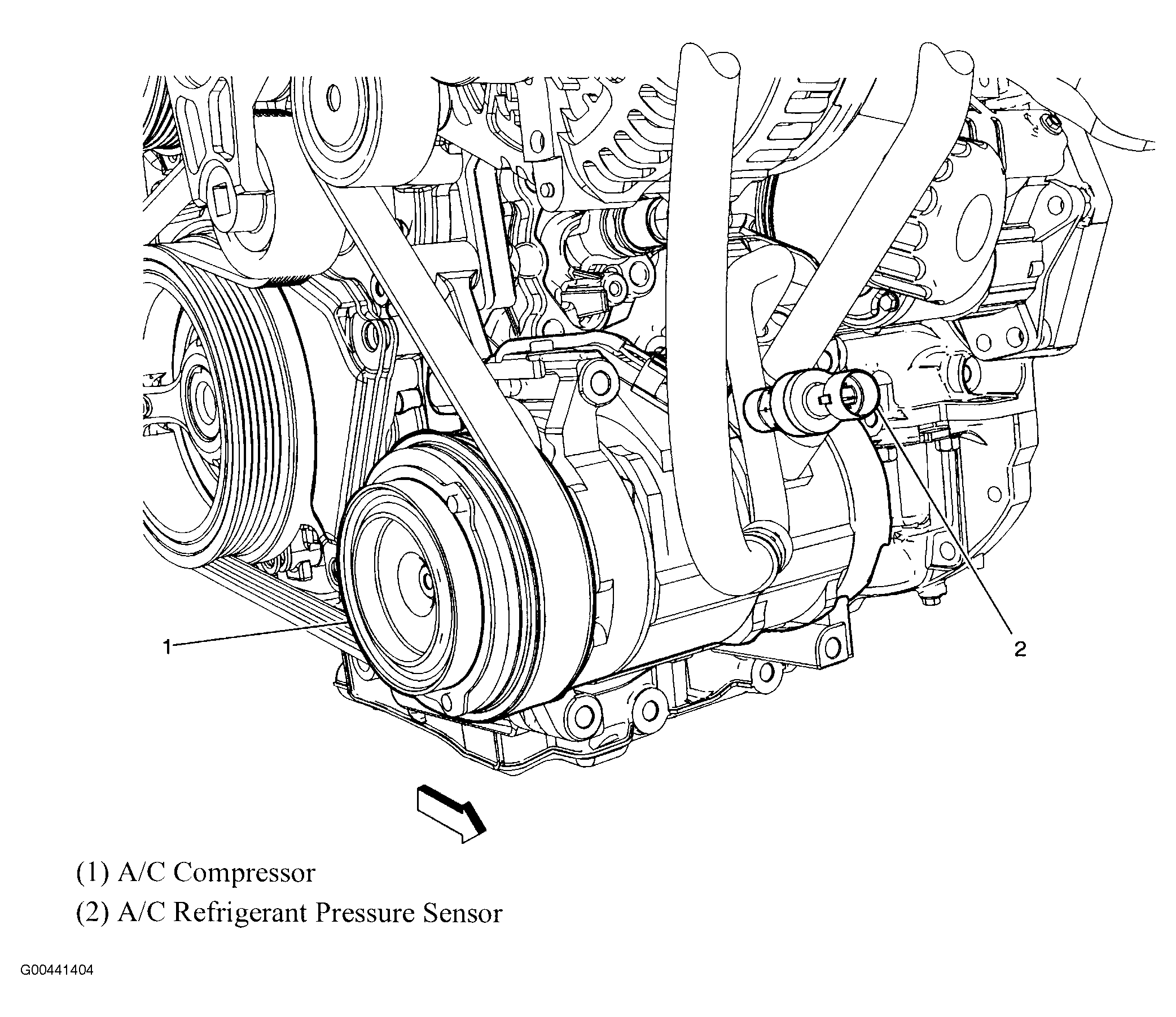

Fig 32: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 33: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 35: Rear HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 36: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 37: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 38: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: Shifter Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 40: Driver's Seat (Power Seat)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Driver's Seat (Power Memory Seat)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 44: Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 45: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 46: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 49: Vehicle Tire Overview
Courtesy of GENERAL MOTORS CORP.
Fig 50: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Side Of Dash & Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 56: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 58: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 60: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 61: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 62: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 63: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 64: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 65: Overhead Console
Courtesy of GENERAL MOTORS CORP.

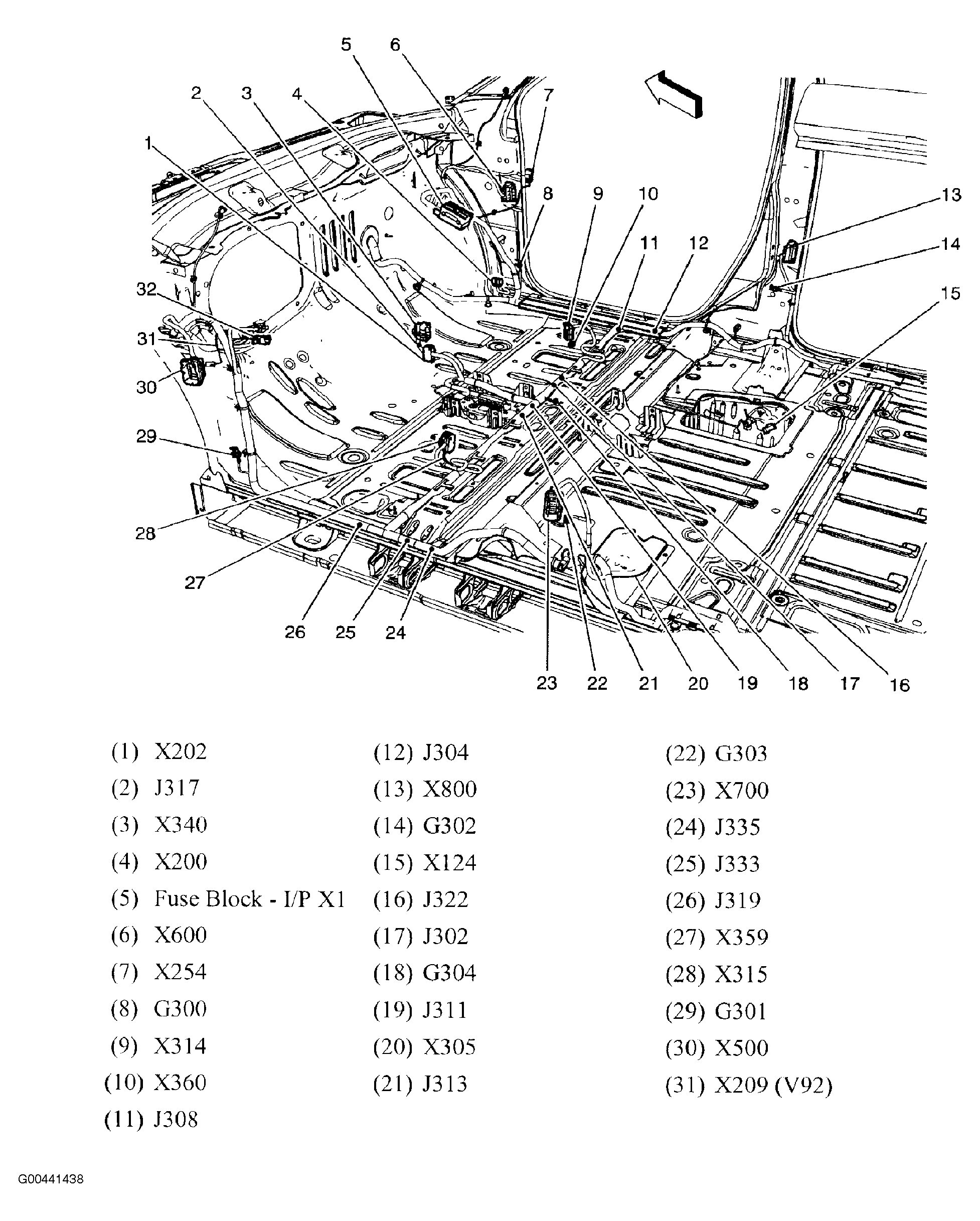

Fig 66: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 68: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 69: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 70: Floor Console
Courtesy of GENERAL MOTORS CORP.

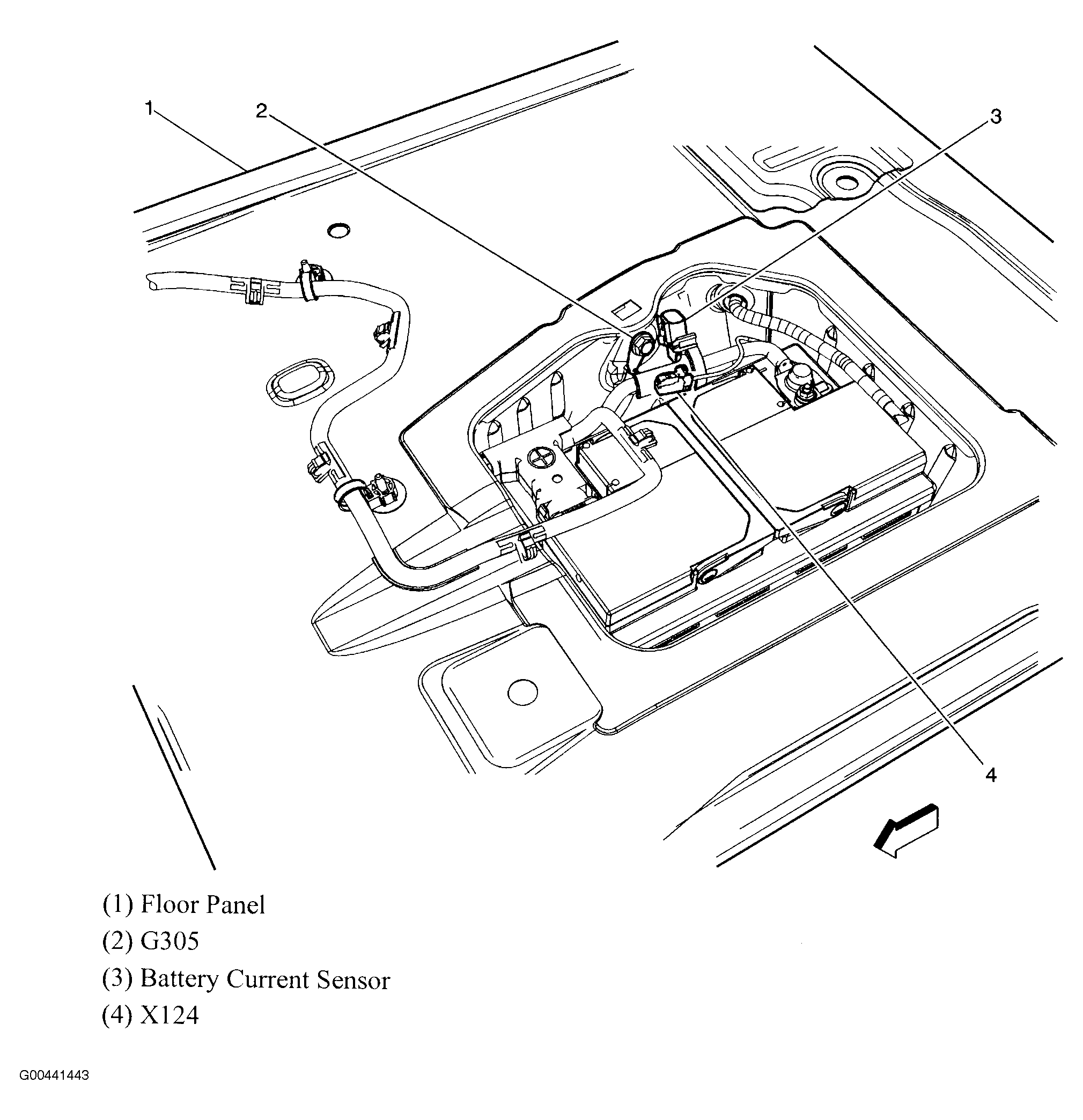

Fig 71: Battery Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 72: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 73: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 74: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 75: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 76: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

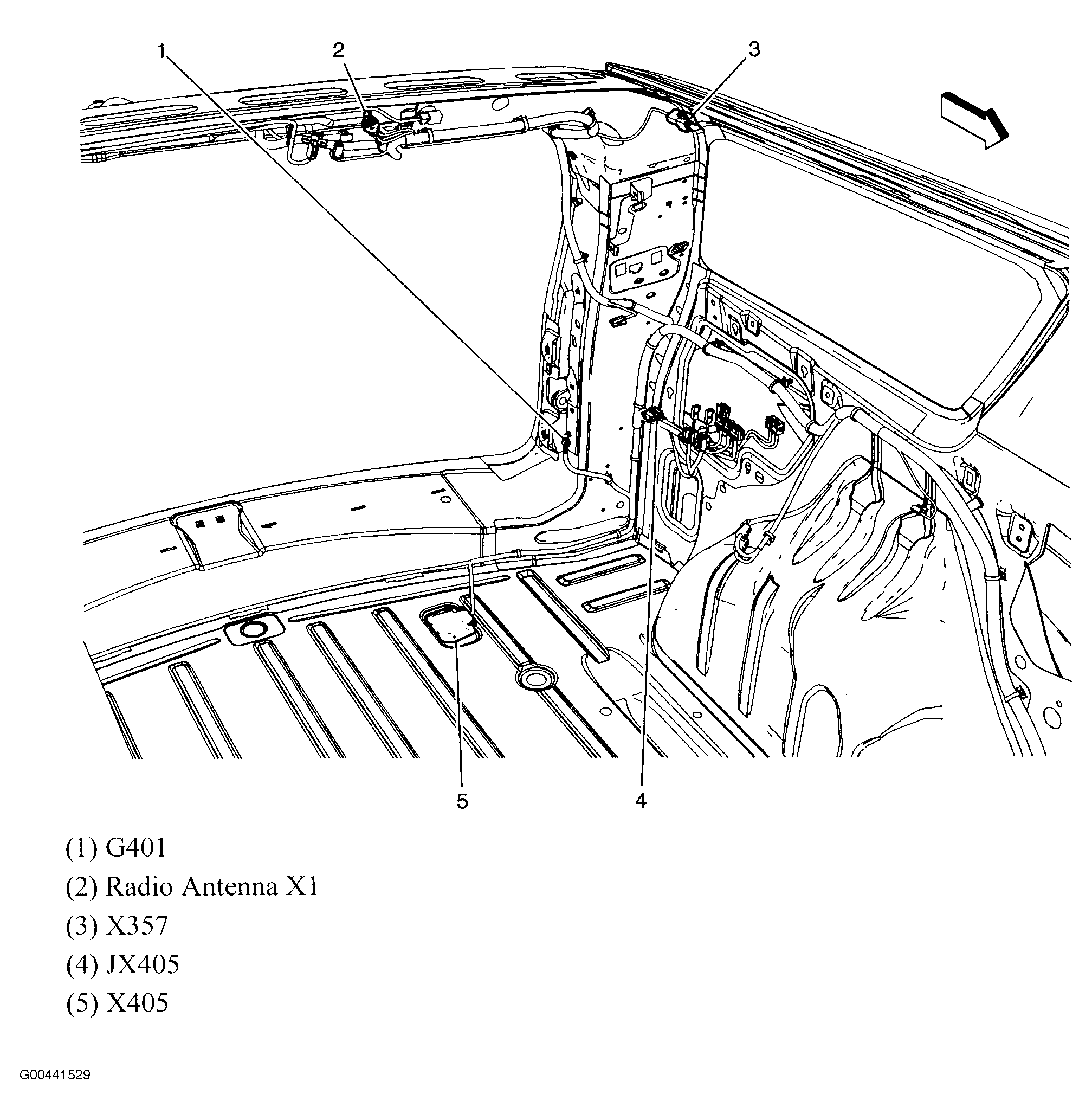

Fig 77: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

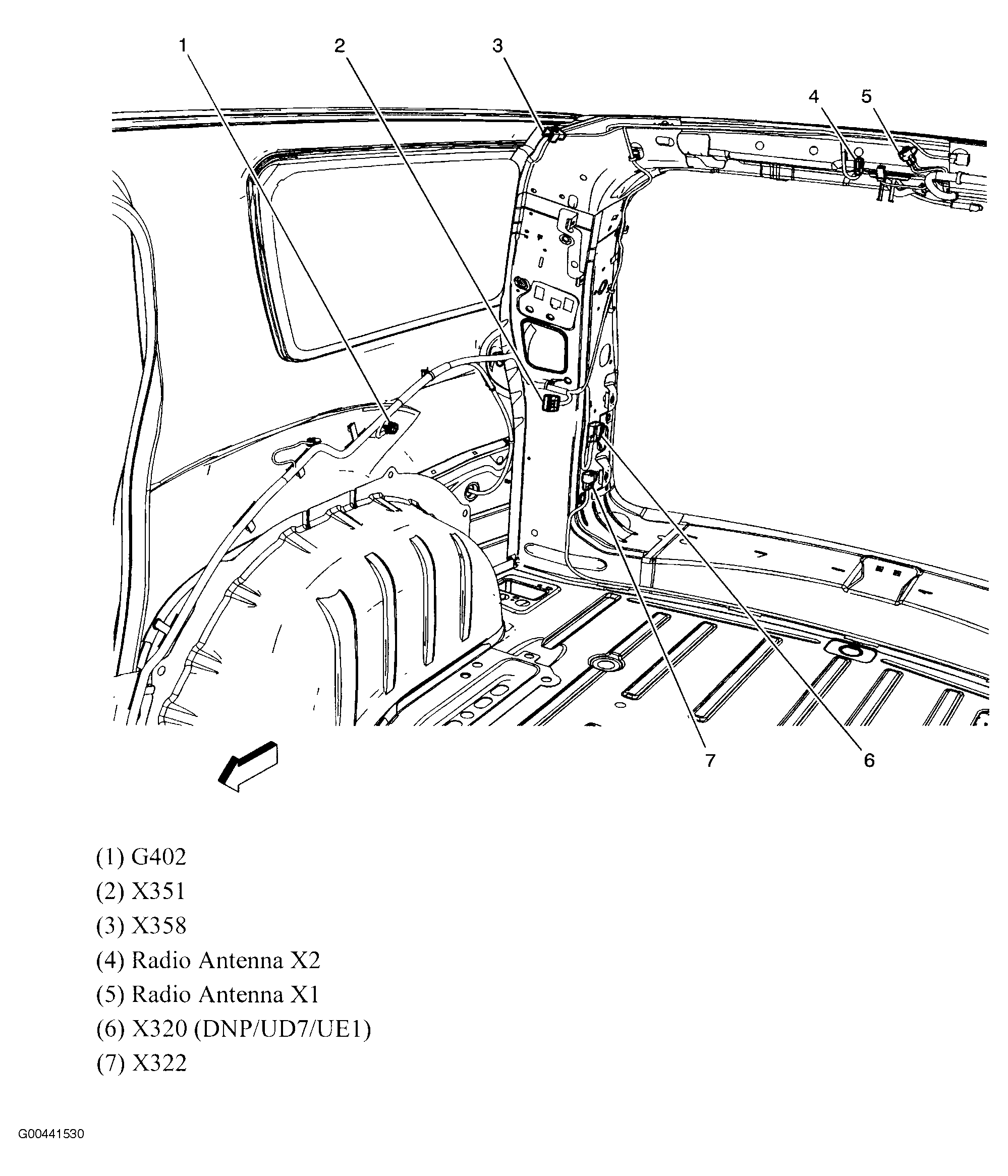

Fig 78: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 79: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 80: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 81: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
