Communication Interface Module Replacement

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

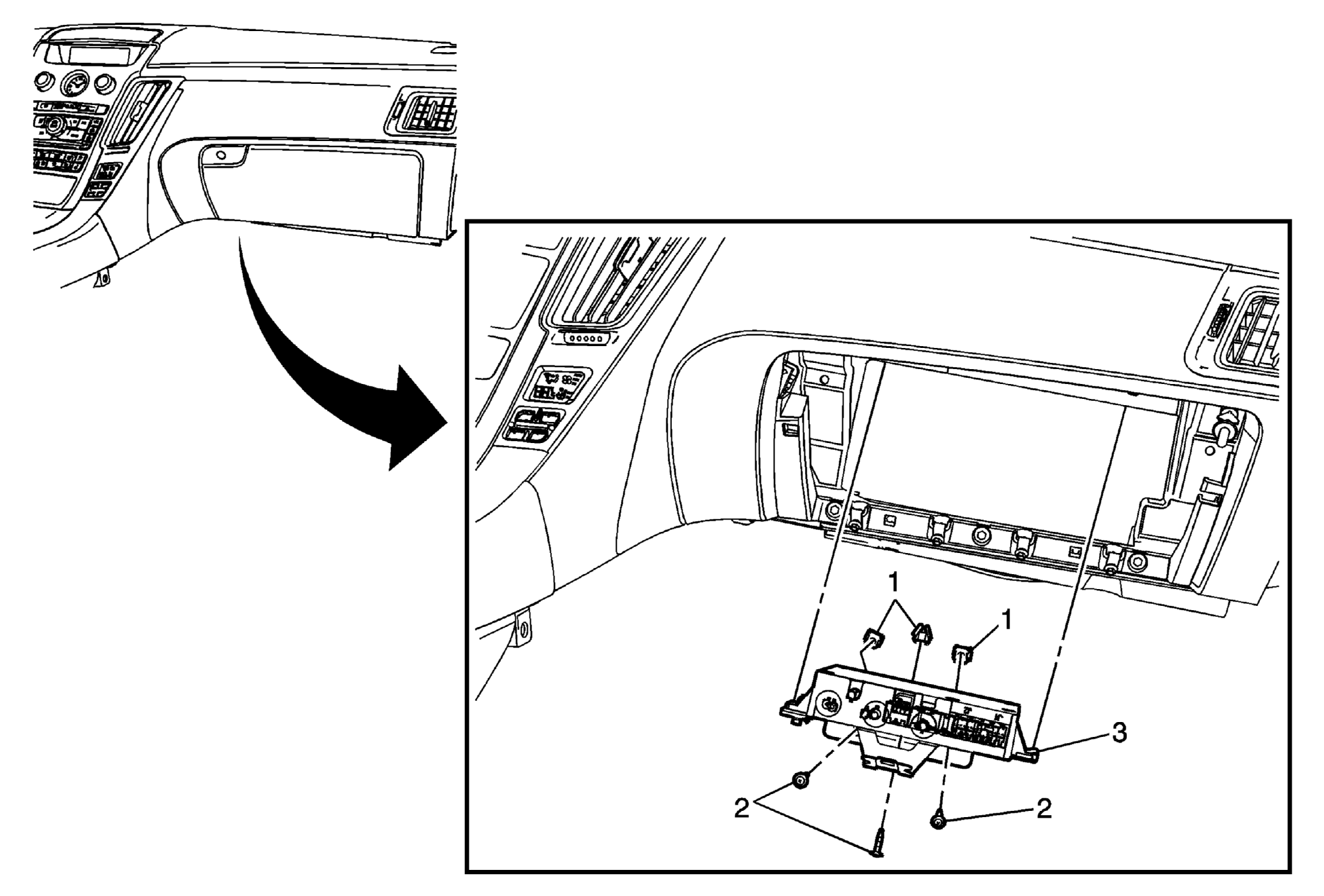

Fig 1: Identifying Communication Interface Module & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Right Hand Drive) , Instrument Panel Compartment Replacement (Left Hand Drive) .
1	Communication Interface Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (79 lb in)
2	Communication Interface Module Bolt Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Communication Interface Module Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References .
