Ignition Lock Key Transmitter Antenna Replacement (Coupe)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

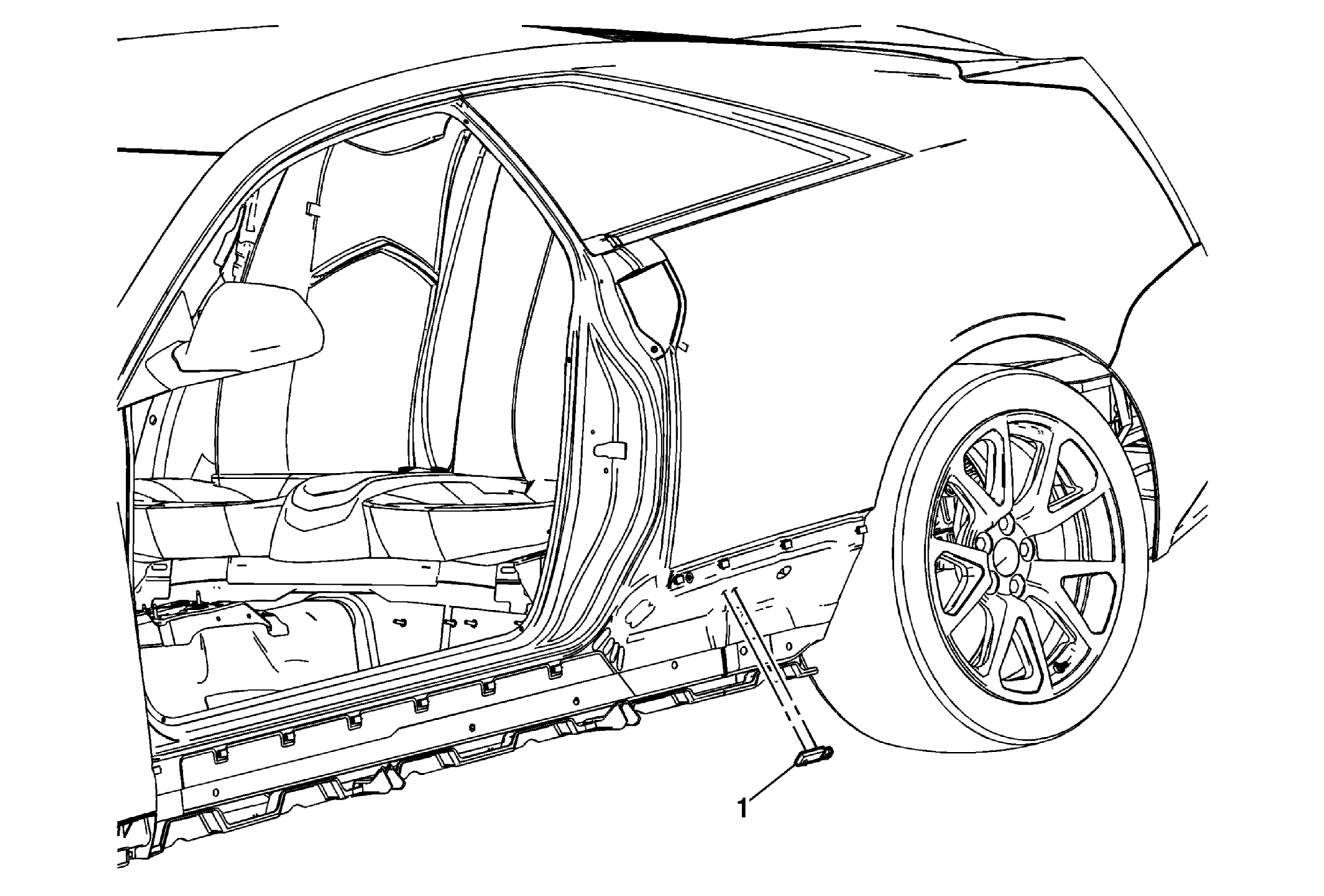

Fig 1: Ignition Lock Key Transmitter Antenna (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement (Coupe) , Rocker Panel Molding Replacement (Wagon) .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap the ignition lock key transmitter antenna from the body side outer frame.

Callout

Component Name

Preliminary Procedure
Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement (Coupe) , Rocker Panel Molding Replacement (Wagon) .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connector.
Unsnap the ignition lock key transmitter antenna from the body side outer frame.
