Cooling System Component Views

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

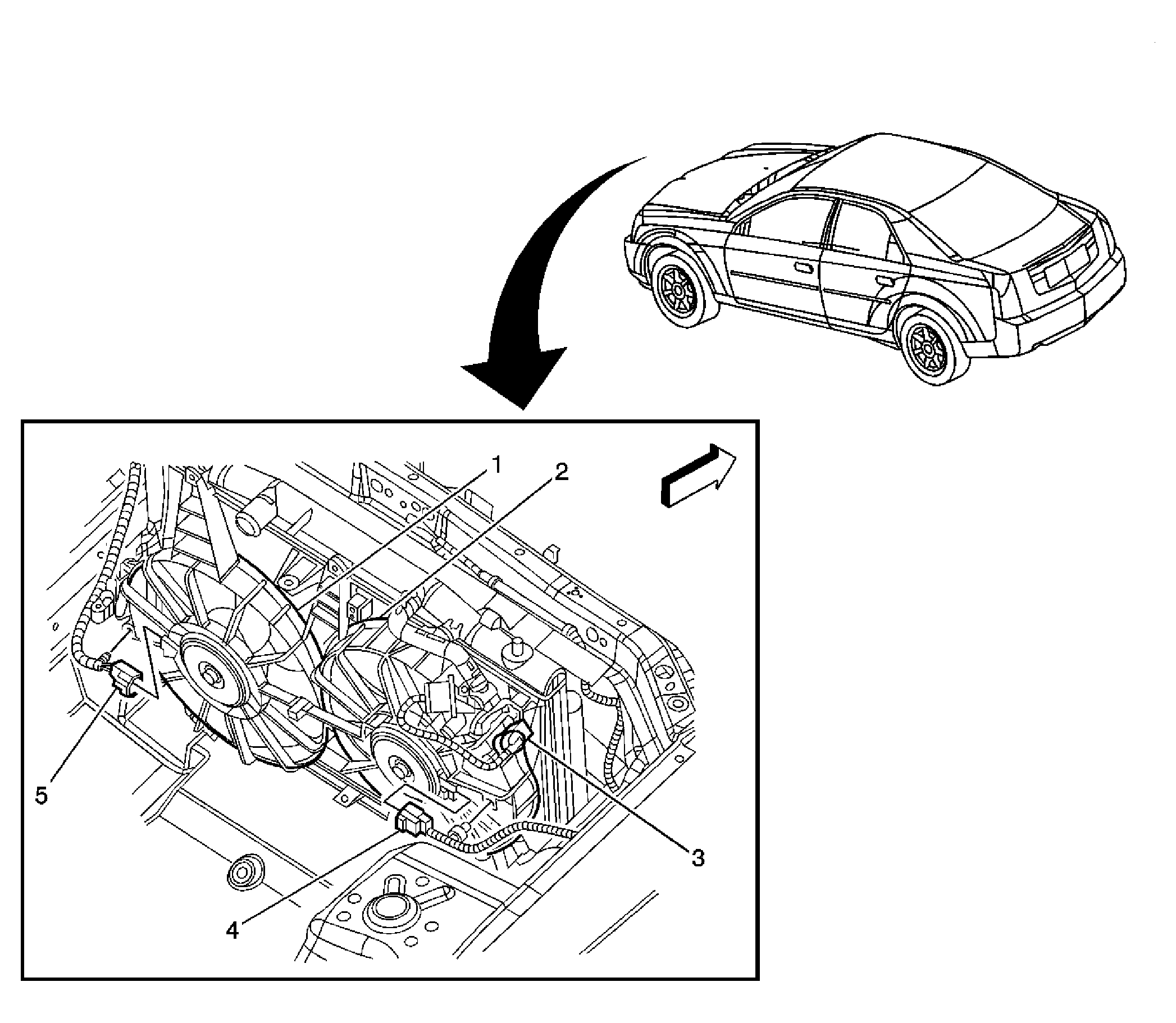

Fig 1: Cooling Fans Component Views
GM1499817Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan - Left
2 Cooling Fan - Right
3 Cooling Fan - Right Connector (LS6)
4 Cooling Fan - Right Connector
5 Cooling Fan - Left Connector
Fig 2: Cooling Fan Component View - Auxiliary (Export w/V92)
GM1372938Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan - Auxiliary Connector
2 Cooling Fan - Auxiliary
Fig 3: Coolant Surge Tank Component Views
GM1794357Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Surge Tank (RHD)
2 Coolant Surge Tank (LHD)
