Rear Object Alarm Control Module Replacement (Sedan, Coupe)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

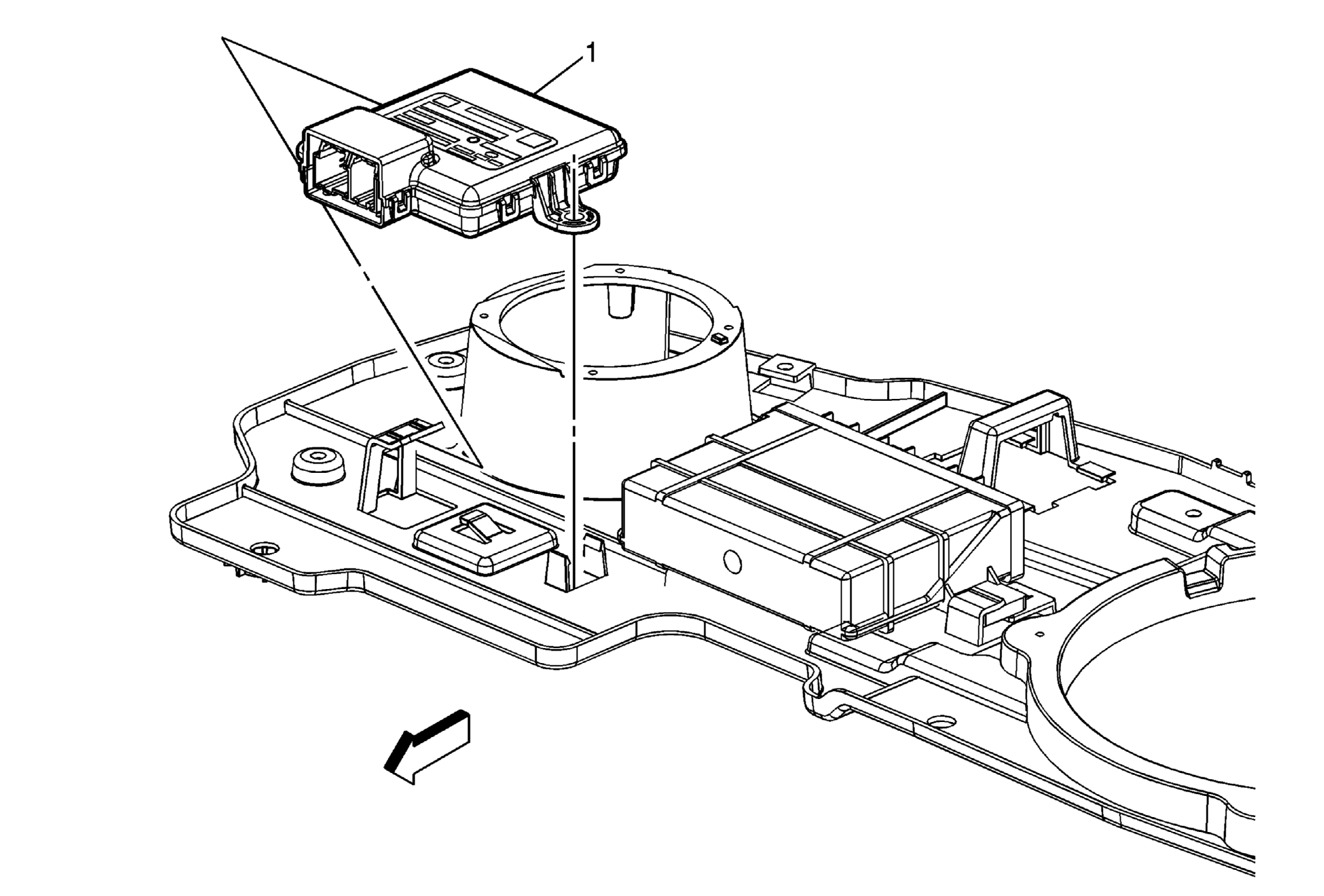

Fig 1: Identifying Rear Object Alarm Module (Sedan, Coupe)
GM2137210Courtesy of GENERAL MOTORS COMPANY
Rear Object Alarm Control Module Replacement (Sedan, Coupe)

Callout Component Name
Preliminary Procedure
Remove the rear window shelf trim panel. Refer to Rear Window Panel Trim Replacement (Sedan) , Rear Window Panel Trim Replacement (Coupe) .
1 Rear Object Alarm Module

Procedure

  1. Disconnect the electrical connectors.
  2. Unsnap the receiver from the panel.
  3. For programming and set up, refer to Control Module References
