Rearview Camera Image Display Module Replacement (Coupe)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

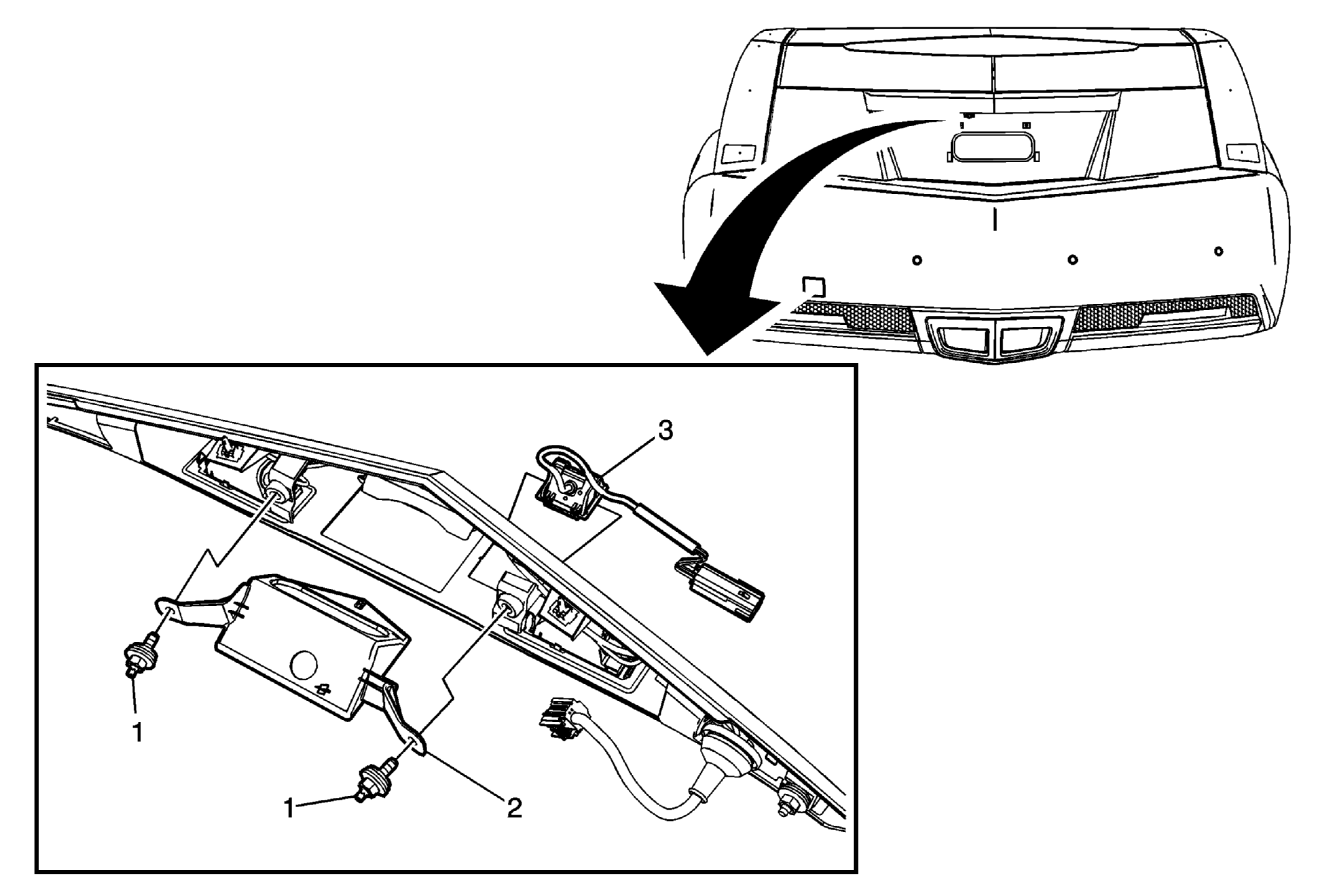

Fig 1: Rearview Camera Image Display Module & Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid lower molding. Refer to Rear Compartment Lid Lower Molding Replacement (Coupe) , Rear Compartment Lid Lower Molding Replacement (Sedan) .
1	Rear Compartment Lid Applique Bracket Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Rear Compartment Lid Applique Bracket Procedure Remove the bracket to gain access to the camera.
3	Rearview Camera Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the applique.
