Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

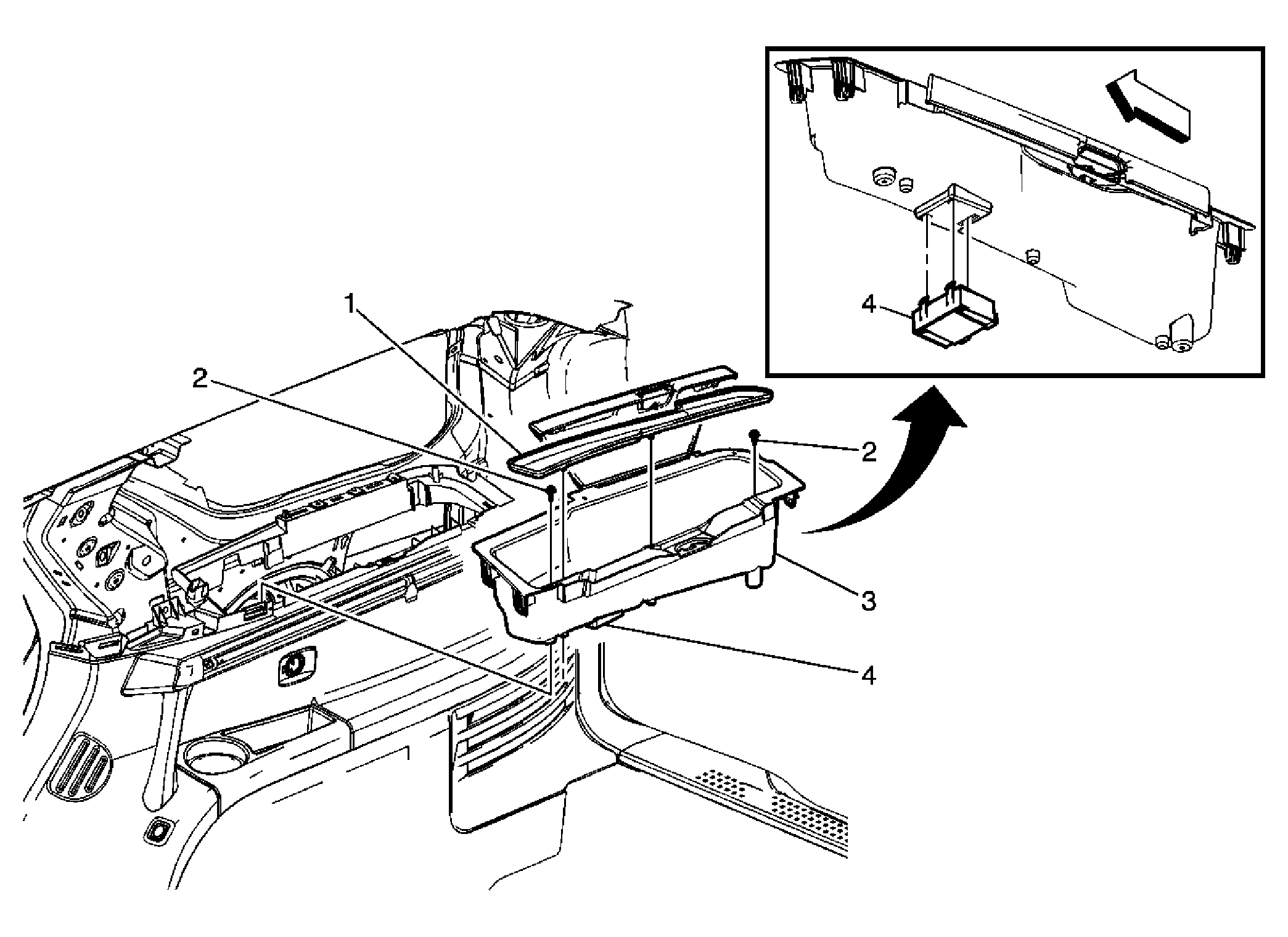

Fig 1: View Of Remote Control Door Lock Receiver Components

Courtesy of GENERAL MOTORS CORP.

1	Storage Bin Liner
2	Storage Bin Bolt (Qty: 2) NOTE: Refer to Fastener Notice in Cautions and Notices. Tighten 2 N.m (18 lb in)
3	Storage Bin
4	Remote Control Door Lock Receiver Procedure The module slides and snaps into the storage bin Disconnect the electrical connector If a replacement module is installed, program the module. Refer to Control Module References
