Cooling System Component Views
WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

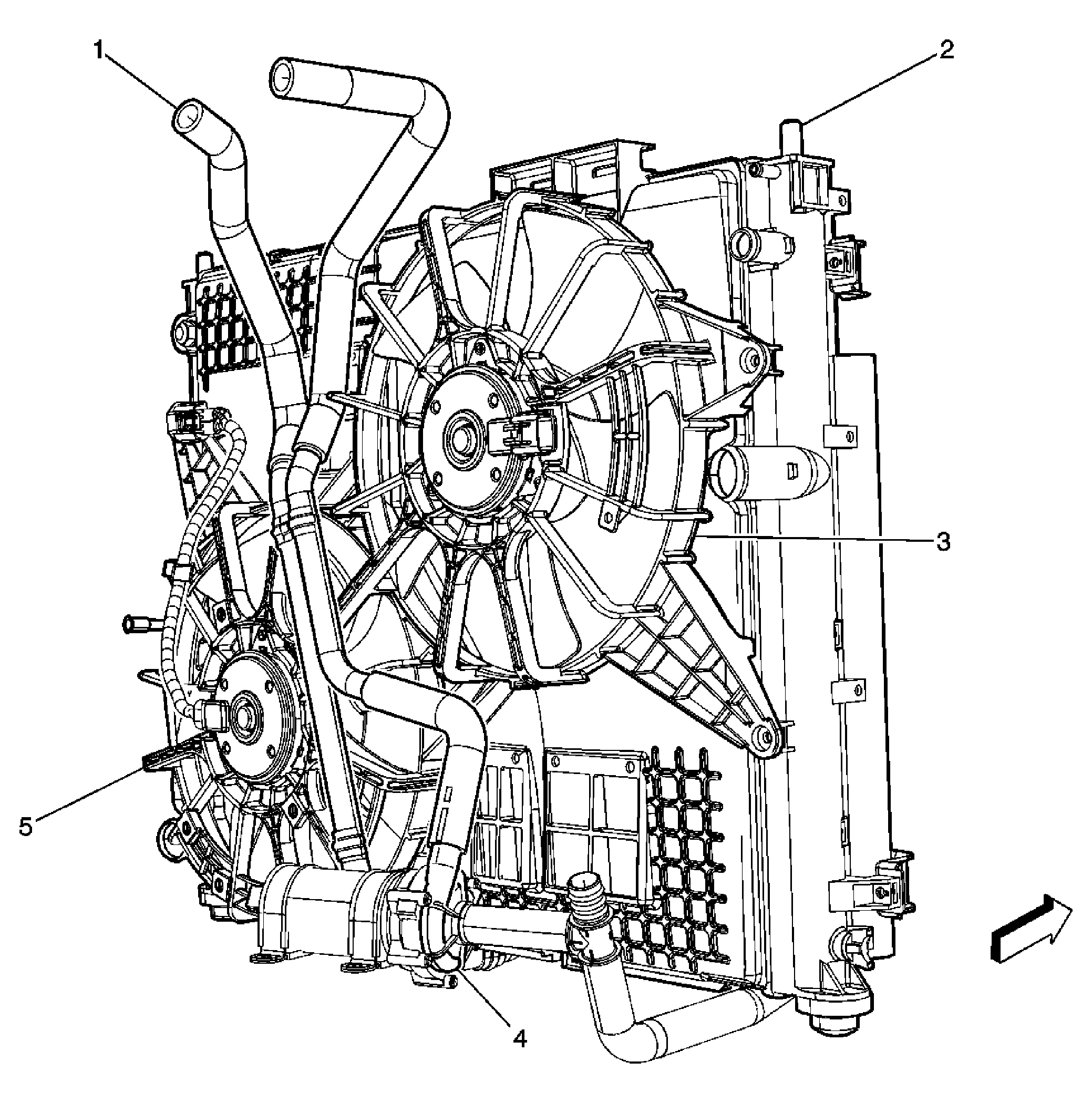

| Callout | Component Name |
|---|---|
| 1 | Heater Hose |
| 2 | Radiator |
| 3 | Cooling Fan - Right |
| 4 | After Boil Heater Pump (LH2/V92 Only) |
| 5 | Cooling Fan - Left |

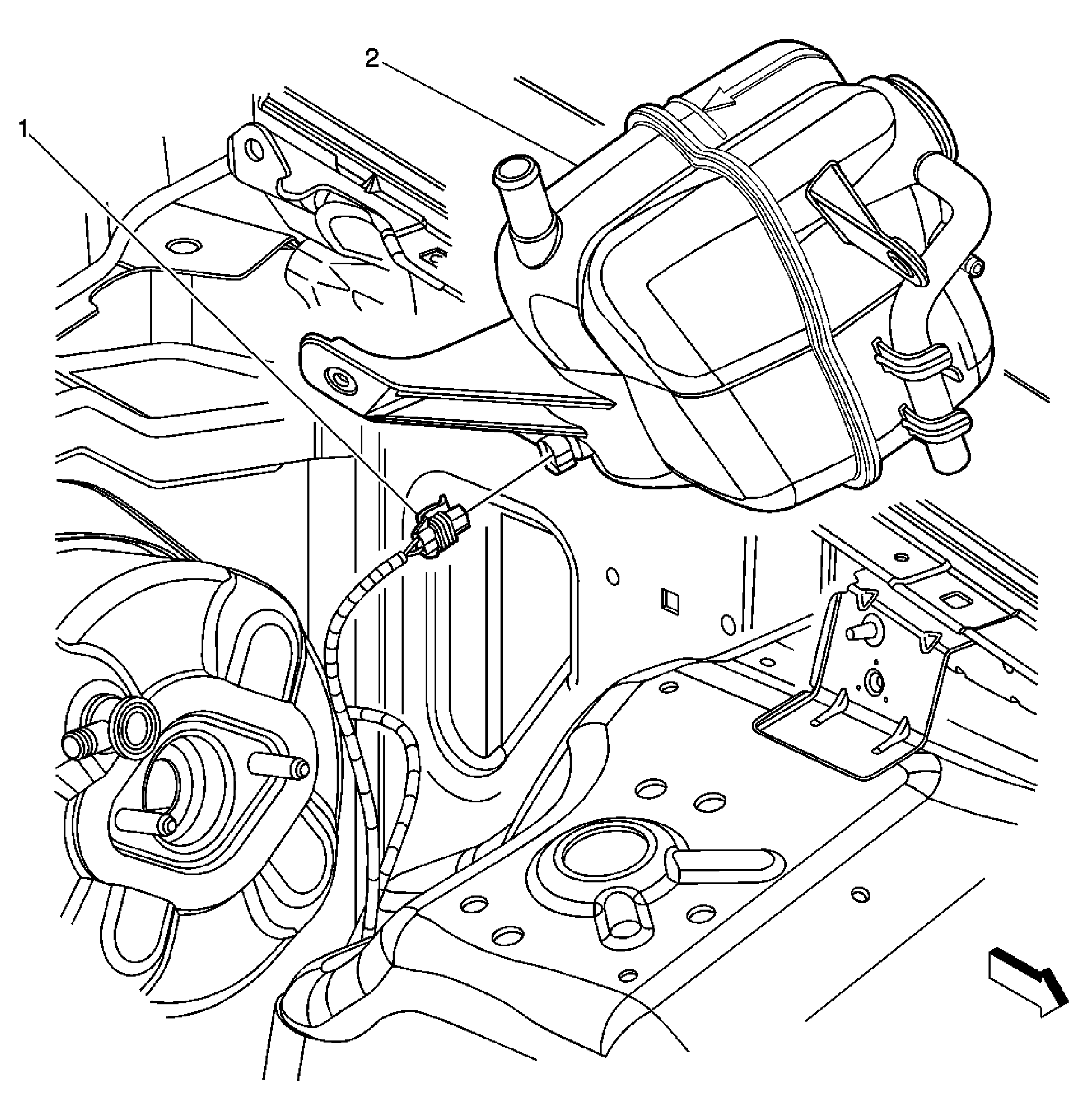

| Callout | Component Name |
|---|---|
| 1 | Coolant Level Switch |
| 2 | Coolant Recovery Reservoir |
| Callout | Component Name |
|---|---|
| 1 | Frame |
| 2 | Hood Latch Bracket |
| 3 | Cooling Fan - Left |
| 4 | Cooling Fan - Right |
| 5 | Distance Sensing Cruise Control Module (w/K59) |
