Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Exterior Lighting System Components (Front of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Marker Lamp - RF
2	Park/Turn Signal Lamp - RF
3	Headlamp - Low Beam - Right
4	Headlamp - High Beam - Right
5	Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
6	Headlamp - High Beam - Left
7	Headlamp - Low Beam - Left
8	Park/Turn Signal Lamp - LF
9	Marker Lamp - LF
10	Fog Lamp - LF
11	Fog Lamp - RF

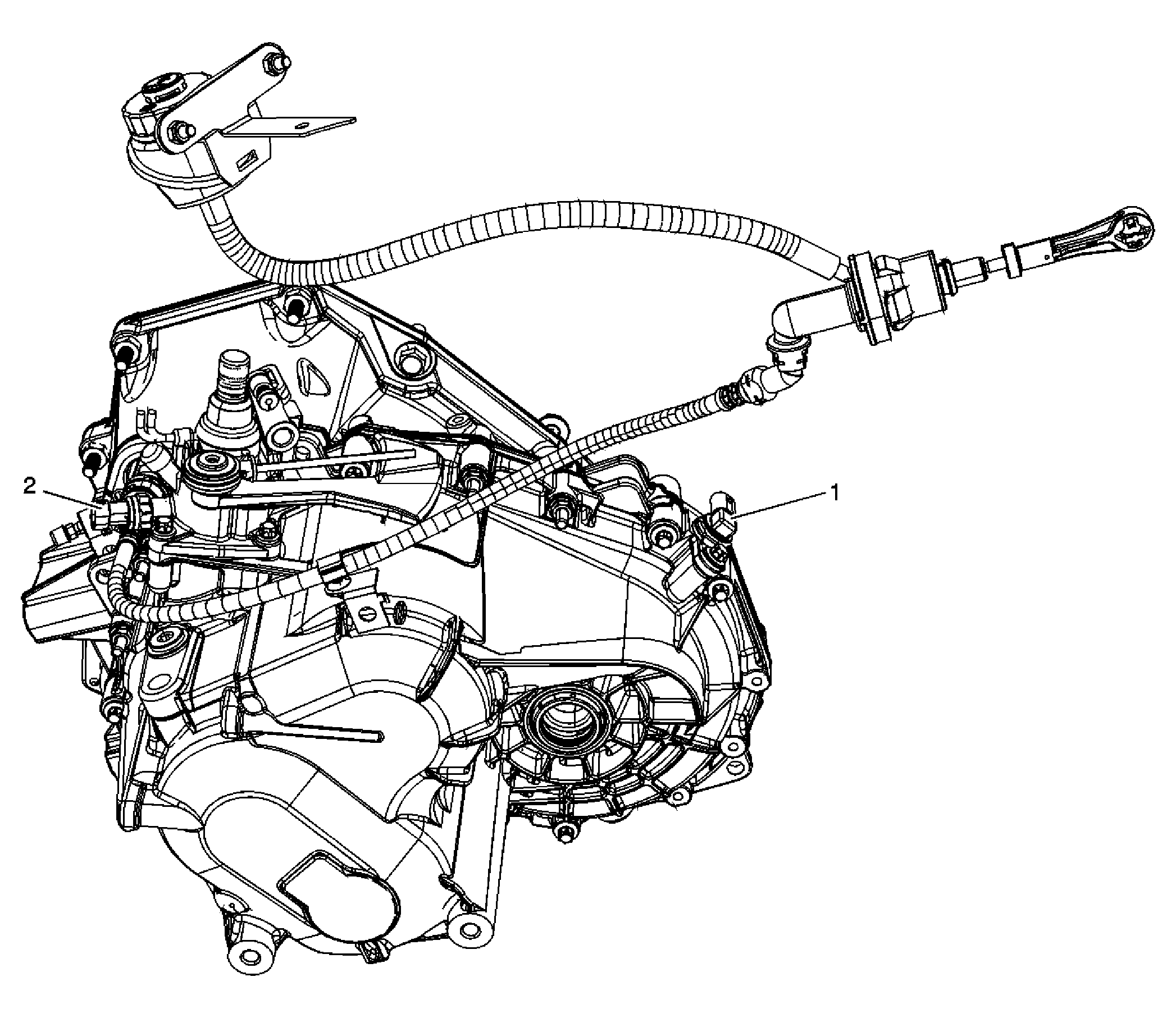

Fig 2: Locating Backup Lamp Switch (Manual Trans, Right Rear View)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Vehicle Speed Sensor (VSS)
2	Backup Lamp Switch

Fig 3: Locating Interior Forward Overhead Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Courtesy/Reading Lamp - LF
2	Cellular Microphone (UE1)
3	Sunroof Switch (CF5/C3Y)
4	Courtesy/Reading Lamp - RF
5	Dome/Reading Lamp (w/o C3Y)
6	Sunroof (CF5/C3Y)
7	Vanity Mirror Lamp - Right (DH6)
8	Inside Rearview Mirror
9	OnStar Keypad (UE1)
10	Vanity Mirror Lamp - Left (DH6)

Fig 4: Locating Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Ambient Light Sensor
8	Hazard Switch
9	Radio
10	Inflatable Restraint I/P Module
11	Rear Window Defogger Switch
12	Traction Control Switch (NW7/NW9)
13	Cigar Lighter
14	A/C Request Switch
15	HVAC Control Module
16	Inflatable Restraint Steering Wheel Module
17	Fog Lamp Switch
18	I/P Dimmer Switch
19	Adjustable Pedals Position Switch

Fig 5: Locating Brake/Adjustable Pedals Position Sensors (Above Brake Pedal)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Brake Pedal Position Sensor
2	Adjustable Pedals Position Sensor

Fig 6: Locating Transmission Range Indicator Lamp (Inside Center Console)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Transmission Range Indicator Lamp

Fig 7: Locating Rear Compartment Courtesy Lamp (Under Rear Package Shelf - Sedan)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Rear Compartment Courtesy Lamp

Fig 8: Locating Exterior Lighting System Components (Rear of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Marker Lamp - Left
2	Tail/Stop and Turn Signal Lamp - Right
3	Backup Lamp - Left
4	Center High Mounted Stop Lamp (CHMSL)
5	Rear Window Defogger Grid
6	Backup Lamp - Right
7	Tail/Stop and Turn Signal Lamp - Right
8	Marker Lamp - Right
9	Rear Compartment Lid Release Switch - Exterior
10	License Lamp
