Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

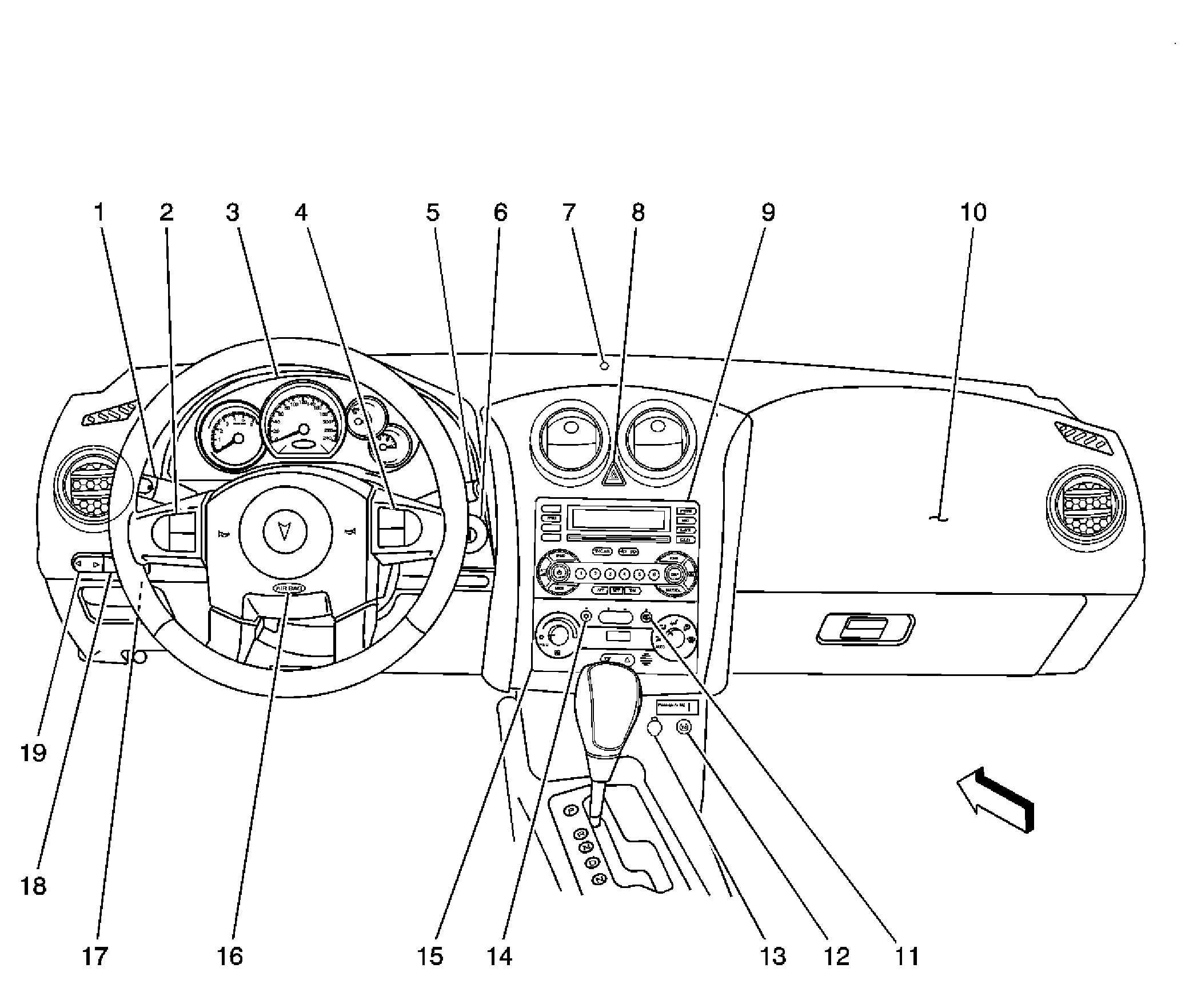

| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Steering Wheel Controls - Left |
| 3 |
Instrument Panel Cluster (IPC) |
| 4 |
Steering Wheel Controls - Right |
| 5 |
Windshield Wiper/Washer Switch |
| 6 |
Ignition Switch |
| 7 |
Ambient Light Sensor |
| 8 |
Hazard Switch |
| 9 |
Radio |
| 10 |
Inflatable Restraint I/P Module |
| 11 |
Rear Window Defogger Switch |
| 12 |
Traction Control Switch (NW7/NW9) |
| 13 |
Cigar Lighter |
| 14 |
A/C Request Switch |
| 15 |
HVAC Control Module |
| 16 |
Inflatable Restraint Steering Wheel Module |
| 17 |
Fog Lamp Switch |
| 18 |
I/P Dimmer Switch |
| 19 |
Adjustable Pedals Position Switch |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Radio, C1 |
| 2 |
Body Control Module (BCM), C2 |
| 3 |
HVAC Control Module, C2 |
| 4 |
HVAC Control Module, C1 |
| 5 |
Inflatable Restraint I/P Module Connector |
| 6 |
C207 |
| 7 |
G201 |
| 8 |
G203 |
| 9 |
Body Control Module (BCM), C3 |
| 10 |
Body Control Module (BCM), C1 |
| 11 |
Body Control Module (BCM) |
