Body Control System Schematics

WARNING: This page is about a different car, the 2005 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

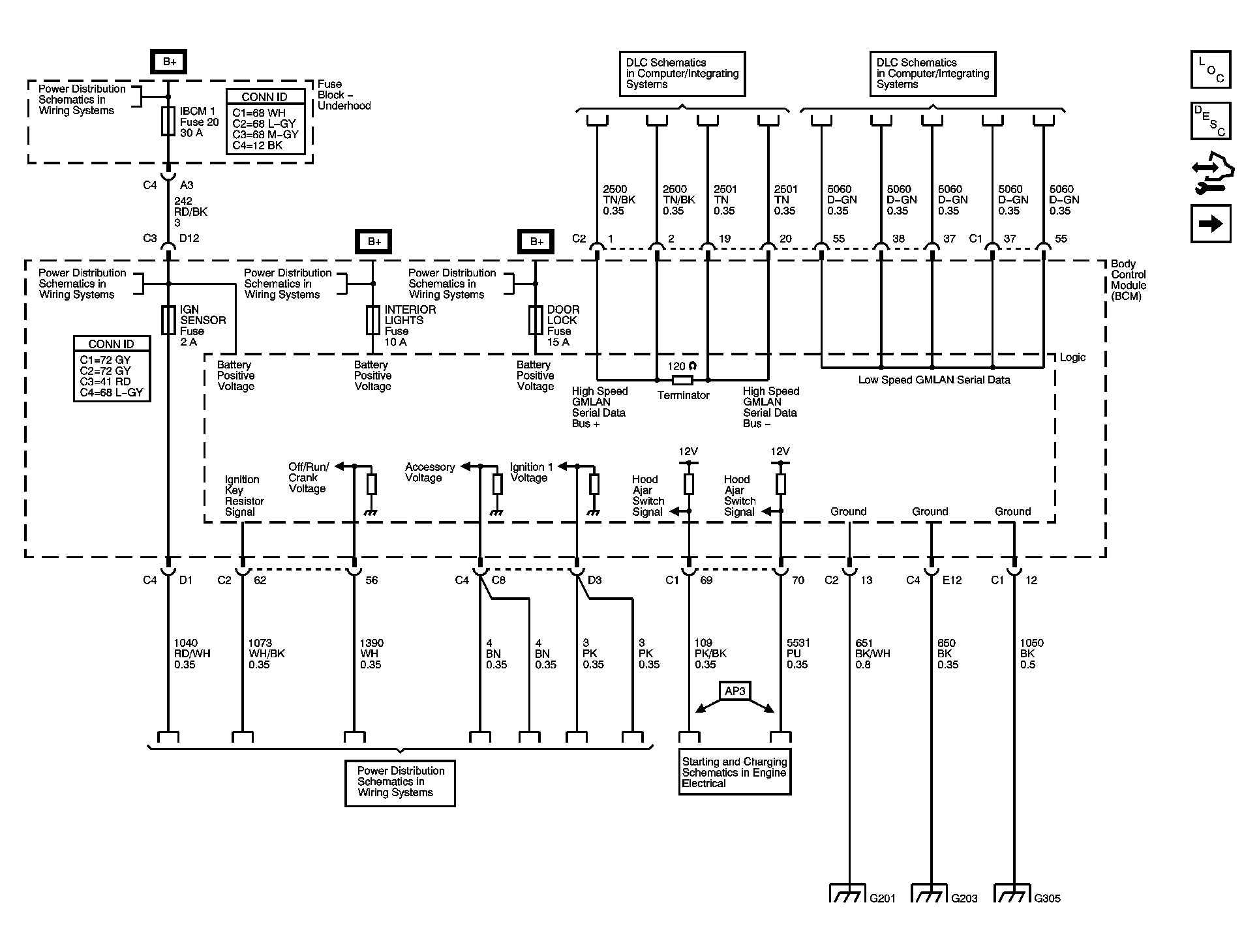

Fig 1: Power, Ground, Data Link and Engine References

Courtesy of GENERAL MOTORS CORP.

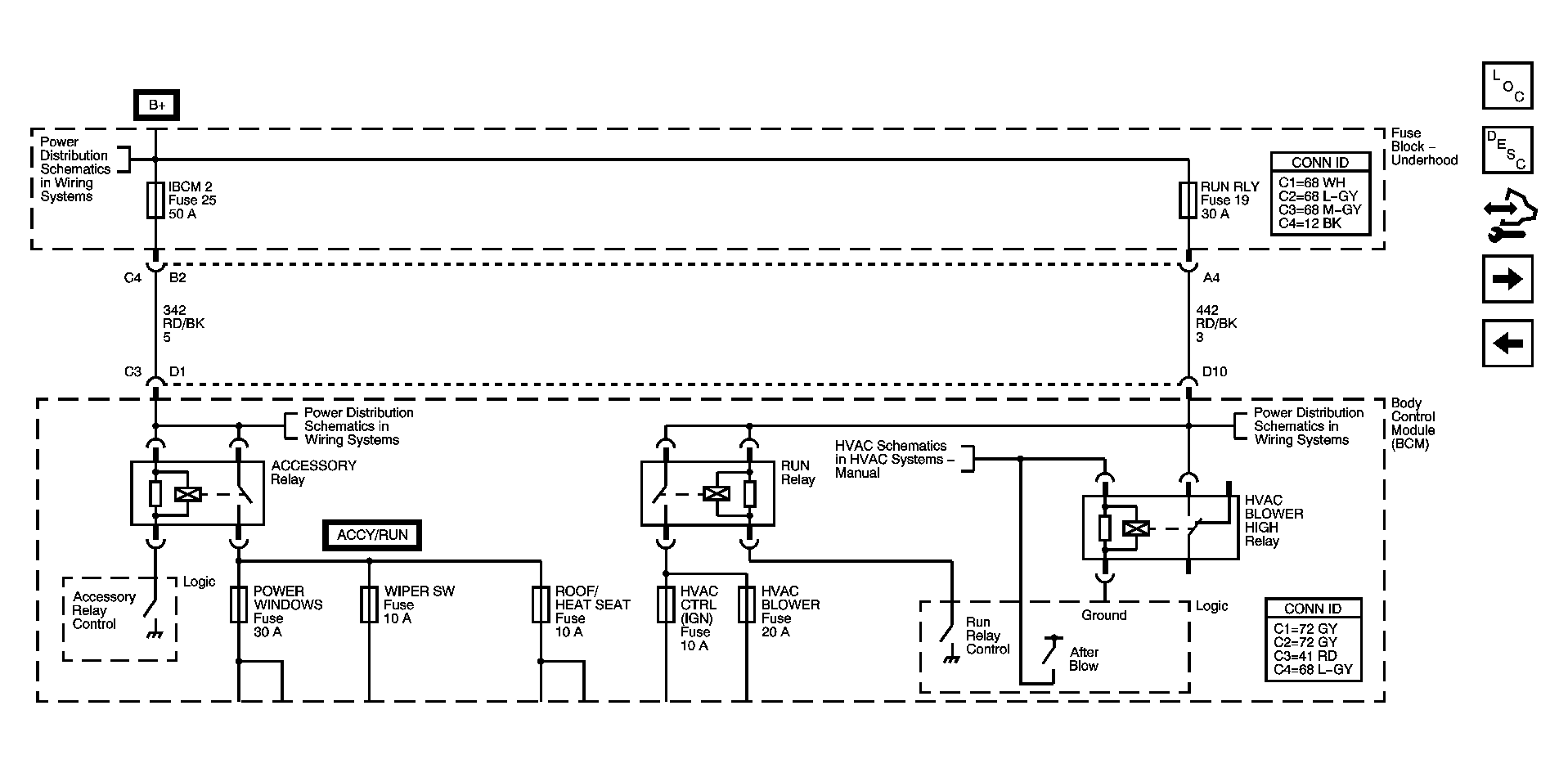

Fig 2: ACCESSORY, HVAC Blower High and RUN Relays

Courtesy of GENERAL MOTORS CORP.

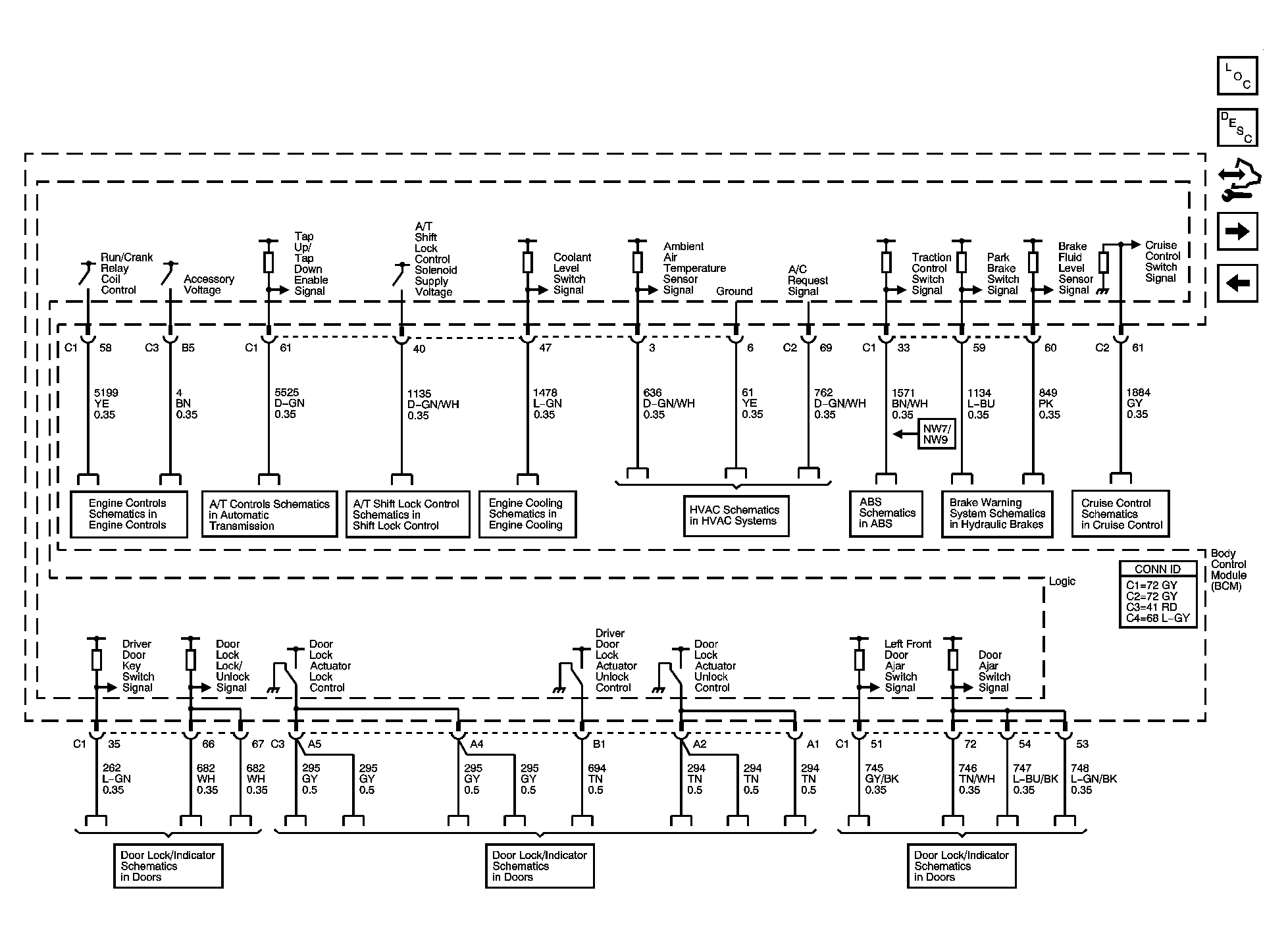

Fig 3: ABS, A/T Controls, A/T Shift Lock Controls, Brake Warning, Cruise Control, Door Lock/Indicator, Engine Controls and Engine Cooling References

Courtesy of GENERAL MOTORS CORP.

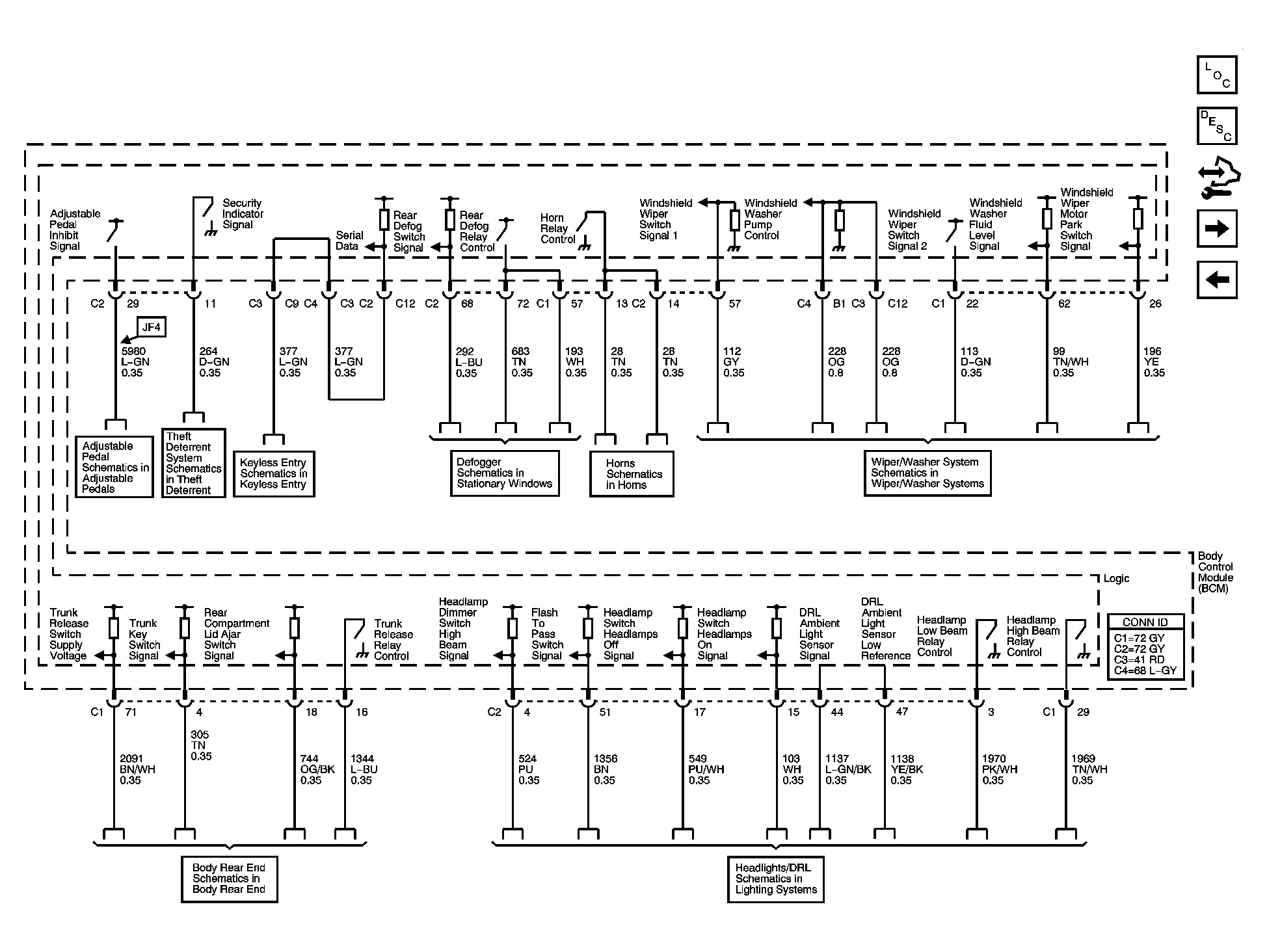

Fig 4: Adjustable Pedals, Body Rear End, Defogger, Headlights/DRL, Horns and Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.

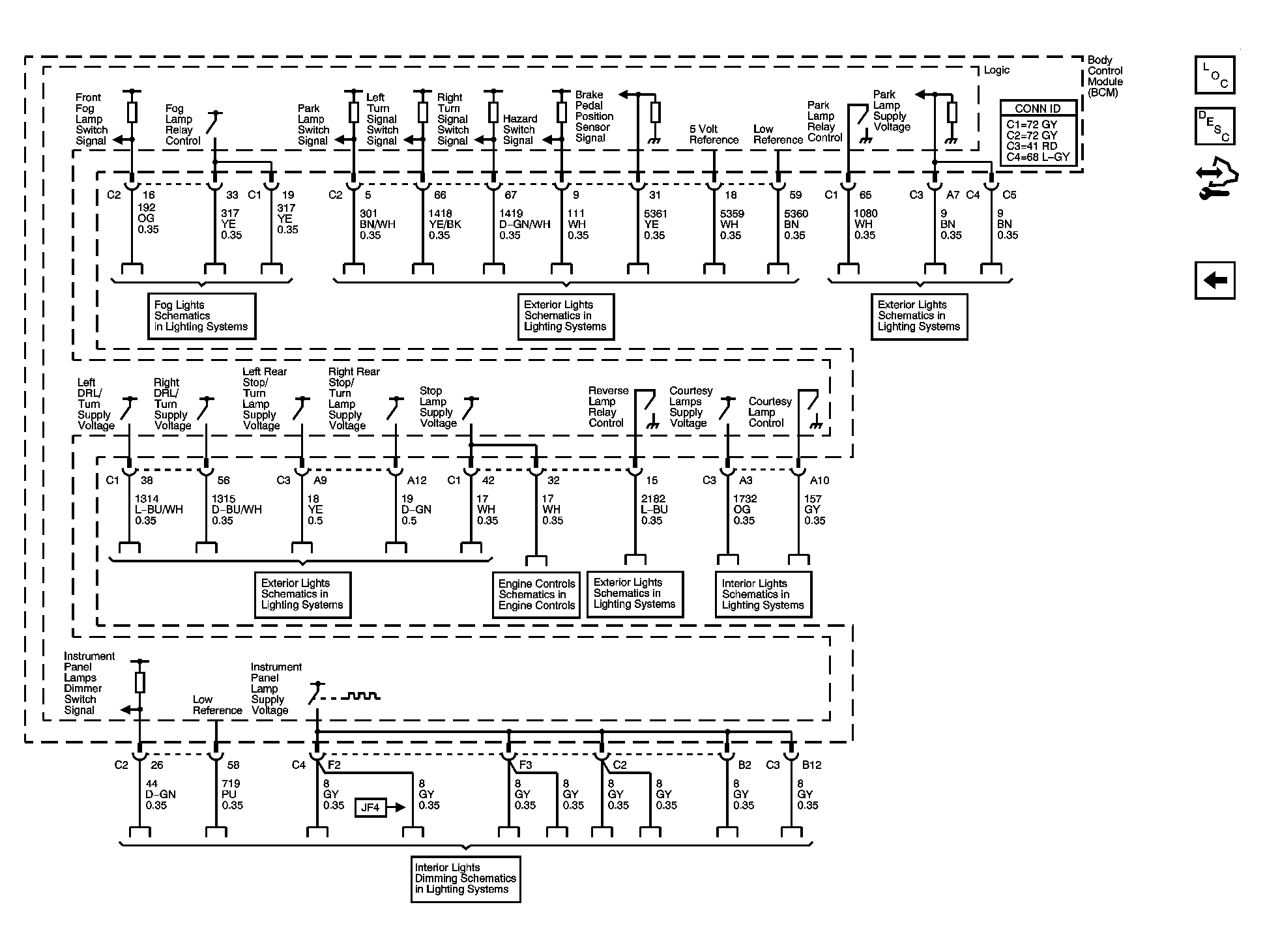

Fig 5: Lighting System References

Courtesy of GENERAL MOTORS CORP.
