Remote Control Door Lock Receiver Replacement (Convertible)

WARNING: This page is about a different car, the 2007 Pontiac G6. However, it is still accessible from the selected car via links, so may be relevant.

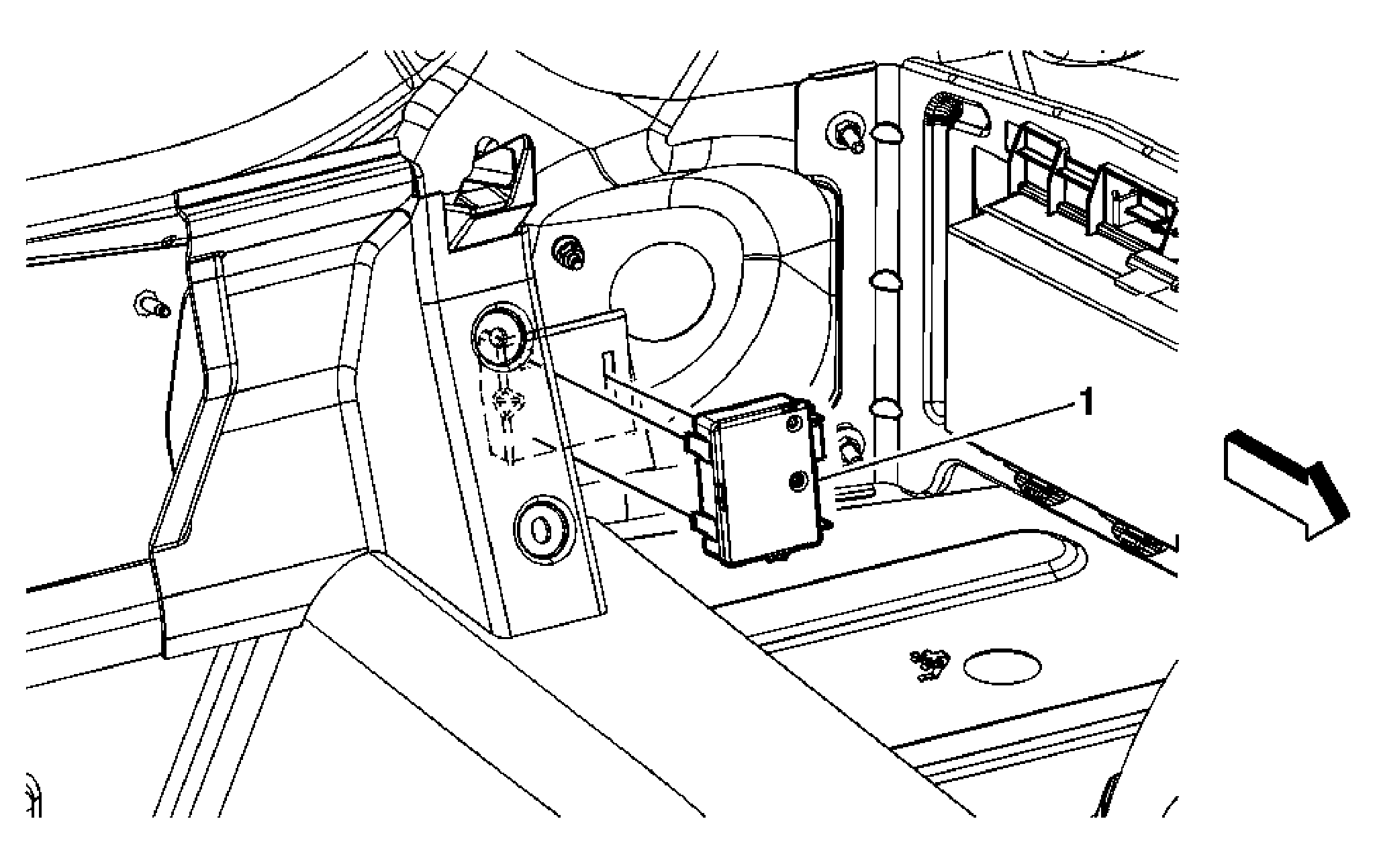

Fig 1: Identifying Remote Control Door Lock Receiver (Convertible)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement . Program the remote control door lock receiver after replacement. Refer to Control Module References .
1	Transmitter Assembly, Remote Control Door Lock Tip: Disconnect the electrical connector. Push the two tabs towards the module assembly in order to release the module from the panel.

Callout

Component Name

Preliminary Procedure

Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
Program the remote control door lock receiver after replacement. Refer to Control Module References .

Transmitter Assembly, Remote Control Door Lock
Tip:

Disconnect the electrical connector.
Push the two tabs towards the module assembly in order to release the module from the panel.
