Power and Grounding Component Views

Fig 1: Identifying G102
GM1863199Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 Fuse Block - Underhood
3 RF Headlamp
Fig 2: Identifying G114
GM1863198Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Manifold
2 G114
3 Starter Motor
Fig 3: View Of G110 And G112
GM1863197Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Valve Cover
2 G110
3 G112
Fig 4: View Of G113
GM1867860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Automatic Transmission
3 G113
Fig 5: View Near The Brake Booster
GM1863194Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake fluid Level Switch
2 LF Fender
3 G103
4 G101
5 G115
6 G105
7 Electronic Brake Control Module (EBCM)
8 Brake Booster Vacuum Sensor
Fig 6: View Behind The I/P Compartment
GM1863196Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Structure
2 Fuse Block - I/P
3 G300
Fig 7: Identifying Steering Column Components
GM1867859Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tilt/Telescope Switch (N38)
2 Turn Signal/Multifunction Switch
3 Inflatable Restraint Steering Wheel Module Coil
4 Theft Deterrent Control Module
5 Steering Wheel Speed Position Sensor
6 Ignition Lock Cylinder Control Actuator
7 Ignition Switch
8 Tilt Motor (N38)
9 Telescope Actuator (N38)
Fig 8: View Below The Drivers Side I/P
GM1863186Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Audio Amplifier (UQA/UQG/UQS)
2 Body Control Module (BCM)
3 Brake Pedal Position Sensor
4 Accelerator Pedal Position (APP) Sensor
5 G301
6 Park Brake Switch
Fig 9: View Near The Passenger Seat
GM1863165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 Battery Current Sensor
3 Battery
4 G304
5 Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 Inflatable Restraint Vehicle Rollover Sensor
7 YAW Rate and Lateral Acceleration Sensor
Fig 10: View Near The Battery
GM1848558Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Floor Panel
2 G305
3 Battery Current Sensor
4 X324
5 Onstar Inline Fuse
6 X325

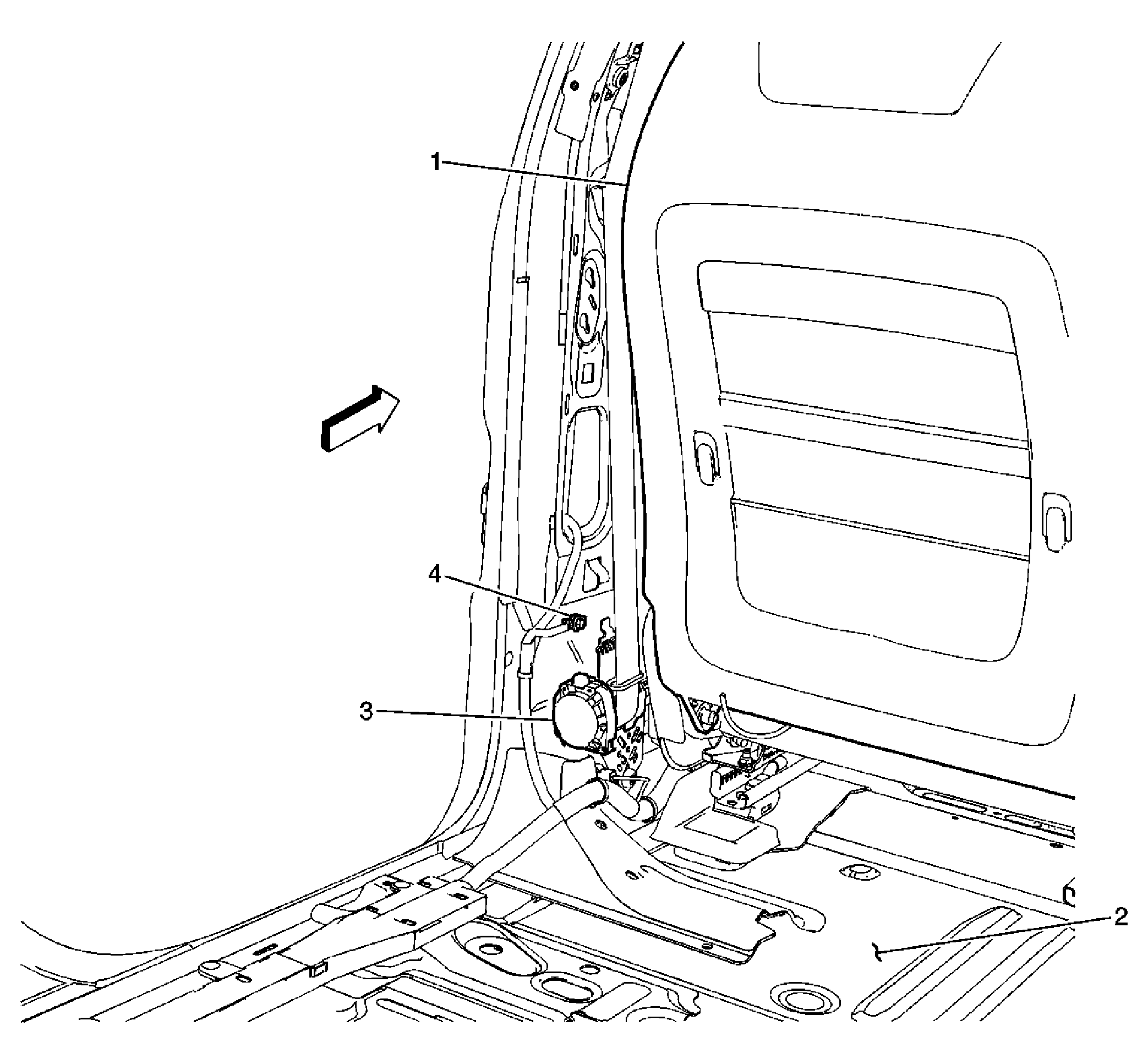

Fig 11: View Behind The Drivers Seat
GM1863121Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Seat
2 Floor Panel
3 Seat Belt Pretensioner - Driver
4 G303

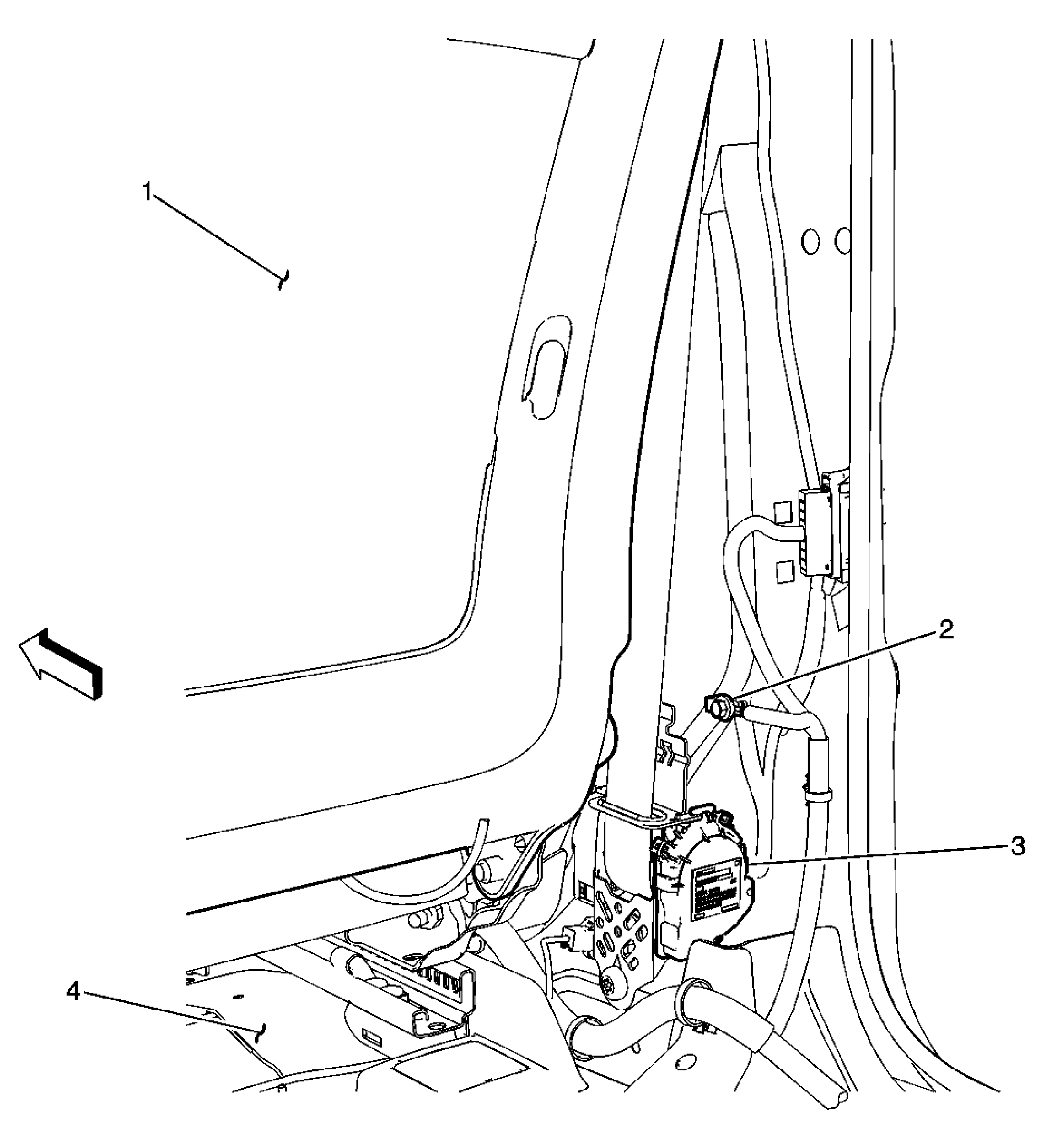

Fig 12: View Behind The Passenger Seat
GM1863116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Seat
2 G302
3 Seat Belt Pretensioner - Passenger
4 Floor Panel
Fig 13: LR Of The Passenger Compartment
GM1863163Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Communication Unit (VCU) (UE1)
2 Rear Parking Assist (RPA) Module (UD7)
3 Digital Radio Receiver (U2K)
4 Liftgate Module (LGM) (E61)
5 Speaker - Left Rear (UQA/UQG/AQS)
6 Accessory AC/DC Power Control Module (KV1)
7 Rearview Camera Module (UVC)
8 G401
9 Liftgate Motor Assembly (E61)
Fig 14: View Of Body Harness - Right Rear Passenger Compartment
GM1848573Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G402
2 X351
3 Inflatable Restraint Roof Rail Module - Passenger Connector
4 Radio Antenna X2
5 Radio Antenna X1
6 X320 (DNP or UD7 or UE1)
7 X322
