Control Assembly: Diagrams



HVAC Connector End Views

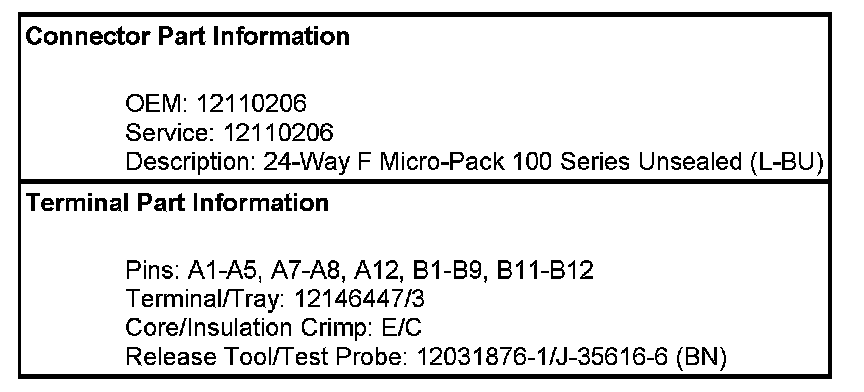

HVAC Control Module C1

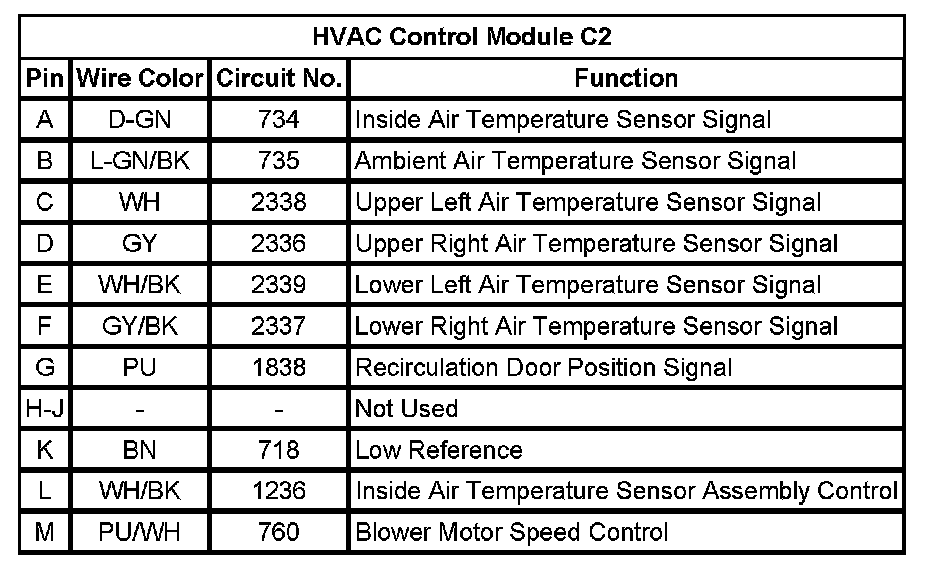

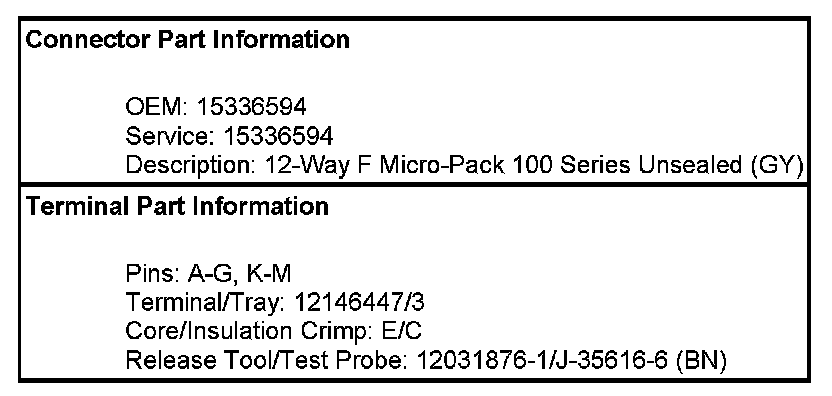

HVAC Control Module C2

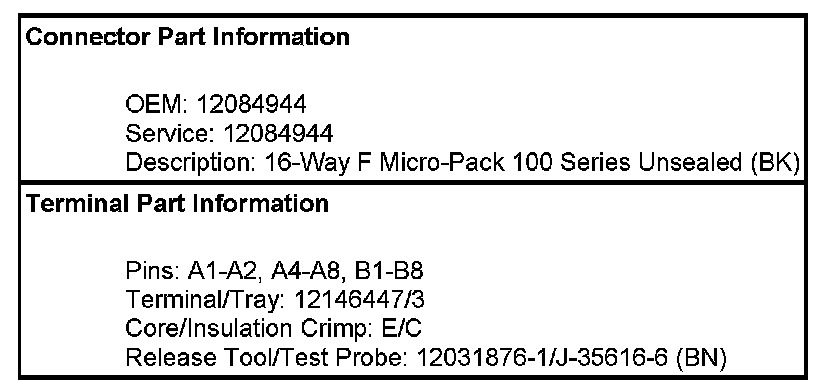

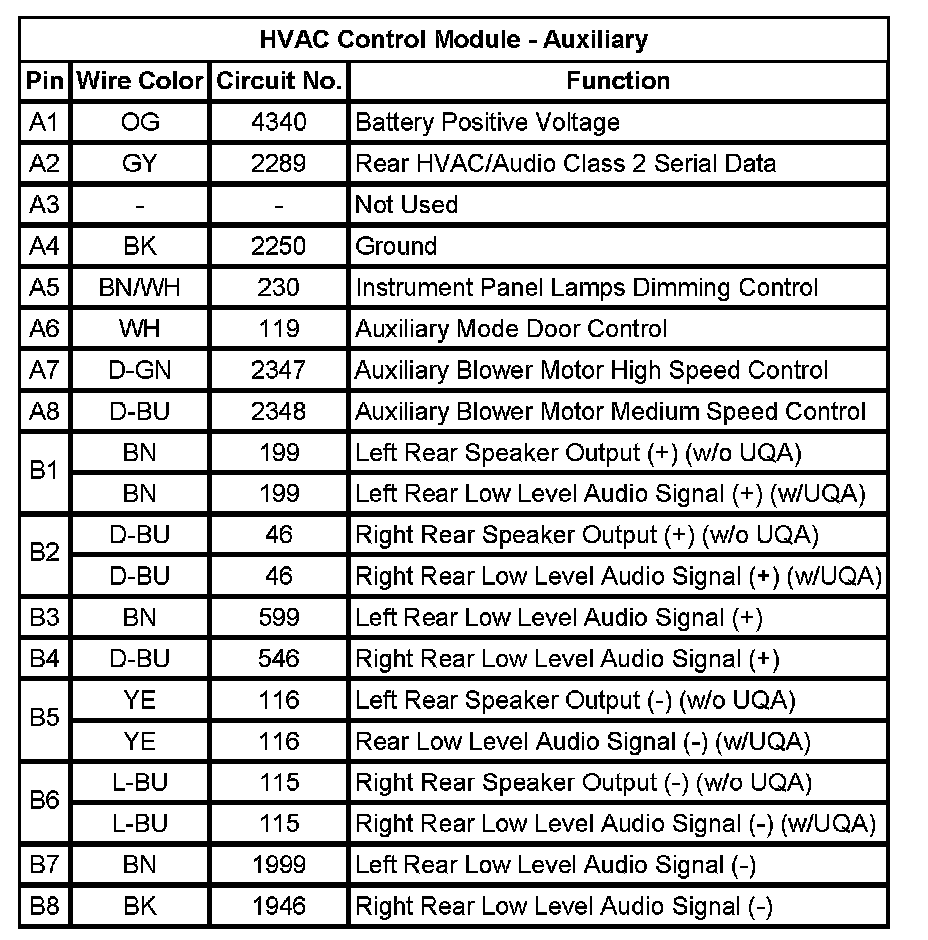

HVAC Control Module - Auxiliary

Transfer Case Shift Control Module - C1:
