Remote Function Schematics

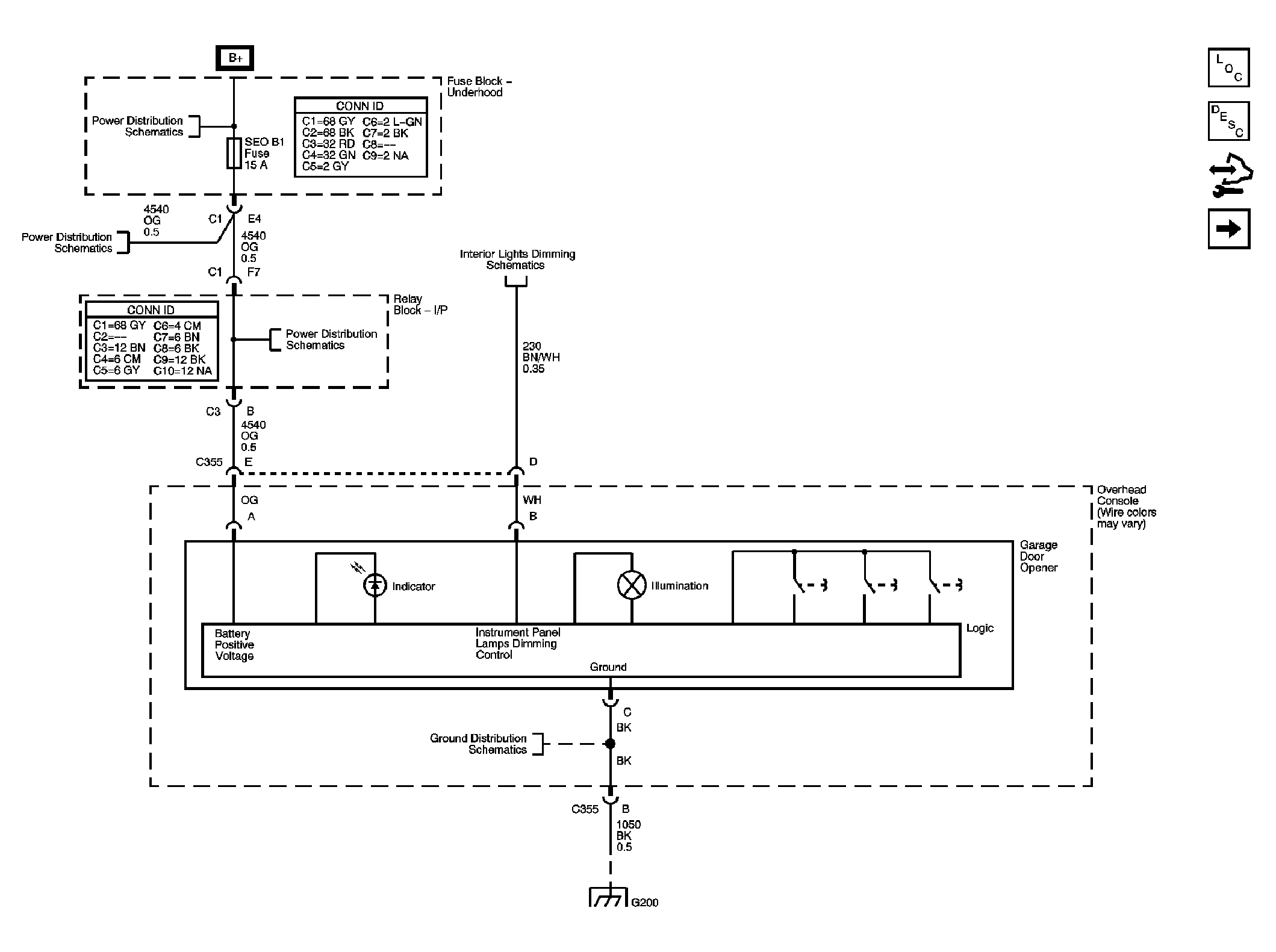

Fig 1: Garage Door Opener Schematics
GM1779489Courtesy of GENERAL MOTORS CORP.

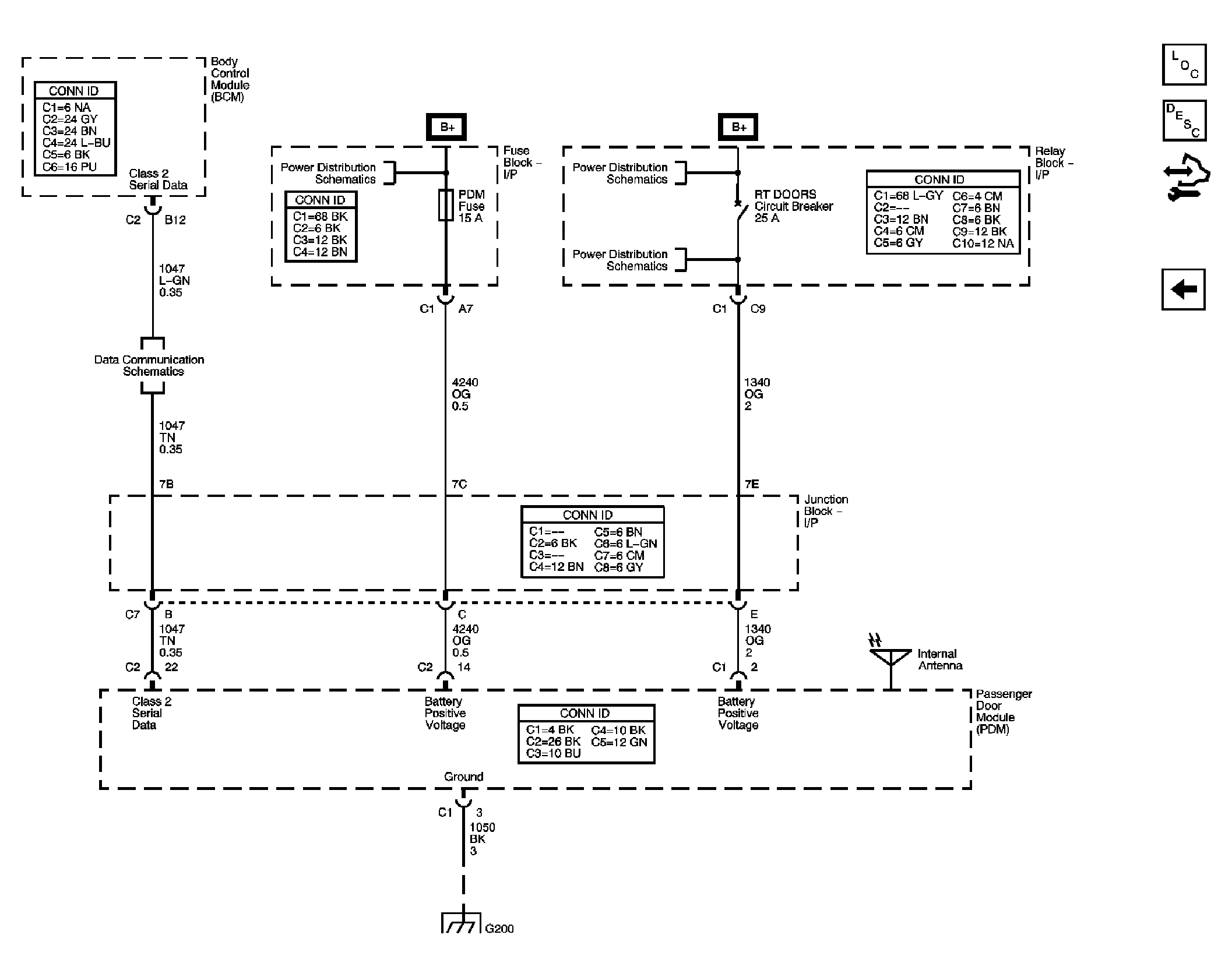

Fig 2: Keyless Entry Schematics
GM1779520Courtesy of GENERAL MOTORS CORP.
